Icon 67611P - 23-24 FSD 4WD 4.5in Front 2.5 VS IR Pair

Icon  |  SKU: ICON-67611P
$81200 $89320

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

⛔ NON-CANCELLABLE OR RETURNABLE ITEM: ⛔
This is because the item is either a clearance item, or it may be made to order. Ask all questions before ordering.
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

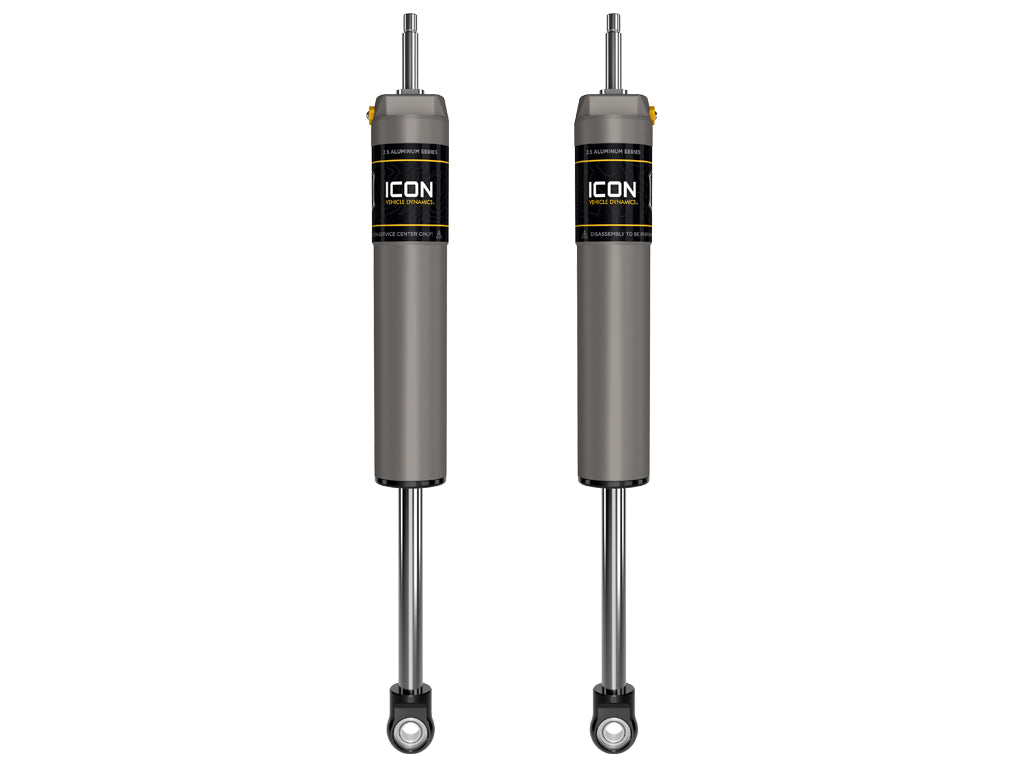

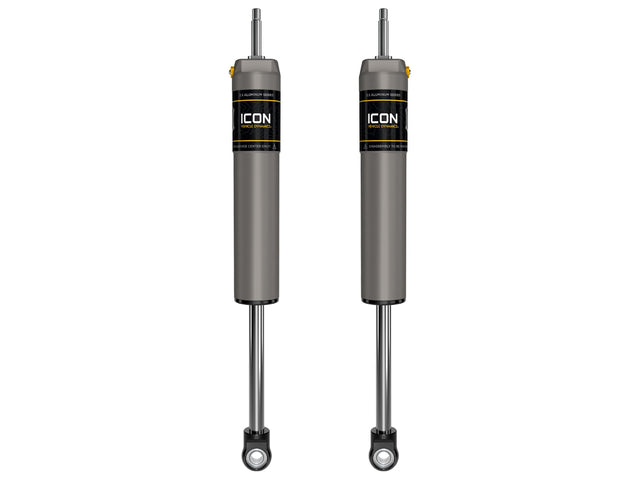

Icon 67611P - 23-24 FSD 4WD 4.5in Front 2.5 VS IR Pair

23-25 FSD 4.5" FRONT 2.5 VS IR PAIR

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 Internal Reservoir shocks provide improved suspension performance, better ride quality, and heat dissipation properties than the standard 2.0 Aluminum Series Internal Reservoir shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.

  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with internal reservoir
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • Polyurethane bushings and forged steel mounting stems for OE factory type fitment
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
  • 100% Rebuildable
  • 100% Revalveable
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Adjustable: No
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Boot Included: NO
Bore Diameter: 2.25
Compressed Length: 15.98
Cylinder Color: Gray
Cylinder Diameter: 2.5
Cylinder Material: Aluminum
Damping Type: Oil
Extended Length: 24.66
External Reservoir: NO
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: No
Lower Mount Type: EYELET
Mounting Hardware Included: Yes
Reservoir Type: Internal
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 611006 - 9/16 HD STEM BUSHING KIT
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 257305 - 7/8 SHAFT 13.00 OAL, 8.75 TRAVEL
Shaft Diameter: 0.875
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Shoulder of Stem
Shock Absorber Rod End Measuring Point: Center of Eylet
Stroke Length Front: 8.68
Tube Outside Diameter: 2.5
Upper Mount Type: Stem
Valving Type: Digressive
