Icon 66516R - 2017+ Ford F-250/F-350 Super Duty Rear 0-2in 2.0 Series Aluminum Shocks VS RR

Icon  |  SKU: ICON-66516R
$30895 $33984
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

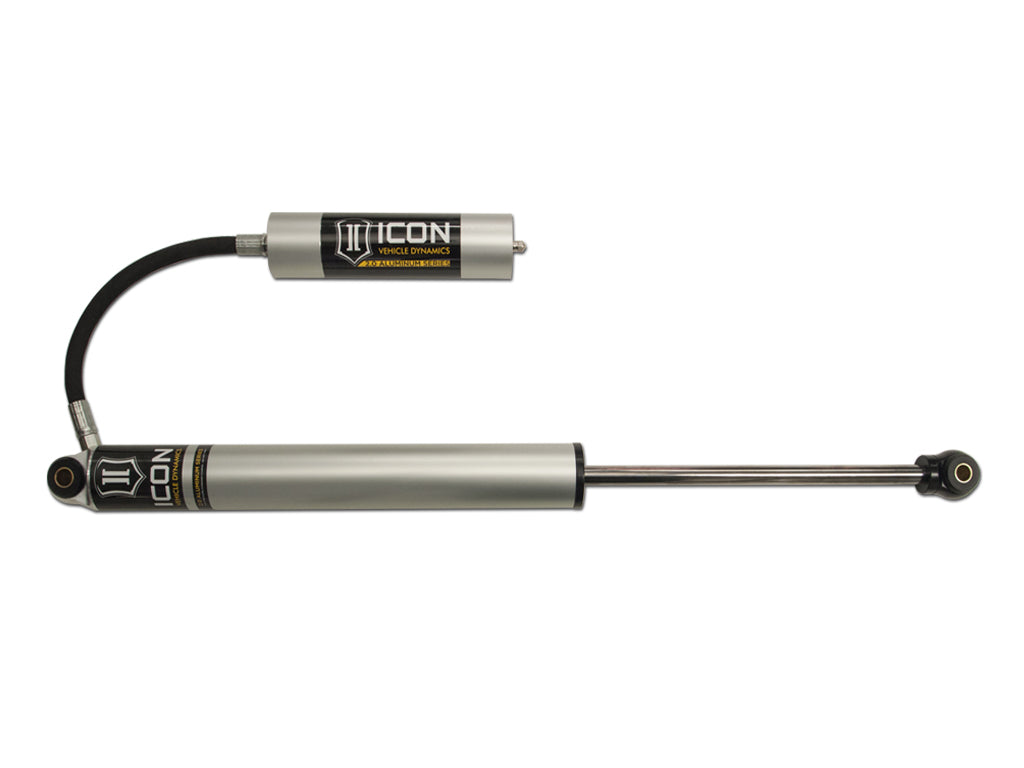

Icon 66516R - 2017+ Ford F-250/F-350 Super Duty Rear 0-2in 2.0 Series Aluminum Shocks VS RR

17-26 FSD REAR 0-2" 2.0 VS RR

ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved performance. These shocks feature remote reservoirs, are vehicle specific, 100% rebuildable/revalveable.

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.

  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with remote reservoir
  • One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 5/8” chrome plated hardened steel shaft resists corrosion and pits
  • 6061 aluminum rod end, top cap, and internals ensure strength and durability
  • Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
  • Application-specific reservoir mounting hardware
  • 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
  • Nitrile rubber top out bumper for noise free operation
  • 100% rebuildable
  • 100% revalveable
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Construction Type: Single Tube
Internal Rebound Bumper: Yes
Internal Rebound Spring: No
Lower Mount Sleeve Inside Diameter: .56
Lower Mount Sleeve Overall Length: 1.475
Lower Mount Type: Eyelet
Material: Aluminum
Maximum Ride Height Raising Distance: 2
Minimum Ride Height Raising Distance: 0
Mounting Hardware Included: No
Quantity: 1
Remote Reservoir: Yes
Reservoir Diameter: 2
Reservoir Hose Inside Diameter: .25
Reservoir Hose Length: 5.75
Reservoir Length: 8
Reservoir Type: Remote
Rod Diameter: .625
Self-Leveling: No
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.625
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Center of Eylet
Shock Absorber Bore Size: 1.75
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Stroke: 12.82
Suspension Type: Spring
Travel Length: 12.82
Type: Telescopic
Upper Mount Bushing Inside Diameter: .62
Upper Mount Bushing Overall Length: 1.45
Upper Mount Type: Eyelet
Valving Type: Digressive
Valving Type: Linear
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 614600 - 2.0 ICON BILLET RESI CLAMP KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable: No
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Body Color: Gray
Body Diameter: 2
Body Material: Aluminum
Boot Included: No
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
Color: Silver
Color: Gray
Compressed Length: 18.6
Configuration: Performance
Cylinder Color: Gray
Cylinder Diameter: 2
Cylinder Finish: Anodized
Cylinder Material: Aluminum
Cylinder Outside Diameter: 2
Damping Type: Oil
Dust Boot Included: No
Dust Shield: No
Dust Shield Included: No
Extended Length: 31.42
External Reservoir: Yes
Finish: Anodized
Gas Charged: Yes
Grade Type: Performance
