Icon 66512R - 2005+ Ford F-250/F-350 Super Duty 4WD 2.5in Front 2.0 Series Aluminum Shocks VS RR

Icon  |  SKU: ICON-66512R
$30895 $33984
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

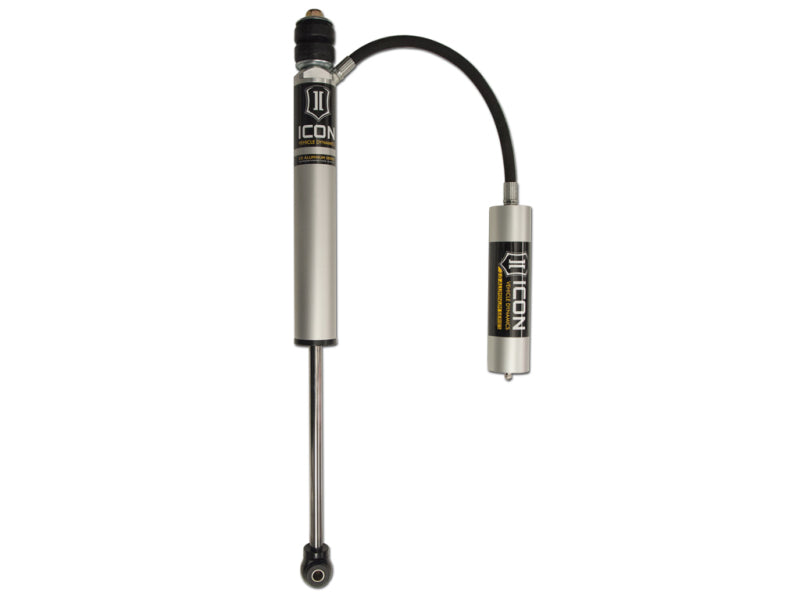

Icon 66512R - 2005+ Ford F-250/F-350 Super Duty 4WD 2.5in Front 2.0 Series Aluminum Shocks VS RR

05-26 FSD 4WD 2.5" FRONT 2.0 VS RR

ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved performance. These shocks feature remote reservoirs, are vehicle specific, 100% rebuildable/revalveable.

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with remote reservoir
  • One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 5/8” chrome plated hardened steel shaft resists corrosion and pits
  • 6061 aluminum rod end, top cap, and internals ensure strength and durability
  • Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
  • Application-specific reservoir mounting hardware
  • 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
  • Nitrile rubber top out bumper for noise free operation
  • 100% rebuildable
  • 100% revalveable
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 614600 - 2.0 ICON BILLET RESI CLAMP KIT
Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Body Color: Gray
Body Diameter: 2
Body Material: Aluminum
Boot Included: NO
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
Coil Over Springs Included: NO
Color: Gray
Color: Black
Color: Silver
Compressed Length: 14.38
Configuration: Performance
Cylinder Color: Gray
Cylinder Diameter: 2
Cylinder Finish: Anodized
Cylinder Material: Aluminum
Cylinder Outside Diameter: 2
Damping Type: Oil
Dust Boot Included: No
Dust Shield: NO
Dust Shield Included: No
Extended Length: 23.2
External Reservoir: Yes
Finish: Anodized
Gas Charged: Yes
Grade Type: Performance
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Construction Type: Single Tube
Internal Rebound Bumper: Yes
Internal Rebound Spring: No
Lower Mount Sleeve Inside Diameter: .56
Lower Mount Sleeve Overall Length: 1.65
Lower Mount Type: EYELET
Material: Steel
Material: Aluminum
Maximum Ride Height Raising Distance: 3.5
Minimum Ride Height Raising Distance: 1.5
Mounting Hardware Included: Yes
Quantity: 1
Remote Reservoir: Yes
Reservoir Diameter: 2
Reservoir Hose Inside Diameter: .25
Reservoir Hose Length: 12.4
Reservoir Length: 8
Reservoir Type: Remote
Rod Diameter: .625
Self-Leveling: No
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.625
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Shoulder of Stem
Shock Absorber Bore Size: 1.75
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Stroke: 8.82
Suspension Type: Spring
Travel Length: 8.82
Type: Telescopic
Upper Mount Stem Overall Length: 2.5
Upper Mount Stem Thread Size: M12 - 1.25
Upper Mount Type: Stem
Valving Type: Linear
Valving Type: Digressive
