Icon 61723E - 2023-2025 Ford F-250/F-350 Super Duty 4WD, 2.5-3” Lift, V.S. 2.5 Series Coilover Conversion Kit, Remote Reservoir w/ CDEV

Icon  |  SKU: ICON-61723E
$3,23595 $3,39775

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Icon 61723E - 2023-2025 Ford F-250/F-350 Super Duty 4WD, 2.5-3” Lift, V.S. 2.5 Series Coilover Conversion Kit, Remote Reservoir w/ CDEV

23-25 F250/F350 4WD 2.5-3" 2.5 VS RR CDEV BOLT IN CO CONVERSION KIT

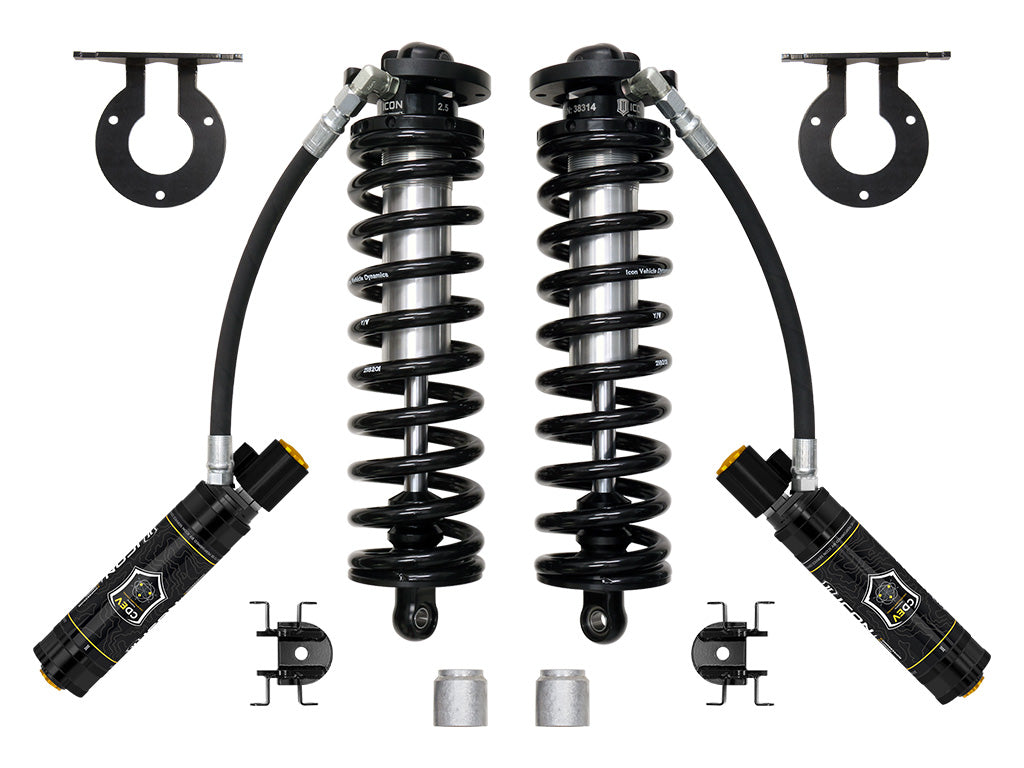

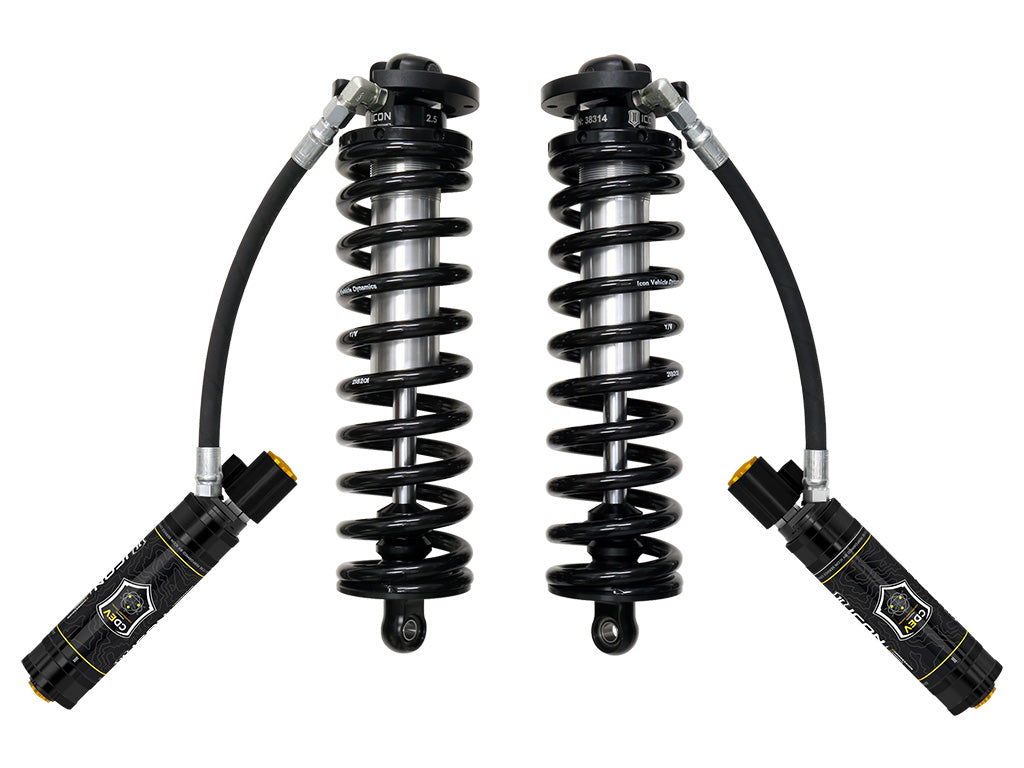

ICON's 2.5 Series Remote Reservoir CDEV Bolt-In Coilover Kit will add a new level of performance and adjustability to the 23-25 Ford Super Duty. Increasing the overall damping ability while allowing for user-defined ride height adjustment.

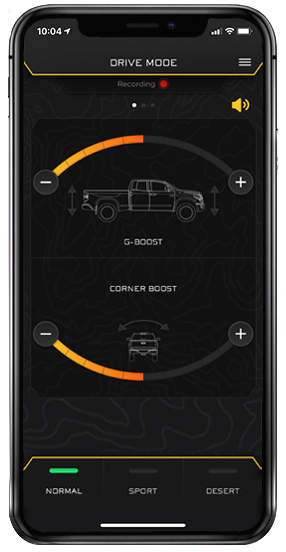

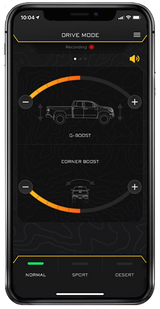

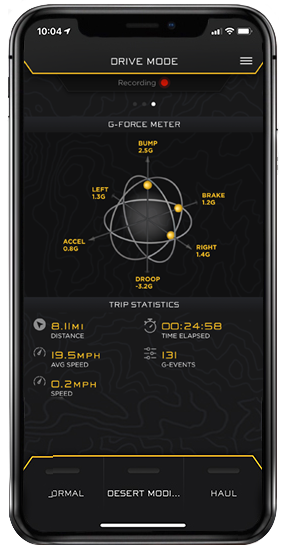

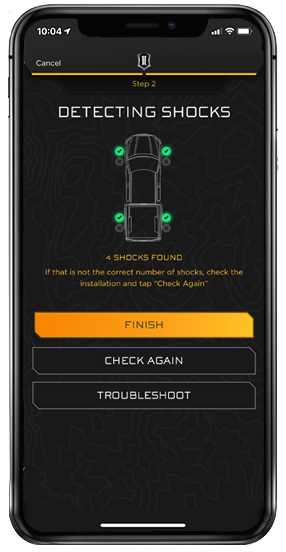

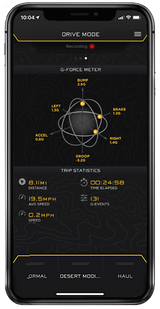

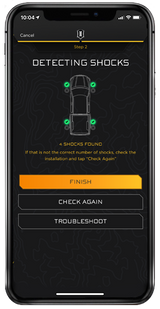

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

  • Bolt-in system fits in OE coil bucket location
  • Ride height adjustable coilovers provide 2.5-3" of front lift over stock
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Decreased body roll and improved on and off-road ride dynamics
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • Coilover conversion allows for addition of optional secondary shocks
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • ICON engineered coil springs guaranteed for life against sagging or breakage
  • FK Rod End bearings for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 67800P - 05-24 FSD 4WD 0-2.5" FRONT 2.5 VS RR PAIR
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 67800EP - 17-24 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDEV PAIR
Add-On Part: 611003 - 2.5 RESI DOUBLER MOUNT 7.5" KIT
Add-On Part: 93502 - 23-24 FSD IIC INSTALL KIT
Add-On Part: 67800CP - 05-24 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR
Add-On Part: 66512 - 05-24 FSD 4WD 2.5" FRONT 2.0 VS IR
Add-On Part: 93500 - 15-23 F150 & 17-22 FSD IIC INSTALL KIT
Add-On Part: 191207 - IIC CONTROLER ALT FUNCTION PLUG KIT
Add-On Part: 66512R - 05-24 FSD 4WD 2.5" FRONT 2.0 VS RR
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Height: Yes
Adjustable Rebound: No
Alignment Cams Included: No
Body Diameter: 2.5
Boot Included: No
Coil Over Springs Included: Yes
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Adjustment Type: Electronic
Damping Type: Oil
Dust Shield: No
Dust Shield Included: No
Gas Charged: Yes
Grade Type: Performance
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Aluminum
Material: Steel
Maximum Lift: 3.75
Minimum Lift: 0
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Upper Mount Type: Mounting Plate
Valving Type: Digressive
