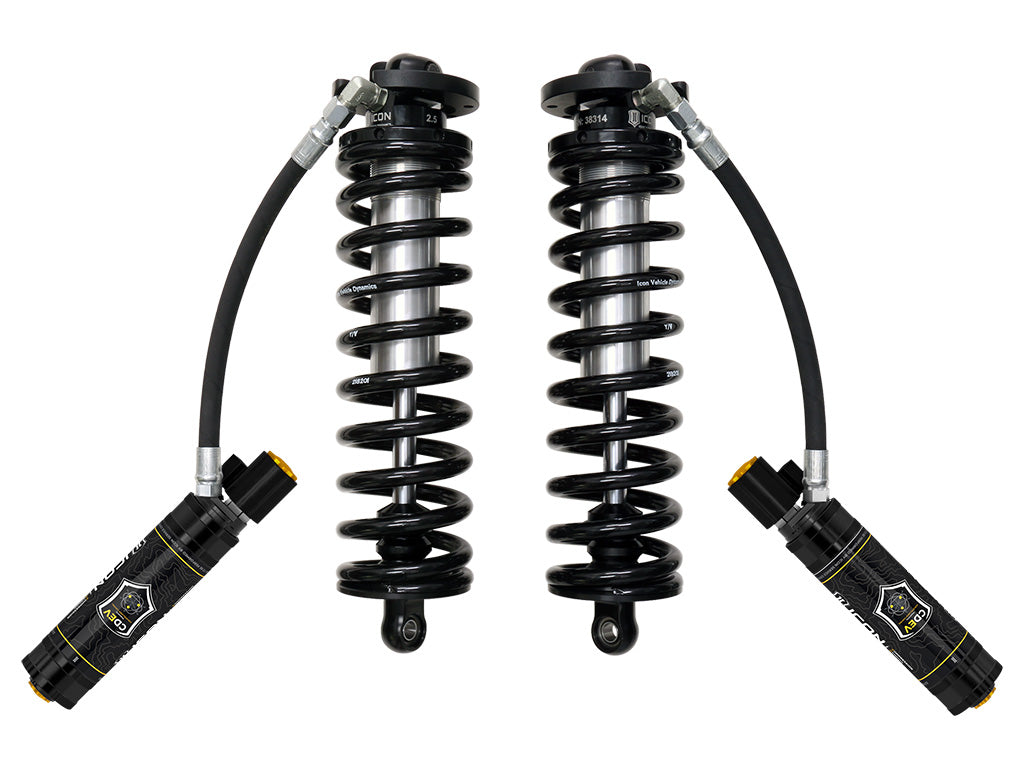

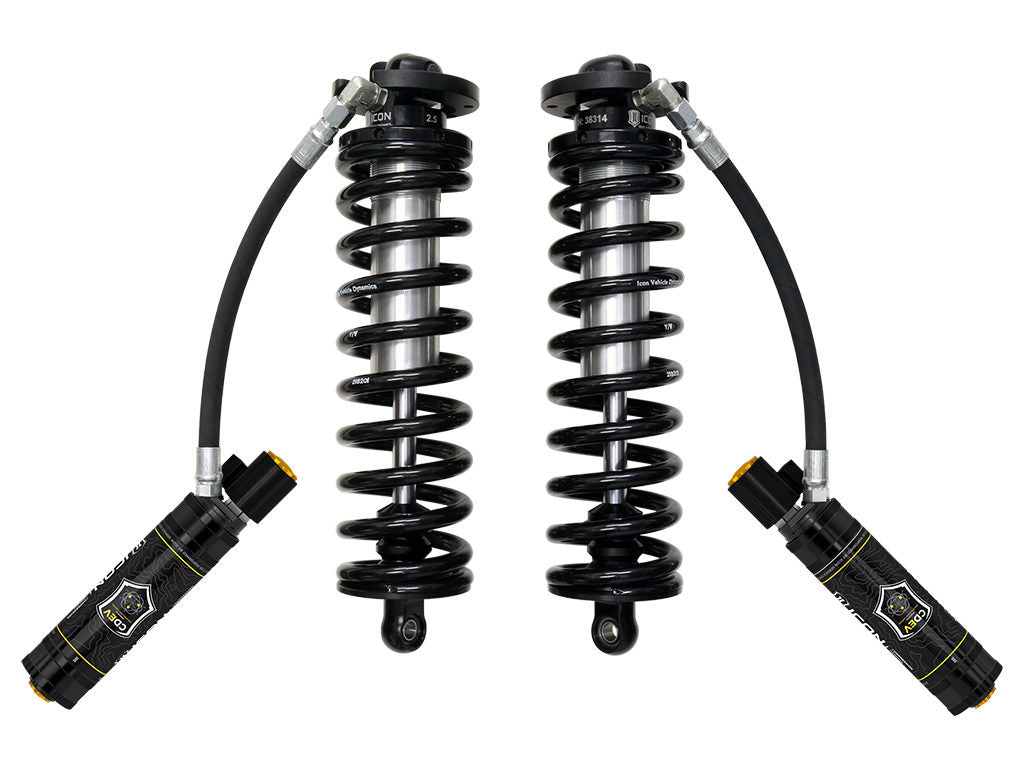

Icon 61721E - 2017+ Ford F-250/F-350 SD 4WD 4.5-5in 2.5 Series Shocks VS RR CDEV Bolt-In Conversion Kit

Icon  |  SKU: ICON-61721E
$3,21545 $3,53700
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Icon 61721E - 2017+ Ford F-250/F-350 SD 4WD 4.5-5in 2.5 Series Shocks VS RR CDEV Bolt-In Conversion Kit

17-25 FSD 4WD 4-5.5" 2.5 VS RR CDEV BOLT IN CO CONVERSION KIT

ICON's 2.5 Series Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to Ford Super Duty trucks. They have been designed to increase the overall damping ability while also allowing ride height adjustment.

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2025 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-tuned as necessary. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

  • Bolt-in system fits in OE coil bucket location
  • Ride height adjustable coilovers

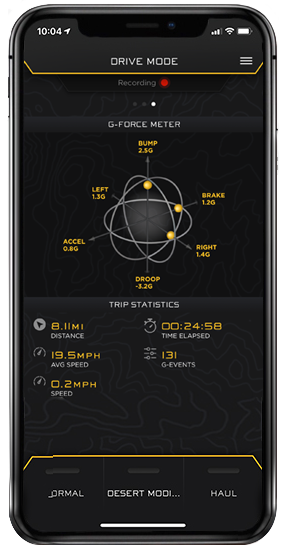

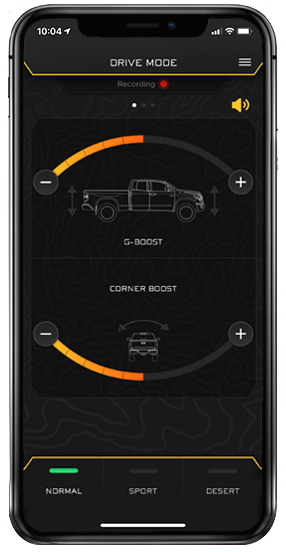

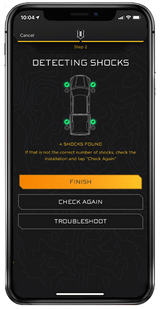

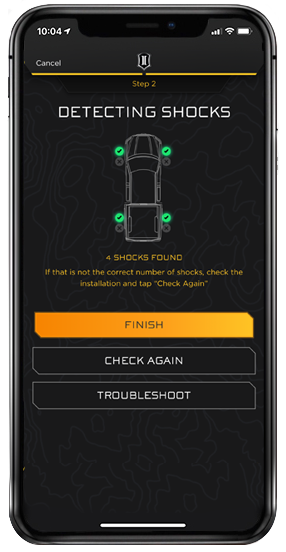

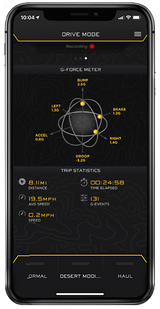

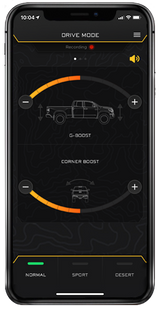

  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Decreased body roll and improved on and off-road ride dynamics
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • Coilover conversion allows for addition of optional secondary shocks
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • ICON engineered coil springs guaranteed for life against sagging or breakage
  • FK Rod End bearings for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Travel Length: 7.96
Upper Mount Type: Mounting Plate
Valving Type: Digressive
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 611003 - 2.5 RESI DOUBLER MOUNT 7.5" KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 37701EP - 17-25 FSD 3-6" REAR 2.5 VS PB CDEV PAIR
Add-On Part: 191207 - IIC CONTROLER ALT FUNCTION PLUG KIT
Add-On Part: 37705EP - 17-25 FSD 0-3" REAR 2.5 VS PB CDEV PAIR
Add-On Part: 93502 - 23-25 FSD IIC INSTALL KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 93500 - 15-25 F150 & 17-22 FSD IIC INSTALL KIT
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
Coil Over Springs Included: Yes
Compressed Length: 14.6
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Adjustment Type: Electronic
Damping Type: Oil
Dust Shield Included: No
Extended Length: 22.56
Front Spring Rate: 400
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: Yes
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Aluminum
Material: Steel
Maximum Lift: 6.25
Maximum Ride Height Raising Distance: 5.5
Minimum Lift: 3.5
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
