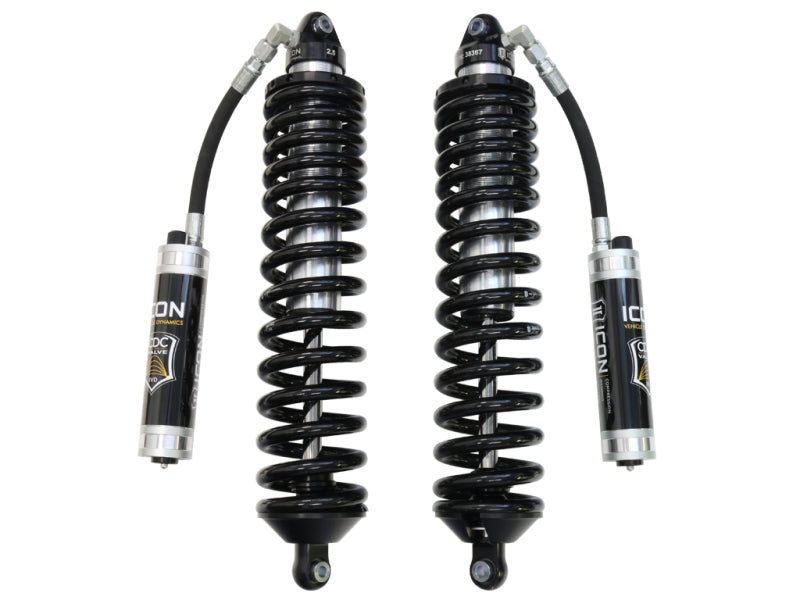

Icon 61700C - 08-16 Ford F-250/F-350 Super Duty 4WD 7-9in 2.5 Series Shocks VS RR CDCV Coilover Kit
Icon | SKU:
ICON-61700C
Sale price
$2,18395
Regular price
$2,40234
Unit price
/
Unavailable
$218.39 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Icon 61700C - 08-16 Ford F-250/F-350 Super Duty 4WD 7-9in 2.5 Series Shocks VS RR CDCV Coilover Kit
08-16 FSD 4WD 7-9" 2.5 VS RR CDCV COILOVER KIT
2008-2016 FSD 4WD 7-9" LIFT 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
Coil Over Springs Included: Yes
Compressed Length: 16.49
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Adjustment Type: Manual
Damping Type: Oil
Dust Shield Included: No
Extended Length: 25.98
Front Spring Rate: 550
Front Spring Rate: 390
Gas Charged: yes
Grade Type: Performance
Includes Bump Stop: Yes
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Material: Aluminum
Maximum Lift: 9
Maximum Ride Height Raising Distance: 9
Minimum Lift: 7
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 191015 - 10" FINNED RESI UPGRADE KIT
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Center of Eylet
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Progressive Dual Rate
Travel Length: 9.49
Upper Mount Type: Eyelet
Valving Type: Digressive
