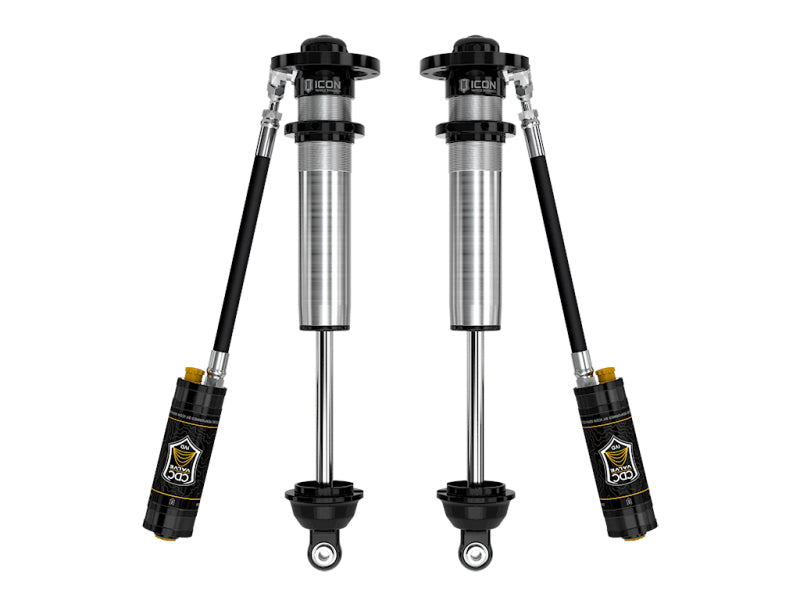

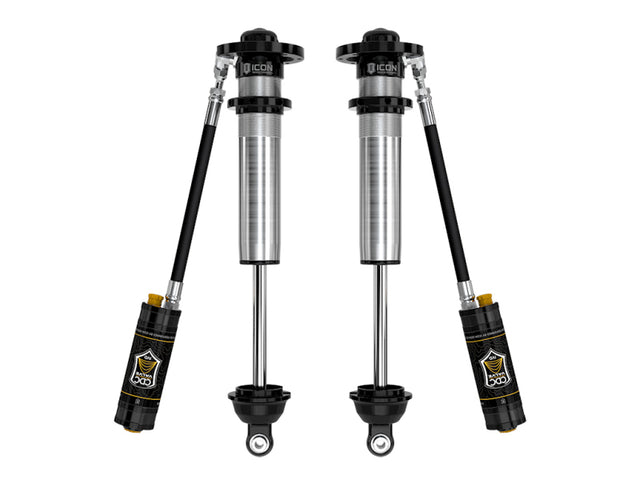

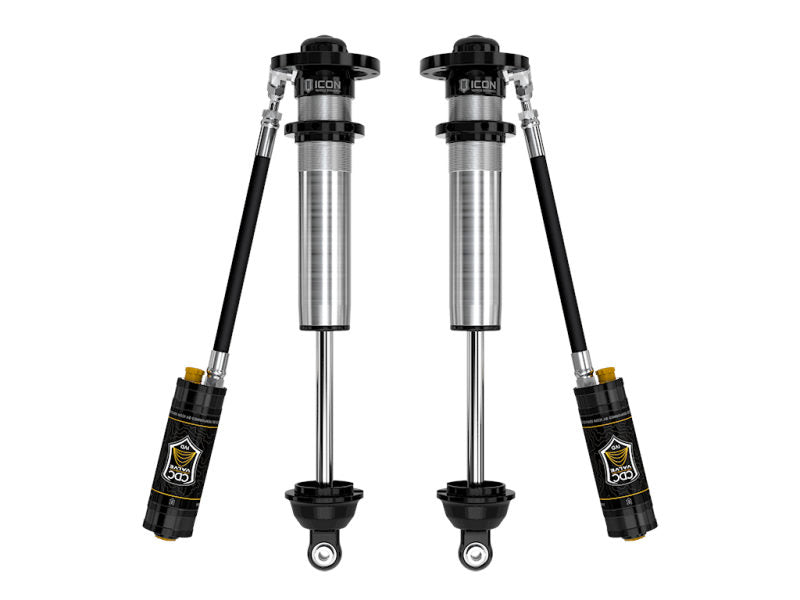

Icon 59750C-CB - 2007+ Toyota Tundra 2.5 Custom Shocks VS RR CDCV Coilover Kit w/LT w/o Coil
Icon | SKU:
ICON-59750C-CB
Sale price
$2,09929
Regular price
$2,30922
Unit price
/
Unavailable
$209.93 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Icon 59750C-CB - 2007+ Toyota Tundra 2.5 Custom Shocks VS RR CDCV Coilover Kit w/LT w/o Coil
07-21 TUNDRA 2.5 VS RR CDCV CO KIT W LT WO COIL
2007-2021 TUNDRA 2.5 VS REMOTE RESERVOIR CDCV CO KIT WITH LONG TRAVEL WITHOUT COILS
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: No
Body Diameter: 2.5
Coil Over Springs Included: No
Compressed Length: 15
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Adjustment Type: Manual
Damping Type: Oil
Dust Shield Included: No
Extended Length: 23.96
Gas Charged: yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Material: Aluminum
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Travel Length: 8.96
Upper Mount Type: Mounting Plate
Valving Type: Digressive
