Icon 58760C - 2008+ Toyota Land Cruiser 200 2.5 Series Shocks VS RR CDCV Coilover Kit

Icon  |  SKU: ICON-58760C
Sale price $2,41015 Regular price $2,65116

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

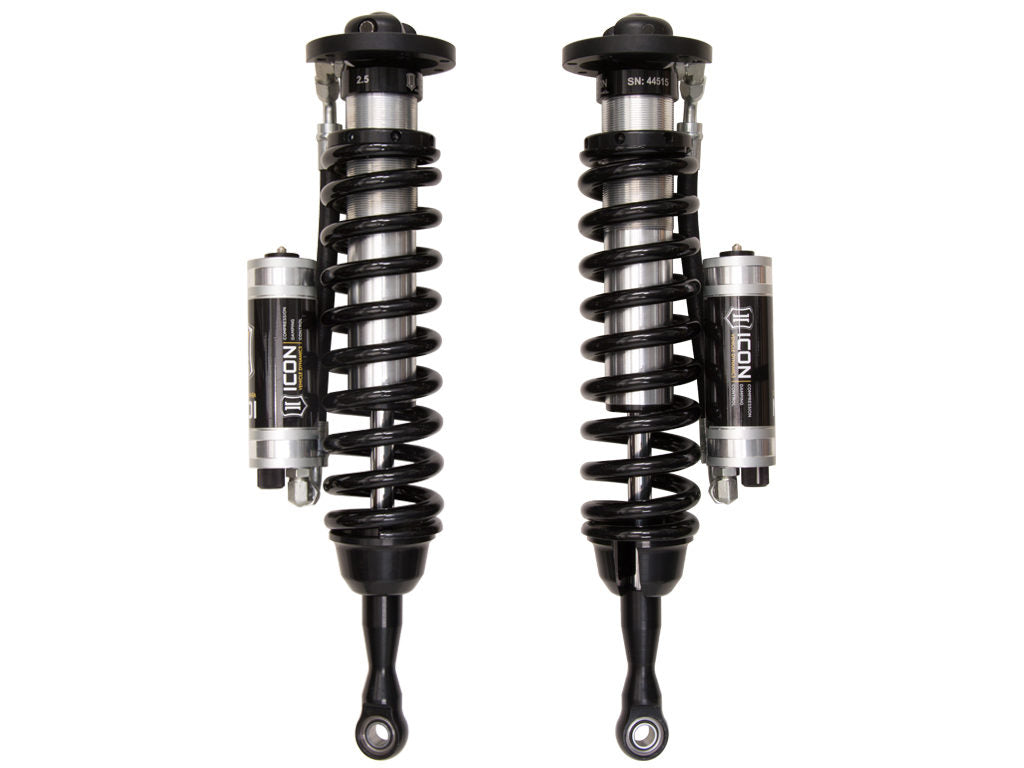

Icon 58760C - 2008+ Toyota Land Cruiser 200 2.5 Series Shocks VS RR CDCV Coilover Kit

08-UP LC 200 2.5 VS RR CDCV COILOVER KIT

2008-UP LAND CRUISER 200 SERIES 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2008-Up Toyota Land Cruiser 200 Series. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.5-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoir ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Land Cruiser 200 Series.

  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • External reservoir to attain cooler operating temperatures during extended offroad use
  • ICON CDCV equipped for external tuneability of your shocks
  • Adjustable 1.5-3" lift height
  • ICON engineered Eibach Springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock body with 7/8 shaft
  • FK rod end bearings for extended longevity and minimal deflection
  • 100% Bolt-on - no drilling, cutting or welding necessary for installation
  • KDSS compliant
Damping Adjustment Type: Manual
Damping Type: Oil
Dust Shield Included: No
Extended Length: 24.83
Front Spring Rate: 600
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Material: Aluminum
Maximum Lift: 3.5
Maximum Ride Height Raising Distance: 3.5
Minimum Lift: 1.5
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 34" x 10.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 6” Backspace / 25mm Offset
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 611025 - 07 TUNDRA CO HARDWARE KIT PAIR
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Travel Length: 5.95
Upper Mount Type: Mounting Plate
Valving Type: Digressive
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
Coil Over Springs Included: Yes
Compressed Length: 18.88
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
