Icon 58760 - 2008+ Toyota Land Cruiser 200 2.5 Series Shocks VS RR Coilover Kit

Icon  |  SKU: ICON-58760
Sale price $2,03835 Regular price $2,24218

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

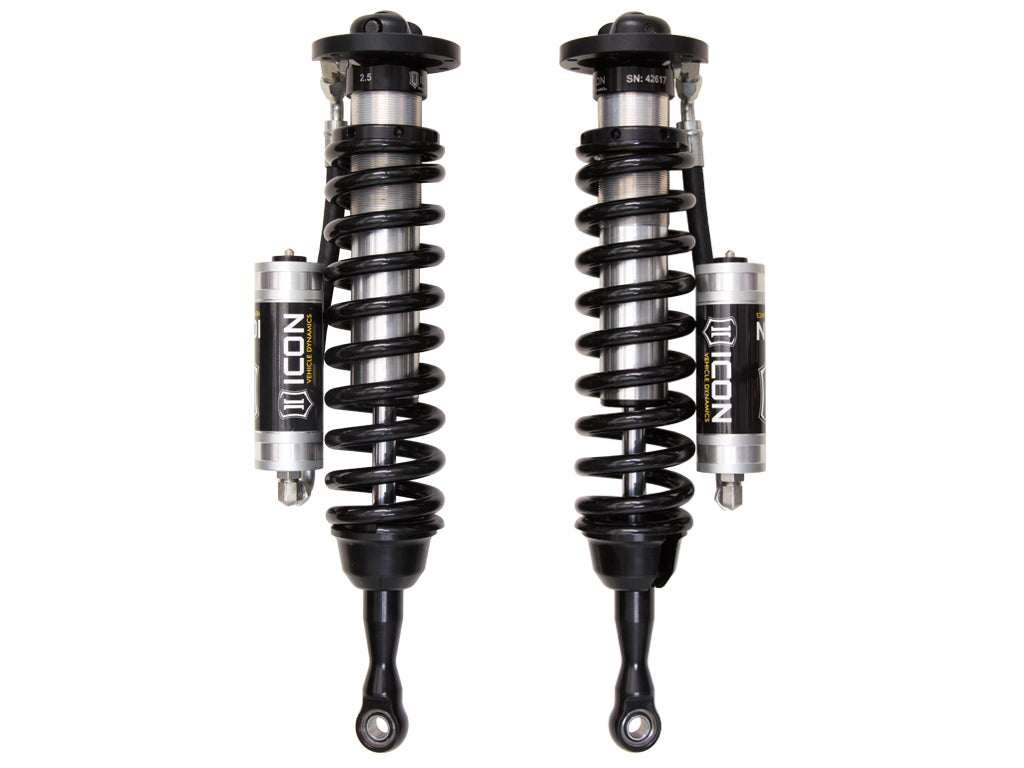

Icon 58760 - 2008+ Toyota Land Cruiser 200 2.5 Series Shocks VS RR Coilover Kit

08-UP LAND CRUISER 200 2.5 VS RR COILOVER KIT

2008-UP LAND CRUISER 200 2.5 VS REMOTE RESERVOIR COILOVER KIT

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 2008-UP Toyota Land Cruiser 200 Series. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.5-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. The remote reservoir ensures optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Land Cruiser 200 Series.

  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • External reservoir to attain cooler operating temperatures during extended offroad use
  • Adjustable 1.5-3.5" lift height
  • ICON engineered Eibach Springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock body with 7/8" shaft
  • FK rod end bearings for extended longevity and minimal deflection
  • 100% Bolt-on - no cutting or welding necessary for installation
  • KDSS compliant
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
Coil Over Springs Included: Yes
Compressed Length: 18.88
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 24.83
Front Spring Rate: 600
Gas Charged: yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Aluminum
Material: Steel
Maximum Lift: 3.5
Maximum Ride Height Raising Distance: 3.5
Minimum Lift: 1.5
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 34" x 10.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 611025 - 07 TUNDRA CO HARDWARE KIT PAIR
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate: 600
Spring Rate Type: Linear
Travel Length: 5.95
Upper Mount Type: Mounting Plate
Valving Type: Digressive
