Icon 58755 - 2007+ Toyota Tundra 3.0 Series Shocks VS RR CDCV Coilover Kit

Icon 58755 - 2007+ Toyota Tundra 3.0 Series Shocks VS RR CDCV Coilover Kit

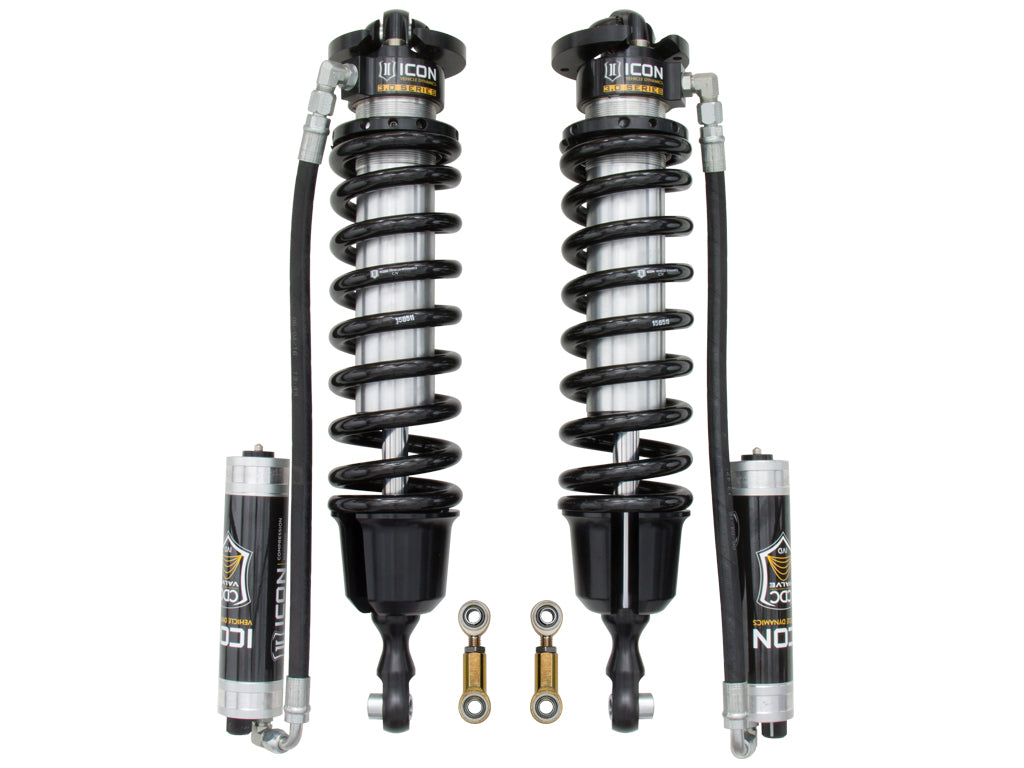

07-21 TUNDRA/08-22 SEQUOIA 3.0 VS RR CDCV COILOVER KIT

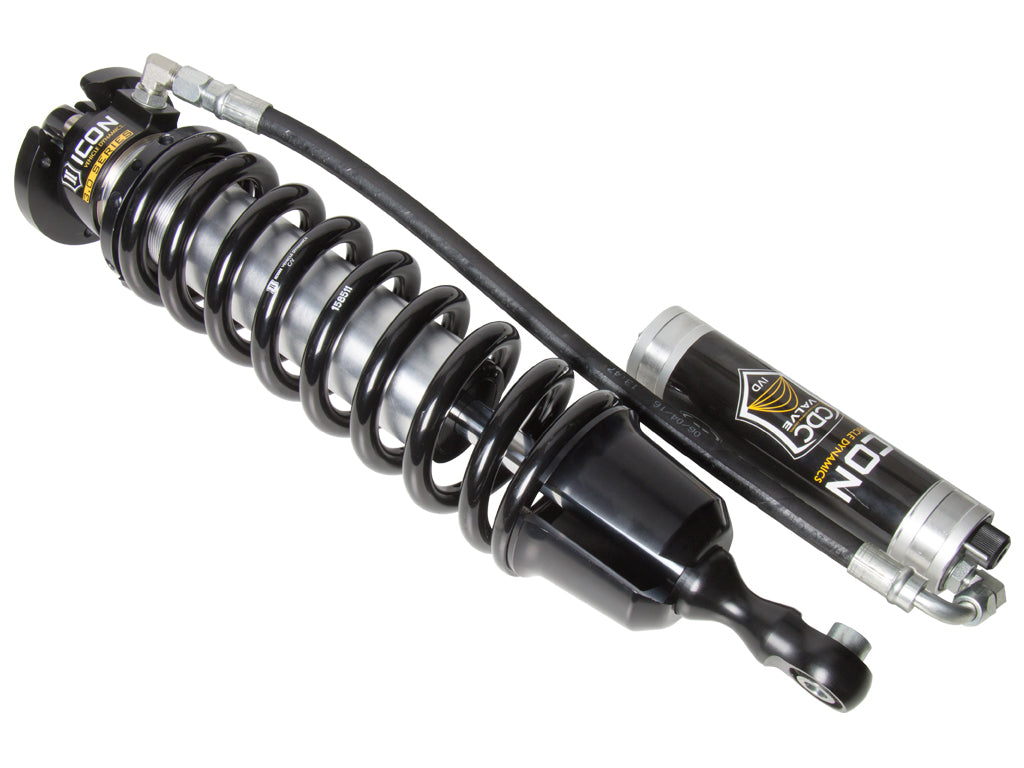

These ICON coilovers feature 3.0 Series shocks and coil springs optimized for this application. The shock’s larger 3.0” body and increased piston area improves damping ability and ride quality across varying types of terrain.

Compared to the 2.5” diameter coilovers the 3.0 Series shocks see a piston surface area increase of 50% in the ride zone, and 100% in the “Bump Zone”. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.

• Significant increase in damping ability for excellent performance in extreme off-road conditions
• Adjustable coilovers provide 1.63-3.5” of front lift height over stock
• Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
• ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
• 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
• High quality ICON-engineered coil springs offer increased travel and performance
• PTFE lined COM12 spherical bearings ensure maximum strength and durability
• Heavy duty 1” CNC machined shock shafts
• Multi stage CAD plated shock body with hard anodized piston and top cap

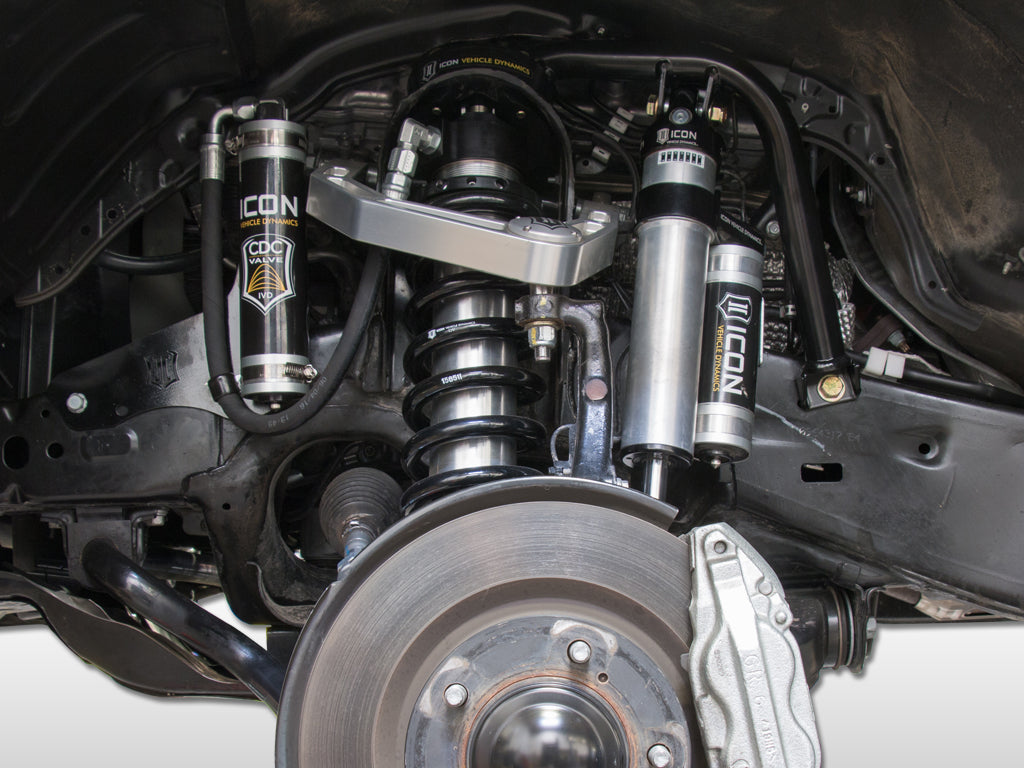

• Direct bolt-in to OEM shock location makes for an easy install
• Fully serviceable
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
