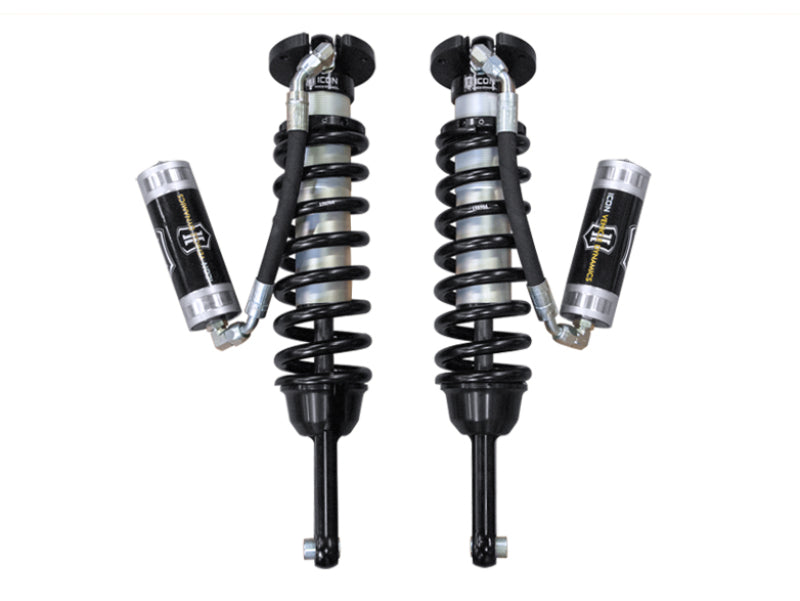

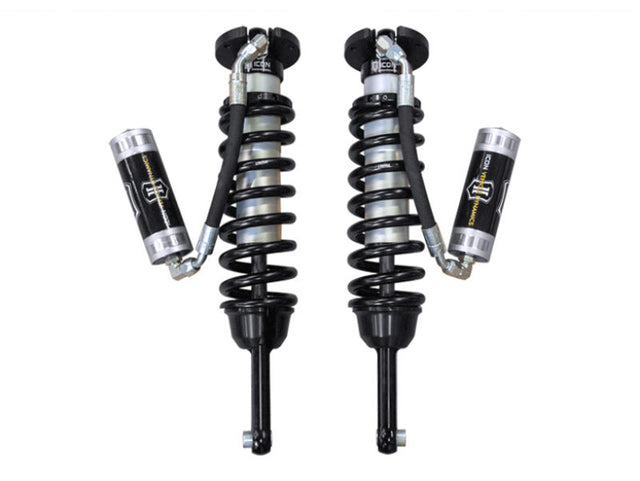

Icon 58745 - 07-09 Toyota FJ / 03-09 Toyota 4Runner Ext Travel RR Coilover Kit

Icon  |  SKU: ICON-58745
$1,87455 $2,06200
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Icon 58745 - 07-09 Toyota FJ / 03-09 Toyota 4Runner Ext Travel RR Coilover Kit

07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL RR COILOVER KIT

2007-2009 FJ CRUISER/2003-2009 4RUNNER/2003-2009 GX470 2.5 VS EXTENDED TRAVEL REMOTE RESERVOIR COILOVER KIT

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the Toyota FJ Cruiser, 4Runner, and Lexus GX platforms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers.

  • Adjustable coilovers yield 0-3.5" of front lift height
  • Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
  • Extended Travel length requires installation of aftermarket front upper control arms
  • Superior low speed control reduces body roll and increases on-road stability
  • External reservoir to attain cooler operating temperatures during extended off-road use
  • High quality ICON-engineered coil springs guaranteed for life against sagging or breaking
  • Corrosion resistant CAD plated shock body with 7/8" shaft
  • FK Rod End bearings provide extended longevity and minimal deflection
  • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
  • Bolt-in design makes for an easy install into OEM shock location
  • All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
Coil Over Springs Included: Yes
Compressed Length: 17.42
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 22.57
Front Spring Rate: 650
Gas Charged: yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Aluminum
Maximum Lift: 3.5
Maximum Ride Height Raising Distance: 3.5
Minimum Lift: 0
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate: 650
Spring Rate Type: Linear
Travel Length: 5.16
Upper Mount Type: Mounting Plate
Valving Type: Digressive
