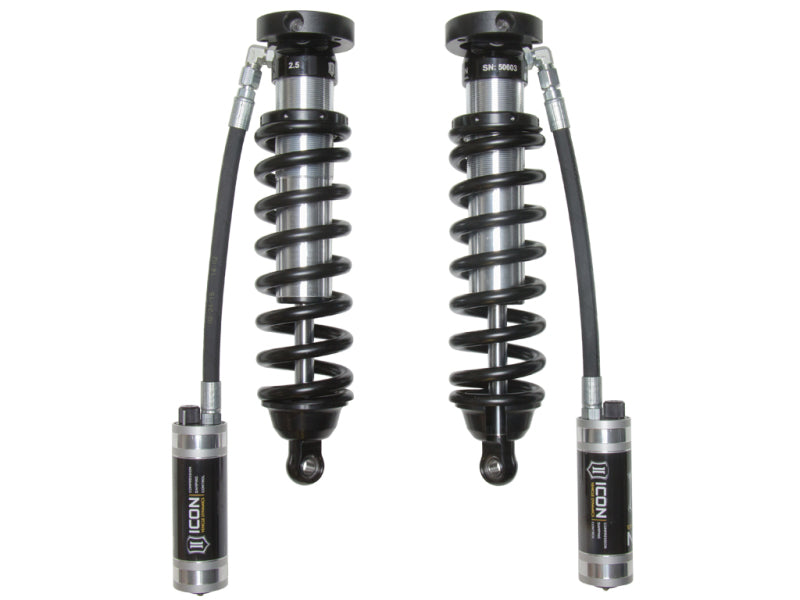

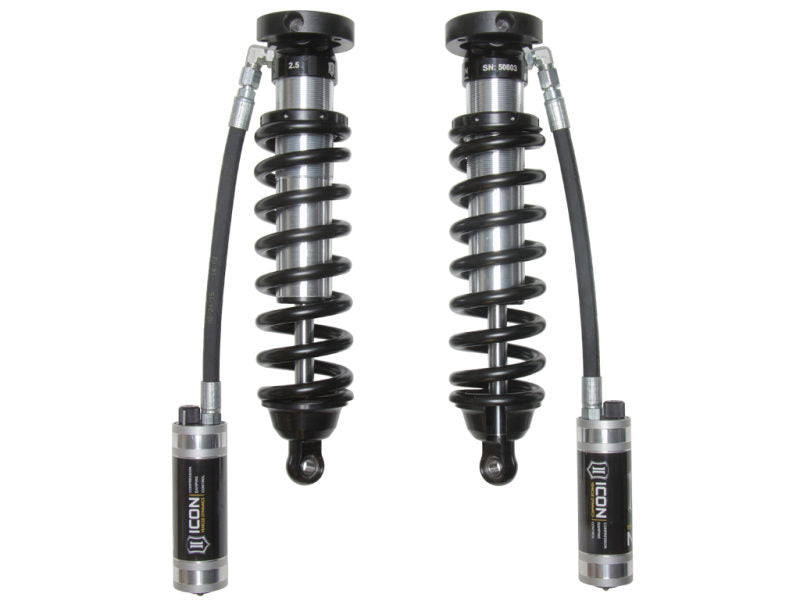

Icon 58712C - 96-02 Toyota 4Runner 2.5 Series Shocks VS RR CDCV Coilover Kit
Icon | SKU:
ICON-58712C
Sale price
$2,20475
Regular price
$2,42522
Unit price
/
Unavailable
$220.47 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Icon 58712C - 96-02 Toyota 4Runner 2.5 Series Shocks VS RR CDCV Coilover Kit
96-02 4RUNNER 2.5 VS RR CDCV COILOVER KIT
1996-2002 4RUNNER 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Material: Aluminum
Maximum Lift: 3
Maximum Ride Height Raising Distance: 3
Minimum Lift: 0
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Travel Length: 4.96
Upper Mount Type: Mounting Plate
Valving Type: Digressive
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
Coil Over Springs Included: Yes
Compressed Length: 14.5
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Adjustment Type: Manual
Damping Type: Oil
Dust Shield Included: No
Extended Length: 19.45
Front Spring Rate: 650
Gas Charged: yes
Grade Type: Performance
