Icon 58660 - 2008+ Toyota Land Cruiser 200 2.5 Series Shocks VS IR Coilover Kit
08-UP LC 200 2.5 VS IR COILOVER KIT
2008-UP LAND CRUISER 200 SERIES 2.5 VS IR COILOVER KIT

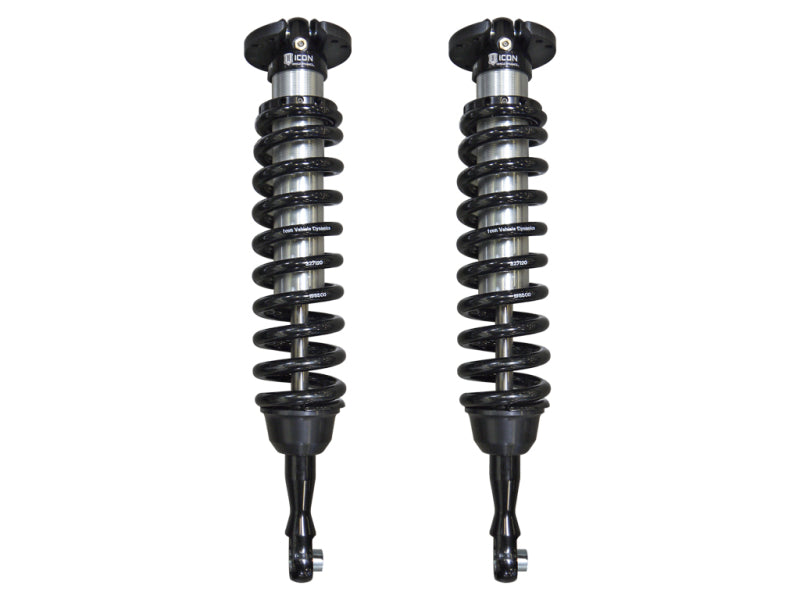

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of the 2008-UP Toyota Land Cruiser 200 Series. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.5-3” lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Land Cruiser 200 Series.
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 1.5-3" of lift height over stock
- ICON engineered Eibach Springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8 shaft
- FK rod end bearings for extended longevity and minimal deflection
- 100% Bolt-on - no drilling, cutting or welding necessary for installation
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
Coil Over Springs Included: Yes
Compressed Length: 18.88
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 24.83
Front Spring Rate: 600
Gas Charged: yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Material: Aluminum
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 34" x 10.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 6” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 611025 - 07 TUNDRA CO HARDWARE KIT PAIR
Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate: 600
Spring Rate Type: Linear
Travel Length: 5.95
Upper Mount Type: Mounting Plate
Valving Type: Digressive
