Icon 58640-700 - 07-09 Toyota FJ / 03-09 Toyota 4Runner 2.5 Series Shocks VS IR Coilover Kit w/700lb Spring Rate

Icon  |  SKU: ICON-58640-700
Sale price $1,72635 Regular price $1,81267

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

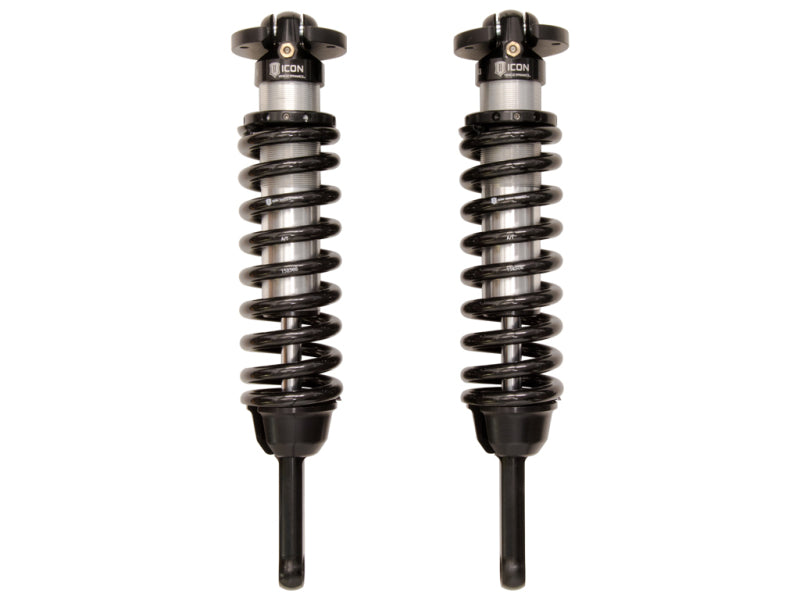

Icon 58640-700 - 07-09 Toyota FJ / 03-09 Toyota 4Runner 2.5 Series Shocks VS IR Coilover Kit w/700lb Spring Rate

07-09 FJ/03-09 4RNR/03-09 GX 2.5 VS IR COILOVER KIT-700

2007-2009 FJ CRUISER/2003-2009 4RUNNER/2003-2009 GX470 2.5 VS INTERNAL RESERVOIR COILOVER KIT WITH 700LB COILS

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.

  • Adjustable coilovers yield 0-3.5" of front lift height
  • Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
  • Superior low speed control reduces body roll and increases on-road stability
  • High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
  • Corrosion resistant CAD plated shock body with 7/8" shaft
  • FK Rod End bearings provide extended longevity and minimal deflection
  • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
  • Bolt-in design makes for an easy install into OEM shock location
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Adjustable Damping: NO
Adjustable Height: yes
Body Diameter: 2.5
Boot Included: No
Coil Over Springs Included: Yes
Damping Type: Oil
Dust Shield: No
Gas Charged: yes
Grade Type: Performance
Lower Mount Type: Eyelet
Material: Aluminum
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir: NO
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate: 700
Upper Mount Type: Mounting Plate
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
