Icon 56523R - 2025 Toyota 4Runner, 0-3" Lift, Driver Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir

Icon  |  SKU: ICON-56523R
$30895 $33984

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

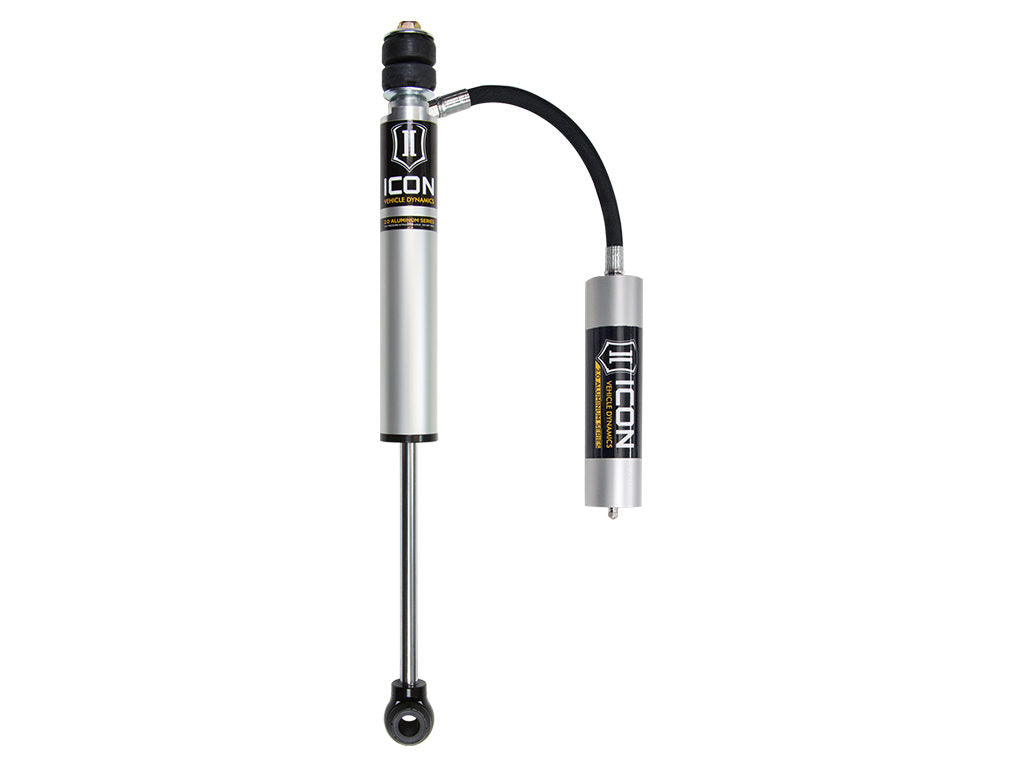

Icon 56523R - 2025 Toyota 4Runner, 0-3" Lift, Driver Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir

25-26 4RUNNER 0-3" DRIVER REAR 2.0 VS RR

ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Aluminum Series shock to handle extra abuse and punishment your suspension will need to endure.

  • Nitrogen charged monotube design with remote reservoir
  • One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 5/8” chrome plated hardened steel shaft resists corrosion and pits
  • 6061 aluminum rod end, top cap, and internals ensure strength and durability
  • Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
  • 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrile rubber top out bumper for noise free operation
  • Rubber dust boot included for added shaft protection
  • Fully rebuildable and re-tunable
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 56100 - 07-14 FJ/03-26 4RUNNER/22-26 TUNDRA/23-25 SEQUOIA REAR SHIN GUARDS
Add-On Part: 56524R - 25-26 4RUNNER 0-3" PASS REAR 2.0 VS RR
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 52753 - 25-26 4RUNNER GAS .75" DUAL RATE REAR SPRING KIT
Adjustable: No
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Body Color: Gray
Body Diameter: 2
Body Material: Aluminum
Boot Color: Black
Boot Included: No
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
Bushing Material: Rubber
Coil Spring Insulator(s) Included: No
Color: Gray
Color: Black
Color: Silver
Compressed Length: 16.1
Cylinder Color: Gray
Cylinder Finish: Anodized
Cylinder Material: Aluminum
Cylinder Outside Diameter: 2
Damping Type: Oil
Dust Boot Included: Yes
Dust Shield: No
Dust Shield Included: Yes
Dust Shield Material: Rubber
Extended Length: 26.5
External Reservoir: NO
Finish: Anodized
Gas Charged: Yes
Grade Type: Performance
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Construction Type: Single Tube
Internal Rebound Bumper: Yes
Internal Rebound Spring: No
Lower Mount Bushing Inside Diameter: .75
Lower Mount Bushing Overall Length: 1.825
Lower Mount Sleeve Inside Diameter: .75
Lower Mount Sleeve Overall Length: 1.825
Lower Mount Type: Eyelet
Material: Steel
Material: Aluminum
Maximum Ride Height Raising Distance: 3
Minimum Ride Height Raising Distance: 0
Mounting Hardware Included: No
Remote Reservoir: Yes
Reservoir Diameter: 2
Reservoir Hose Inside Diameter: .25
Reservoir Hose Length: 29
Reservoir Length: 8
Reservoir Type: Remote
Rod Diameter: .625
Self-Leveling: No
Service Parts: 202003 - 2.0 REMOTE RESI REBUILD KIT
Shaft Diameter: 0.625
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Shoulder of Stem
Shock Absorber Bore Size: 1.75
Shock Absorber Rod End Measuring Point: Center of Eyelet
Shock Stroke: 10.4
Suspension Type: Spring
Travel Length: 10.4
Type: Telescopic
Upper Mount Stem Overall Length: 2.5
Upper Mount Stem Thread Size: M12 - 1.25
Upper Mount Type: Stem
Valving Type: Digressive
Valving Type: Linear
