Icon 206515 - Universal 2.0 Series Shocks Shocks 15in Travel NR HDRV - Single

Icon  |  SKU: ICON-206515
Sale price $19565 Regular price $20543

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

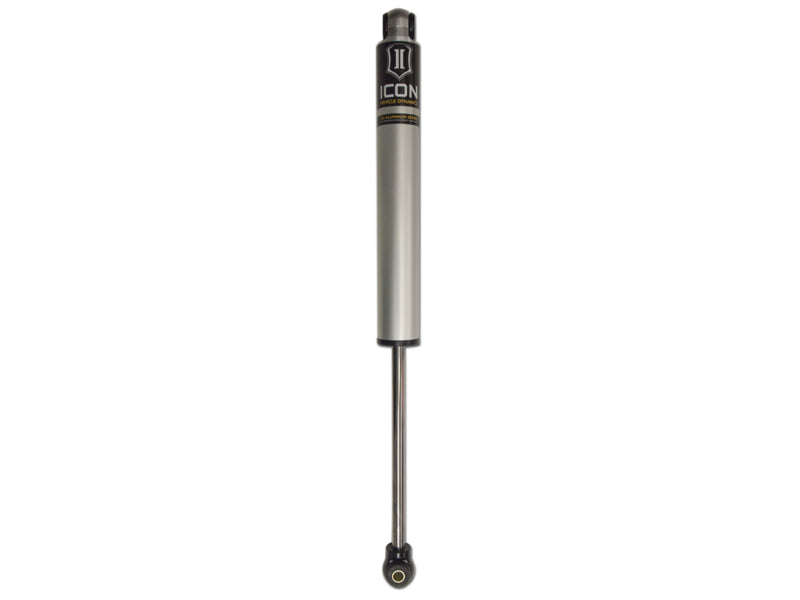

Icon 206515 - Universal 2.0 Series Shocks Shocks 15in Travel NR HDRV - Single

UNIVERSAL 15" TRAVEL 2.0 NR HDRV

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged emulsion shock
  • One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 5/8” chrome plated hardened steel shaft resists corrosion and pits
  • 6061 aluminum rod end, top cap, and internals ensure strength and durability
  • Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
  • 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
  • Nitrile rubber top out bumper for noise free operation
  • 100% rebuildable
  • 100% revalveable
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.625
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: CENTER OF EYELET
Shock Absorber Rod End Measuring Point: CENTER OF EYELET
Shock Stroke: 14.95
Travel Length: 14.95
Upper Mount Type: EYELET
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Adjustable Damping: No
Body Color: Gray
Body Diameter: 2
Boot Included: No
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
Coil Over Springs Included: No
Compressed Length: 19.35
Cylinder Color: Grey
Cylinder Material: Aluminum
Damping Type: Oil
Dust Boot Included: No
Dust Shield: No
Dust Shield Included: No
Extended Length: 34.3
Finish: Anodized
Gas Charged: Yes
Grade Type: Performance
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Construction Type: Single Tube
Internal Rebound Bumper: Yes
Lower Mount Type: Eyelet
Material: Aluminum
Material: Steel
Mounting Hardware Included: No
Mounting Width: 1.5" x 1/2" Bolt (Upper&Lower)
Remote Reservoir: NO
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
