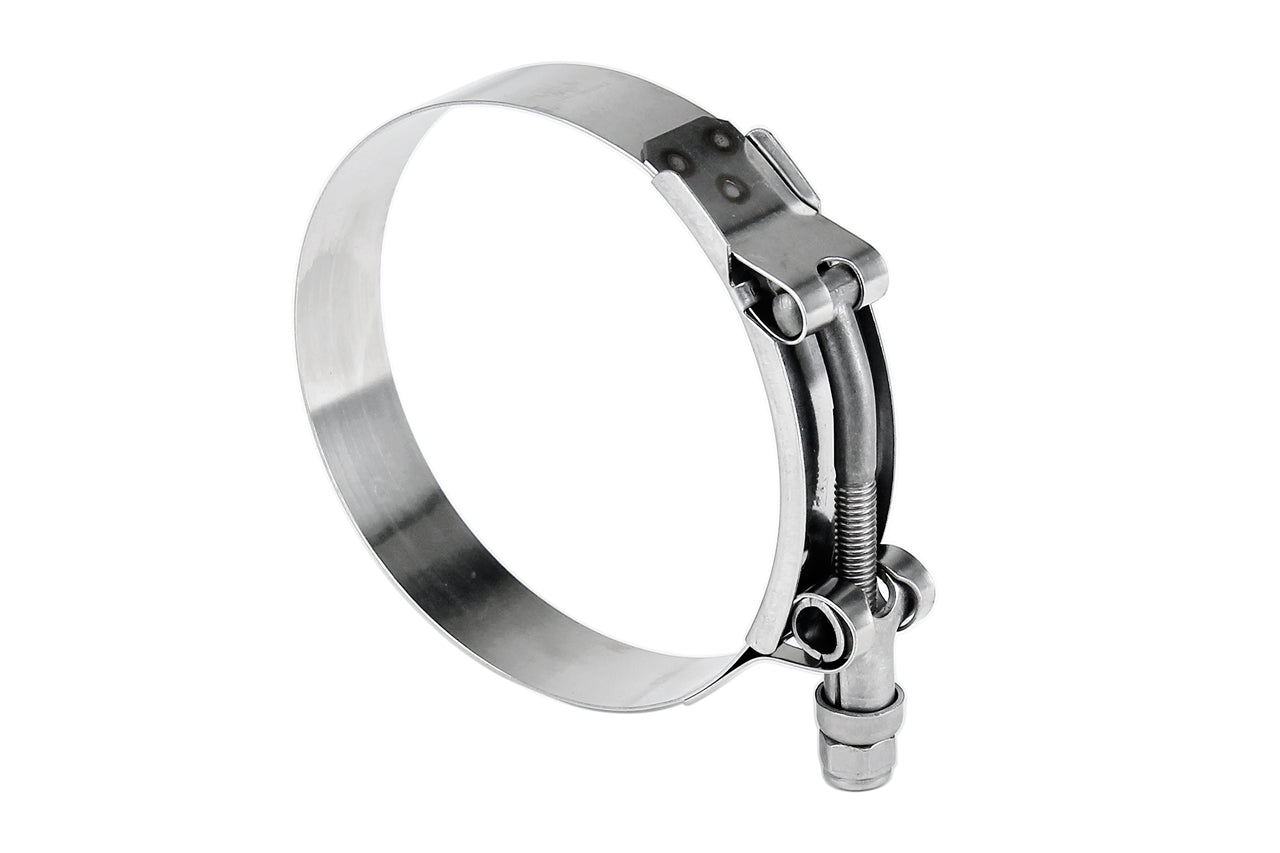

HPS Performance 316-SSTC-197-205 - HPS 316 Stainless Steel T-Bolt Hose Clamp Size #220 7-3/4" - 8-1/16"

HPS Performance 316-SSTC-197-205 - HPS 316 Stainless Steel T-Bolt Hose Clamp Size #220 7-3/4" - 8-1/16"

100% Marine Grade Stainless Steel T-Bolt Hose Clamp,Size #220,Range:7.75"- 8.06"

Size # 220. Effective range: 7.75" - 8.06" (197mm-205mm). Performs well in saltwater applications and offer better corrosion resistance than 304 T-bolt clamp. Provides leak-proof connections on marine engine and exhaust systems.

therefore 316 tbolt clamps are commonly used to provide leak-proof connections on marine engine and exhaust systems. Fits HPS silicone hose with 7-1/2" (190mm) inside diameter. It is recommended that two clamps be used on each end of a wet exhaust installation. Professionals also utilize the high strength 316 T Bolt clamps in applications such as water treatment and sewage systems, military, filter bags, telecommunication devices, sanitary systems, food and pharmaceutical processing equipment. Technical Specification: Effective size range: 7.75" - 8.06" (197mm-205mm). SAE # 220. 100% marine grade 316 Stainless Steel Band, Bolt and Nut. High strength with superior welded construction. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps. 3/4" Band Width. Max. Torque Spec 75 in. lbs.

• 100% marine grade 316 stainless steel band, bolt and nut. High strength superior welded construction.
• Perform well in saltwater applications and offer better corrosion resistance than 304 T-bolt band clamp. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps.
• Effective range: 7.75" - 8.06" (197mm-205mm). SAE # 220.
• Floating bridge and rolled edges to protect soft hoses. 3/4 inch (19mm) band width.
• Maximum Torque Spec 75 in. lbs. Recommed to use two clamps for wet exhaust application.
