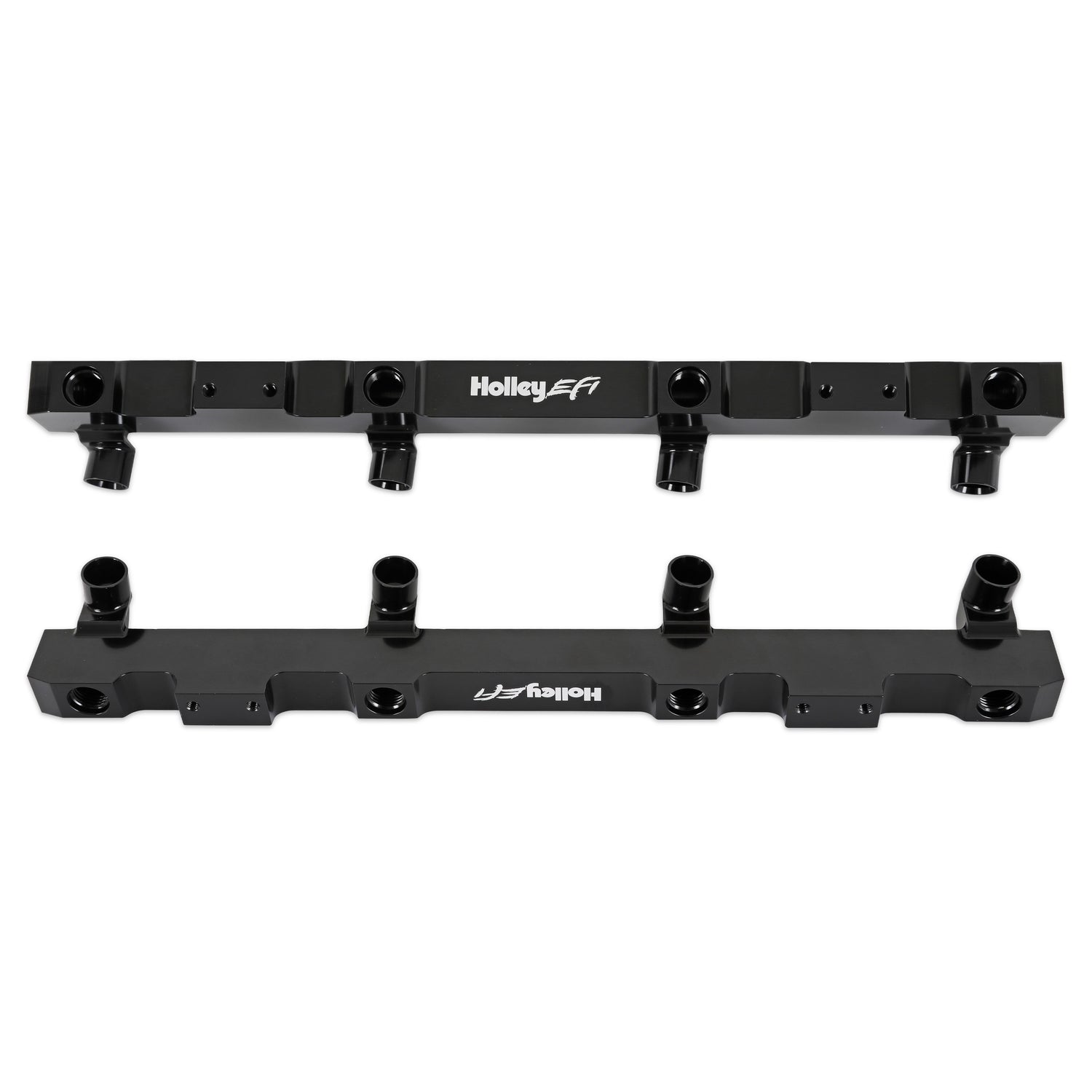

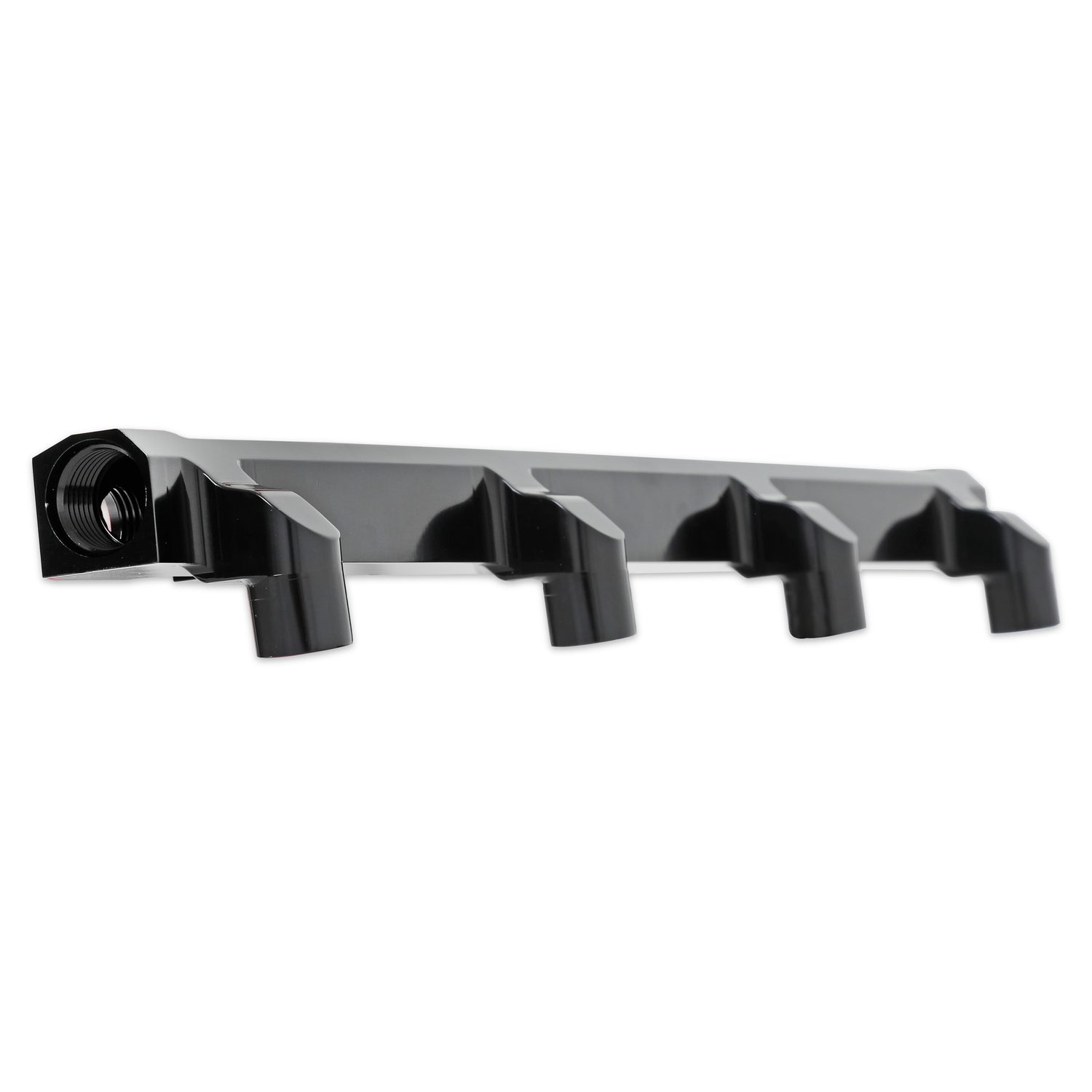

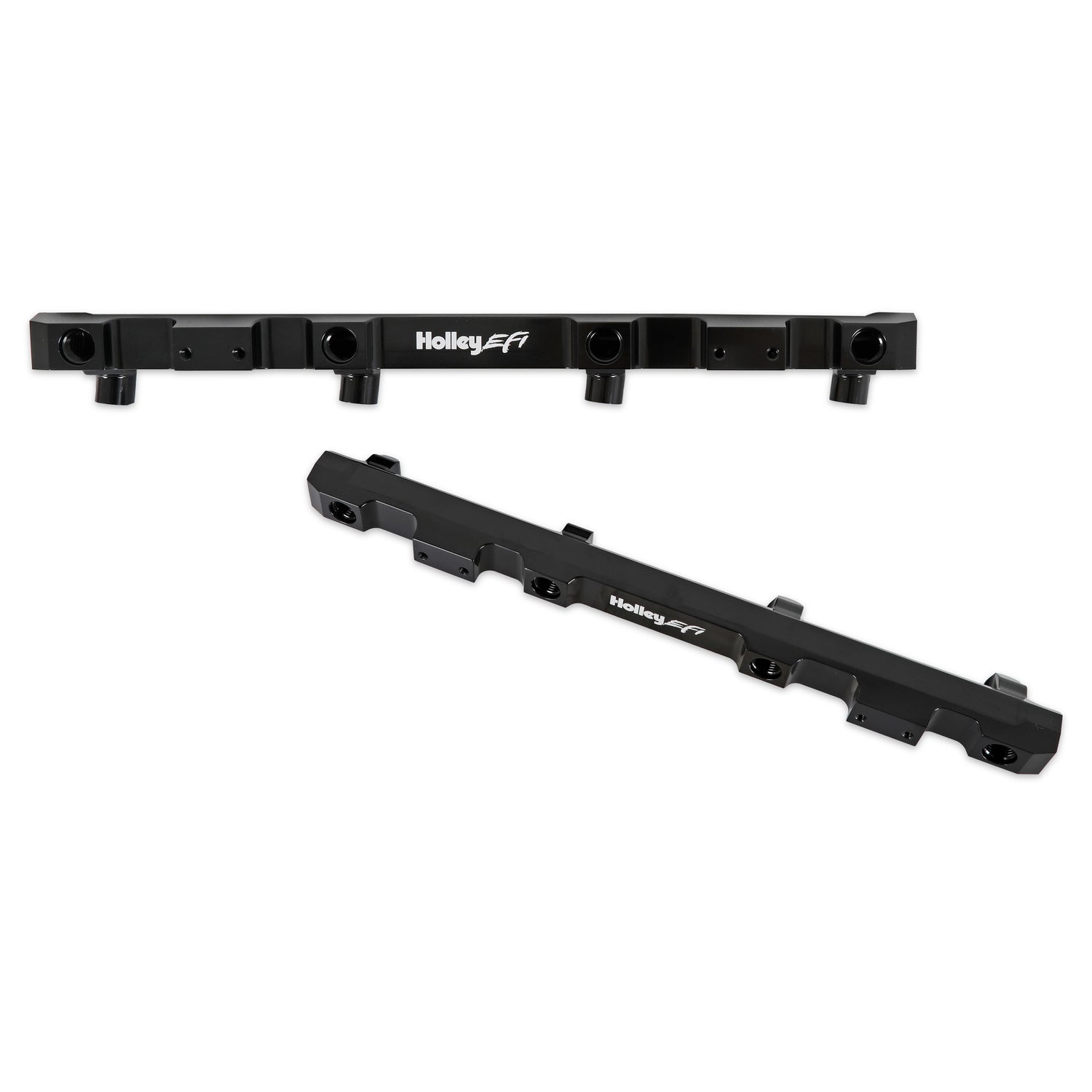

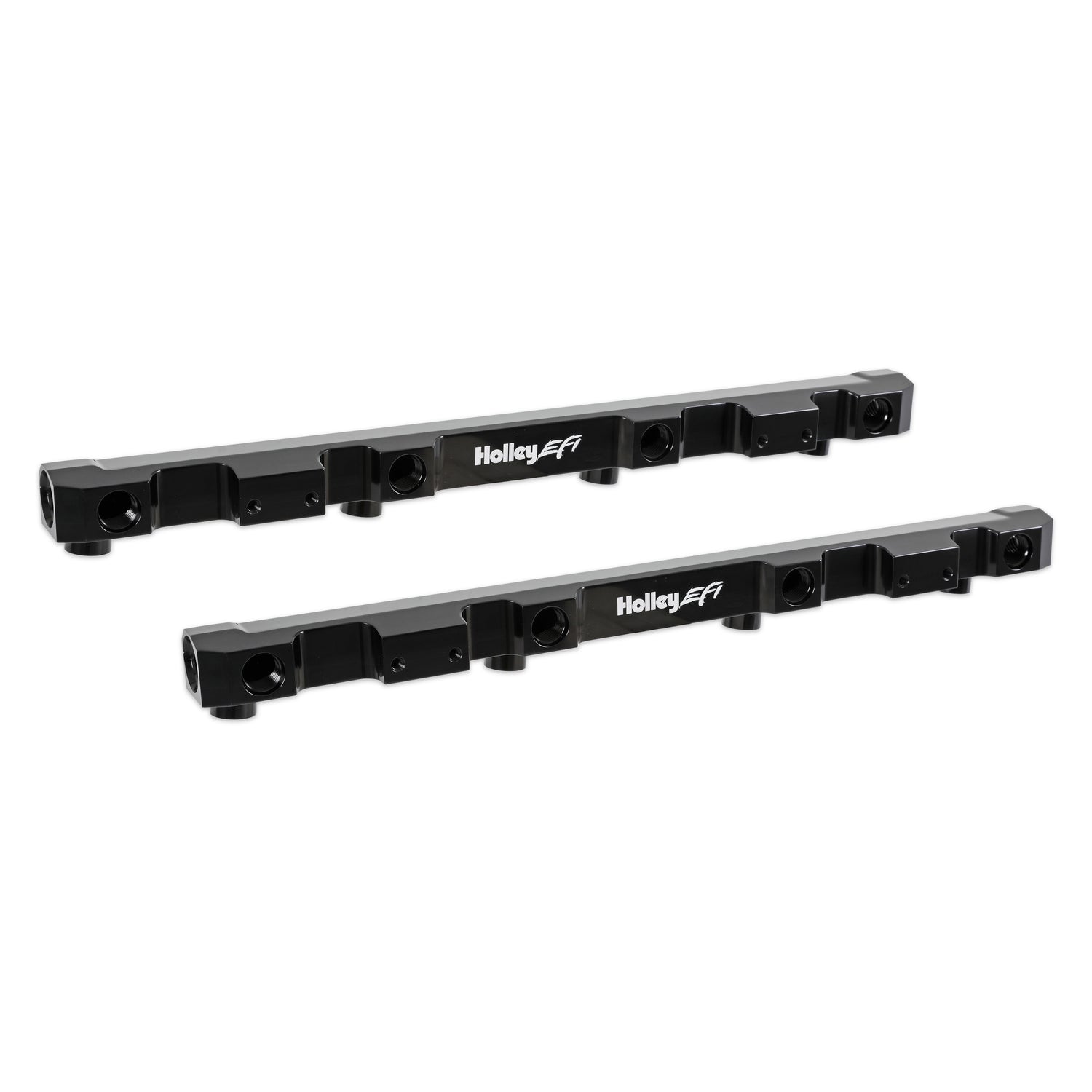

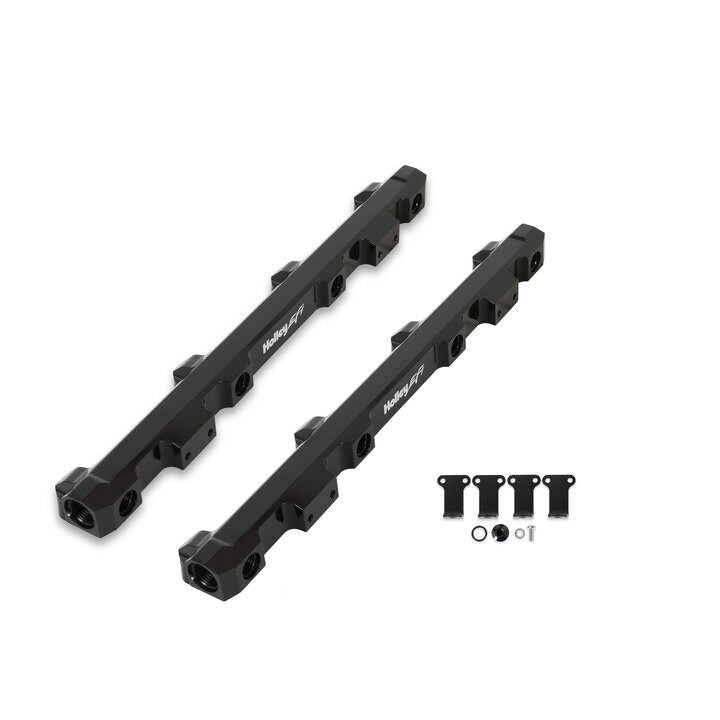

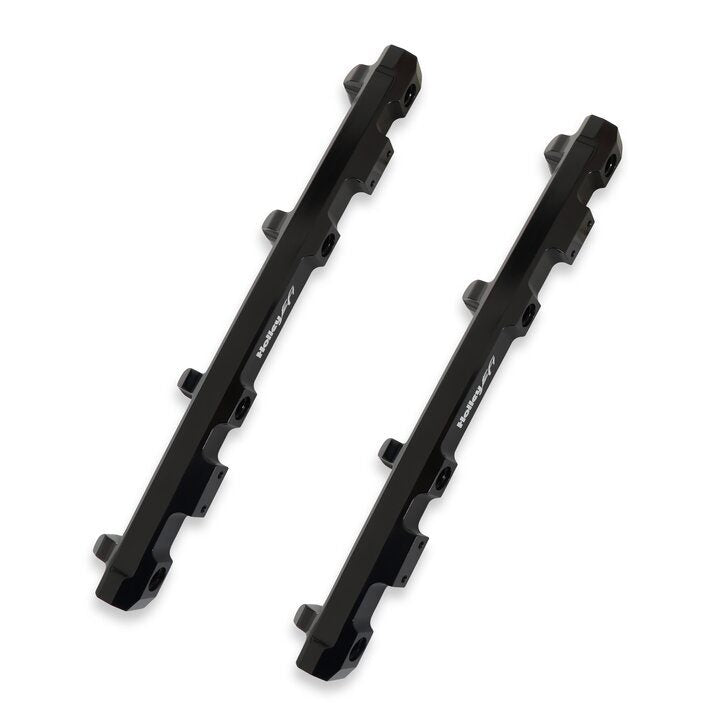

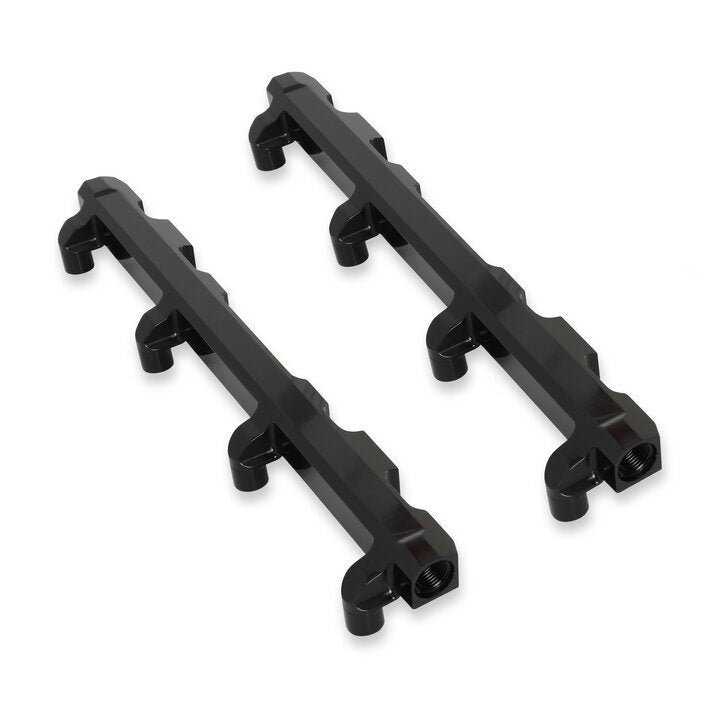

Billet Fuel Rail Kit - LSA and LS9

Fits LSA and LS9 Engines

The included brackets are for factory-height injectors (33.60mm).

• Direct replacement for the OEM rails on the factory blower or any other supercharger that was designed to use OEM rails

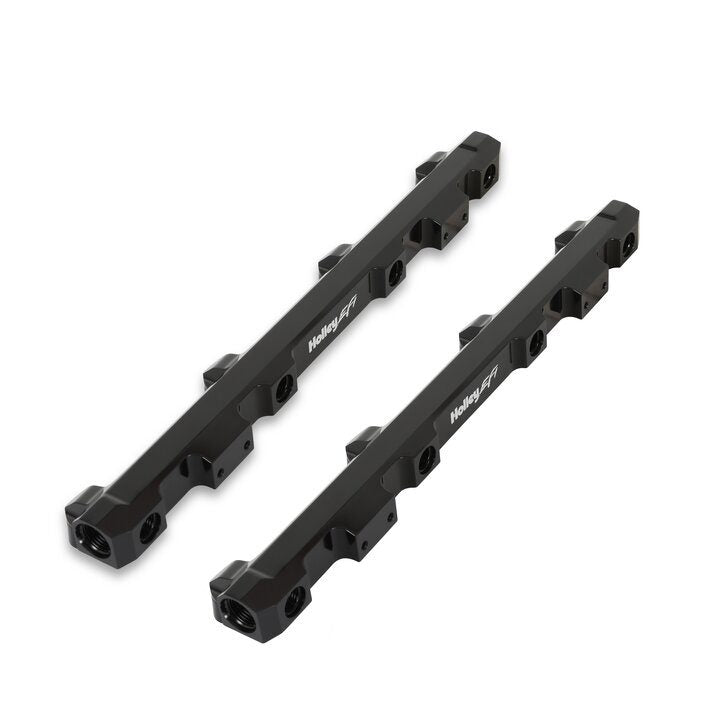

• Bright dip, black anodized finish with laser etched EFI logo for long-lasting good looks
• Fuel rails are machined to accept -8 (3/4-16) ORB ports which use O-ring fittings

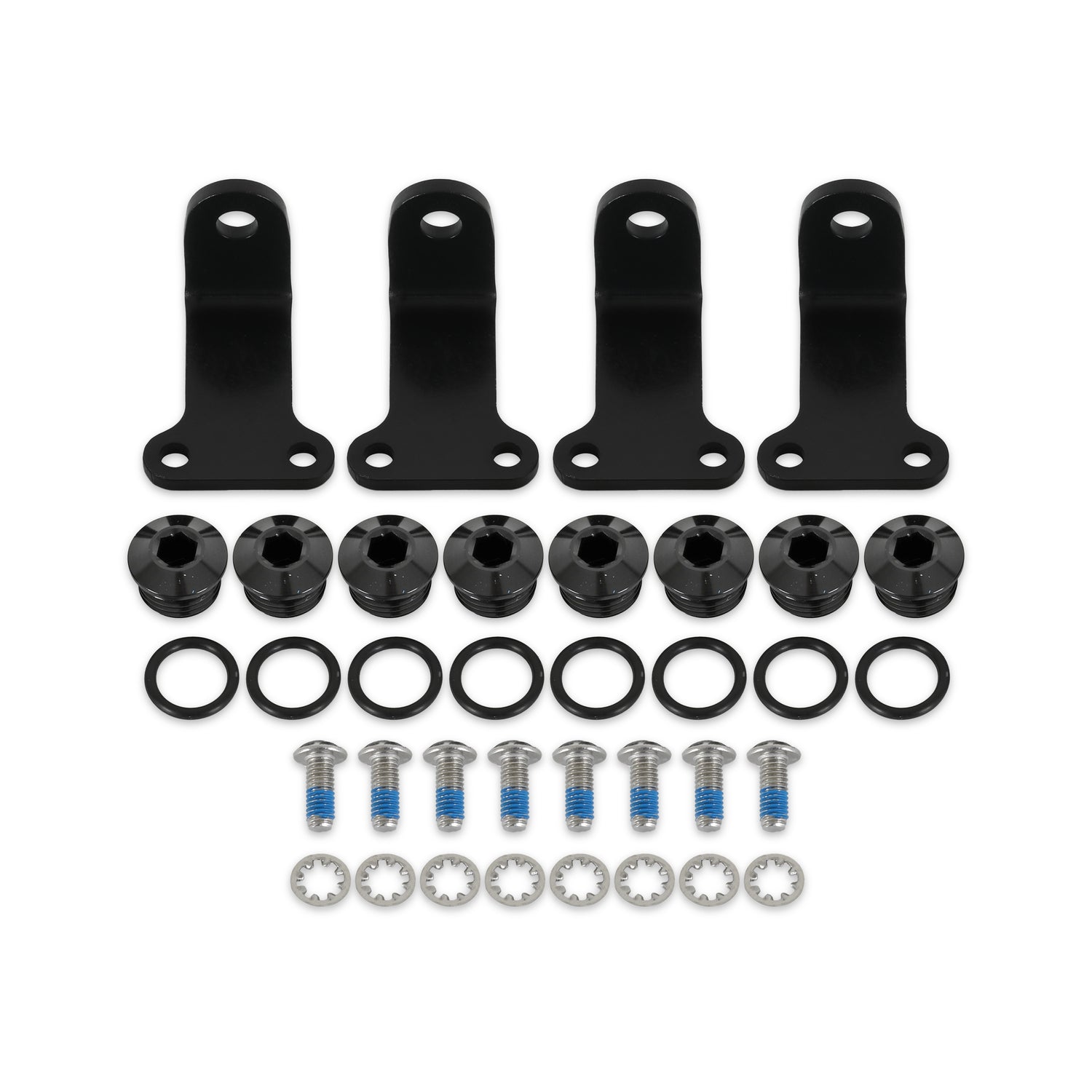

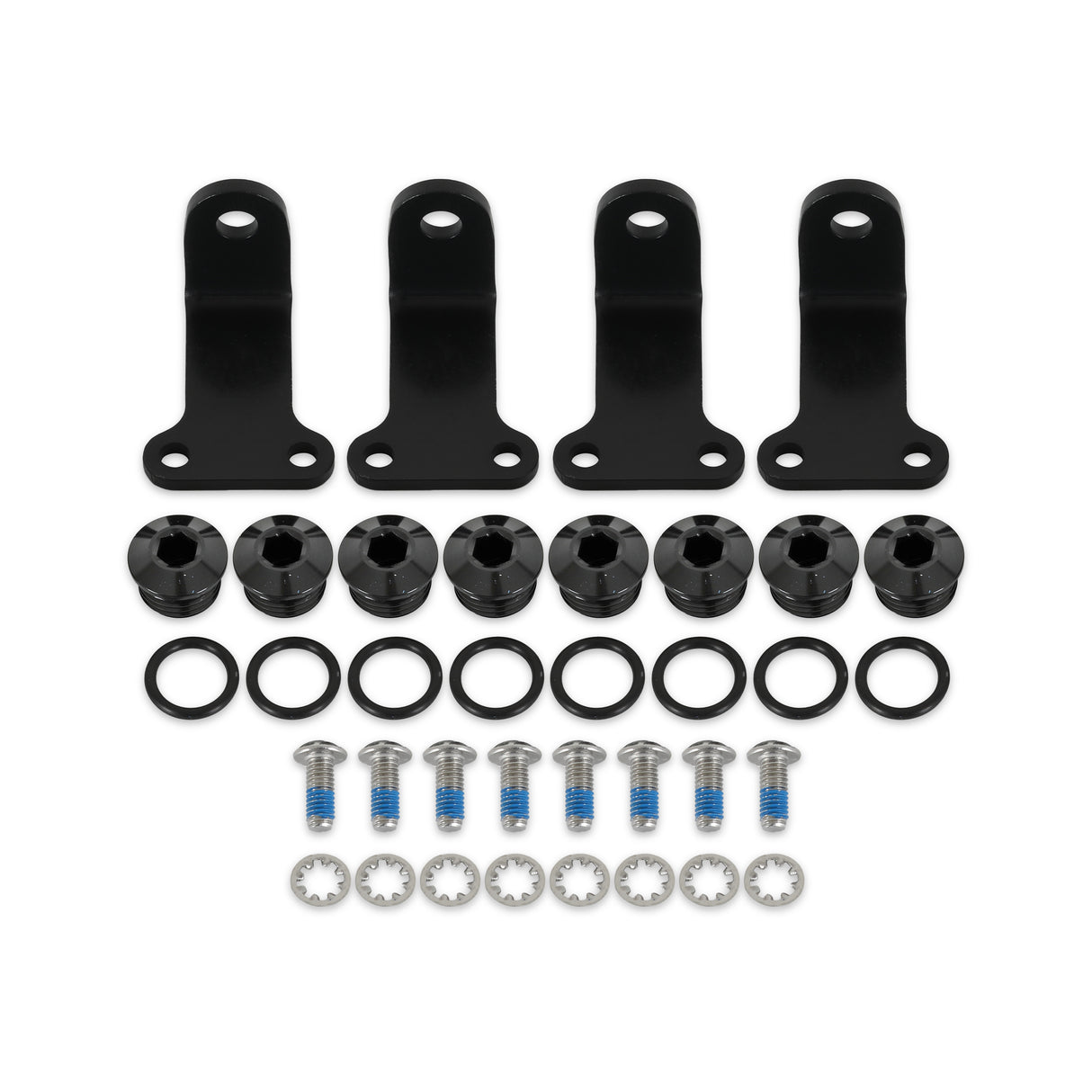

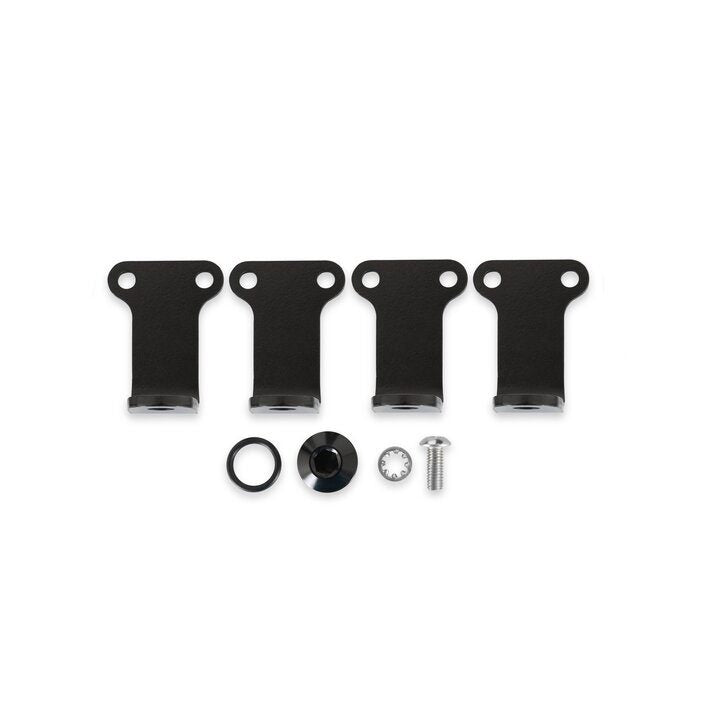

• Fuel rails are also machined in the center with four -6 (9/16-18) ORB ports to accept O-ring fittings (sold separately). Qty. 8 -6 ORB port plus also included to seal unused ports
• -6 (9/16-18) ORB ports can be used as fuel gauge/sensor locations by using a -6 ORB to 1/8 NPT adapter (sold separately). Can also be used for fuel pulse damper (sold separately) mounting locations
• 21/32” (0.656”) diameter fuel passage provides the flow capacity for high horsepower applications
• ¼” (0.25”) diameter fuel passage feeding each injector

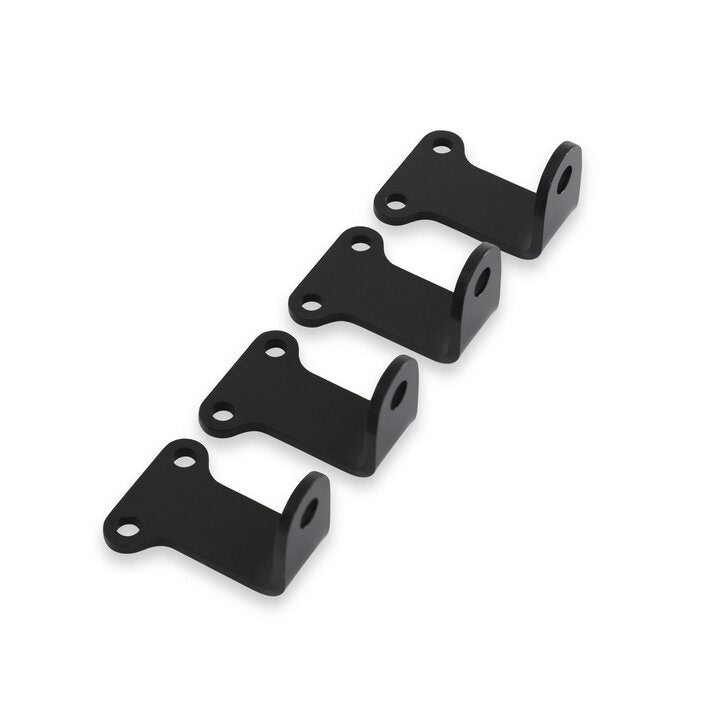

• Brackets are included for factory height injectors (33.60mm)
• Compatible with factory fuel line quick-connect by using P/N 534-211 adapter kit (sold separately)
