Holley EFI 300-670 - EFI Lo-Ram Intake Manifold Base

Holley EFI 300-670 - EFI Lo-Ram Intake Manifold Base

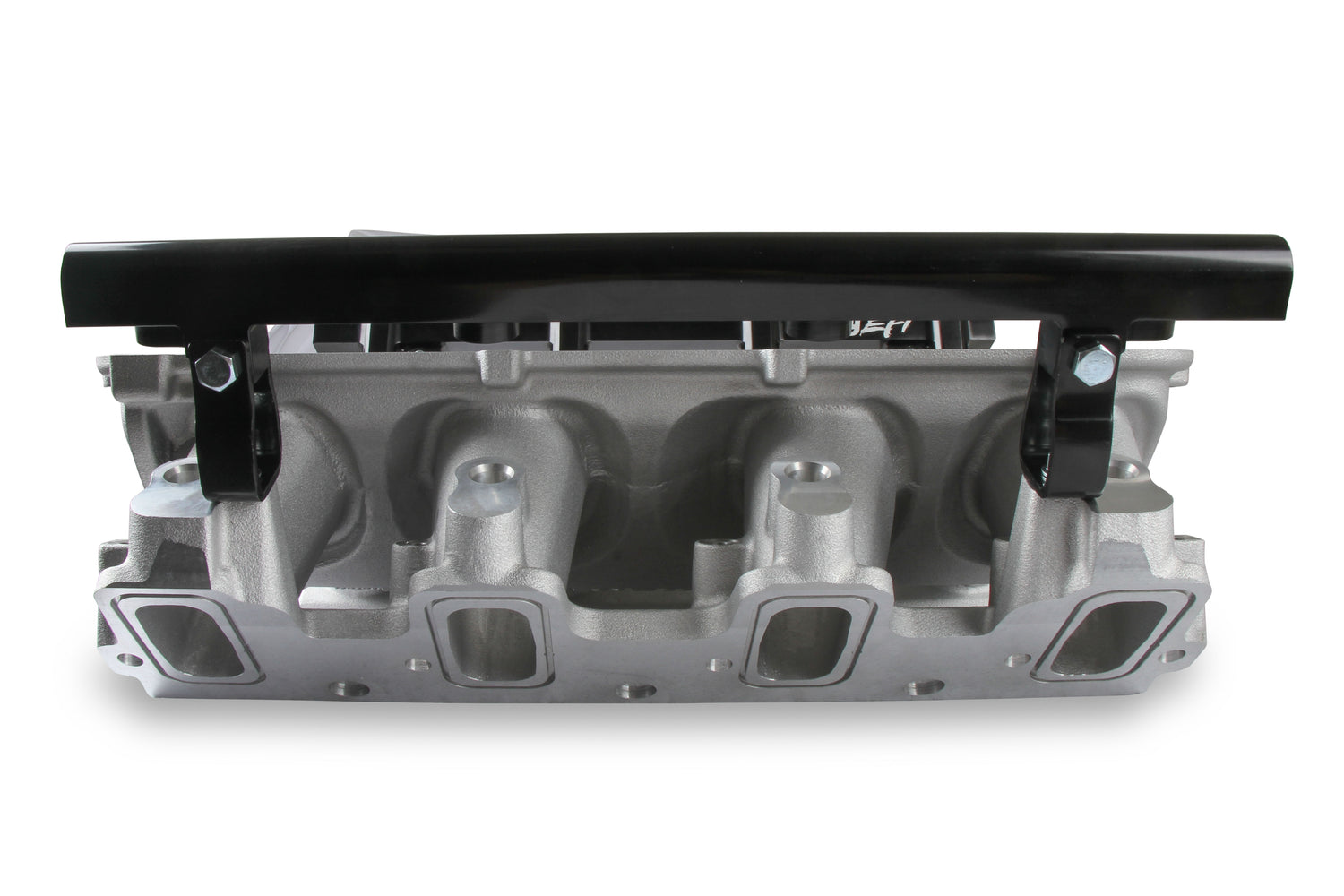

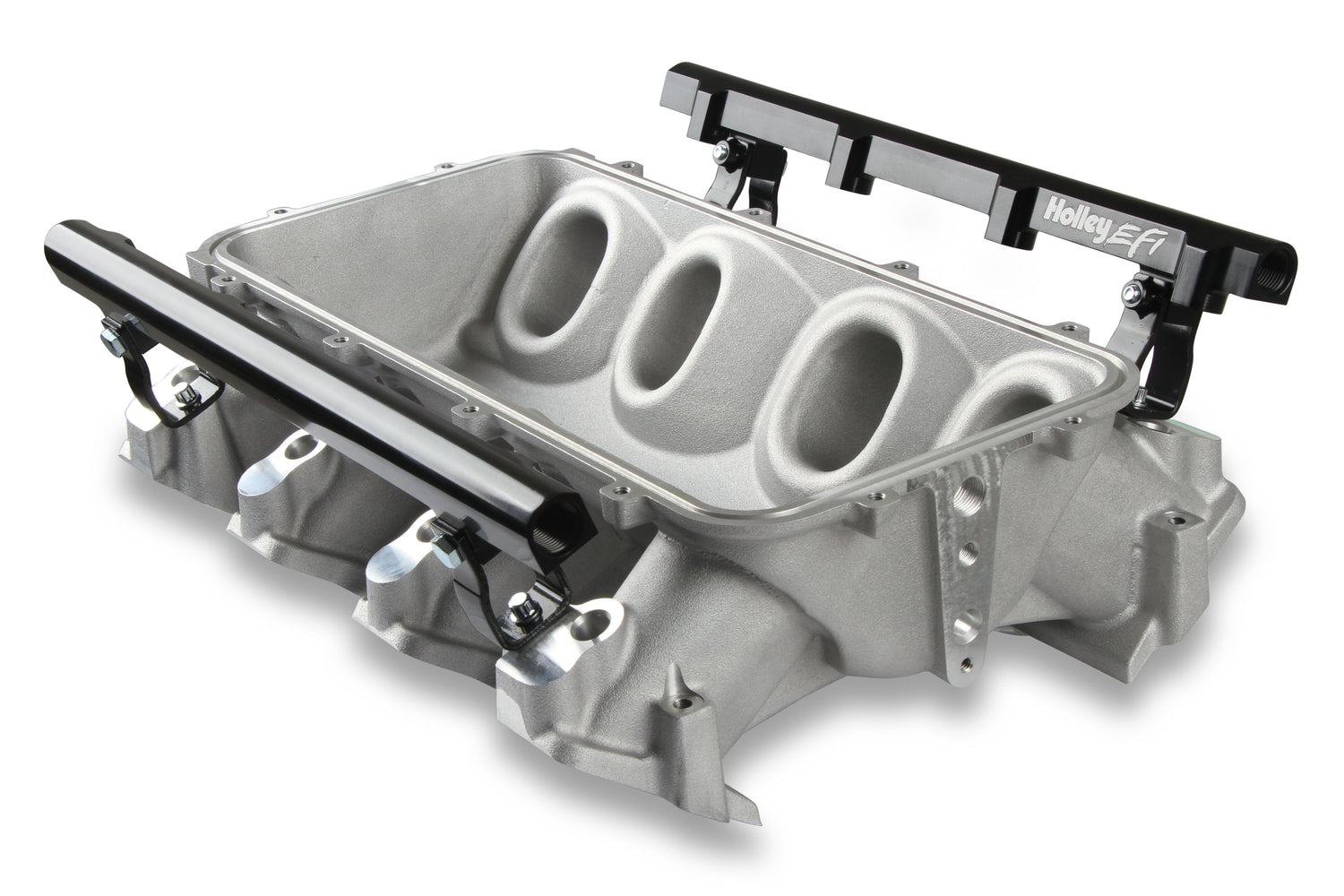

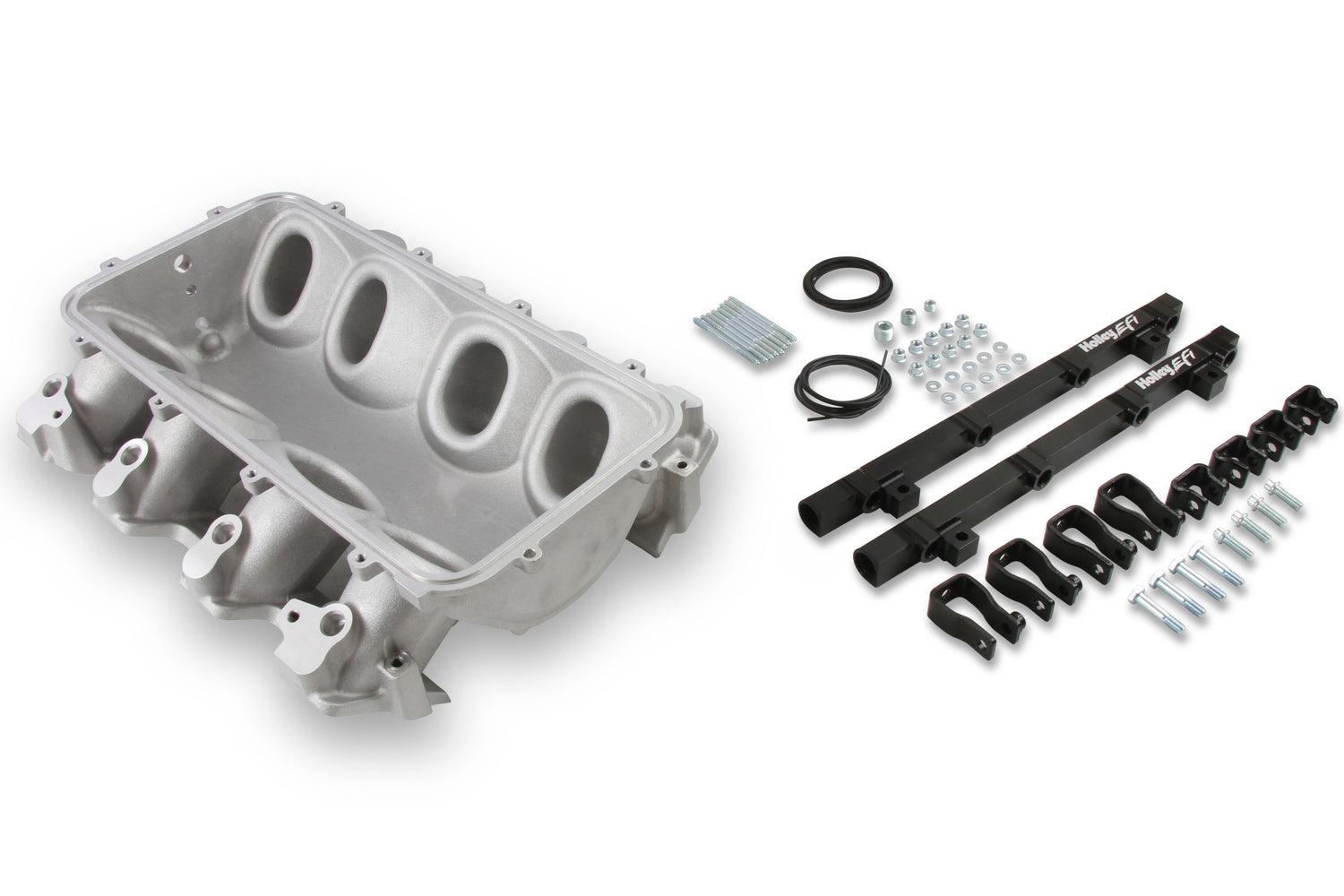

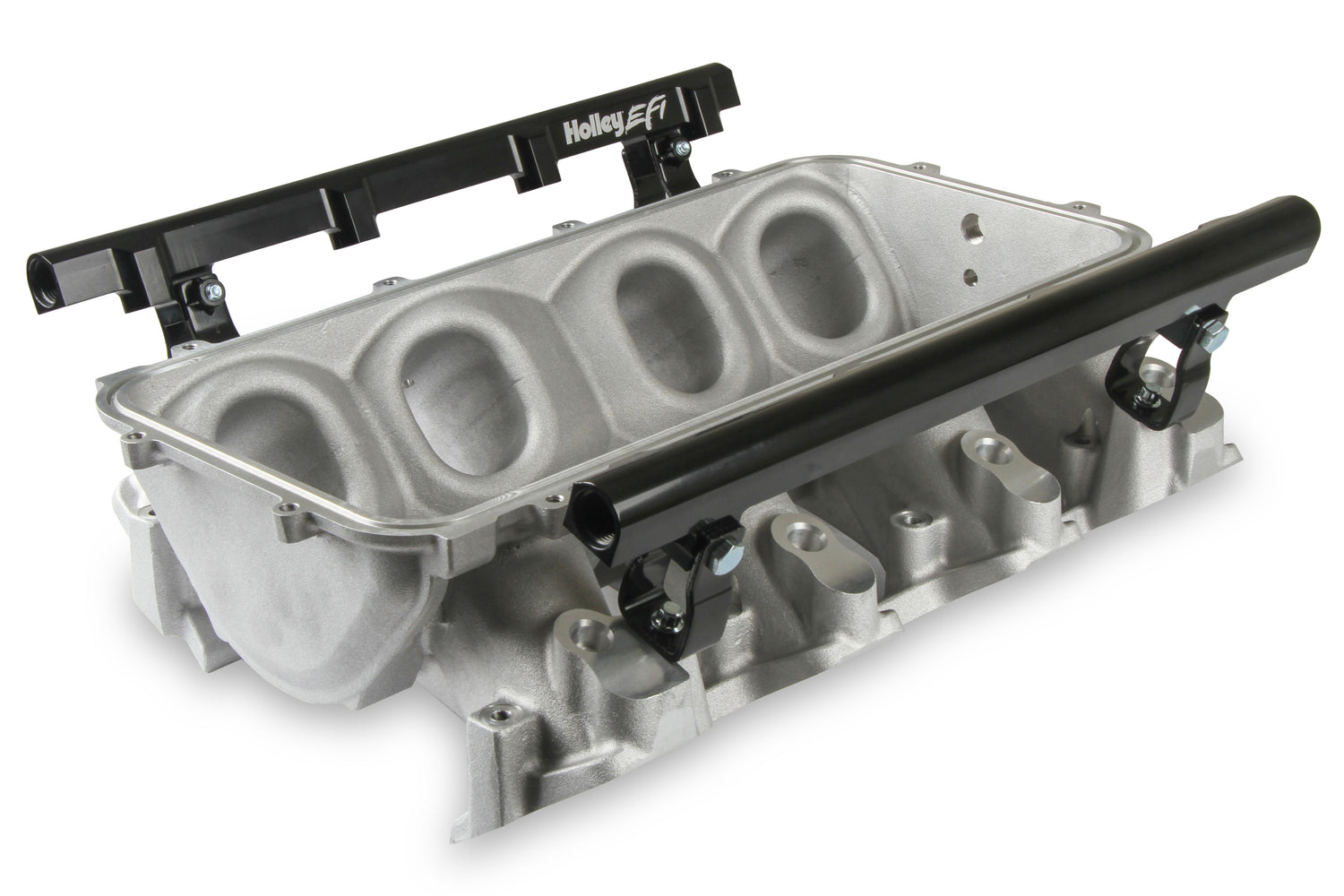

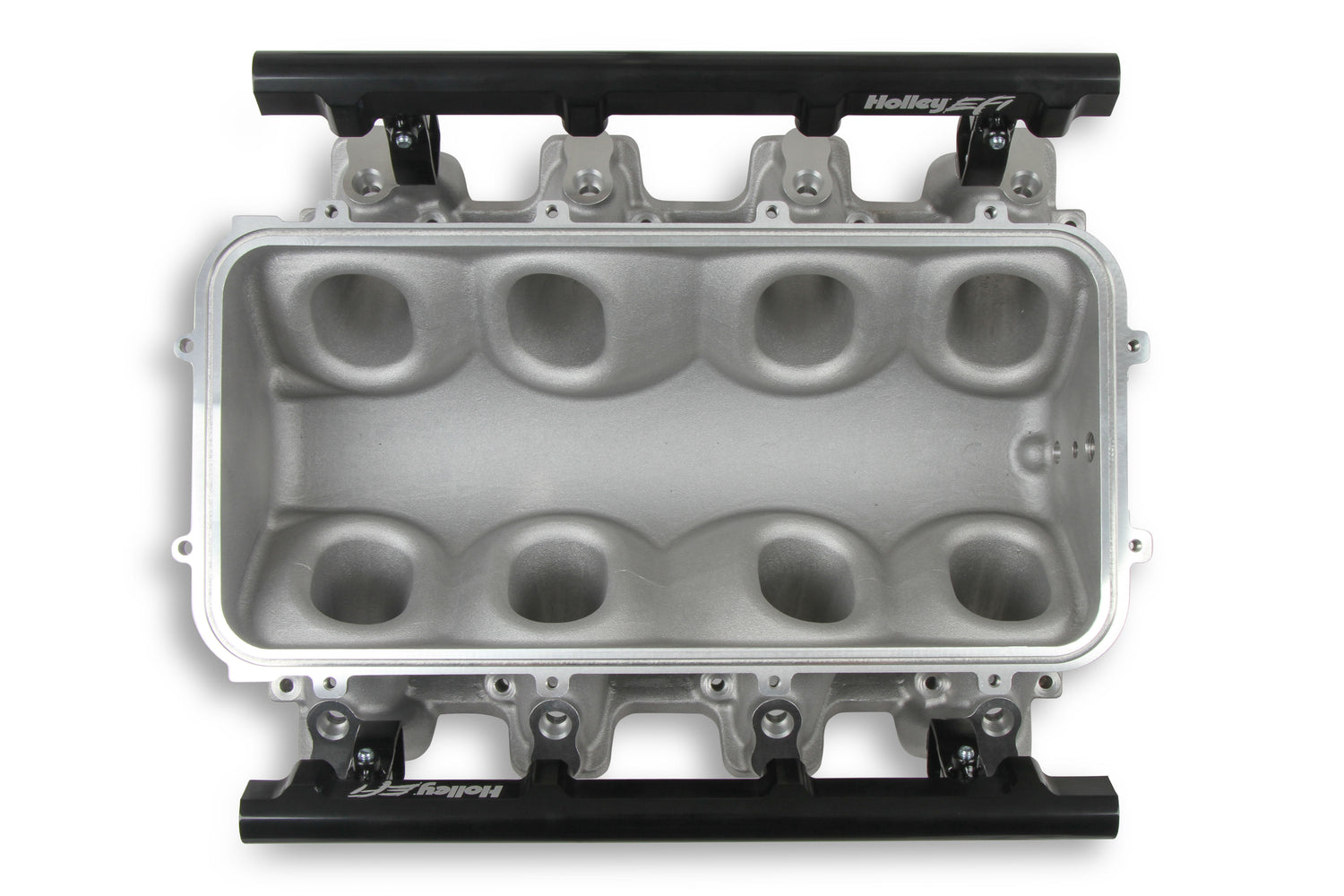

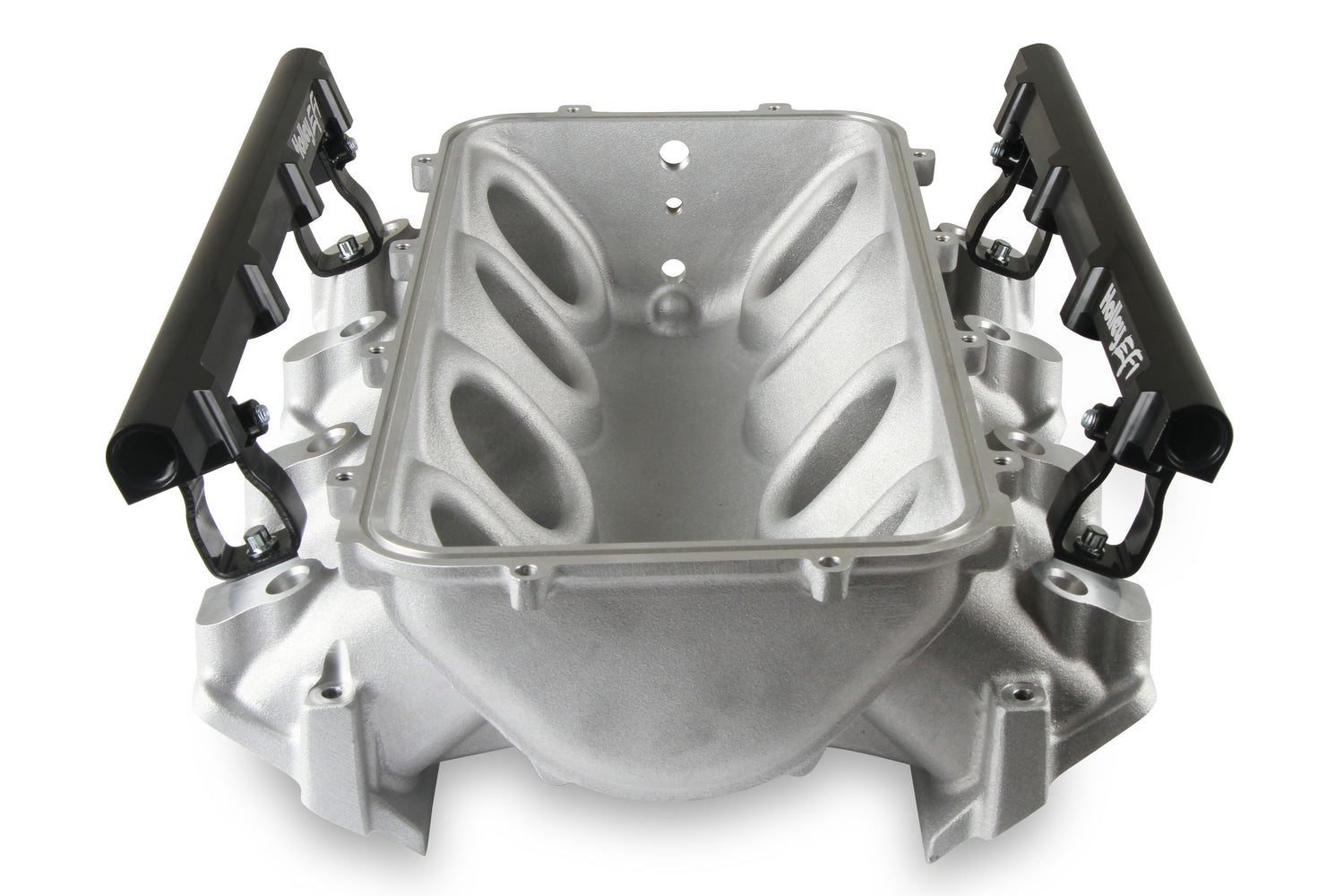

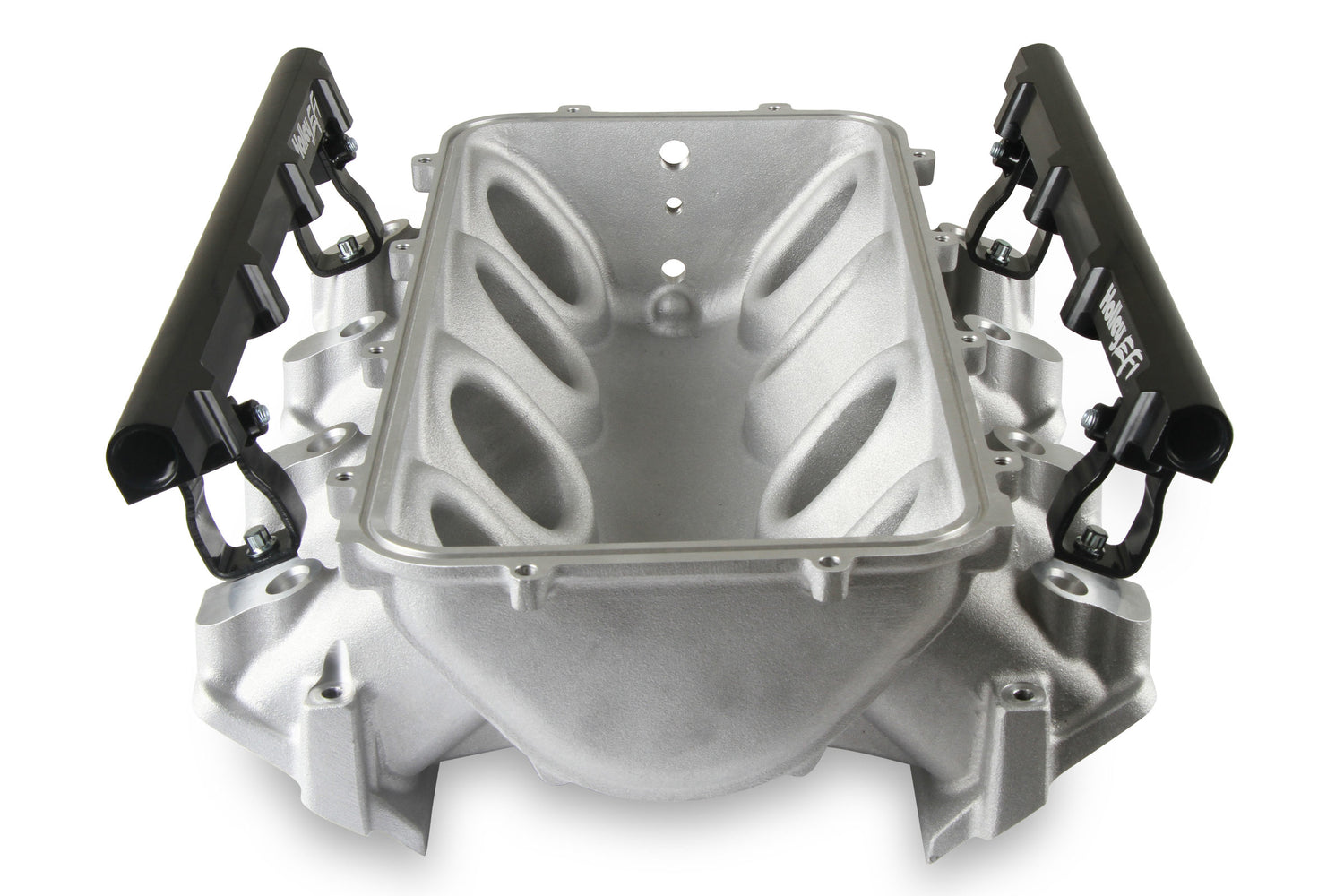

Holley Lo-Ram Manifold Base and Fuel Rails Single Fuel Injector GM LS3/L92

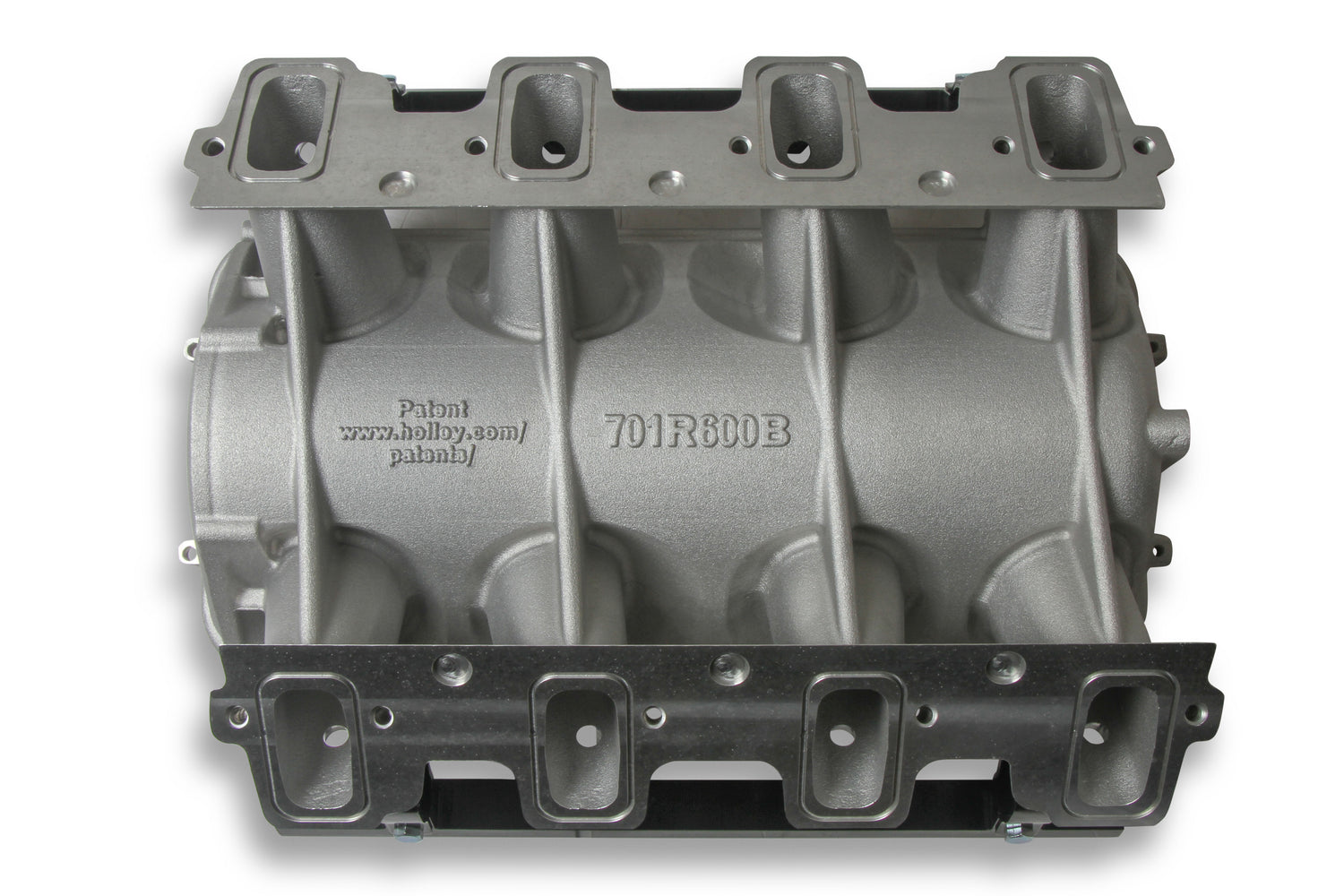

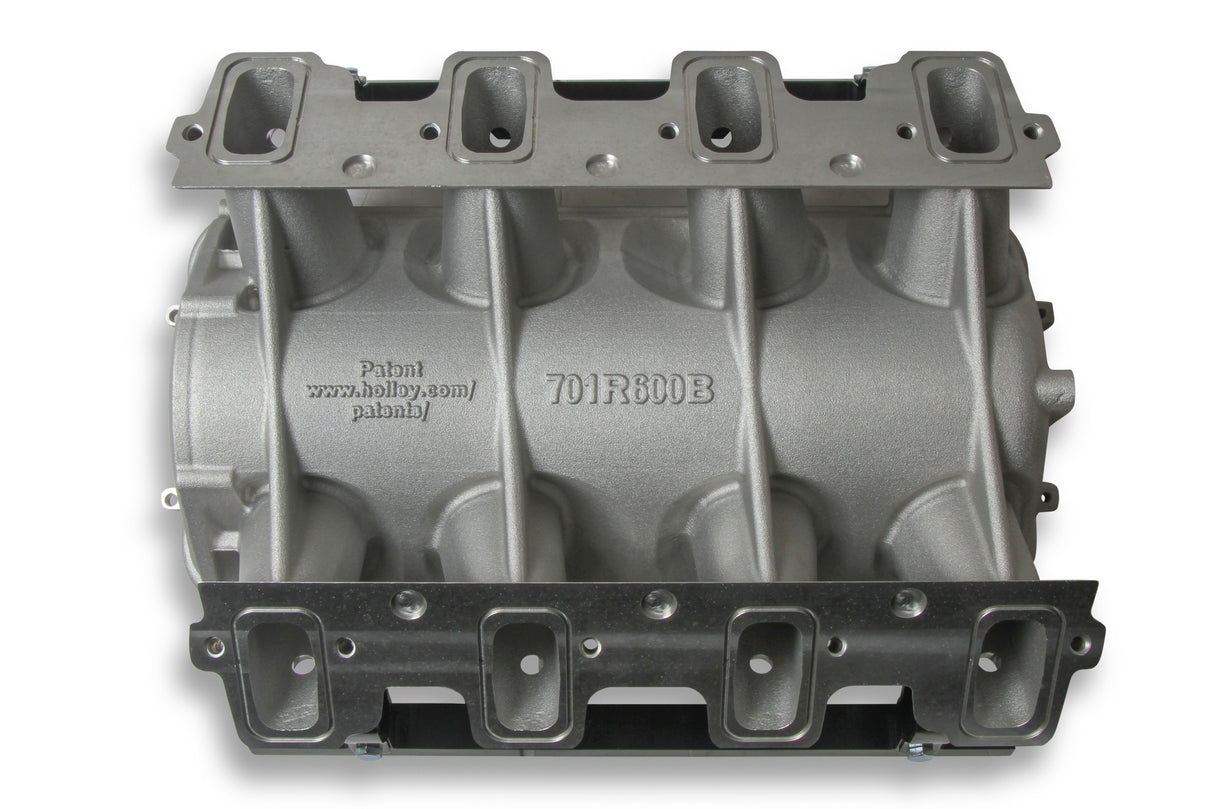

Holley EFI Lo-Ram Intake Manifold Base; Lower; LS3; Single Injector Top Feed; Silver Cast Finish; W/Fuel Rails Only Satin Finish;

The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum-mounted air-to-water intercooler in a top-feed configuration. Additional manifold designs include both single and dual injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)

• Provides best performance for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm, depending on the application

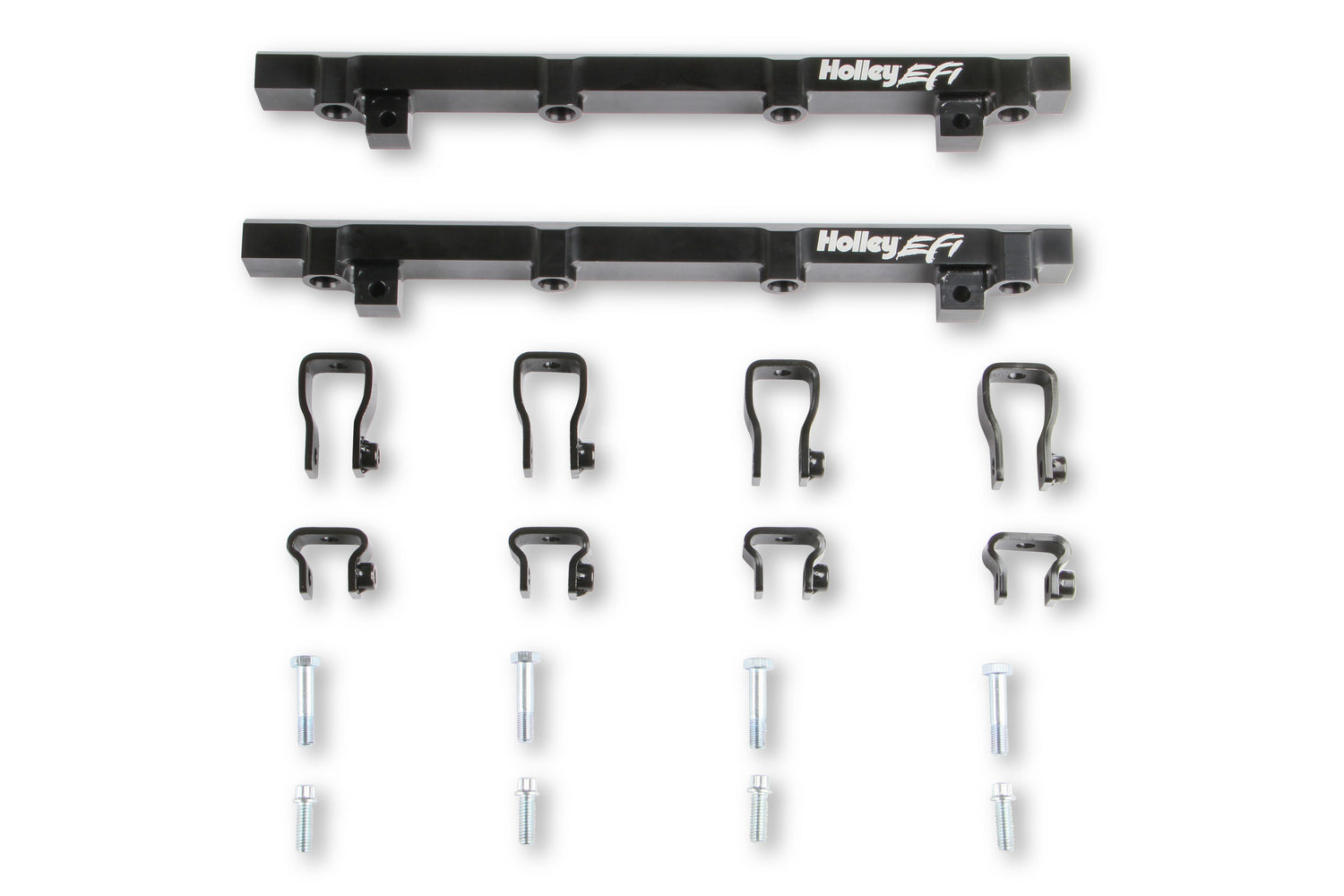

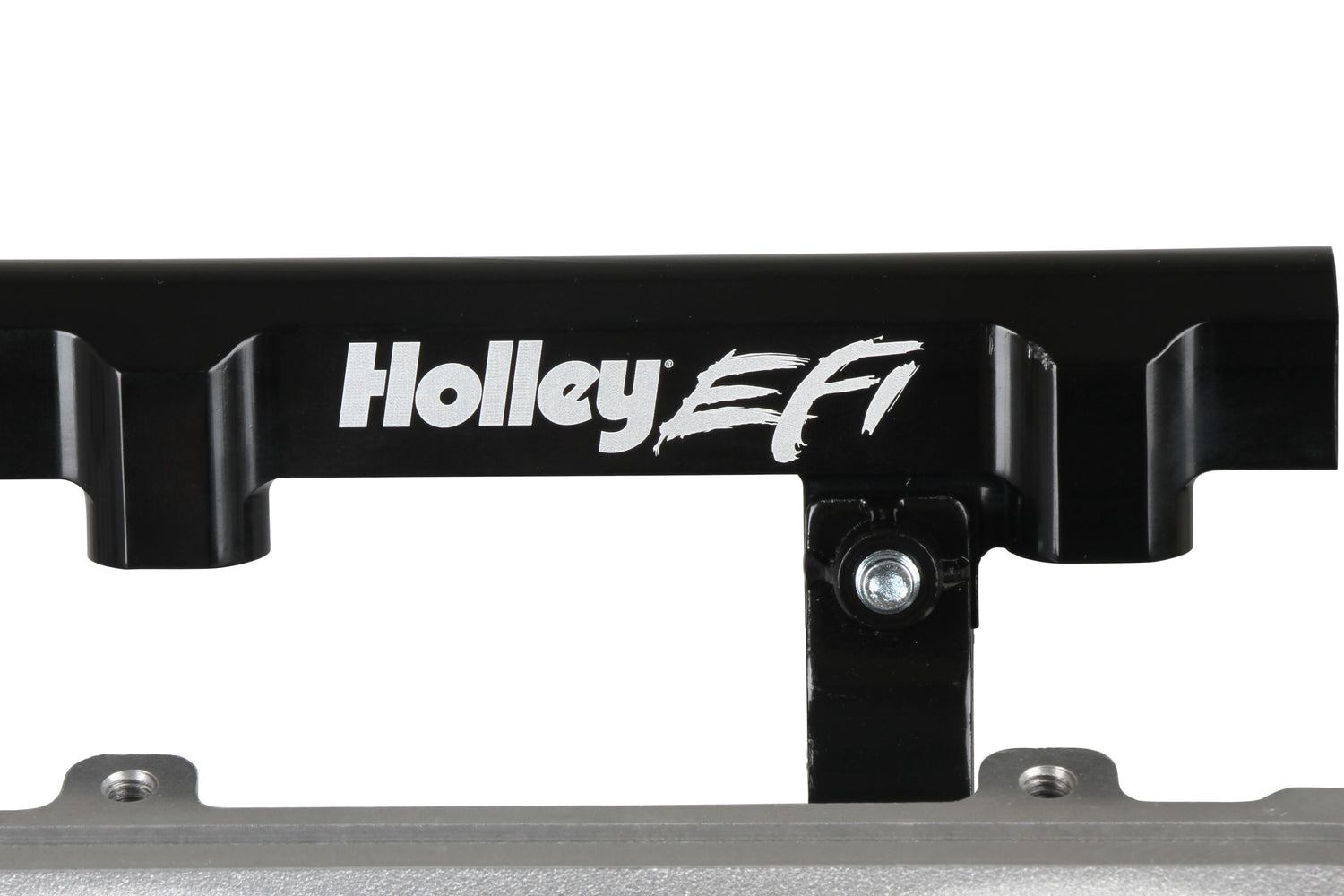

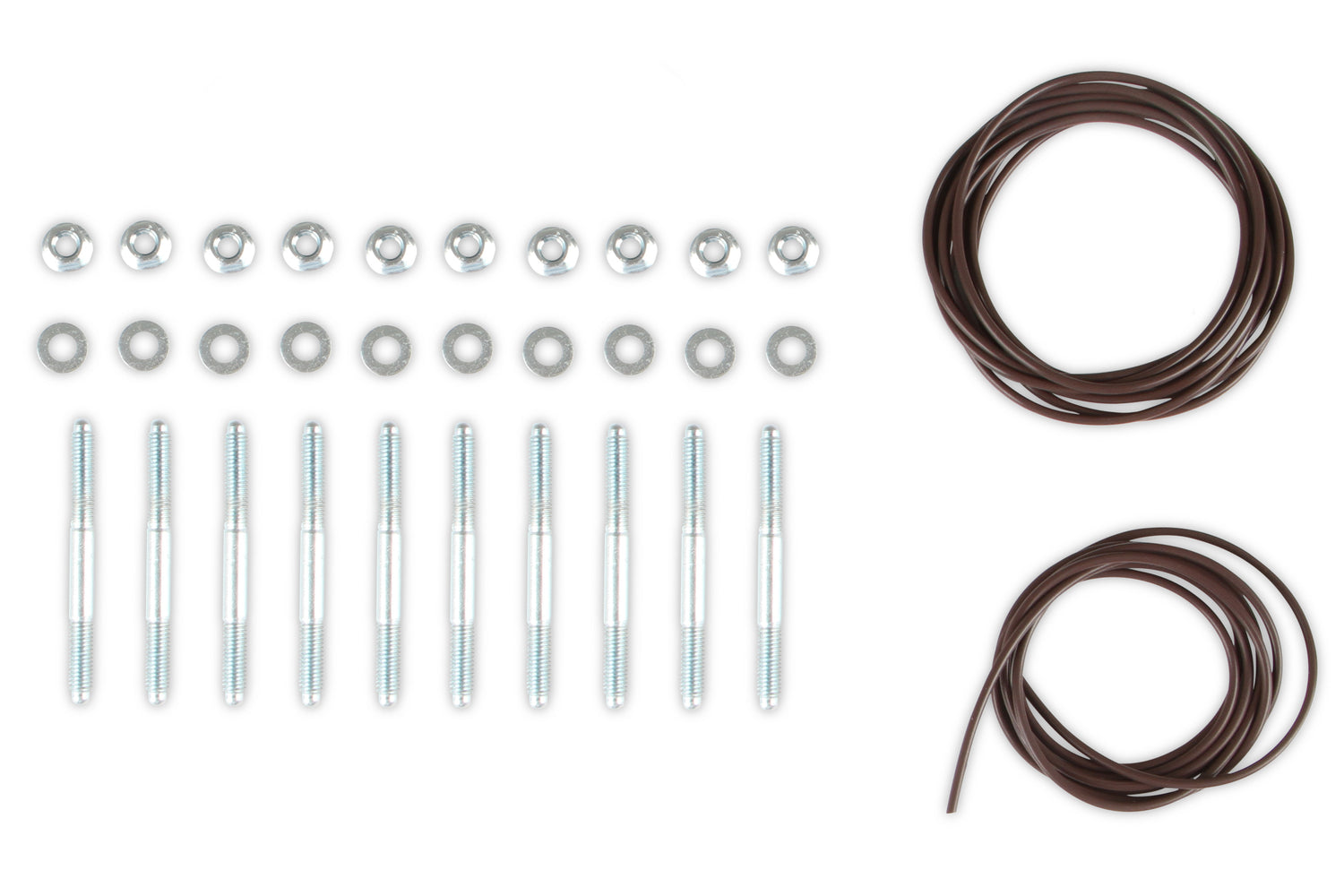

• High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)
• Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration

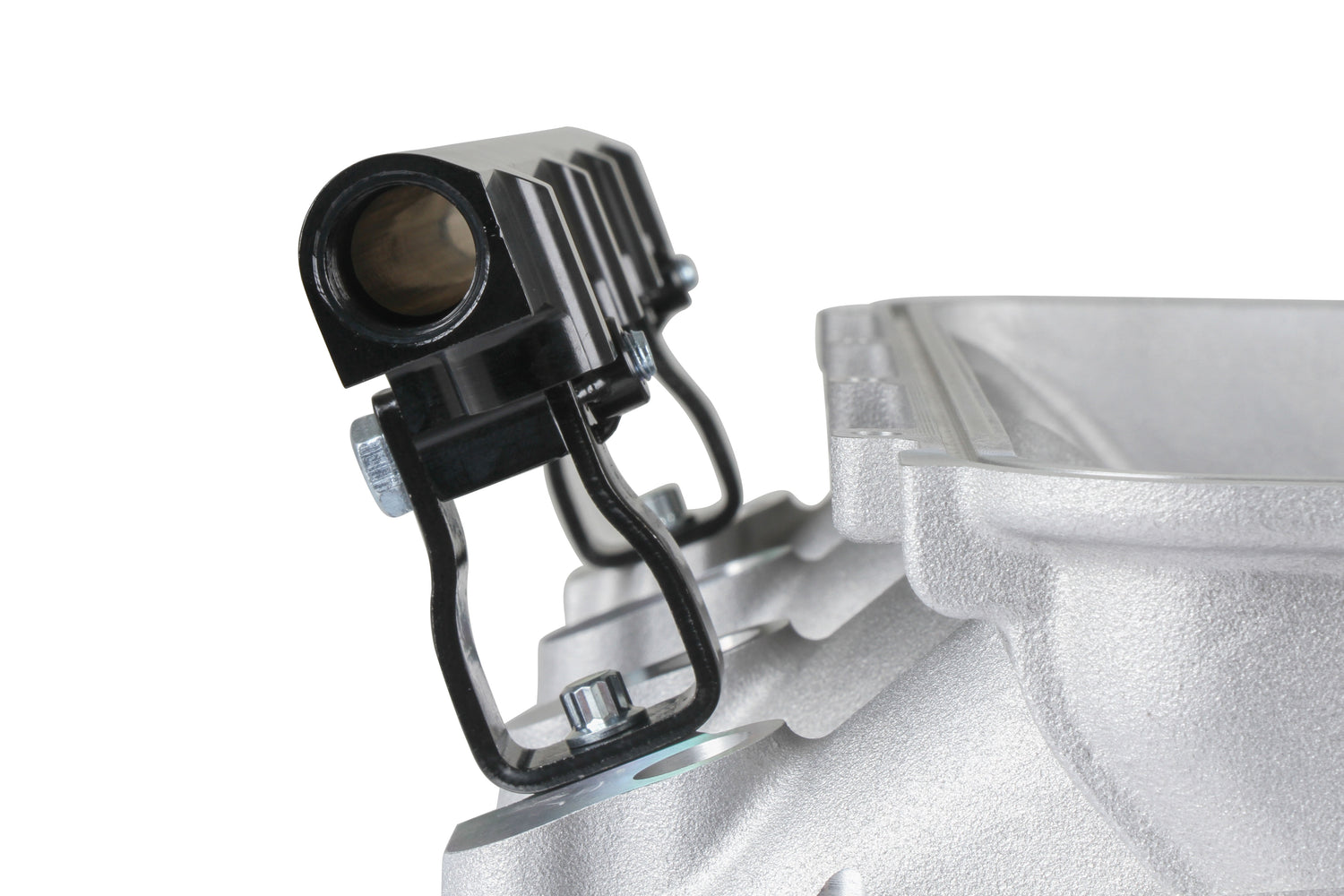

• Dual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring ports
• Available with both as-cast satin and black power-coat finishes
• Modular LS3 Lo-Ram design allows customization for user desired configurations
• Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
