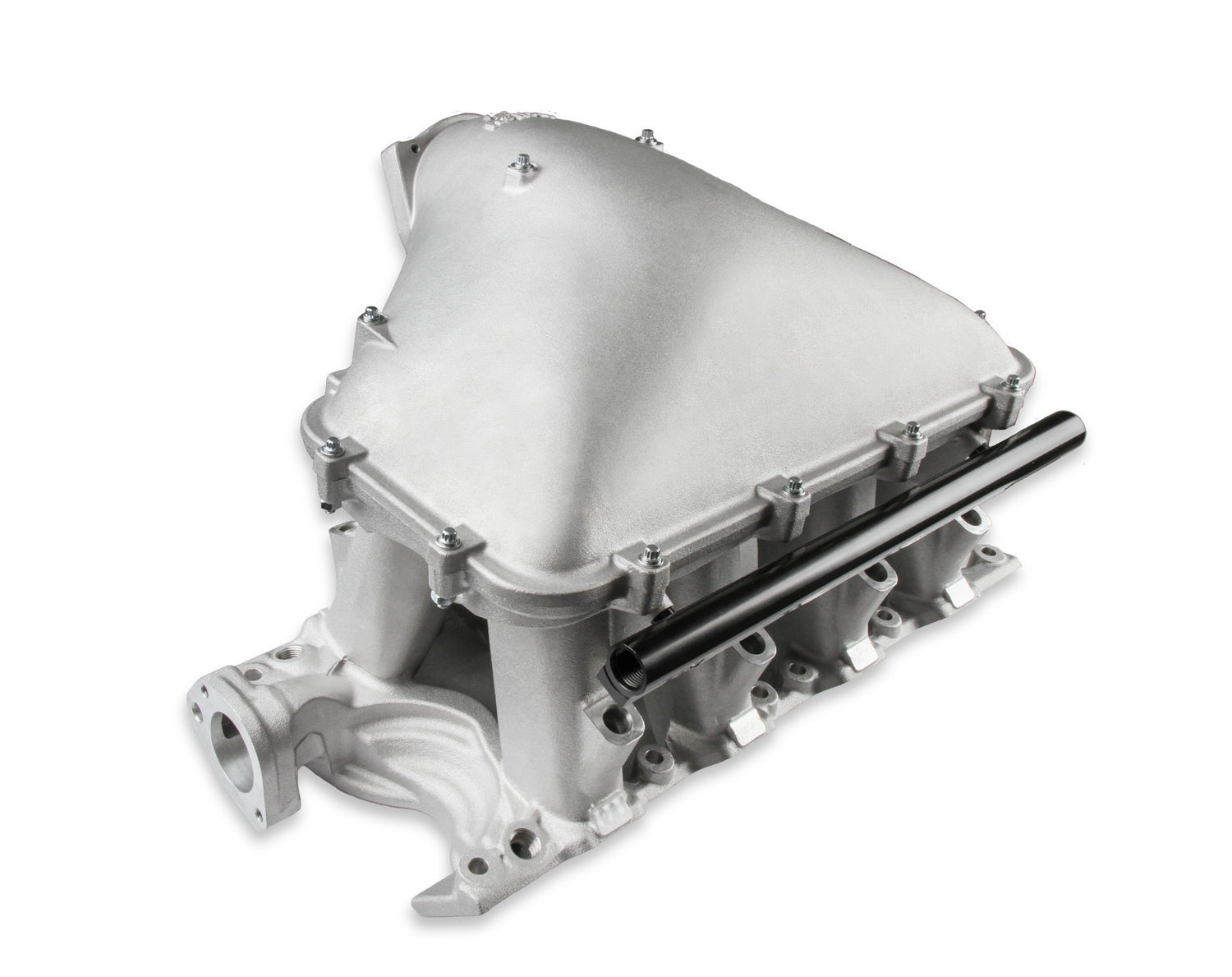

8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top

Holley EFI Hi-Ram Intake Manifold; Fits Ford 5.0 Style Throttle Body Flange; Side Mount Top; 95 mm. Throttle Bore; 8.2 in. Deck; 1500-7000 RPM; Cast; Alum.; Satin Finish;

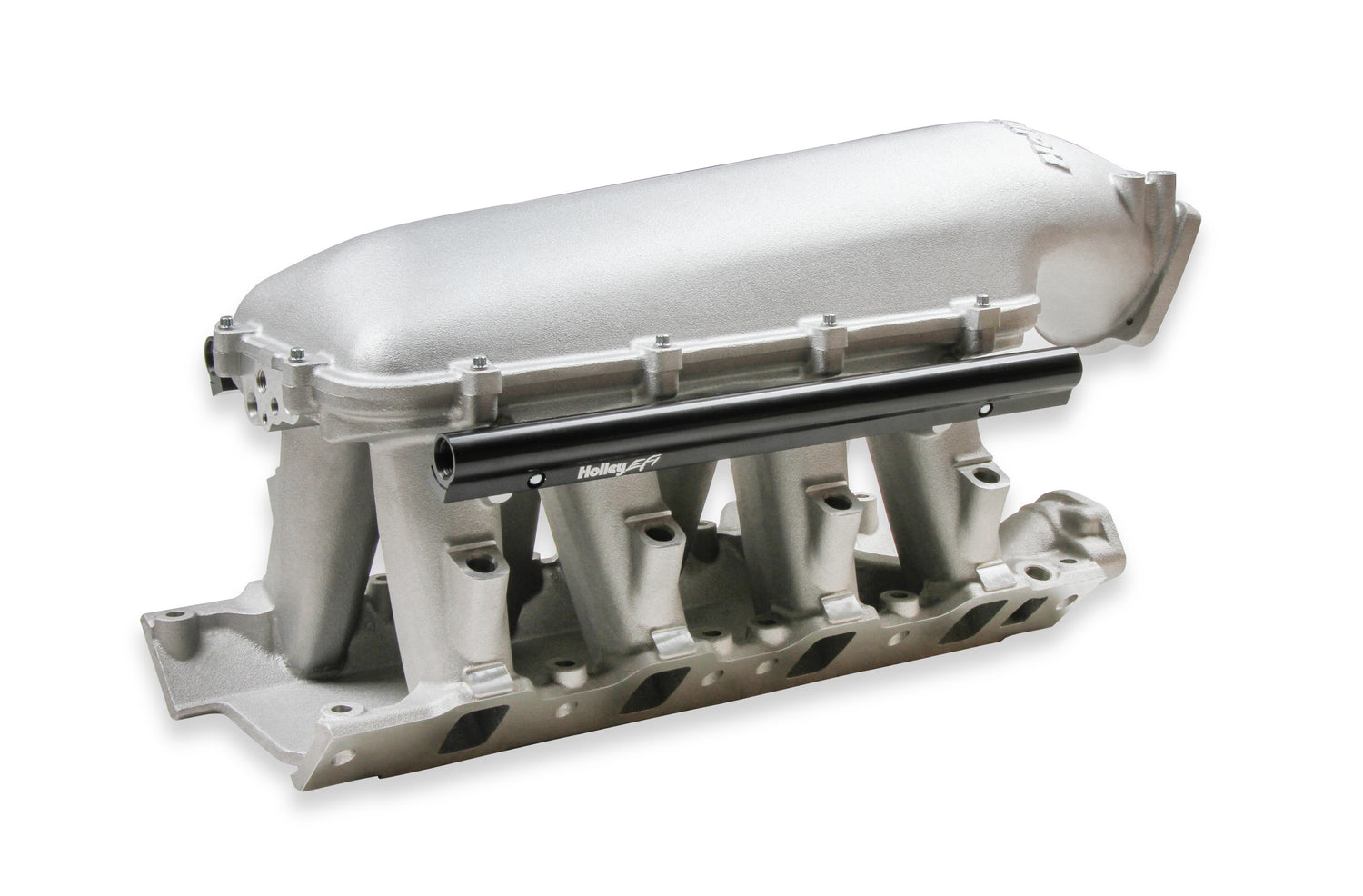

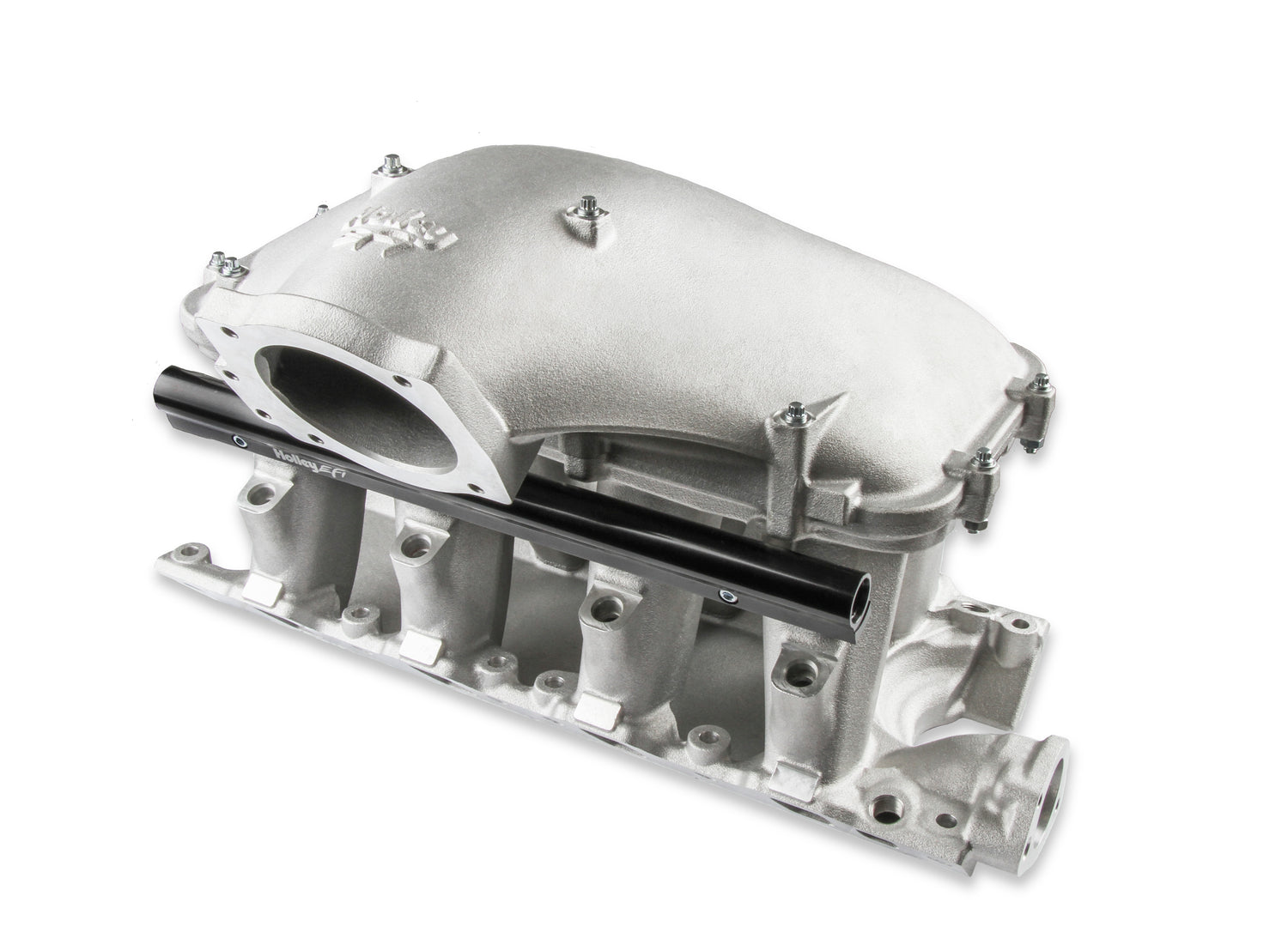

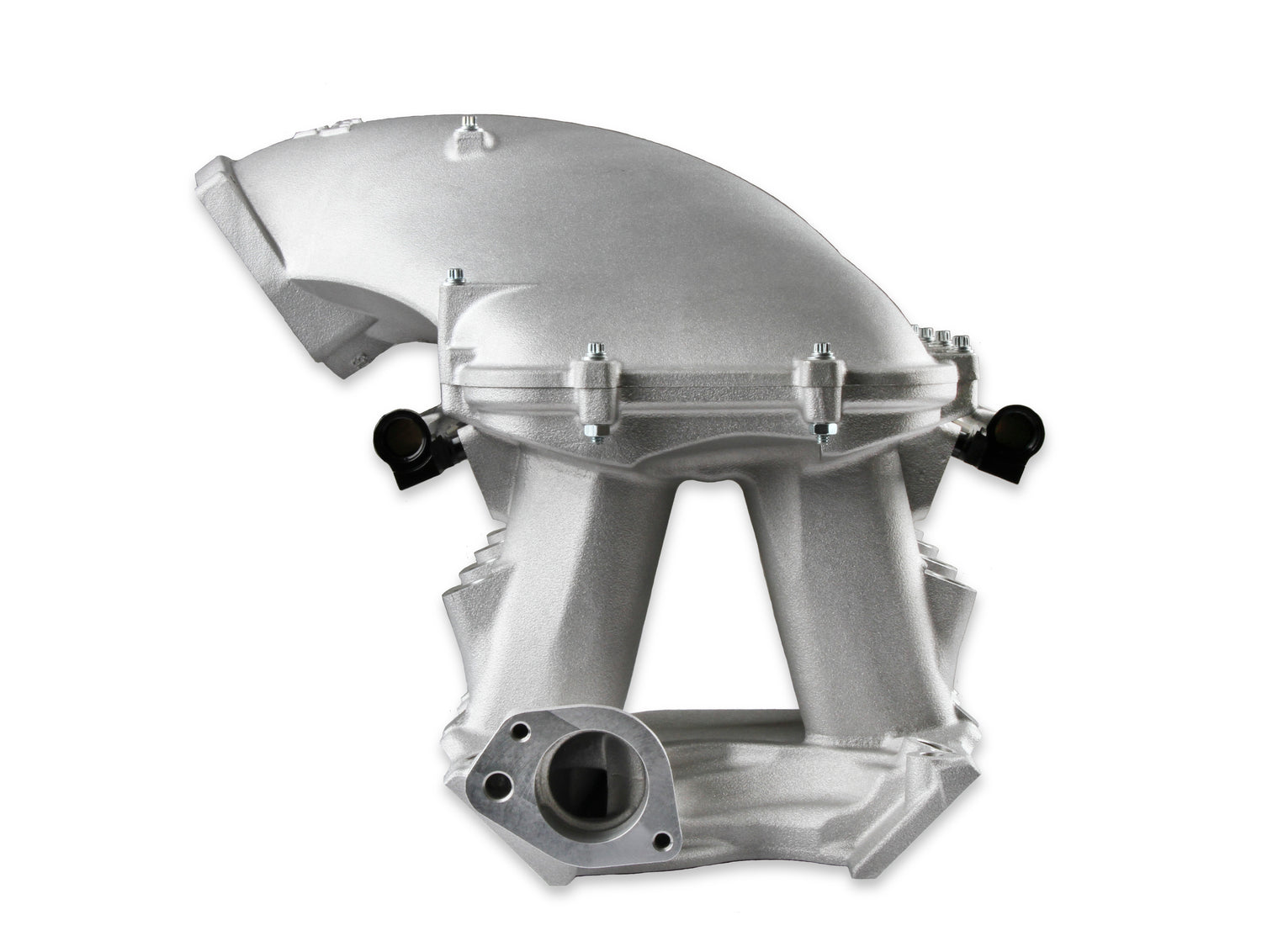

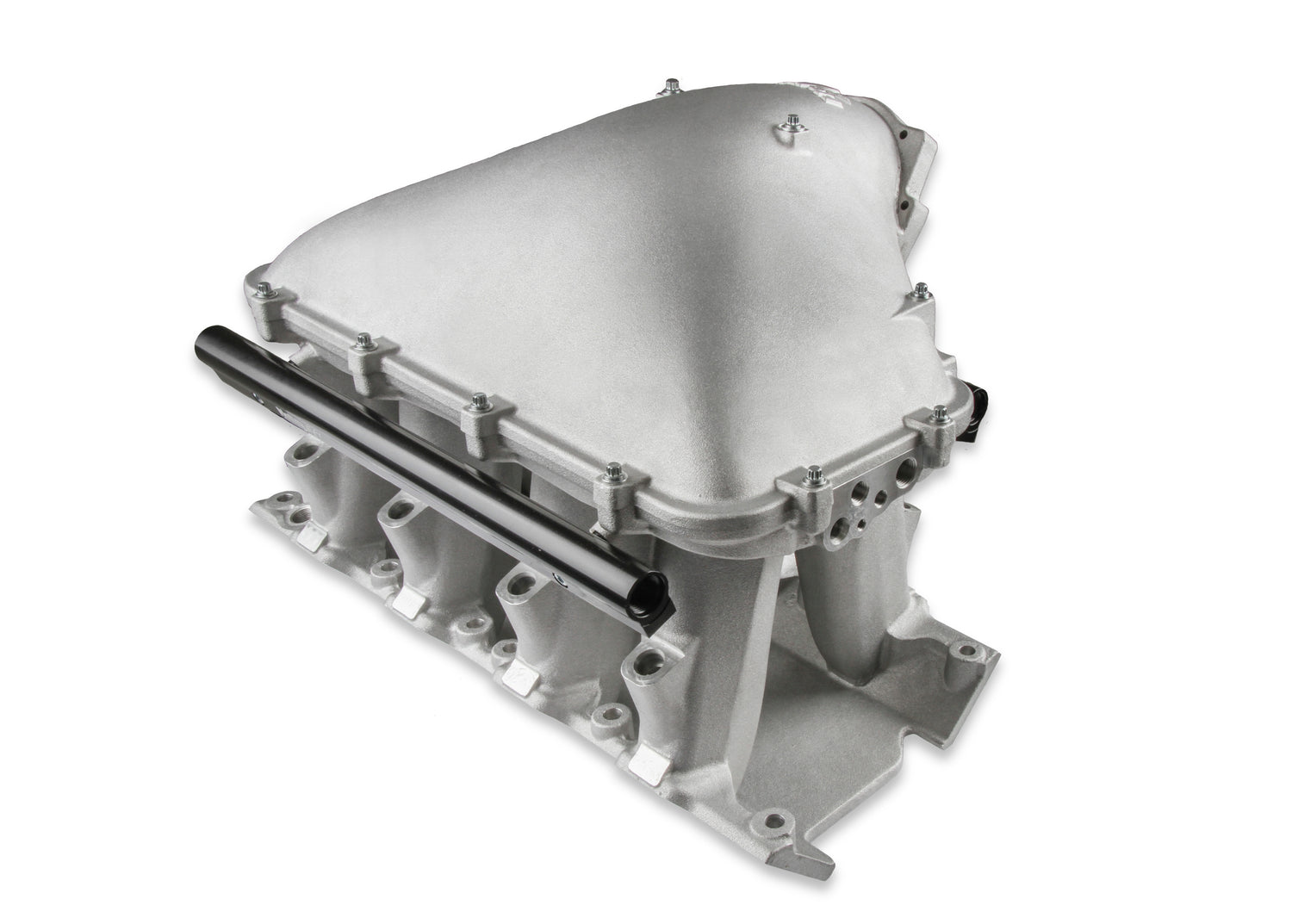

The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 95MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 8.2" deck height. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction.

• Plenum Top Gasket Type – 3/32” Round O-ring Cord
• Allows room for designing boosted applications
• The 8.2 SBF manifold is available to work with 95MM throttle bodies

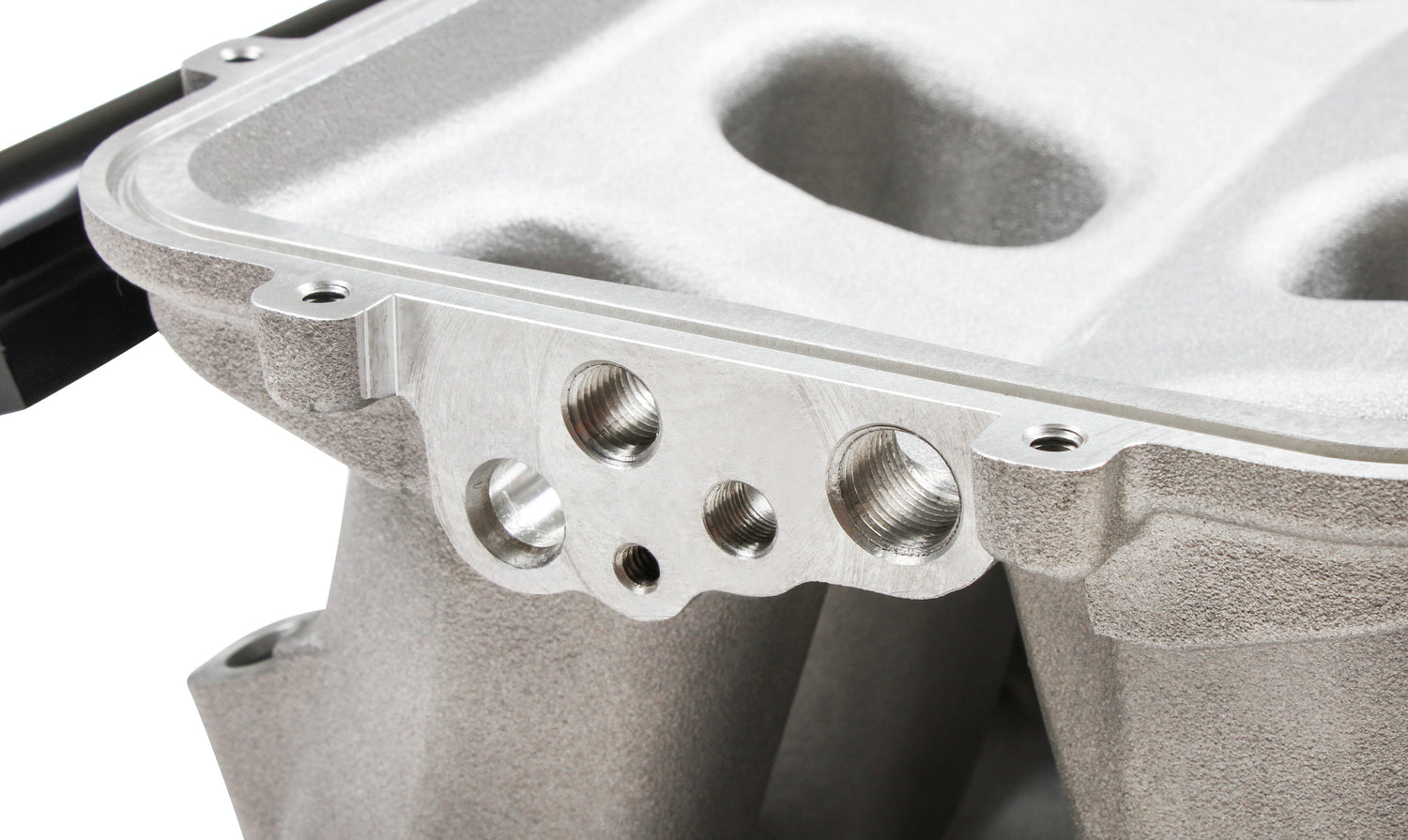

• EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

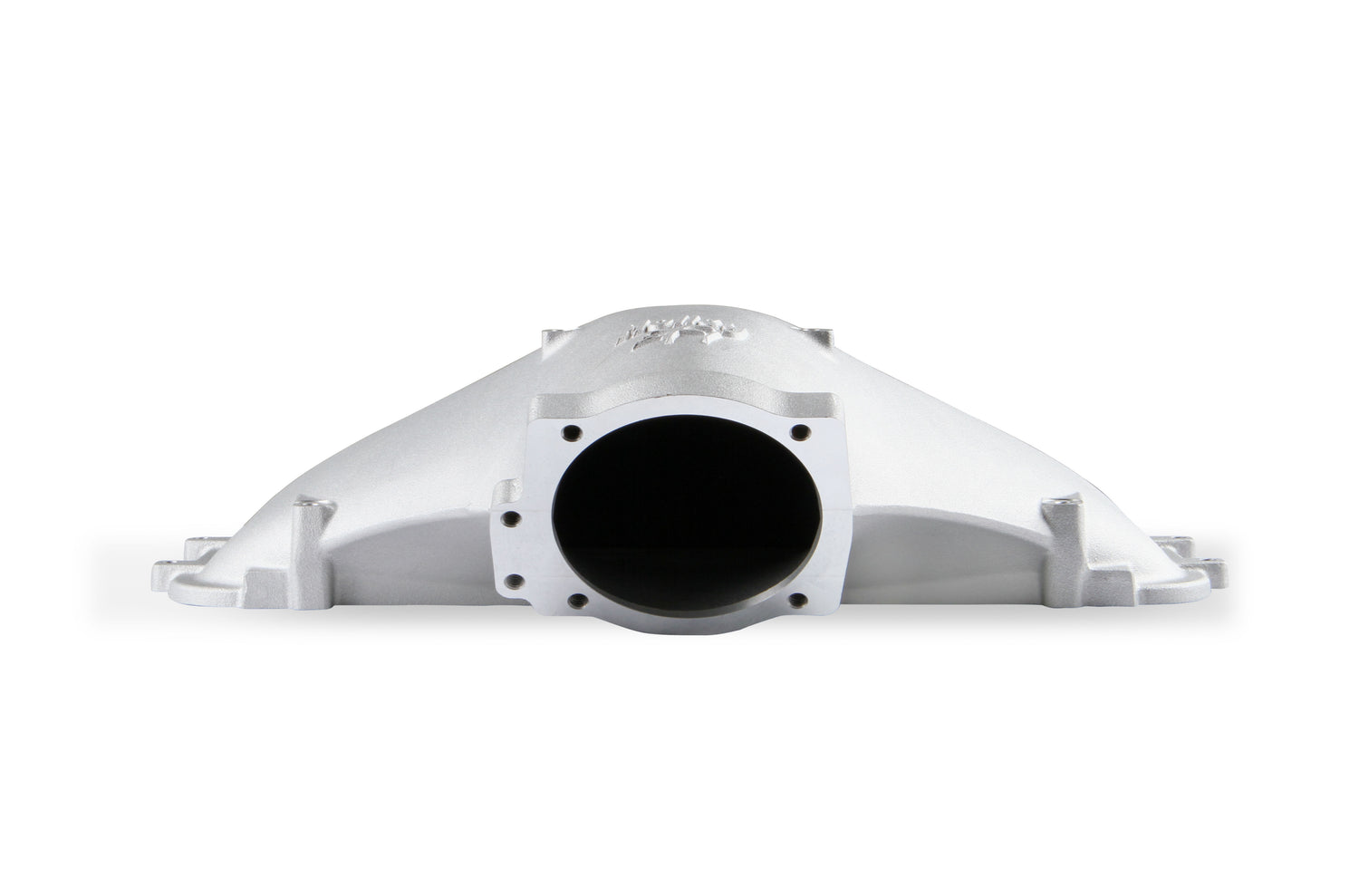

• Designed for side mounted throttle bodies

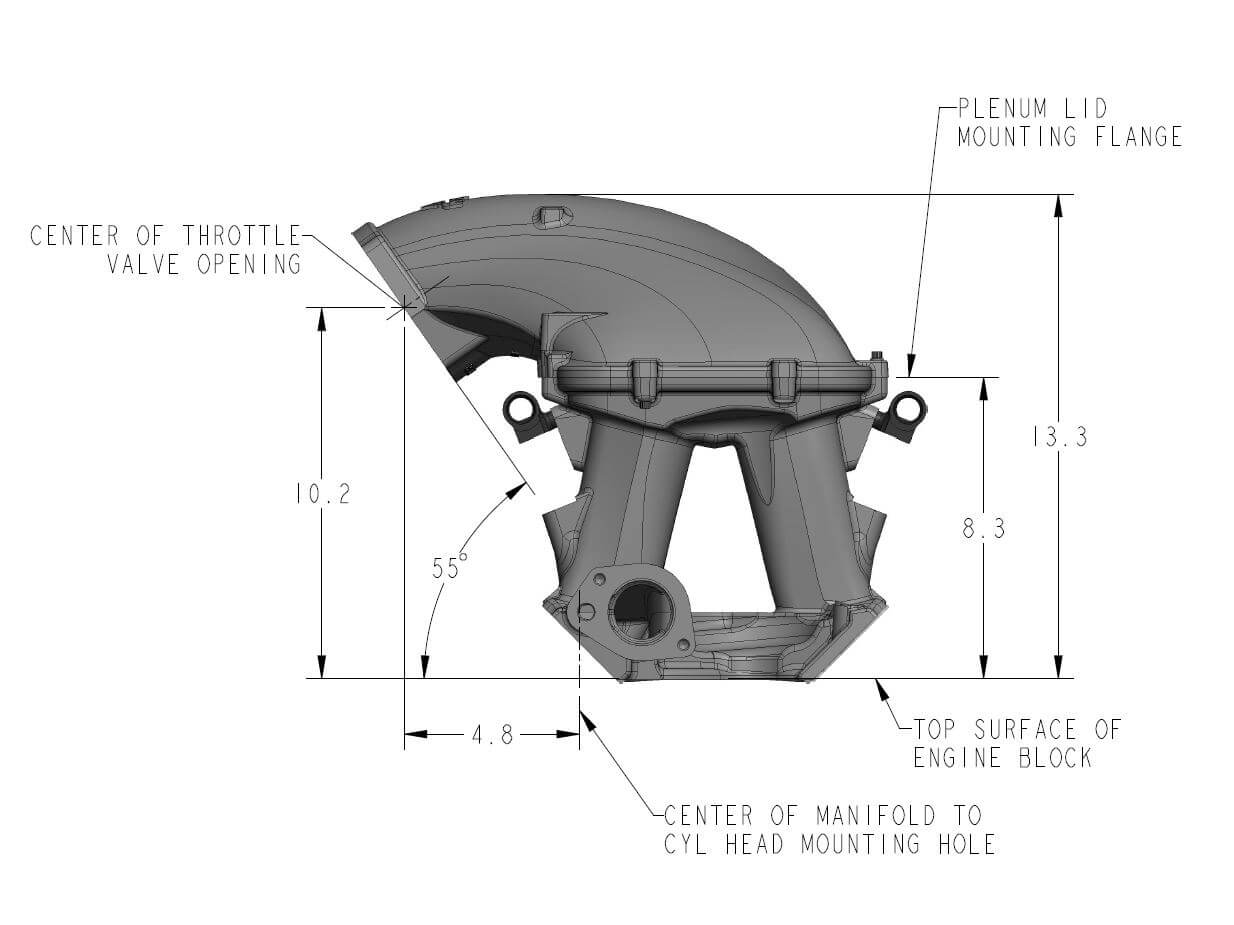

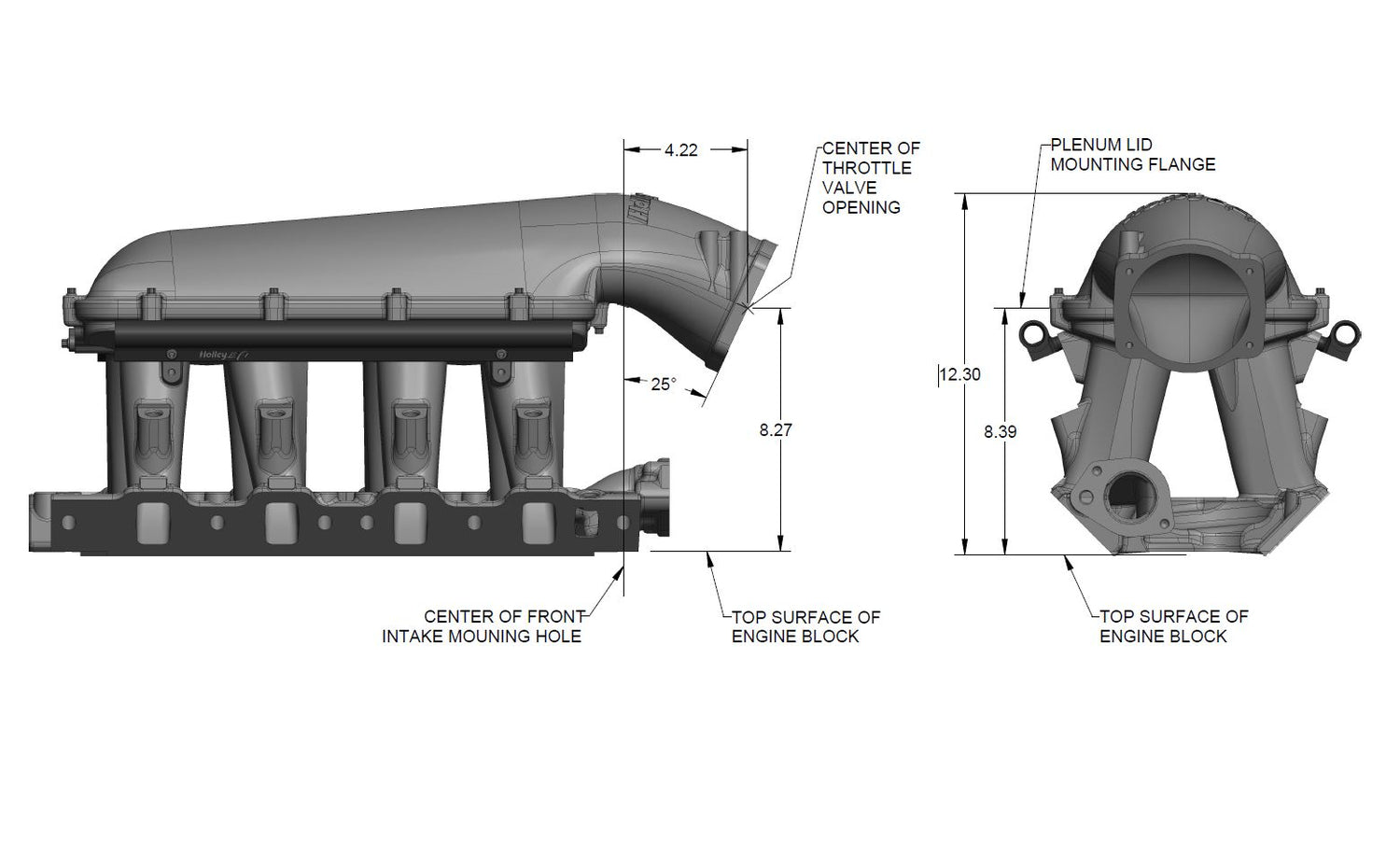

• Manifold is designed for a 8.2" SBF deck height.

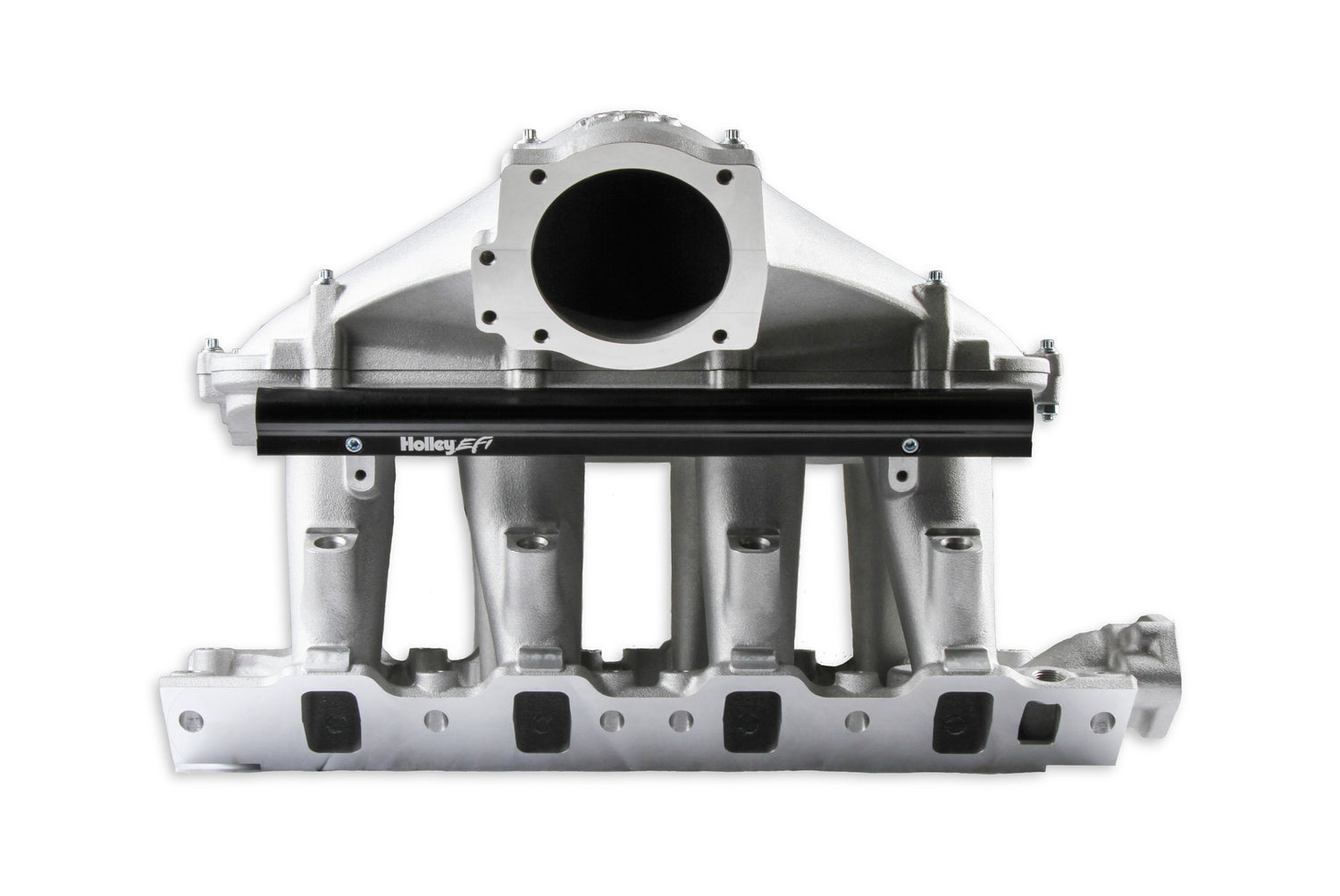

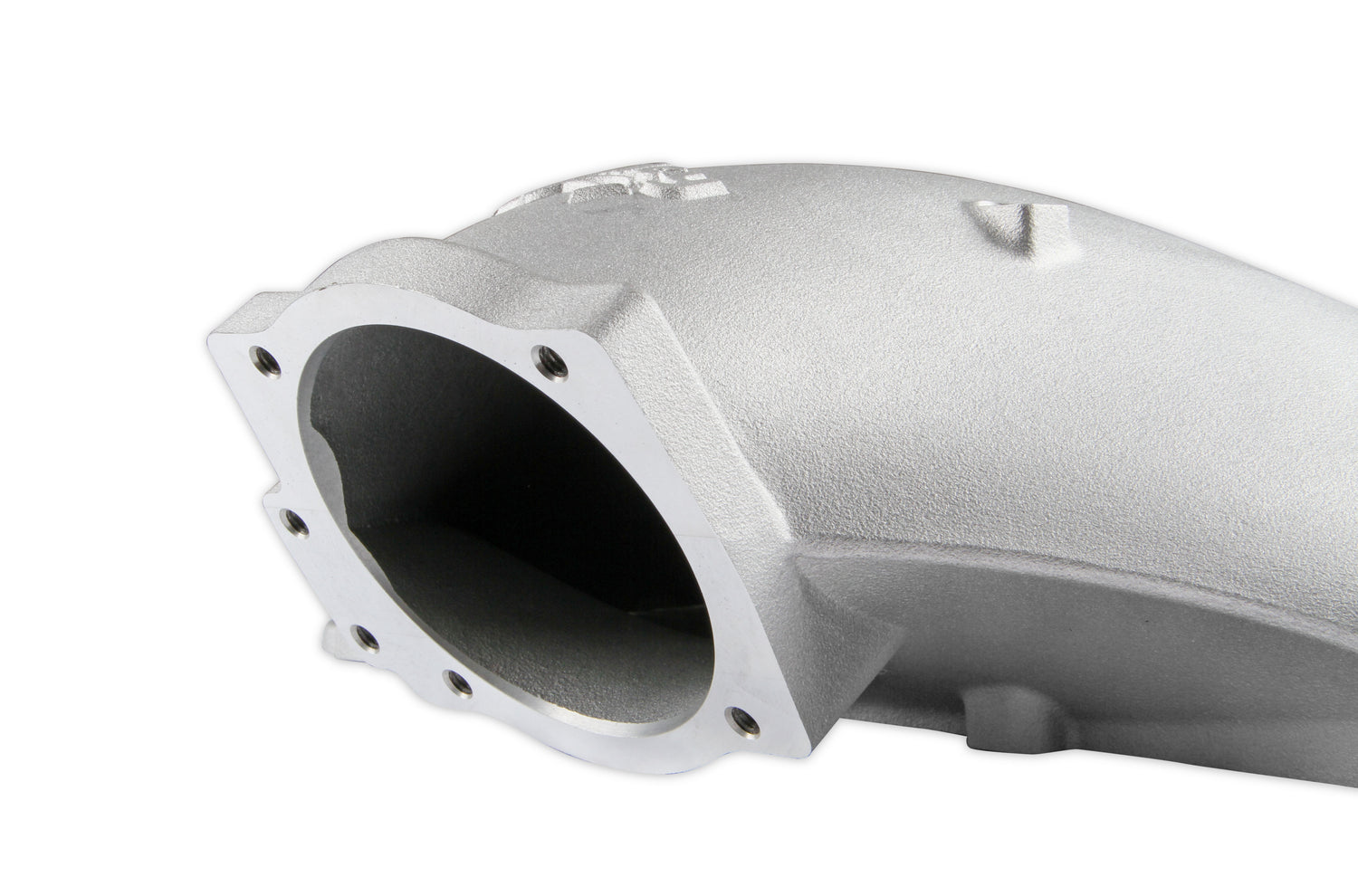

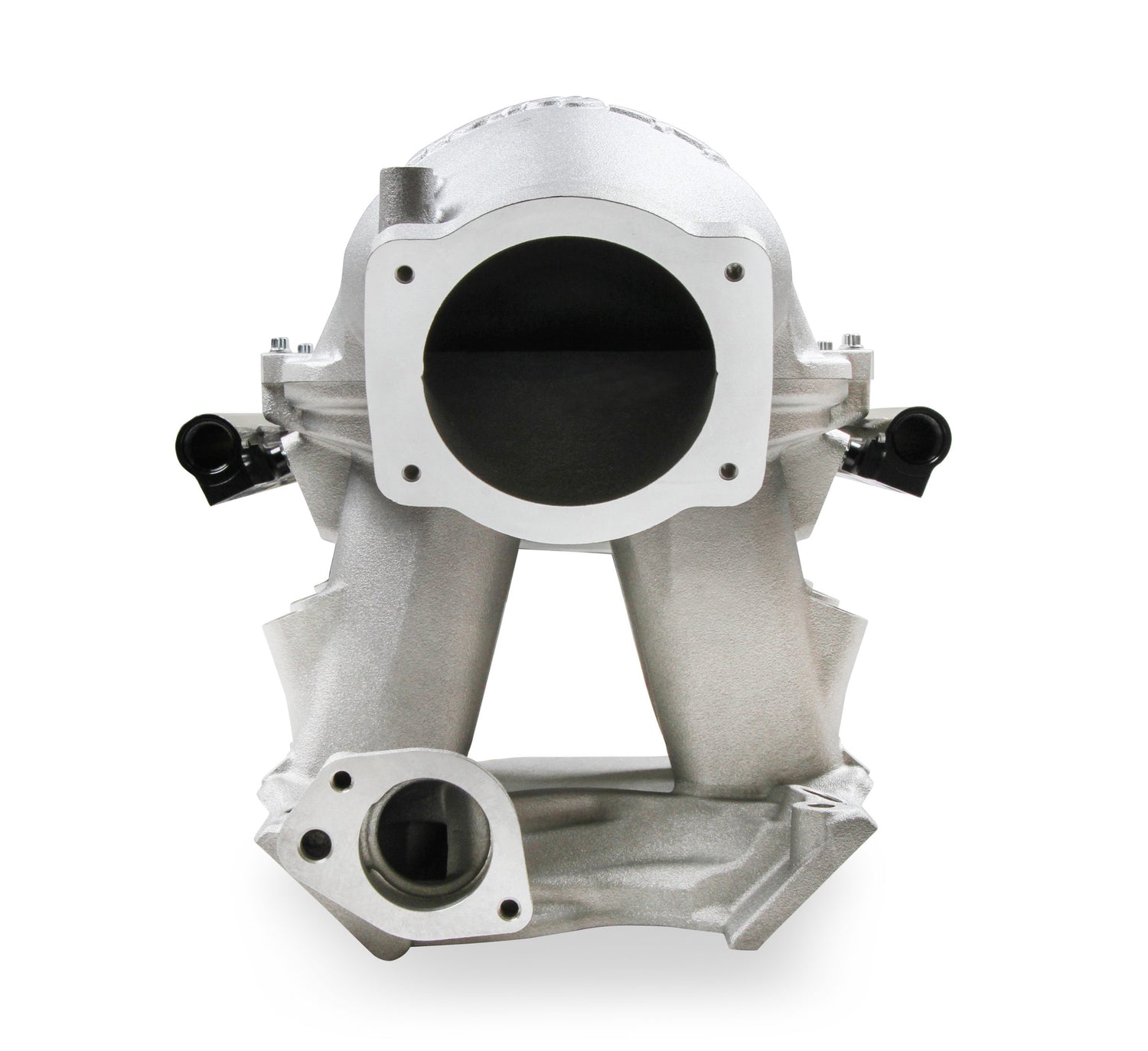

• Ford 5.0 throttle body fitment

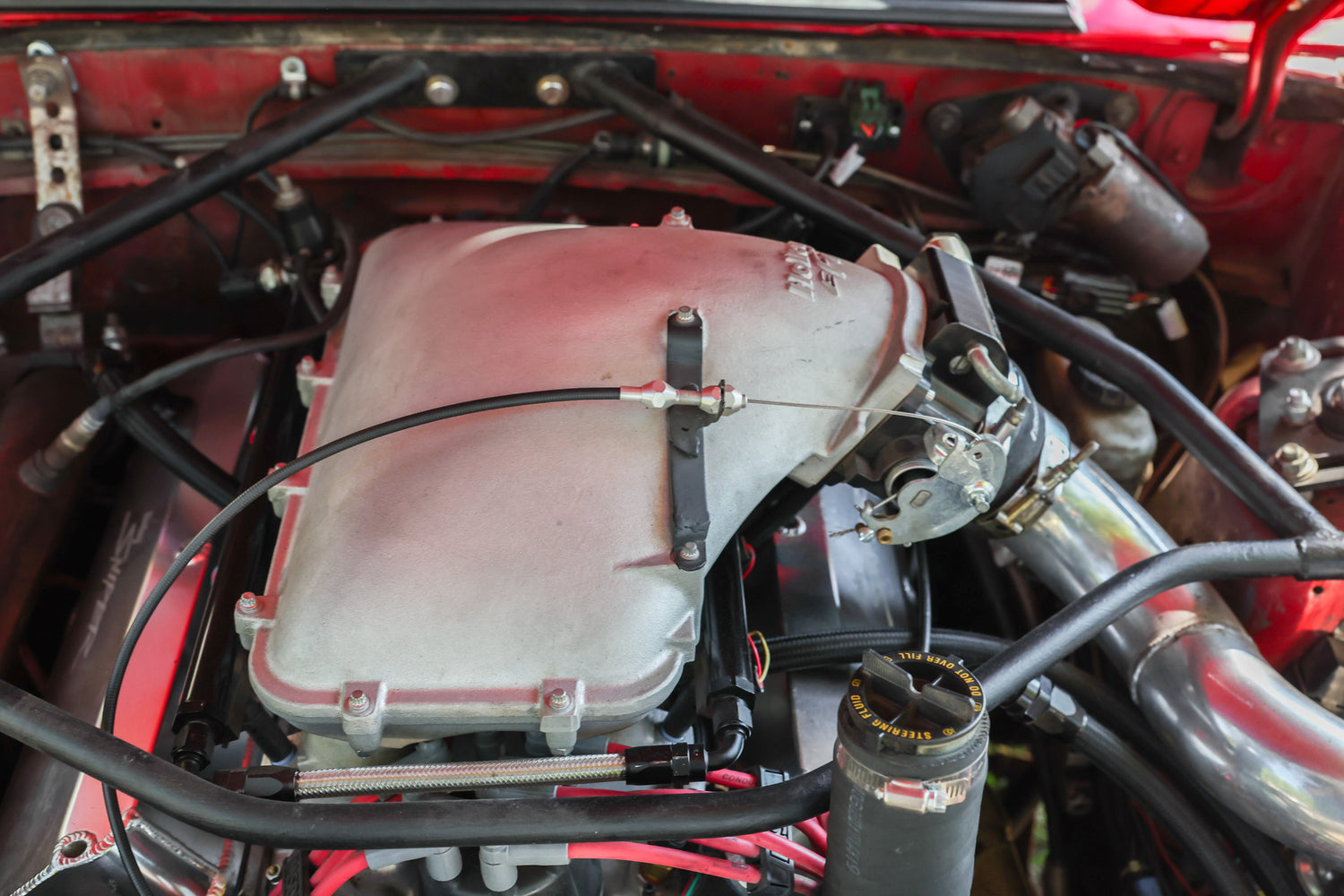

• Lid has been verified to fit under Cervinis 2.5” cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations.
