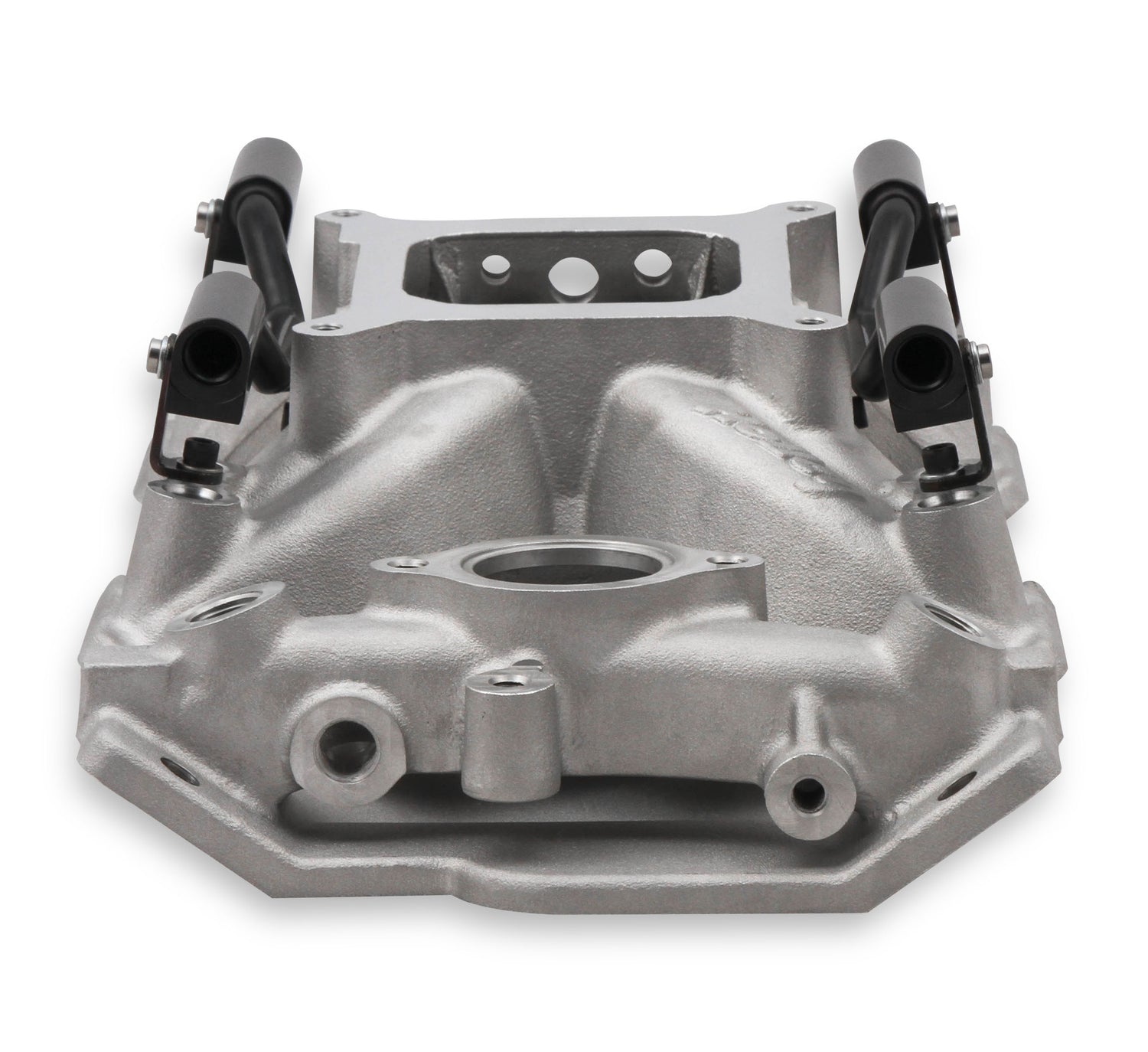

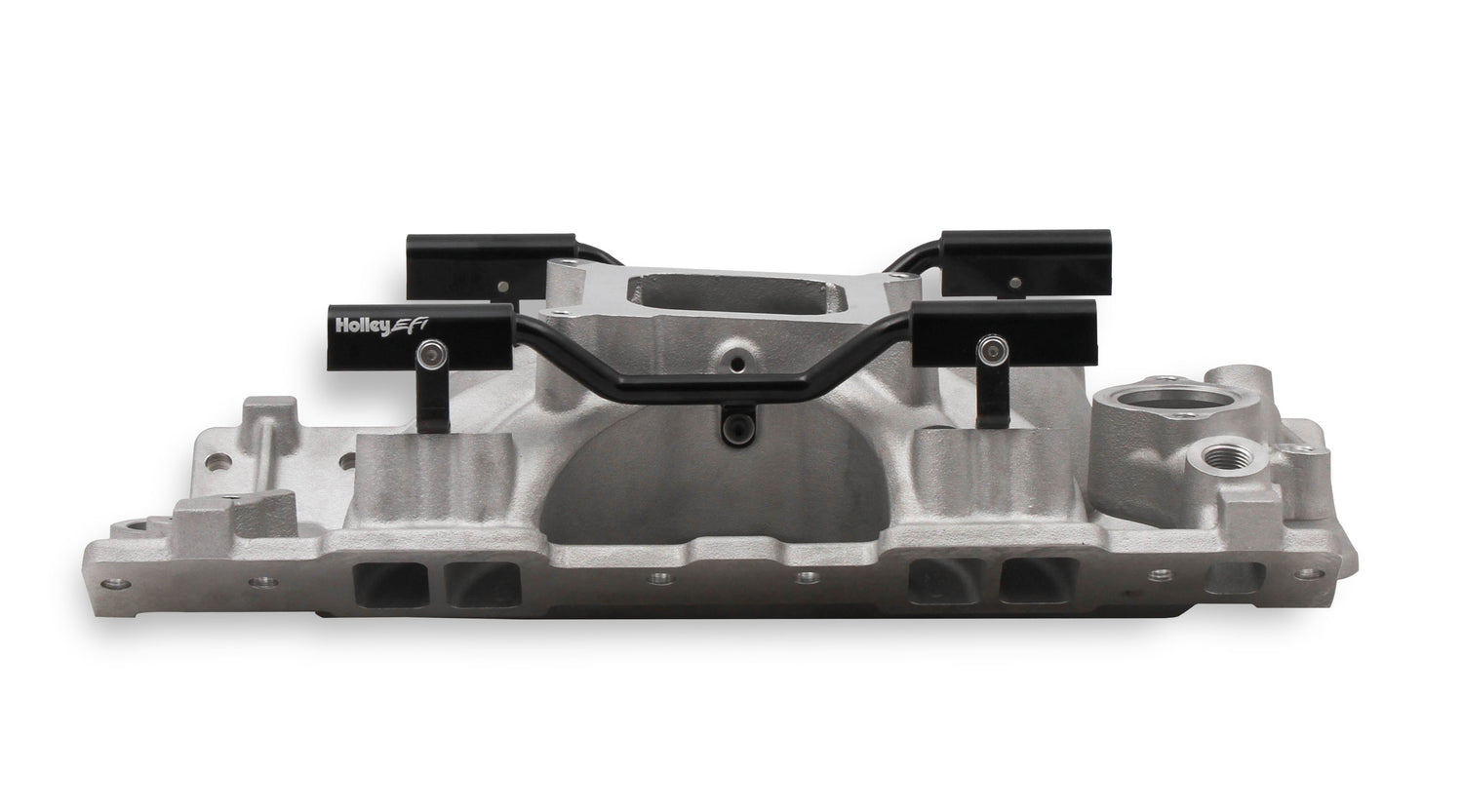

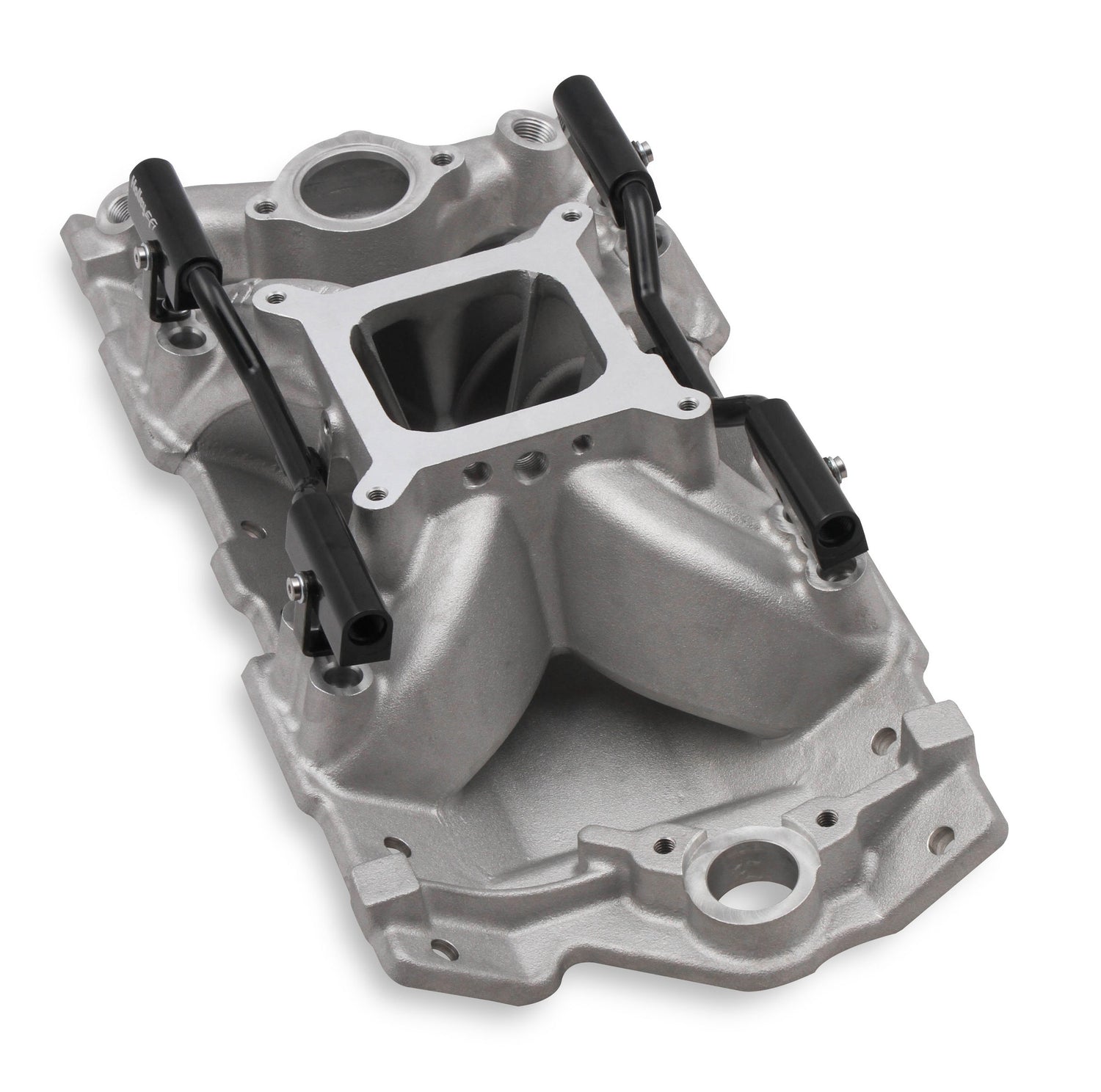

Holley EFI SBC 4150 Single Plane EFI Intake Manifold - Chevy Small Block V8

EFI Single Plane Manifold 1962-1986 262ci-400ci, 1987-later with Aluminum Heads

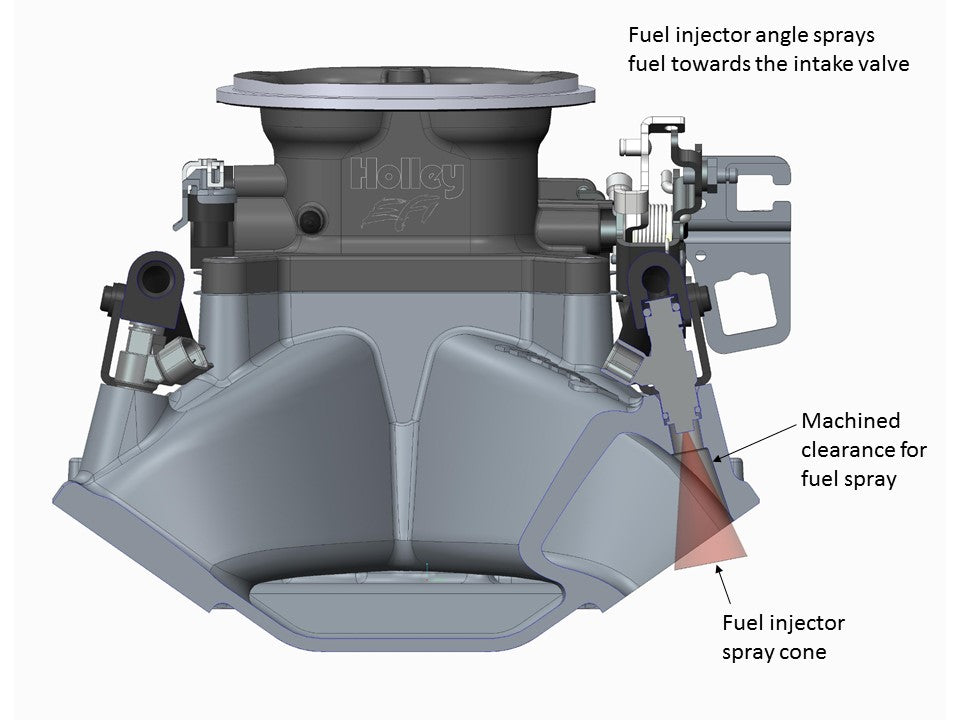

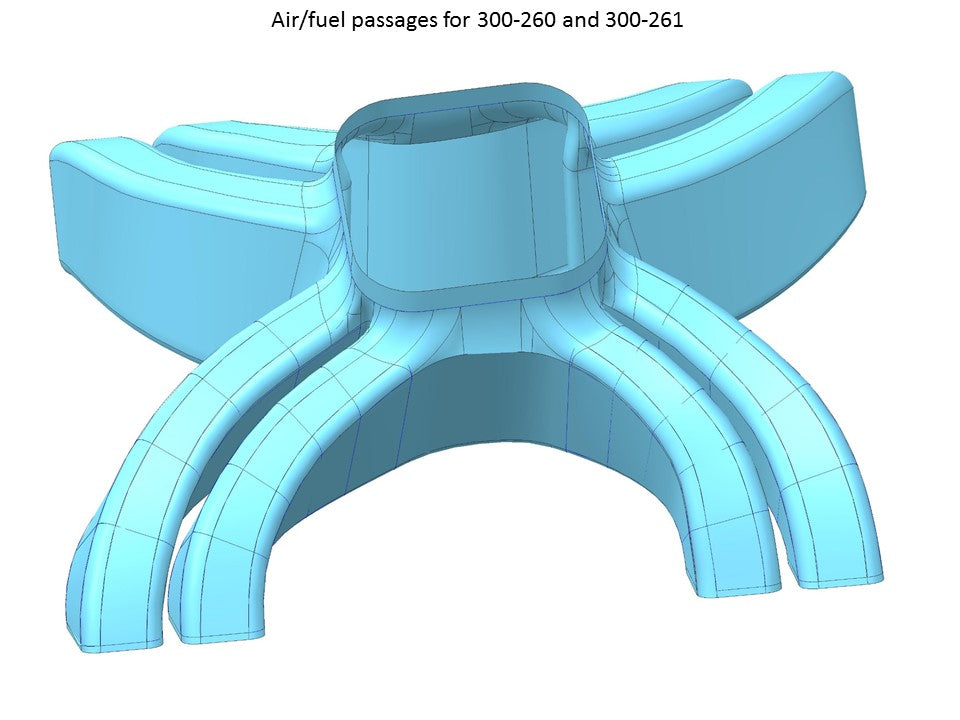

The new single plane EFI intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The manifold is designed to work with 4150 Style Throttle body EFI systems like the Holley 4150 style flange Universal Throttle Bodies. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1" shorter overall height than most single plane manifolds, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The fuel injector bores have back-cut exits in the runners for better fuel atomization. This design points the injectors at an angle to match the intake runner airflow angle. The black coated fuel rails and rail bracket assortment are included with the manifold for any easy installation with the injectors that you choose to use for your combination. Fuel rail designed for maximum throttle lever clearance.

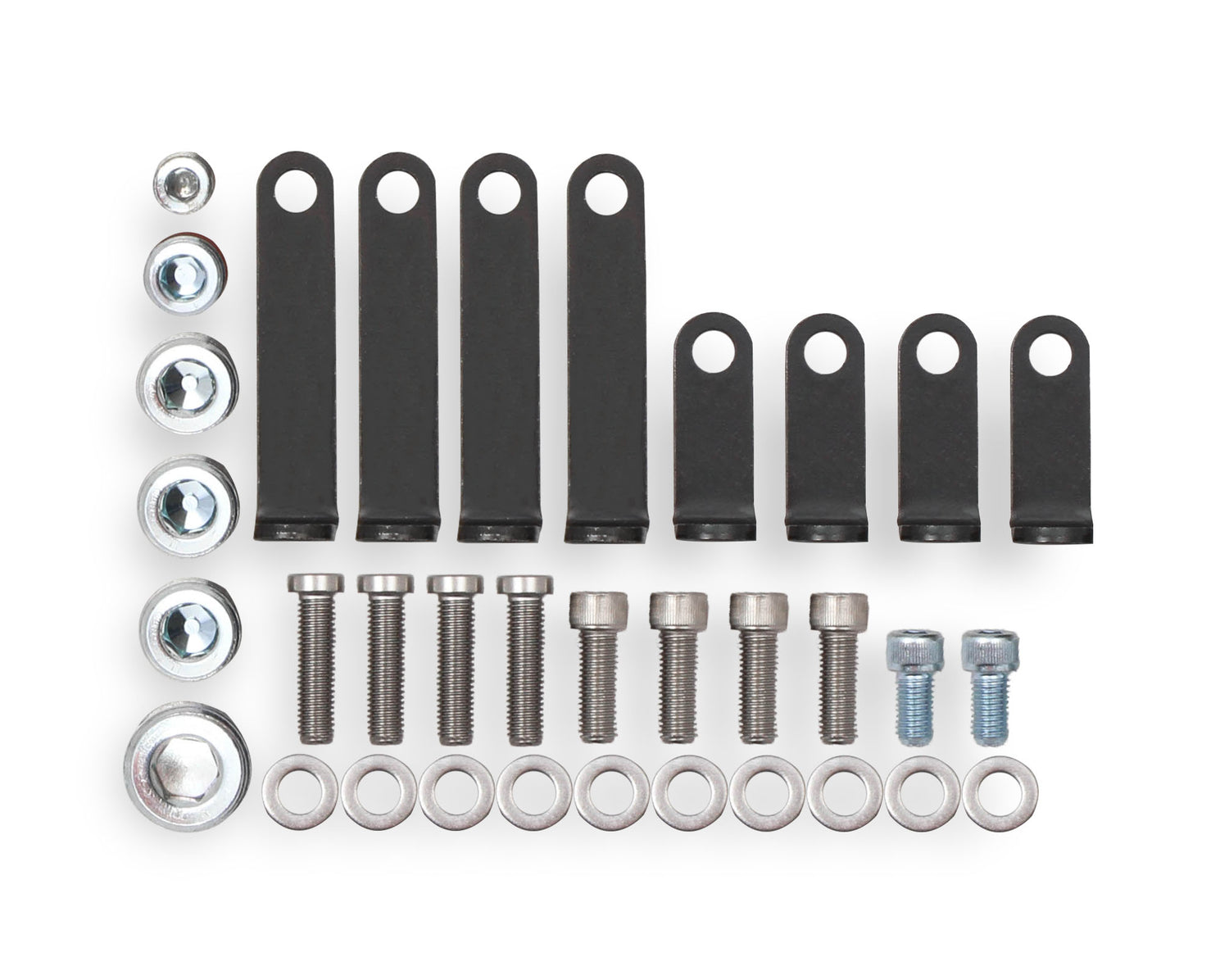

• Holley laser etched logos on the black coated fuel rails and bracket assortment are included so that you can install the injectors of your choice.
• Power band: 2500-7500 RPM
• Fuel injectors are not included
• Lower Throttle Body Mounting height to help with hood clearance.

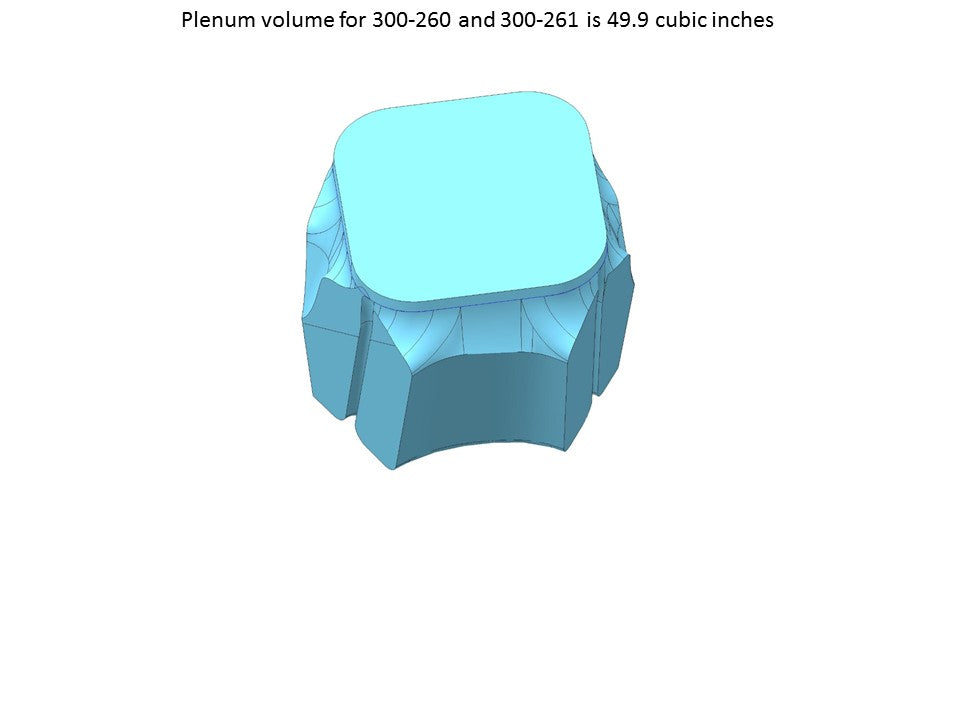

• Single Plane Design with isolated Plenum
• 4150 Square Bore Mounting Flange

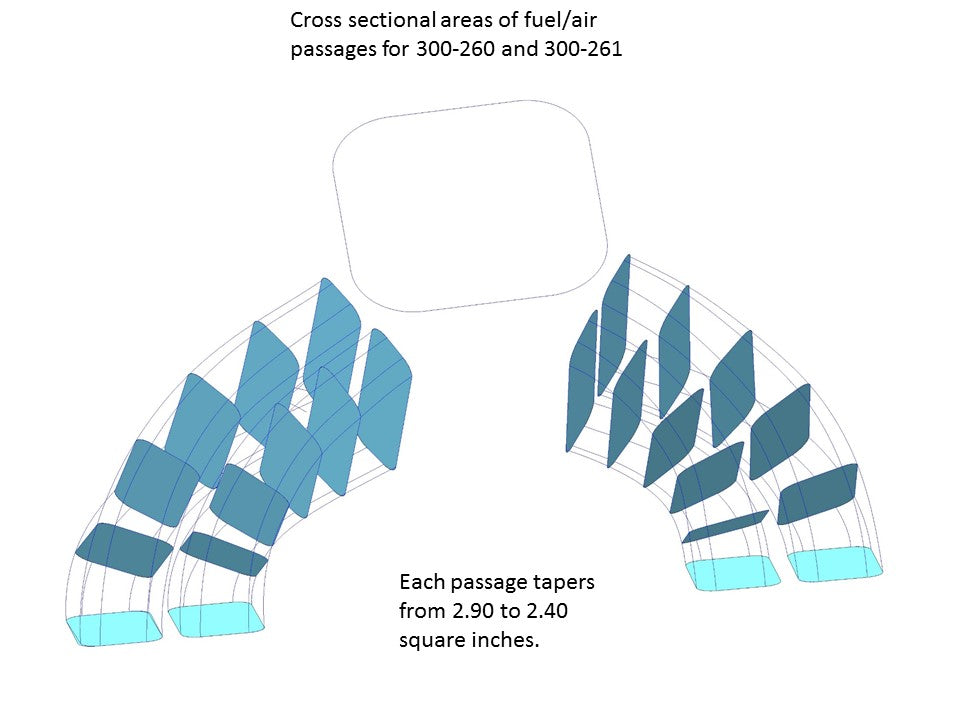

• Port Size: 1.92” height 1.20" width
• Fuel rail designed for maximum throttle lever clearance.

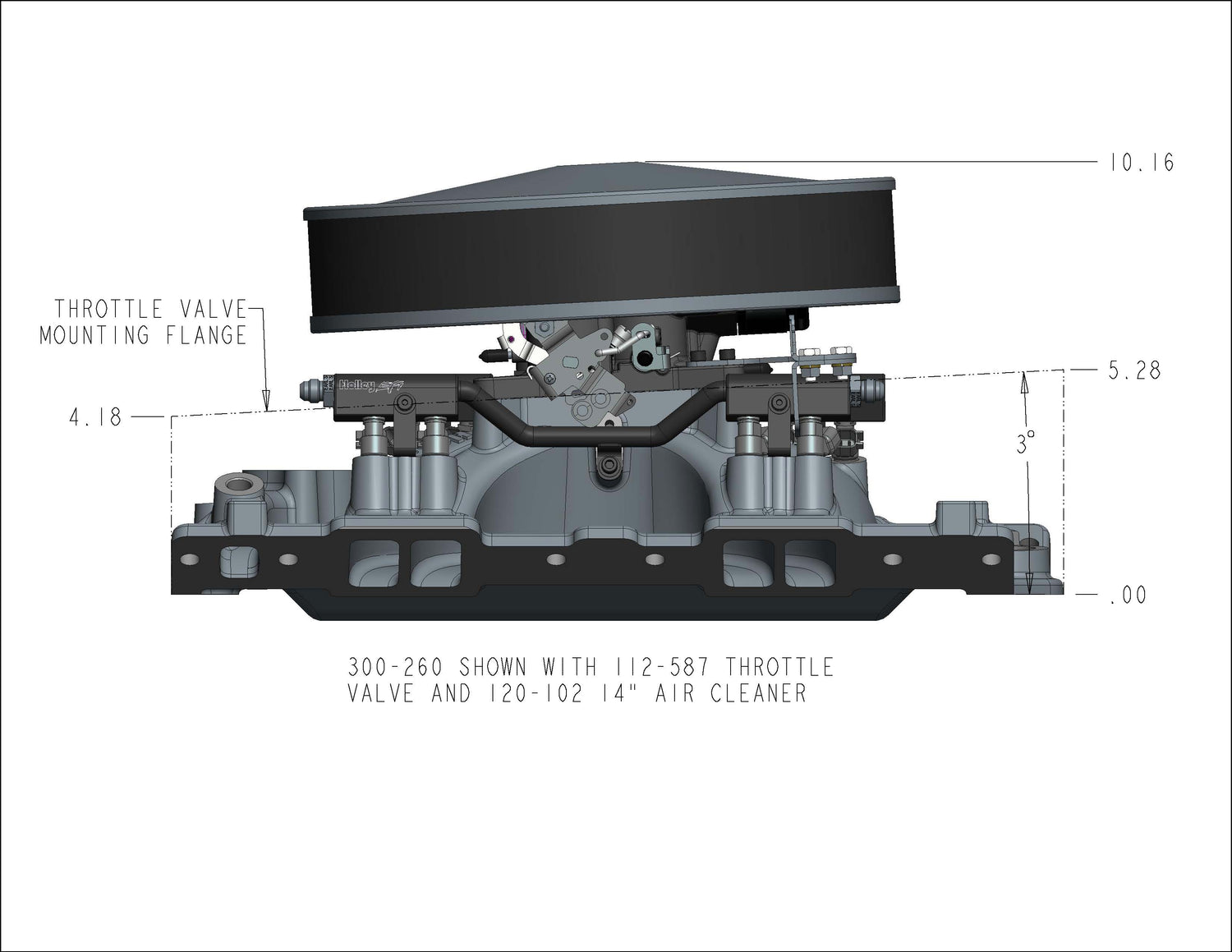

• Height: Front 4.18", Rear 5.28"
