Holley EFI 300-240BK - EFI Throttle Body Intake Elbow

Holley EFI 300-240BK - EFI Throttle Body Intake Elbow

EFI Throttle Body Intake Elbow-Black Finish

EFI Throttle Body Intake Elbow; Fits Intakes w/4150 Flange; 105mm Throttle Body Opening; 100 Deg. Mounting Angle; Fits GM LS Throttle Bodies; Black Finish;

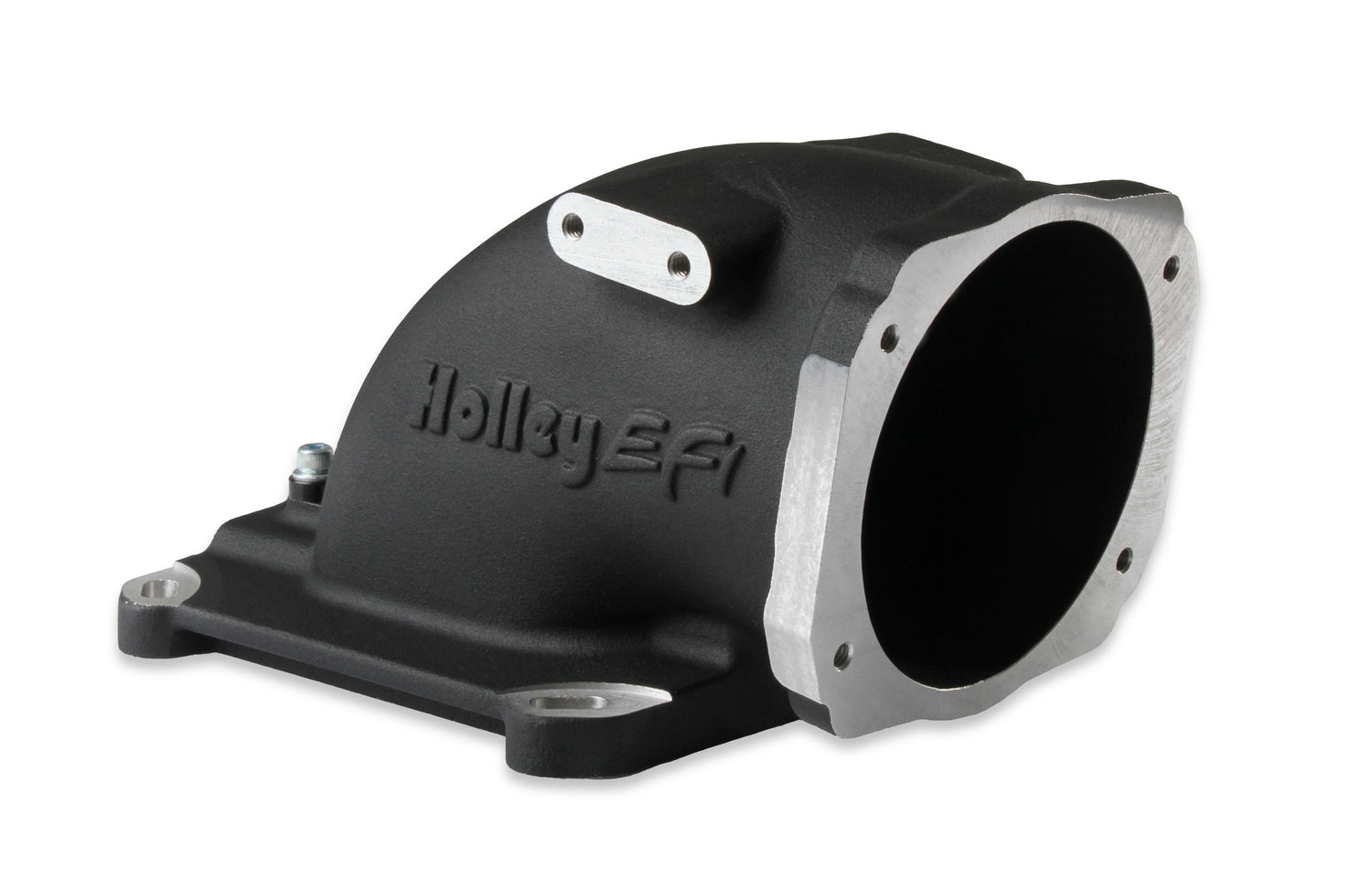

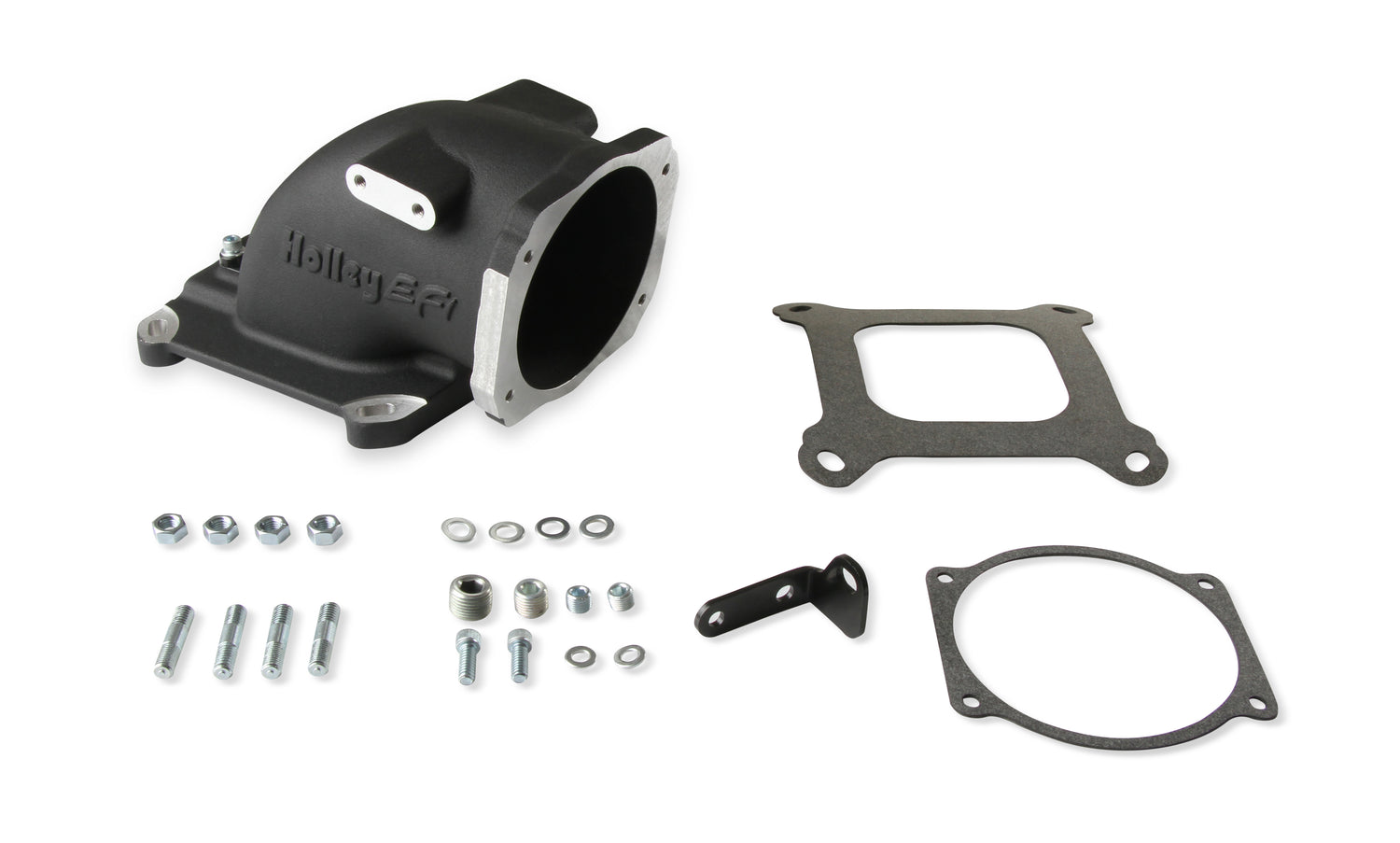

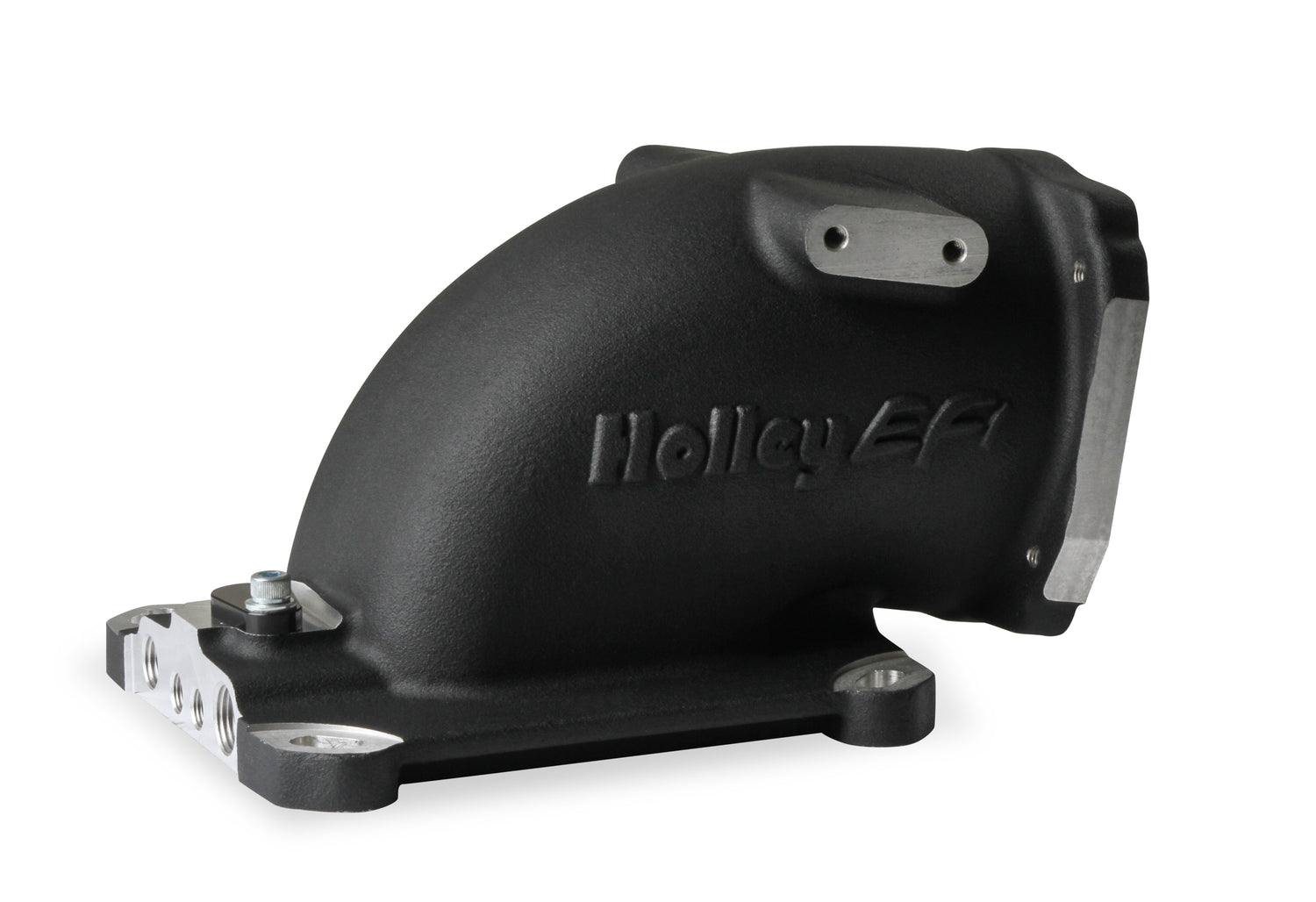

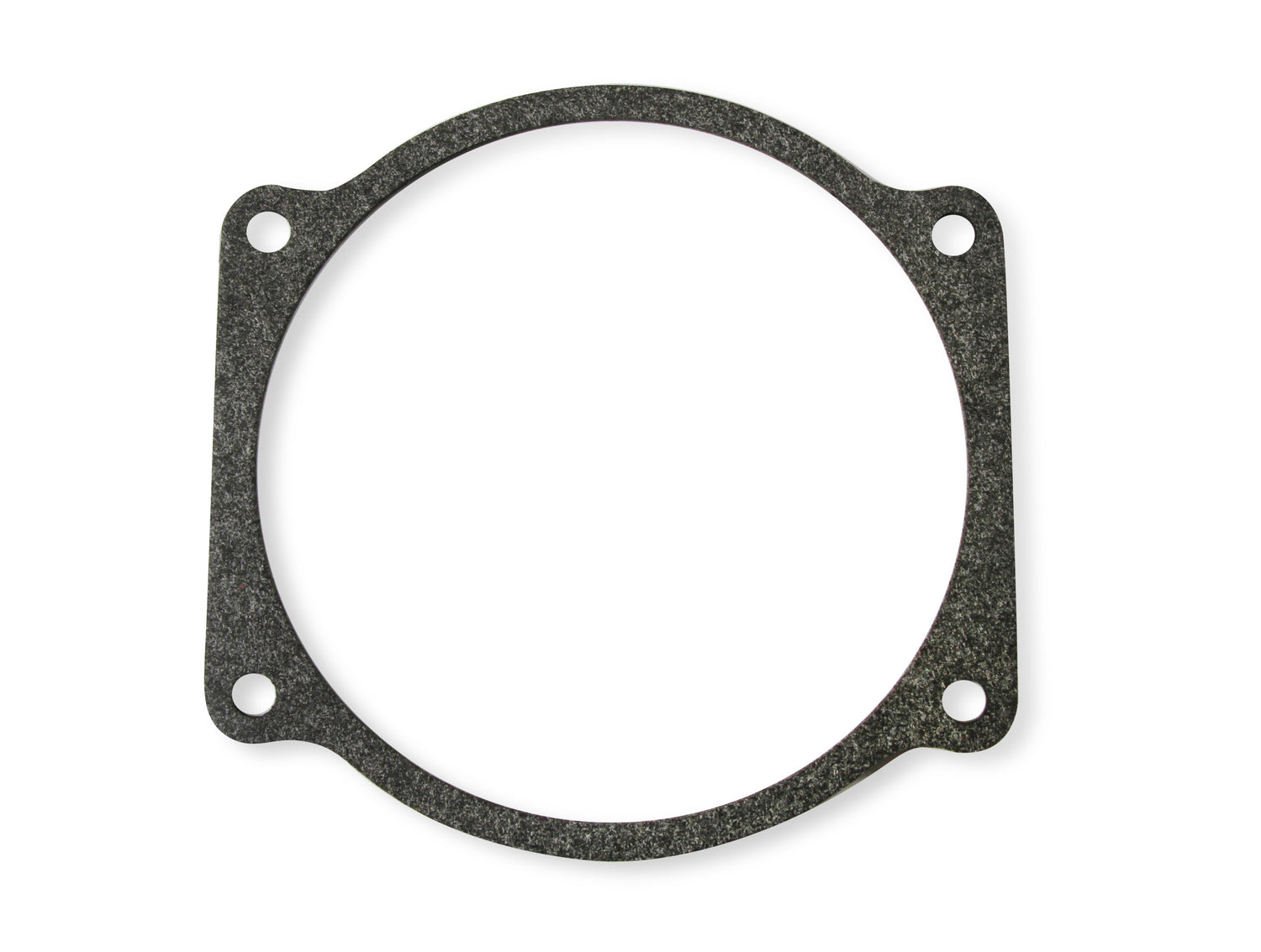

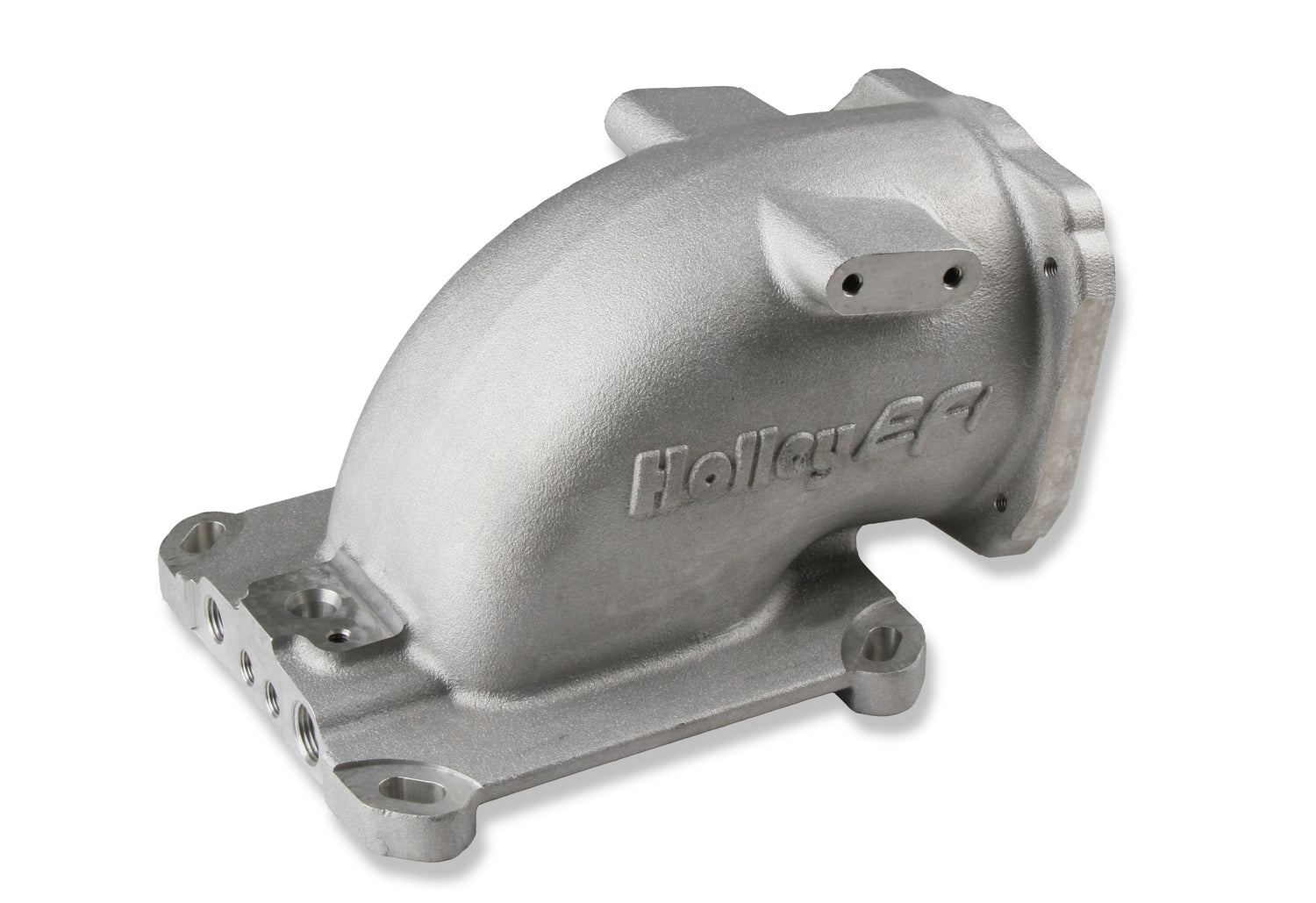

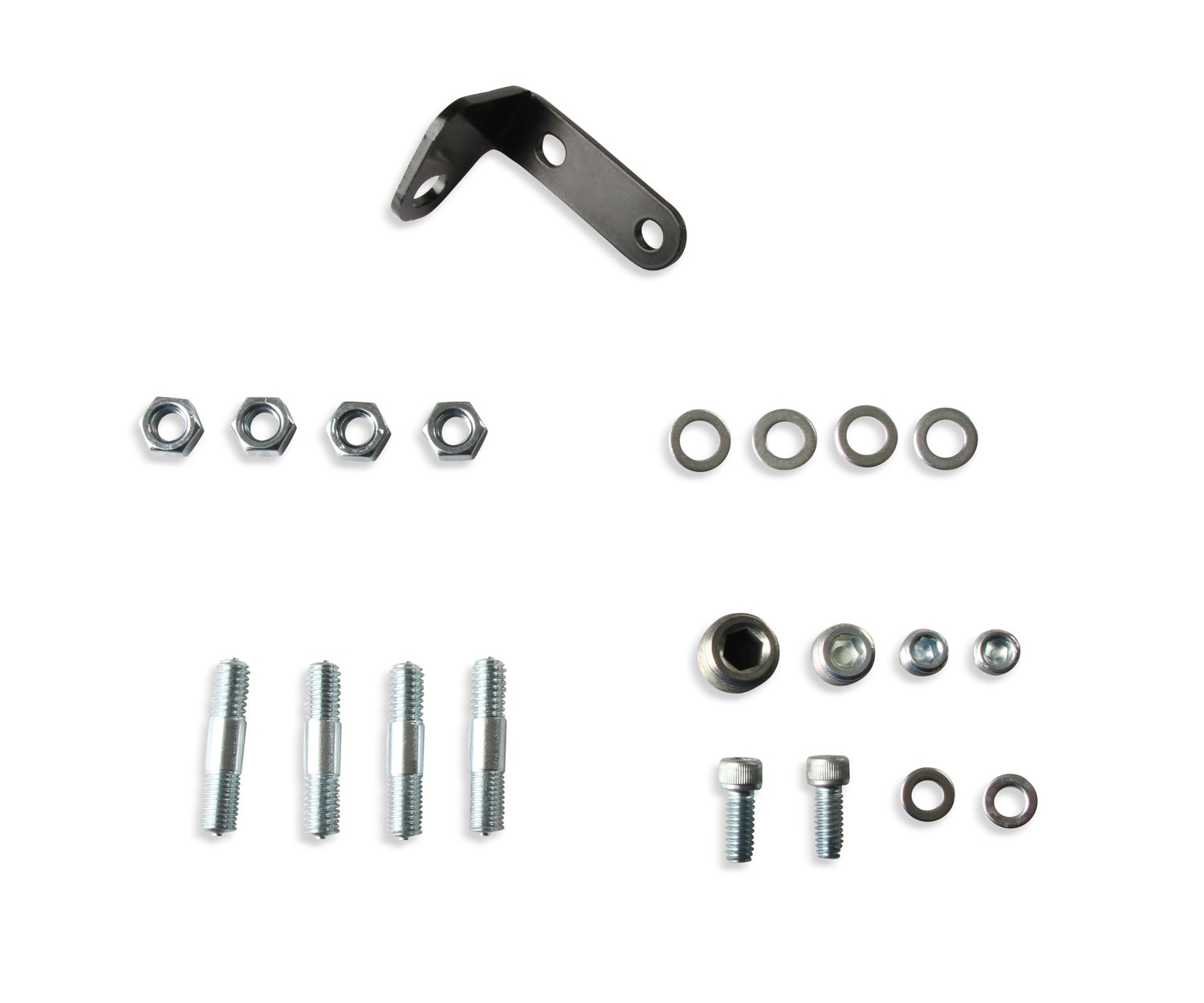

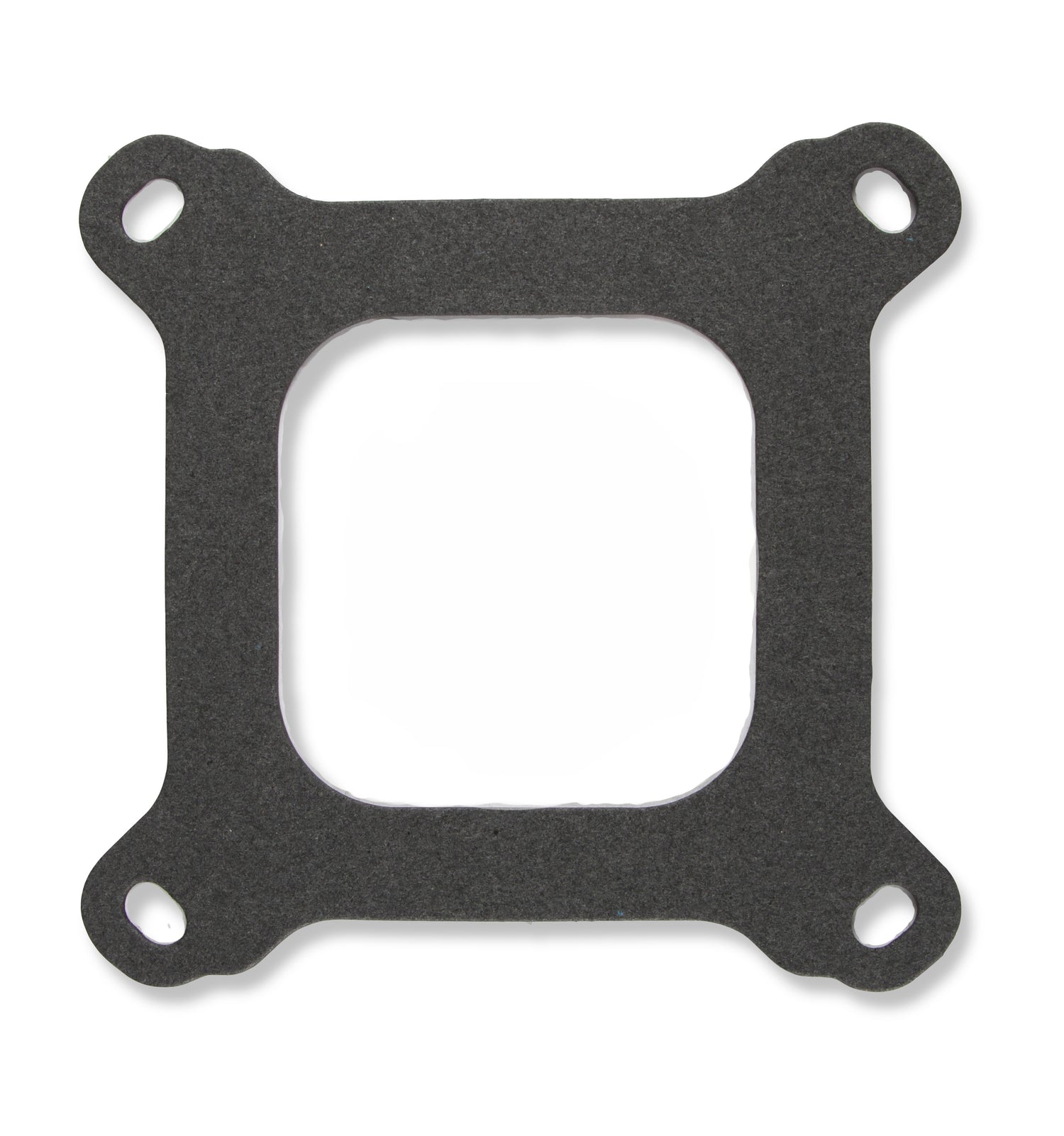

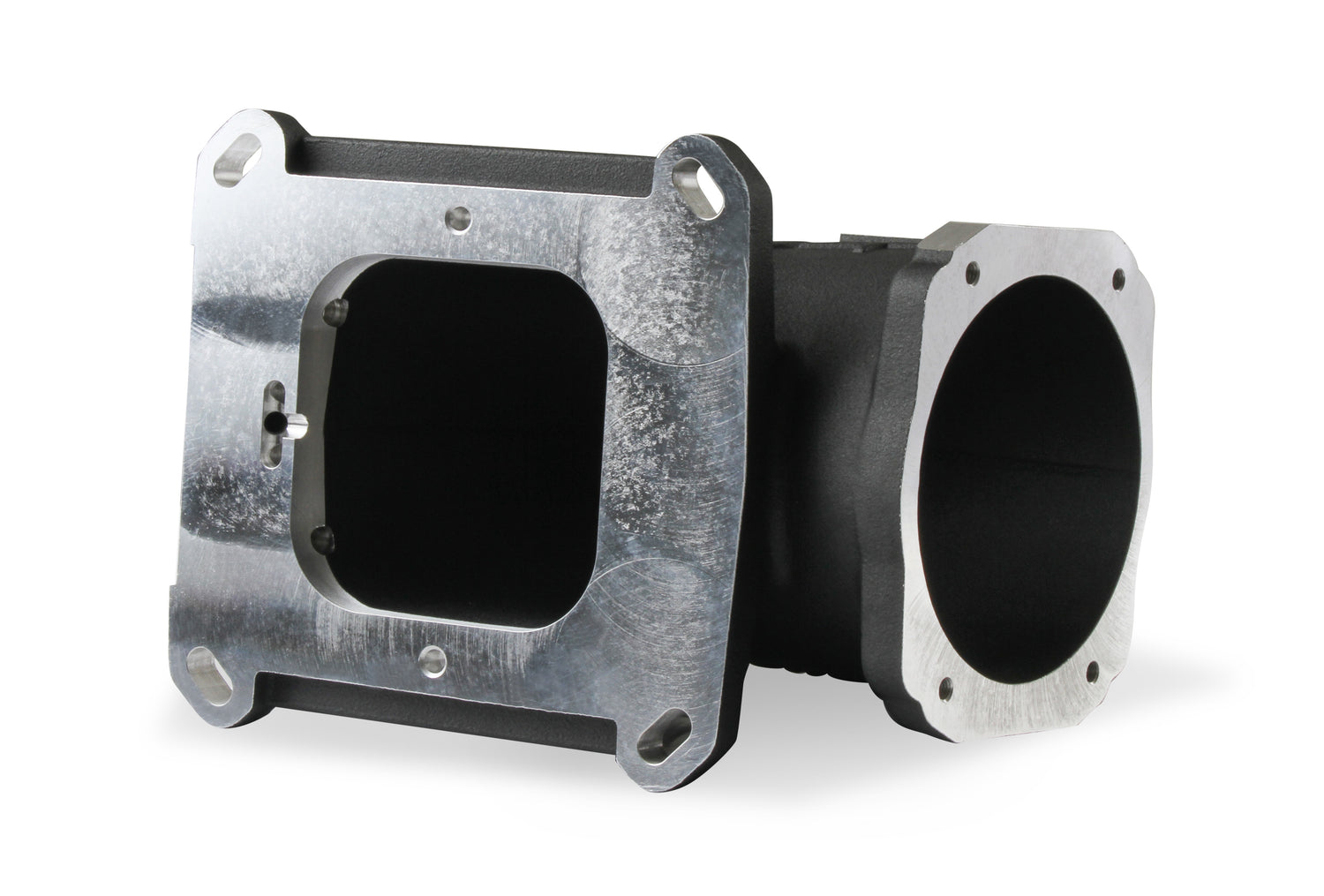

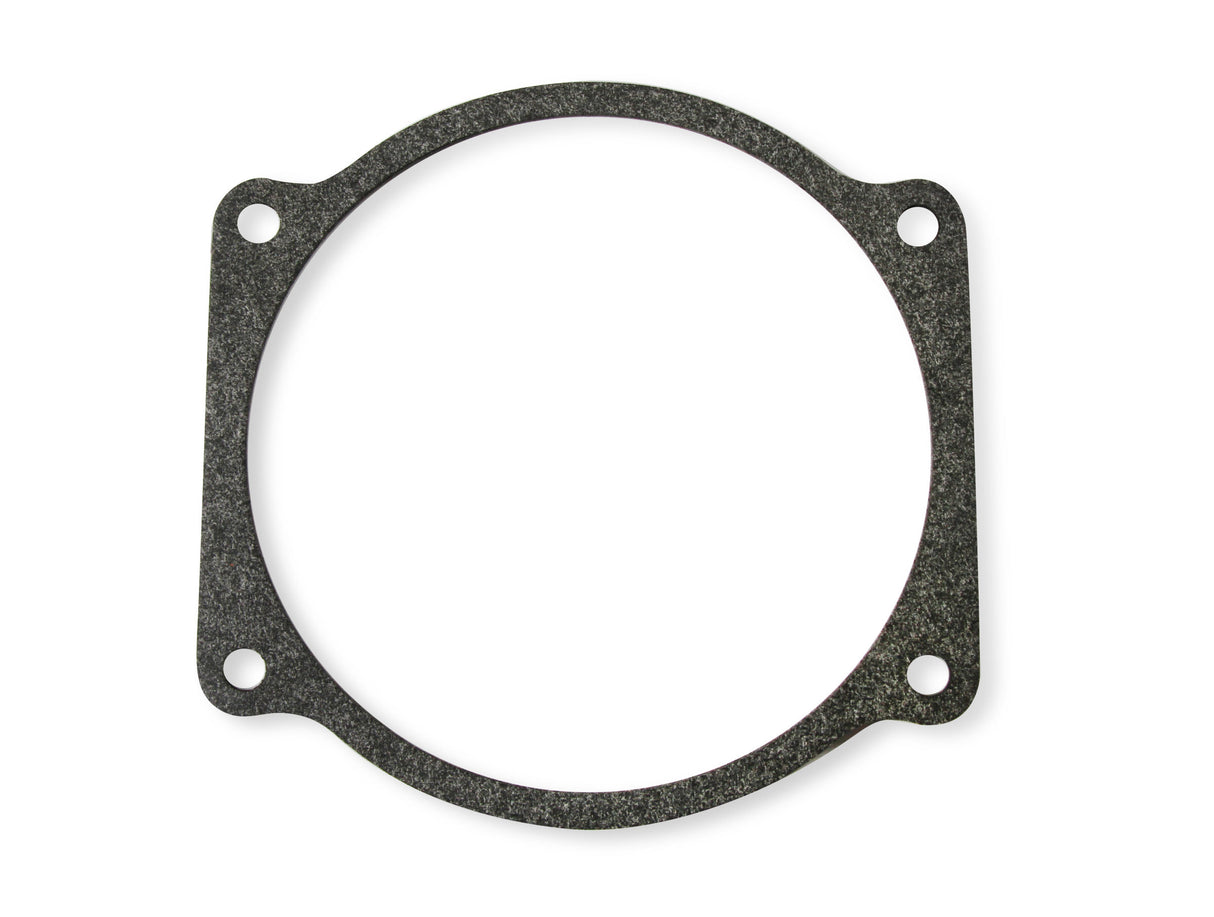

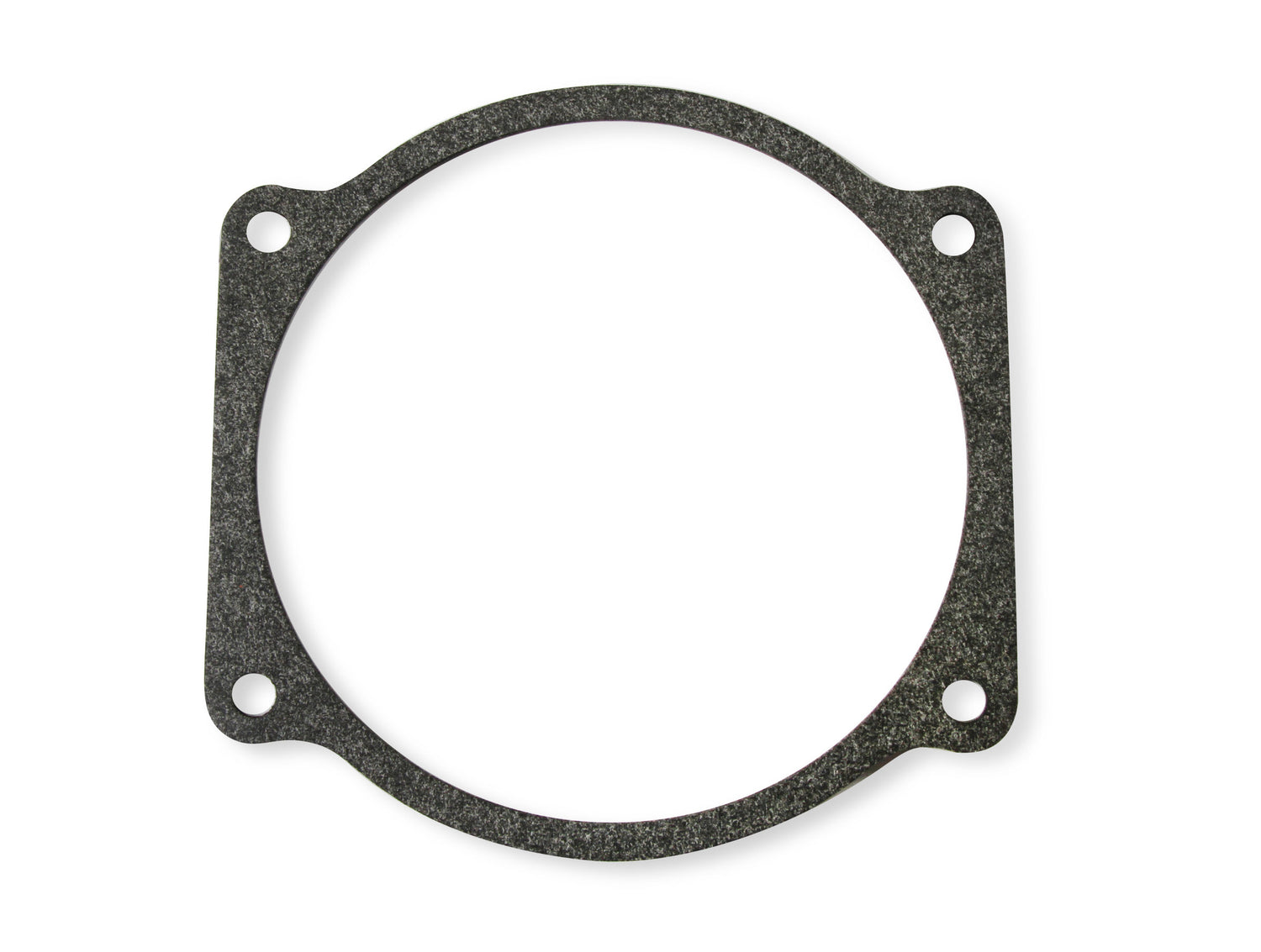

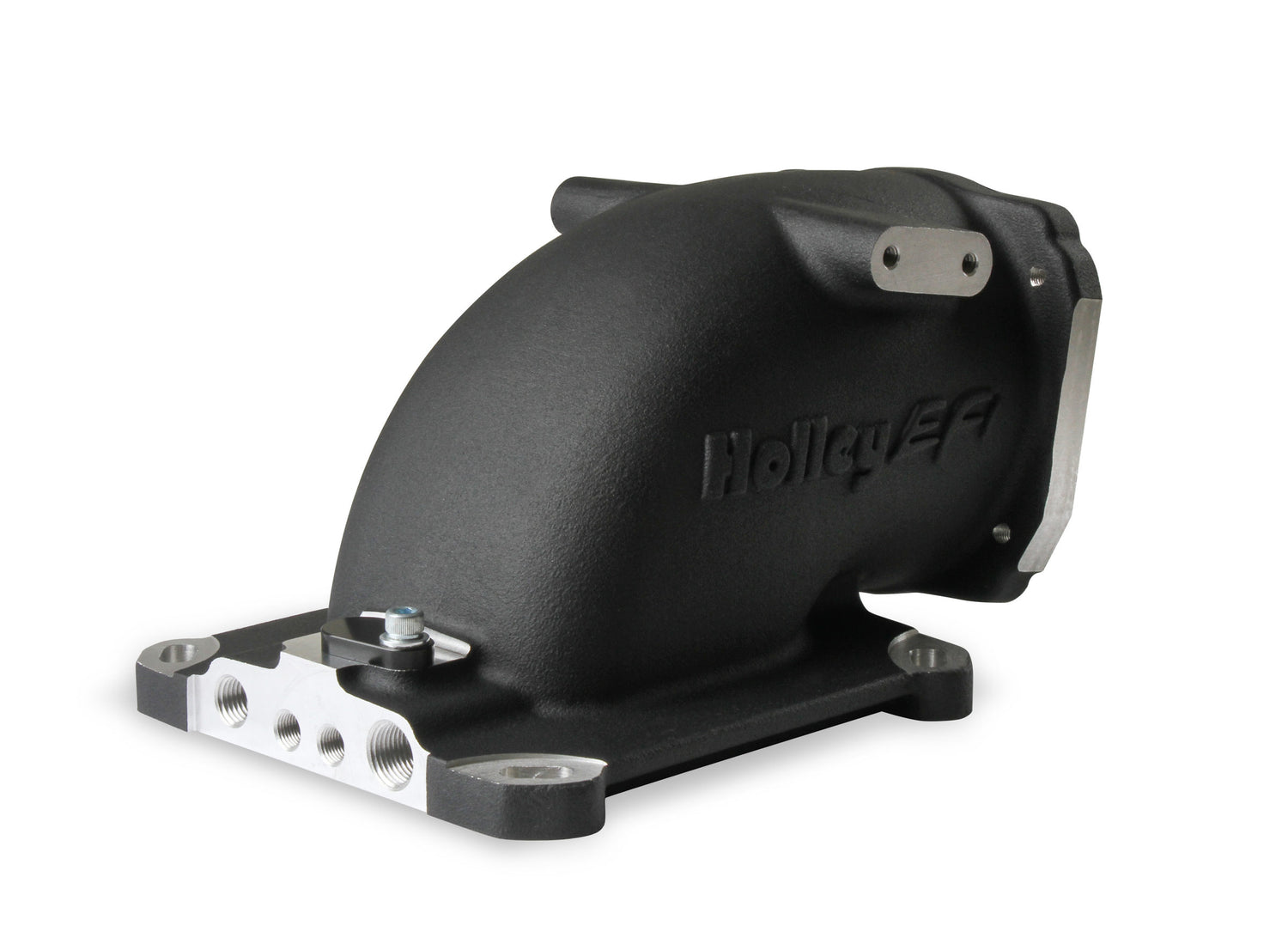

This cast EFI intake elbow allows the use of GM LS throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes & dual throttle cable mounting bracket bosses allow the elbow & throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100° throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets & hardware.

• Fits GM LS Throttle Bodies

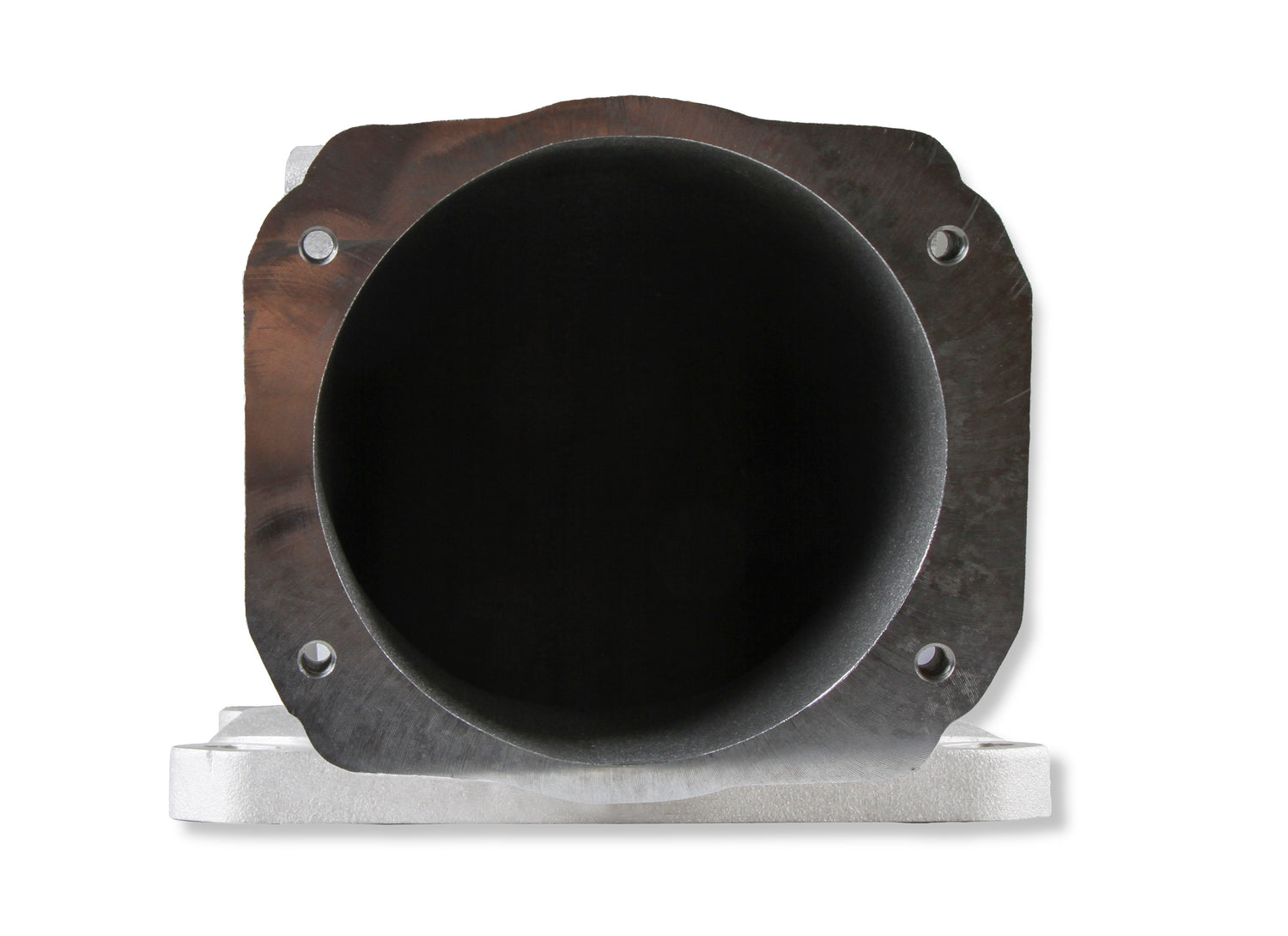

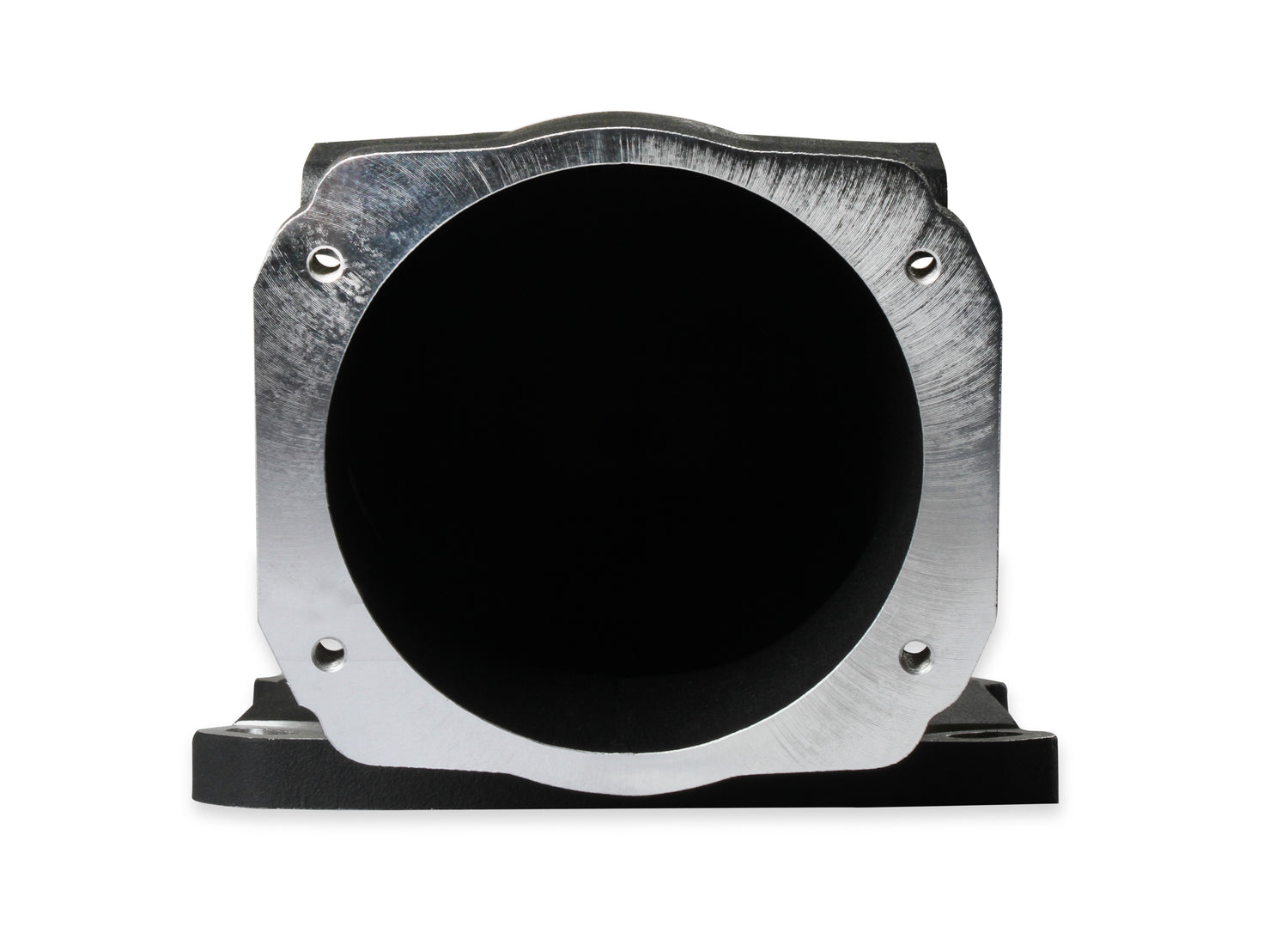

• 105mm Throttle Body Opening - 100° Mounting Angle
• Fits Intakes w/ 4150 Flange
• Slotted Mounting Holes Allow Forward, Sideways or Rearward Throttle Body Mounting
• LS3 Style MAP Sensor Mounting
• (4) Vacuum Ports – (1) Each 1/4” NPT & 3/8” NPT & (2) 1/8” NPT w/ Indirect Baffled Signal
• (2) Throttle Linkage Mounting Bosses
• Sand Cast w/ Black Finish
• Overall Height 5.12”
