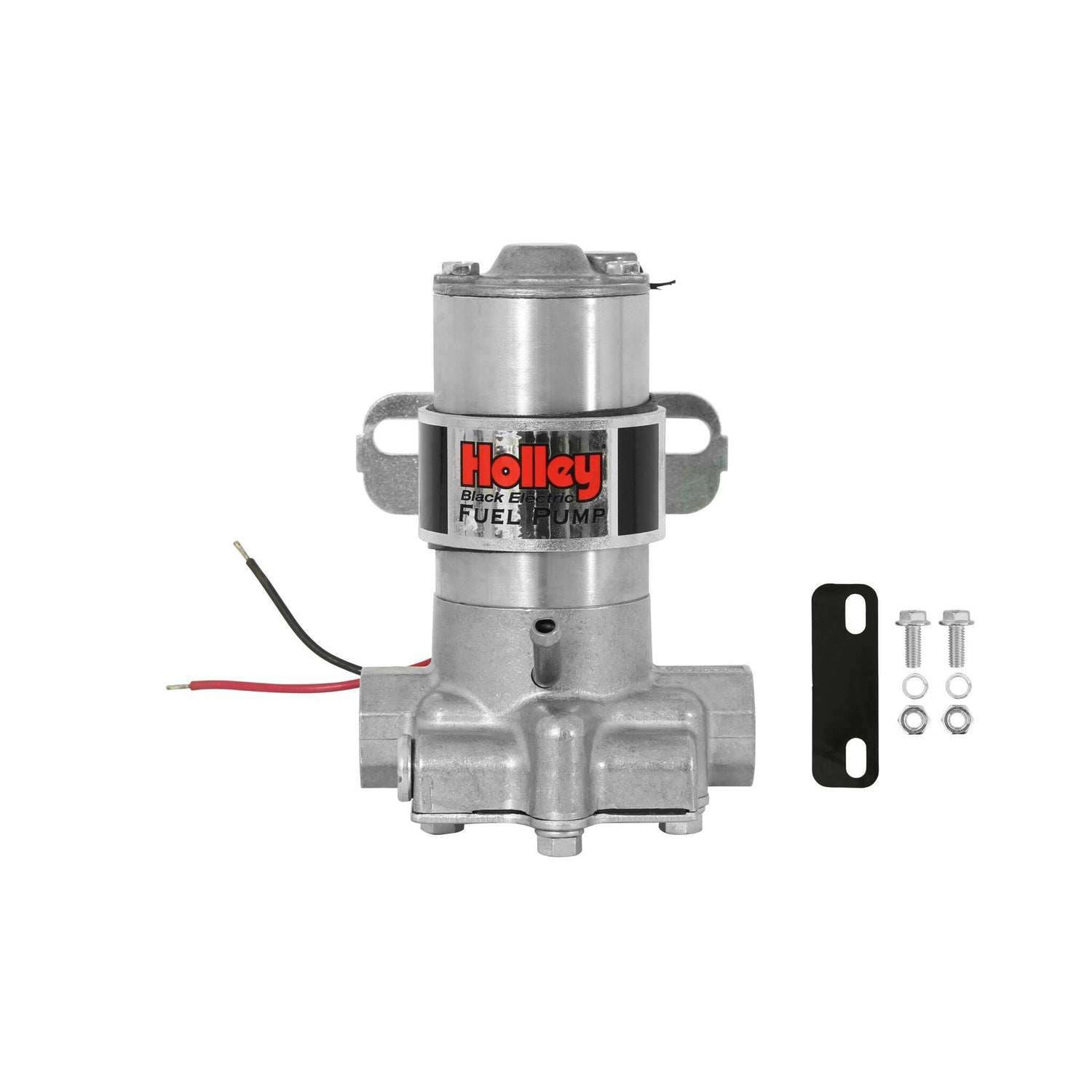

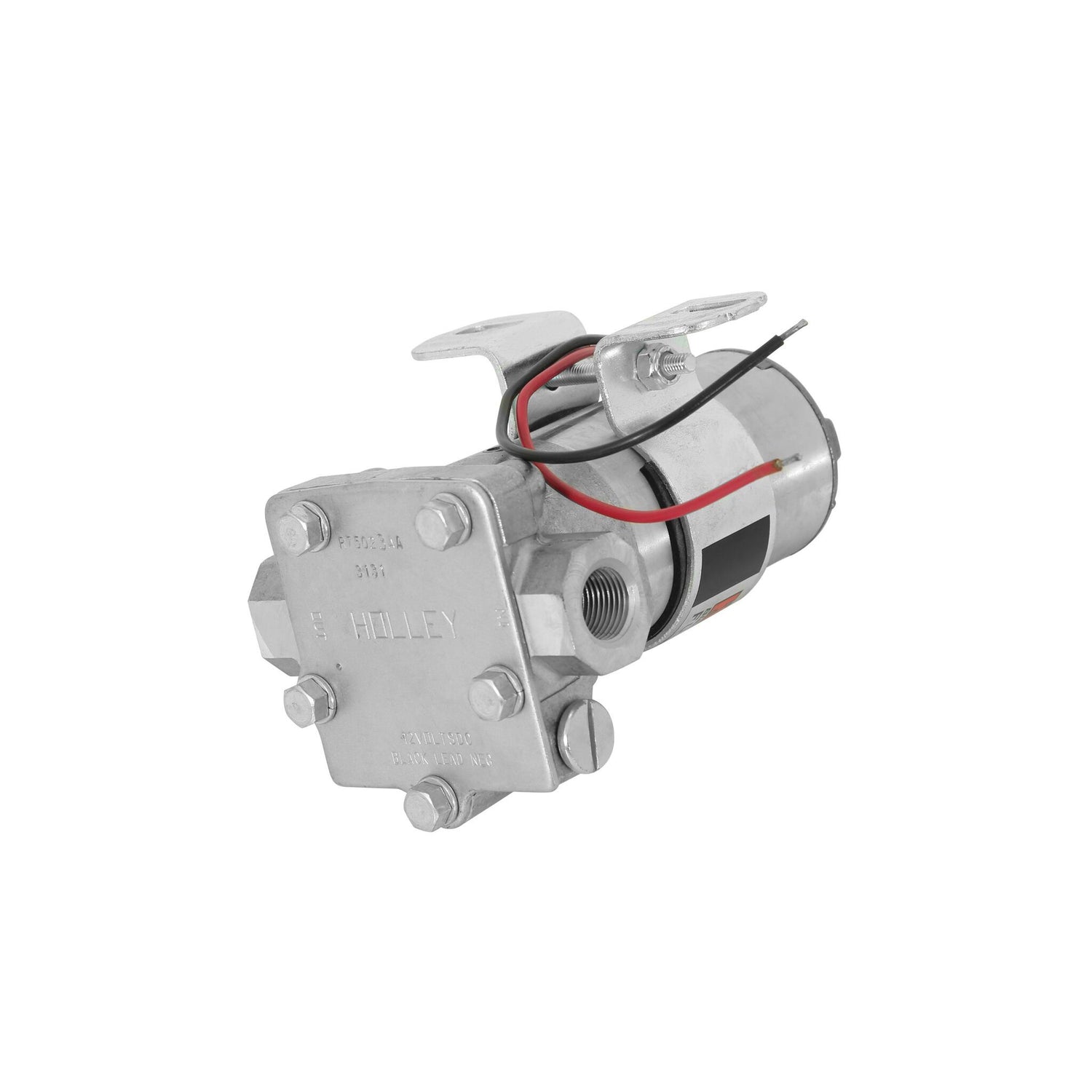

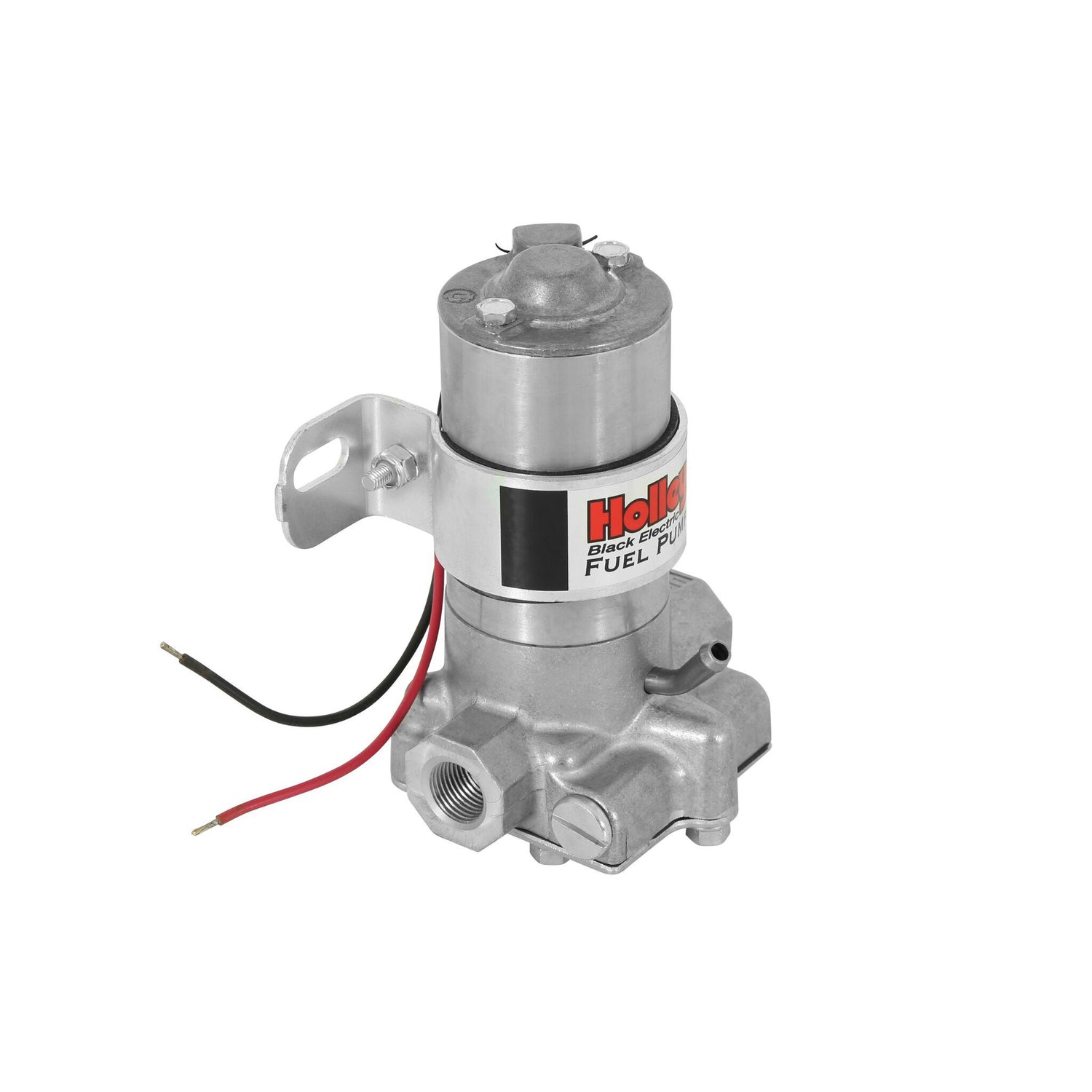

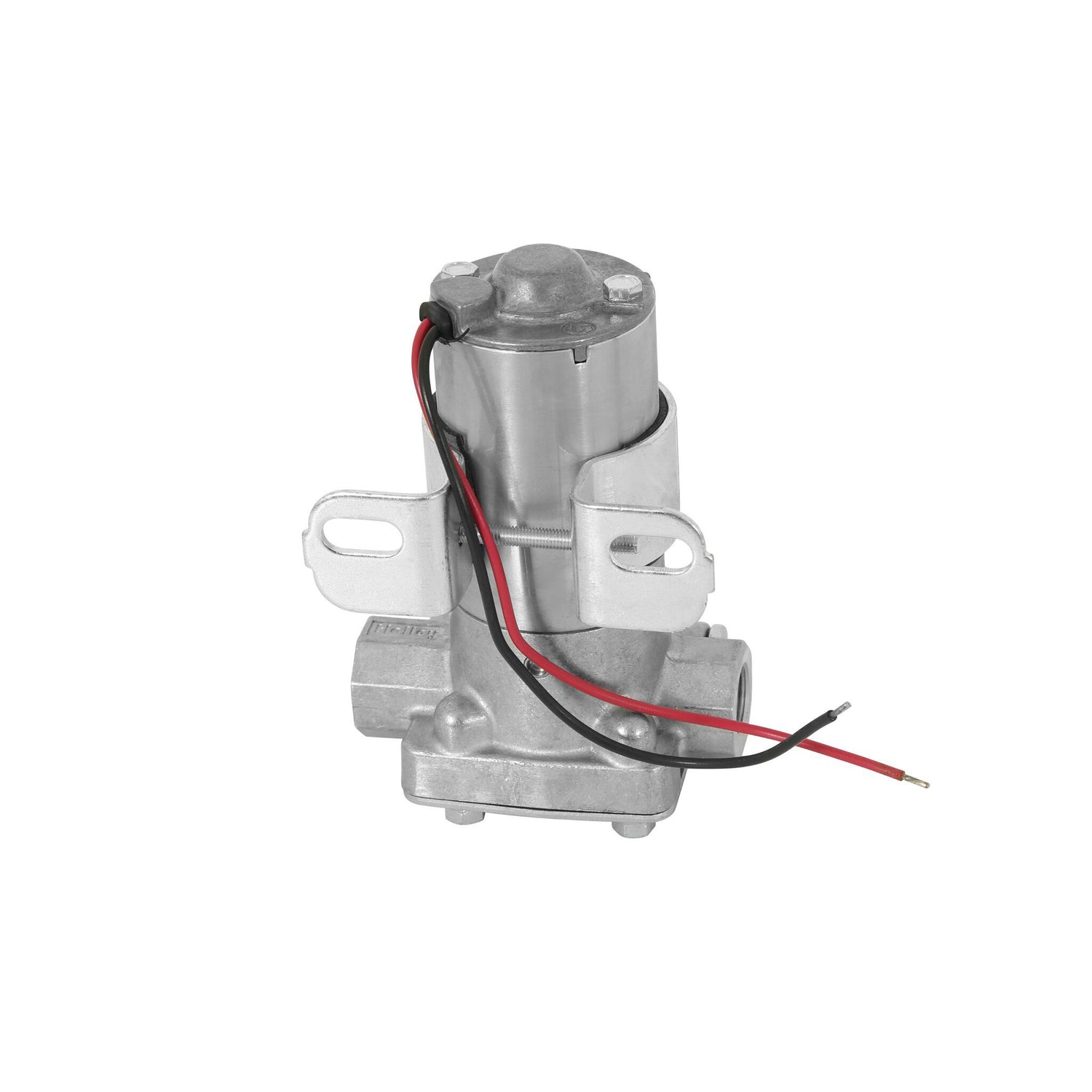

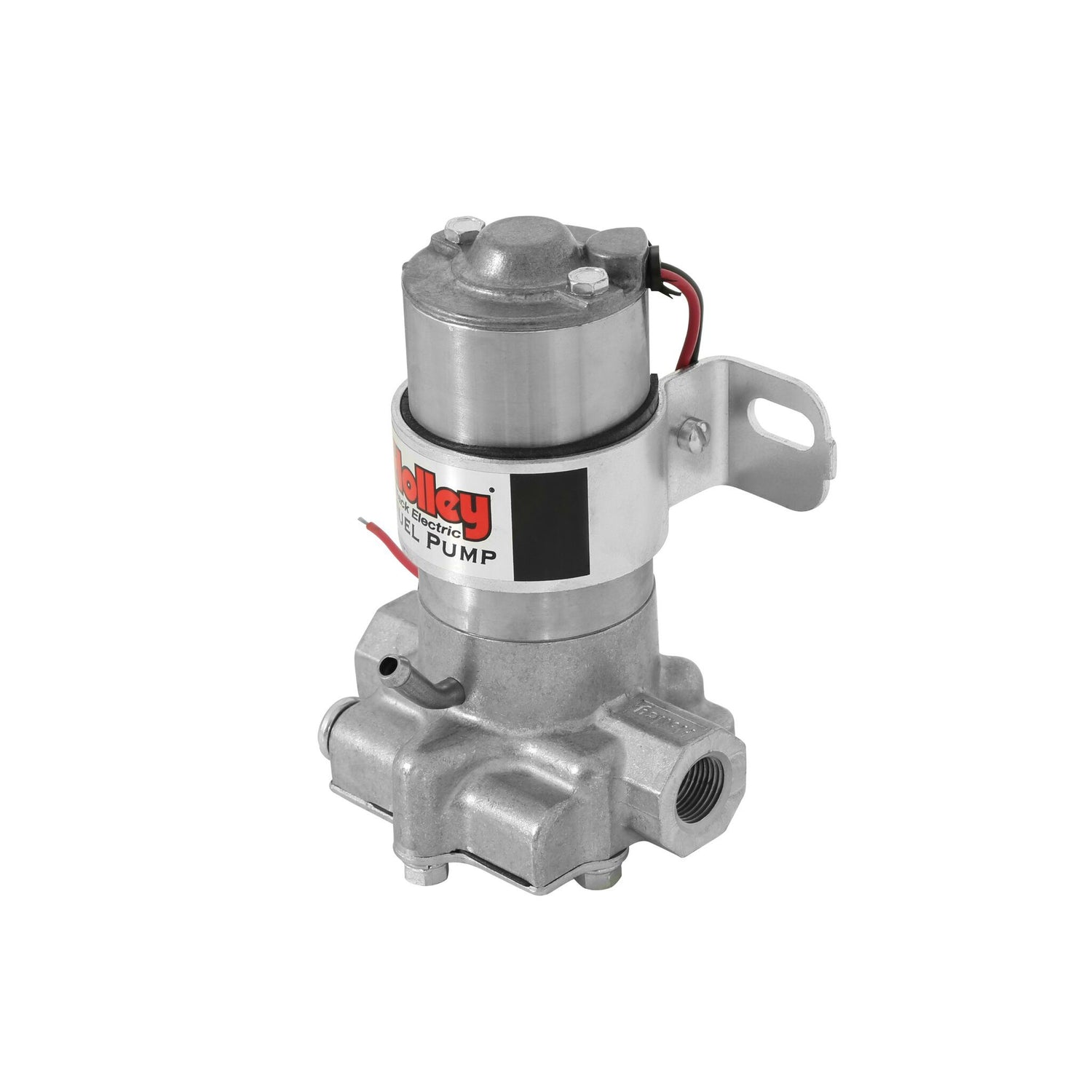

Holley 712-815-1 - Marine Electric Fuel Pump
Fuel Pump - Marine Black - Electric - In-Line - 120 gph at 9 psi - 3/8 in NPT Female Inlet / Outlet - Silver - Gas - Each
Marine Electric Fuel Pump; Free Flow GPH 140; Free Flow LPH 530; Gasoline/Methanol; Carbureted; 3/8 in. NPT Inlet/Outlet Size; Silver Body/Silver Bracket/Red Logo;
The world famous Red(R), Blue(R) and Black(R) fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70s. Their time proven rotor/vane design is known to get the job done in an affordable package. Designed with a fume tube for marine use and meets U.S. Coast Guard regulations.
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow.
- Improved design for street/strip applications
- Distinctive Holley Black® logo
- Not designed for use on aircraft of any type.
- Flows 140 GPH (free flow)
- Flows 120 GPH at 9 psi
- Maximum pressure is 14 psi
- 3/8” NPT inlet and outlet ports
- Fuel pressure regulator is required (recommend Holley P/N 12-704 for gasoline)
- Motor draws only 4 amps current
- 7 1/2 amp fuse recommended
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
- Meets U.S. Coast Guard regulations
- Includes Fuel/vapor tube
