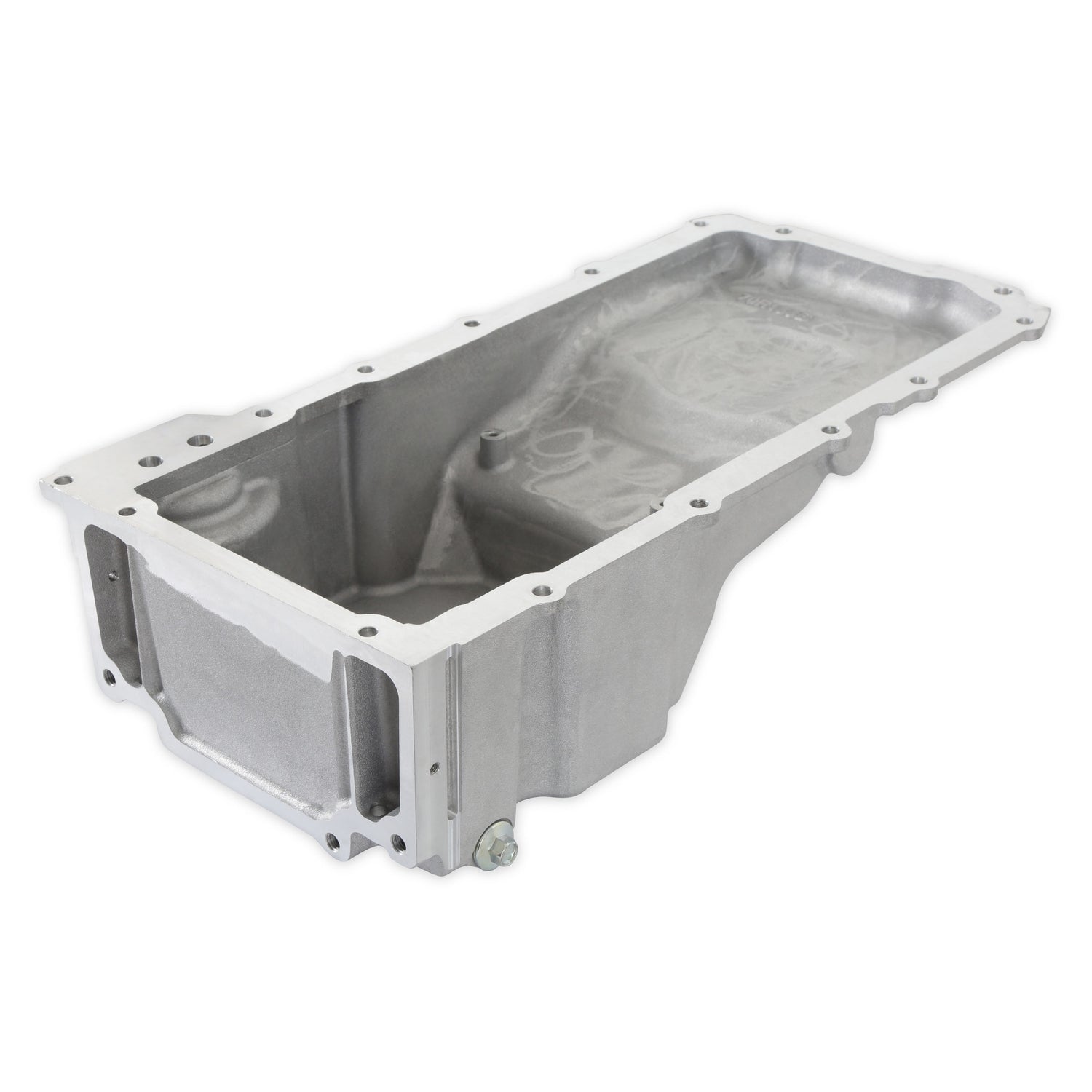

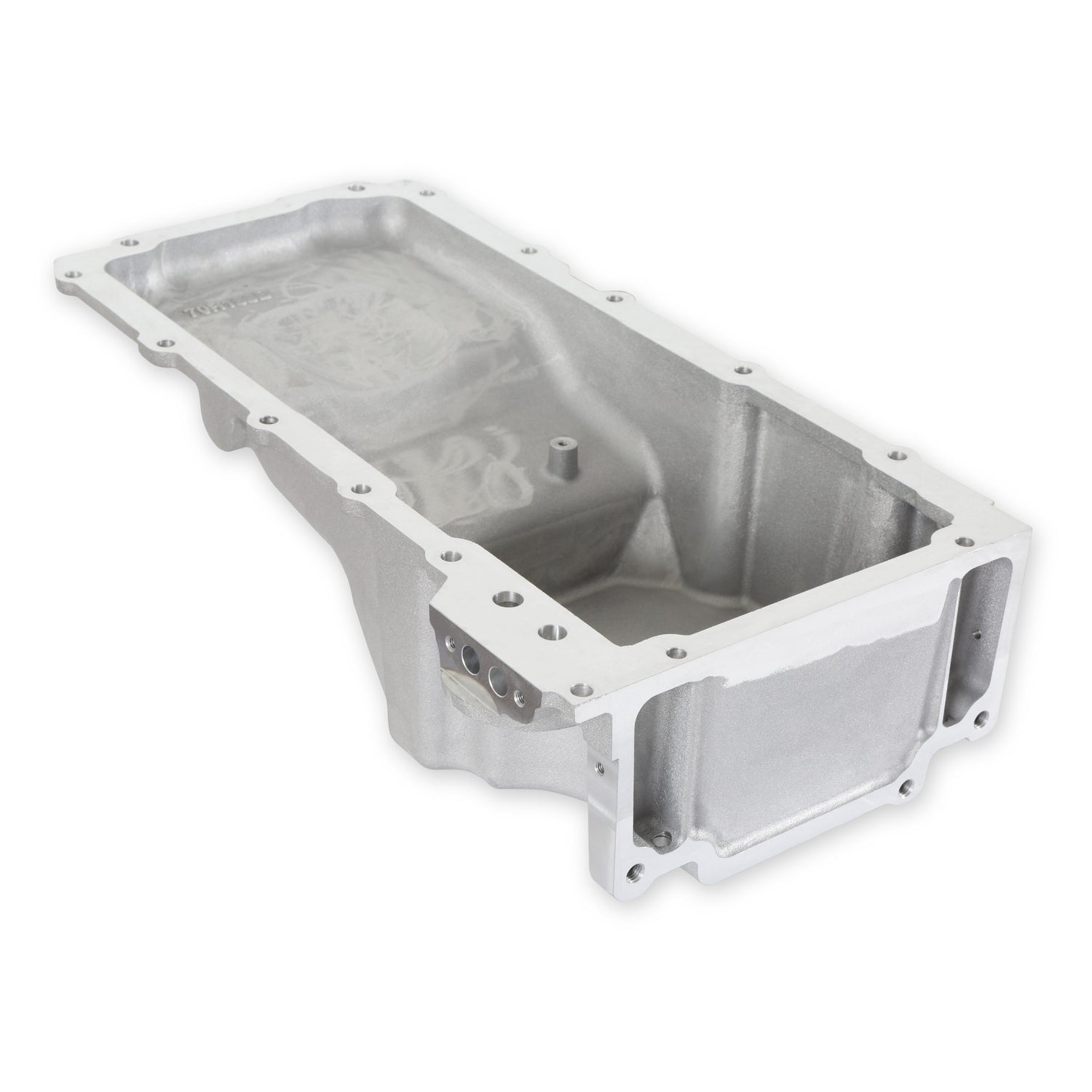

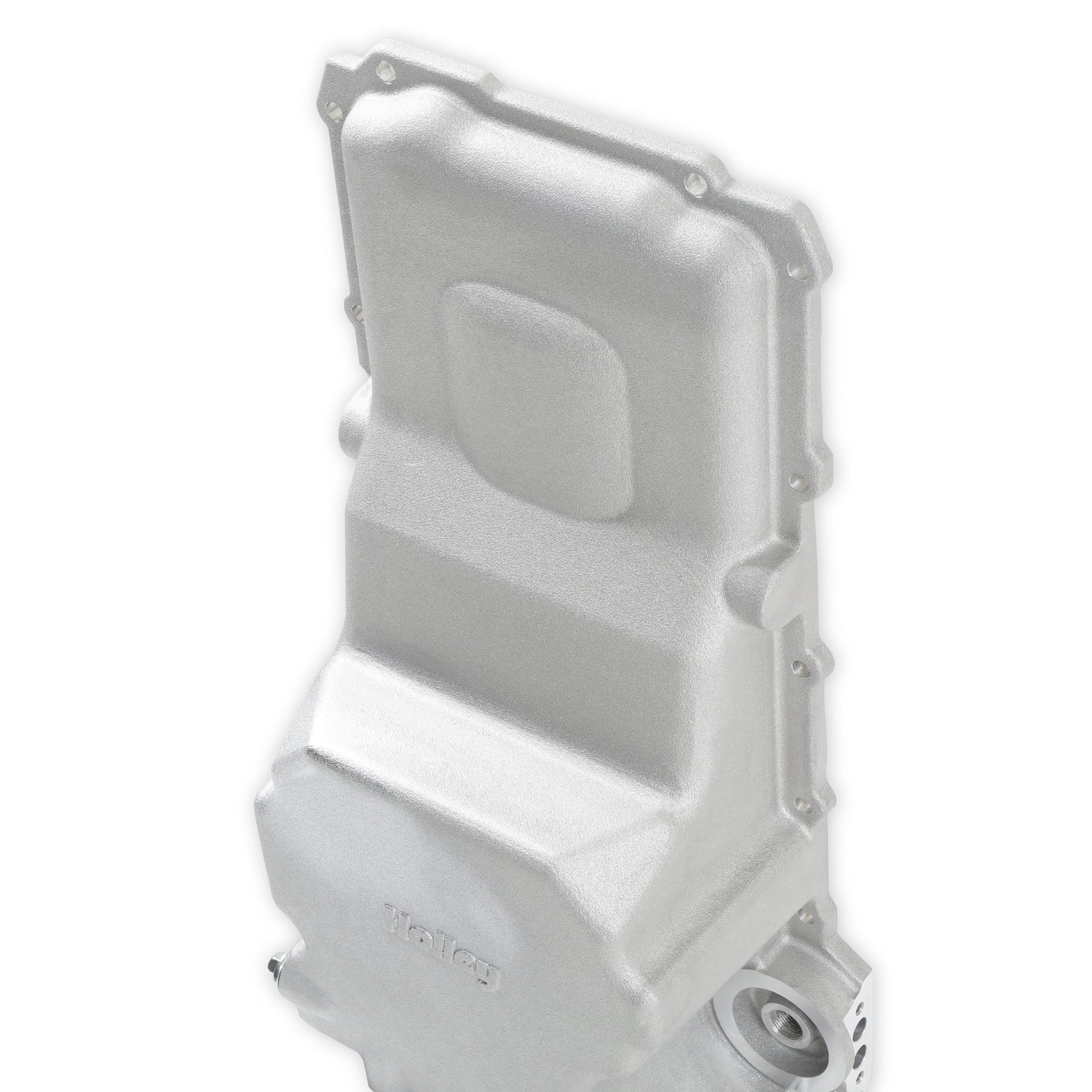

Holley 302-5 - LS Retro-Fit Engine Oil Pan

Holley 302-5 - LS Retro-Fit Engine Oil Pan

Engine Oil Pan - Rear Sump - 5.6 qt - Baffle / Pickup Tube - Aluminum - Natural - GM LS-Series - Kit

LS Retro-Fit Engine Oil Pan; Cast Aluminum; LS Swap 55-87 GM Car/Truck; Crankshaft Clearance 4 in.; Total Capacity w/Filter 5.6 Qt; Incl. Sump Baffle/Pickup Tube/Filter Stud;

This oil pan is similar to the popular Holley 302-3 LS swap pan but has a lower retail price & is designed for naturally aspirated applications (turbo oil drain-back holes & plugs removed as cost savings). The 302-5 design is the same as the 302-3 pan and can clear a 4.00-inch stroke crankshaft. This oil pan fits the usual GM LS swapped muscle cars and trucks and the Ford Fox body factory K-member with the Fox body rack and pinion.

• LS Swap Pan similar to 302-3, but at a better retail price for naturally aspirated applications (turbo oil drain-back holes and plugs eliminated – for lower retail price)
• Designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan

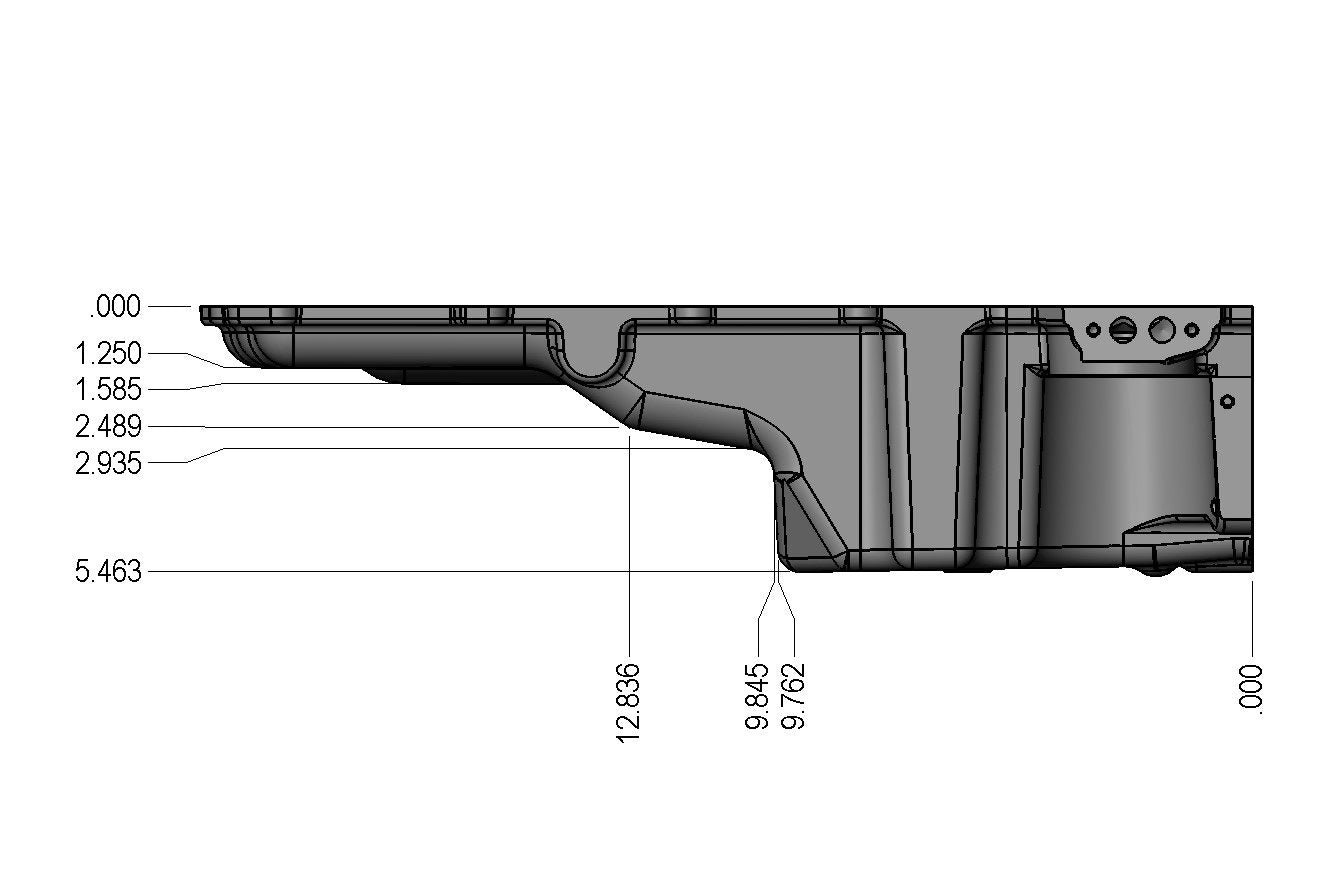

• The profile of the sump has been revised to provide extra chassis and steering rack clearance
• Perfect for: 1967-1969 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1982-1992 F-body, 1978-1987 G-body, and 1964-1972 A-body applications. Also 1979-2004 Mustang and 1979-1986 Capri Fox bodies
• NOTE – Oil pan #302-5 will clear a 4.00-inch stroke crankshaft

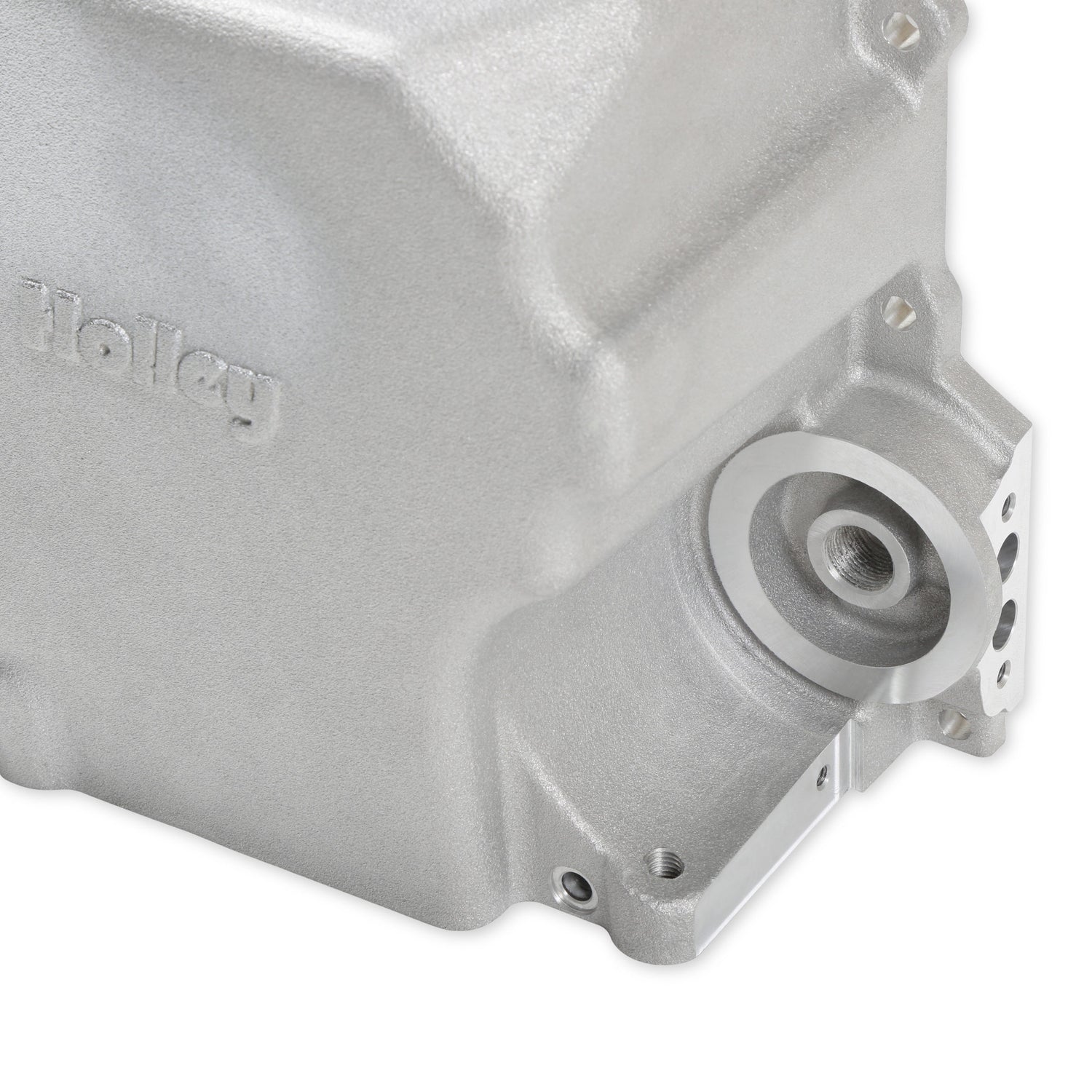

• Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket, and sealing proper structural rigidity, and OE bell-housing attachments
• Traditional high-quality cast aluminum appearance with clean exterior styling
• Provides maximum clearance for vehicles where the steering linkage is behind the engine cross member

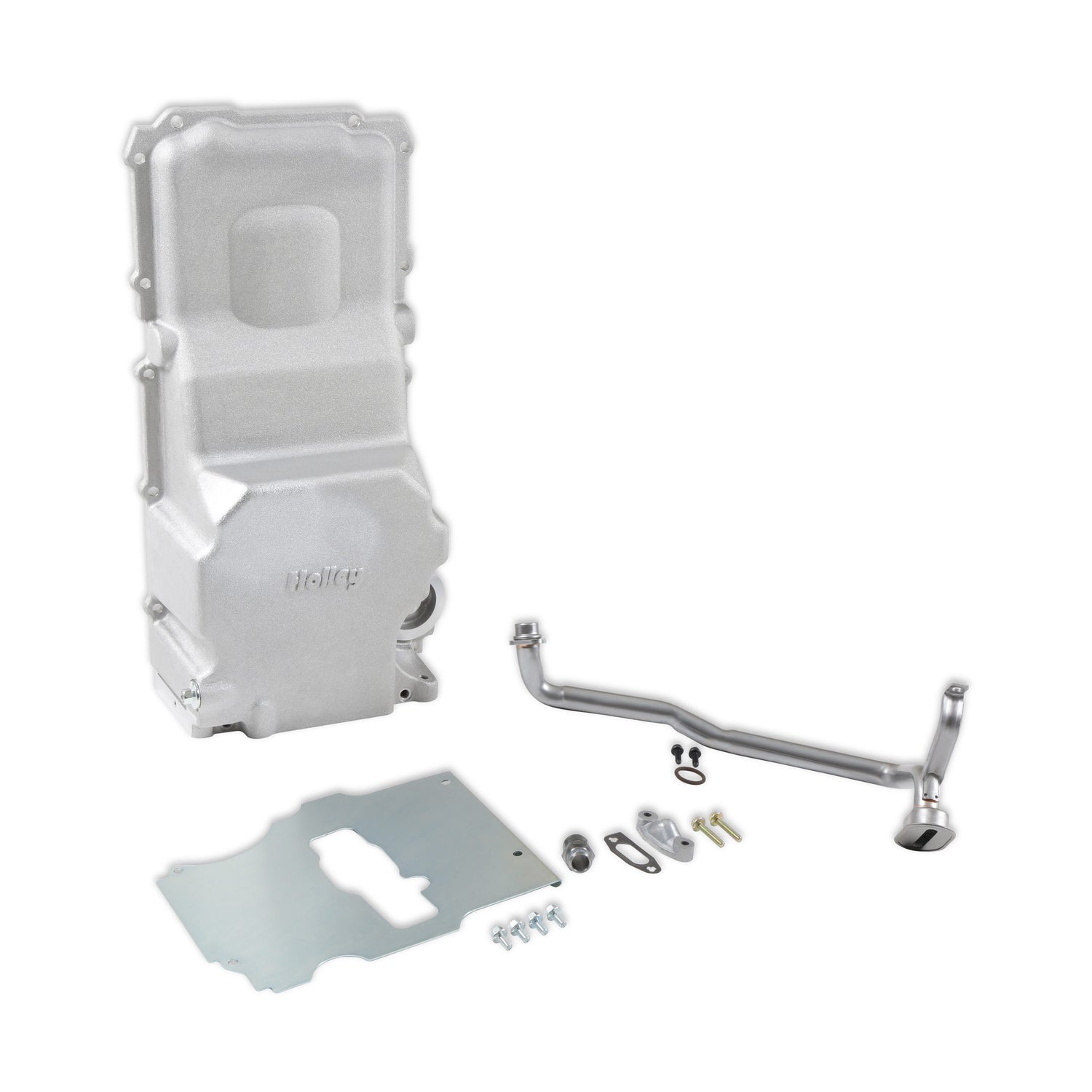

• Complete kit includes sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, etc.
