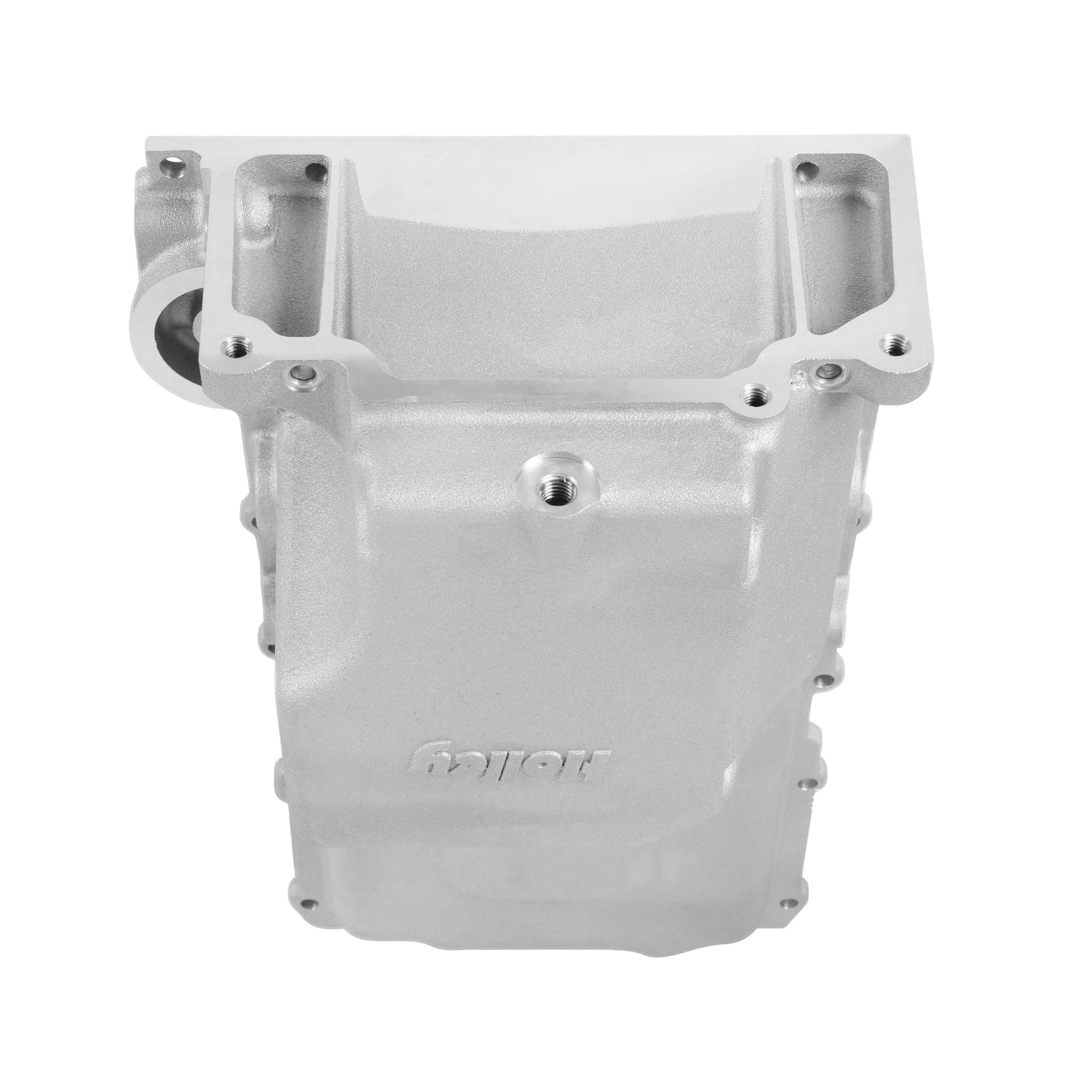

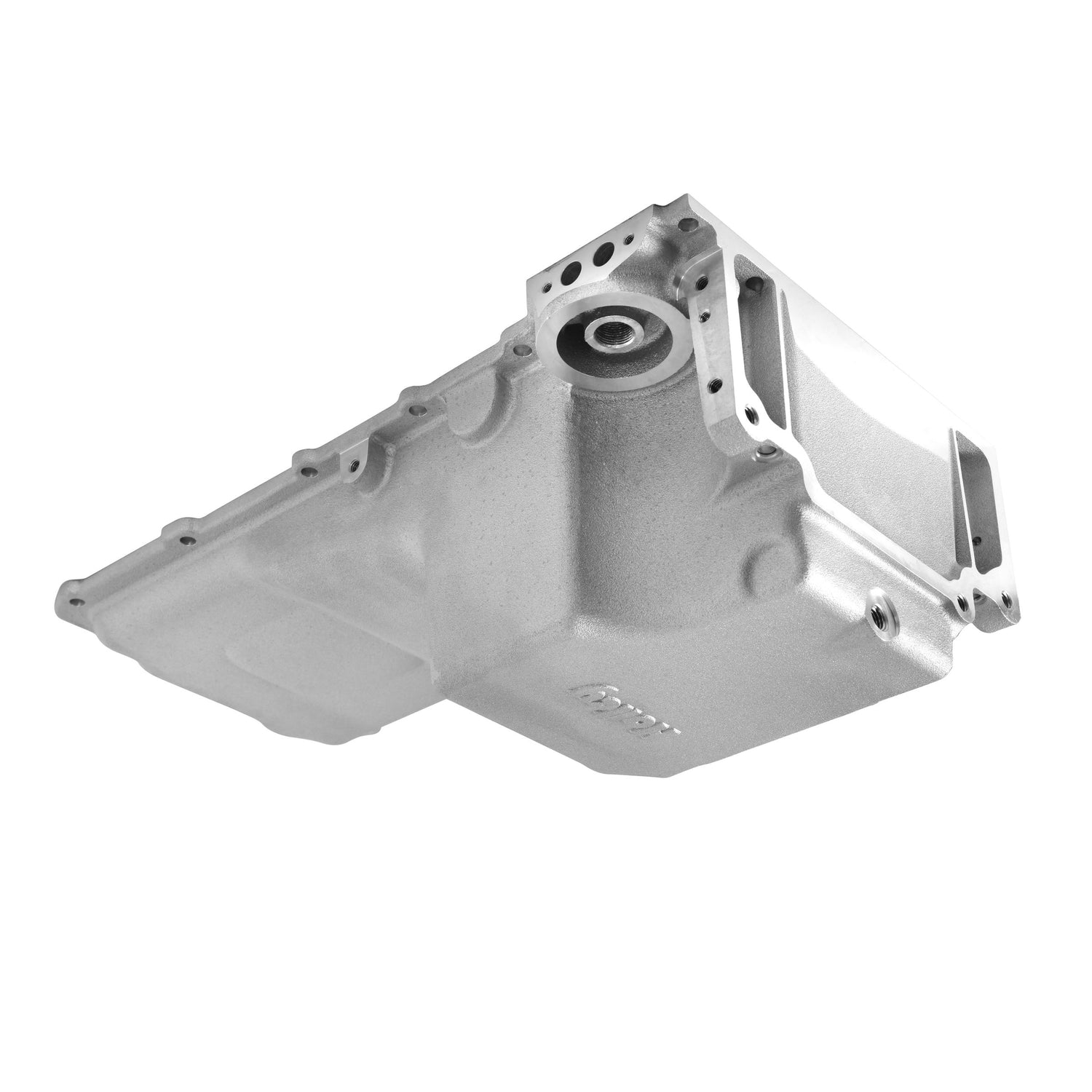

Holley 302-4 - GM LS Swap Oil Pan - 4WD / Truck / Off-Road

Holley  |  SKU: HOL-302-4
$40395 $50695

★ Holley is one of our favorite brands! ★
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

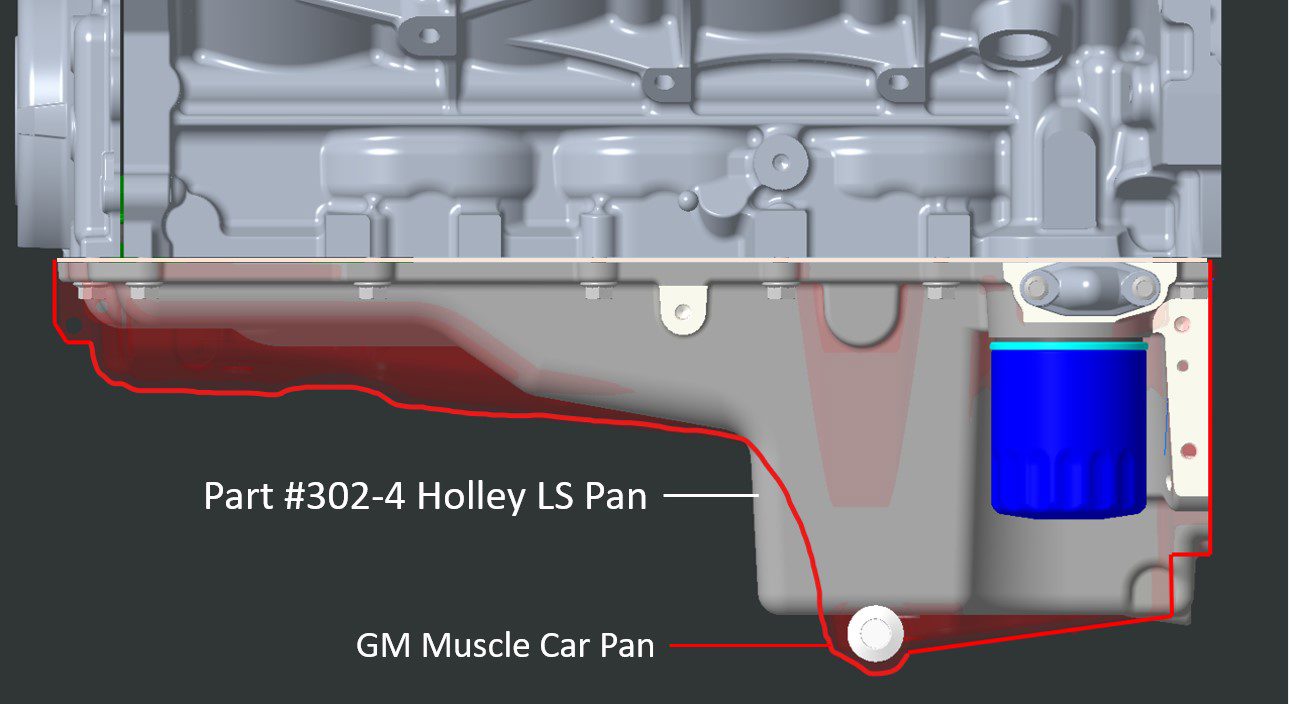

Holley 302-4 - GM LS Swap Oil Pan - 4WD / Truck / Off-Road

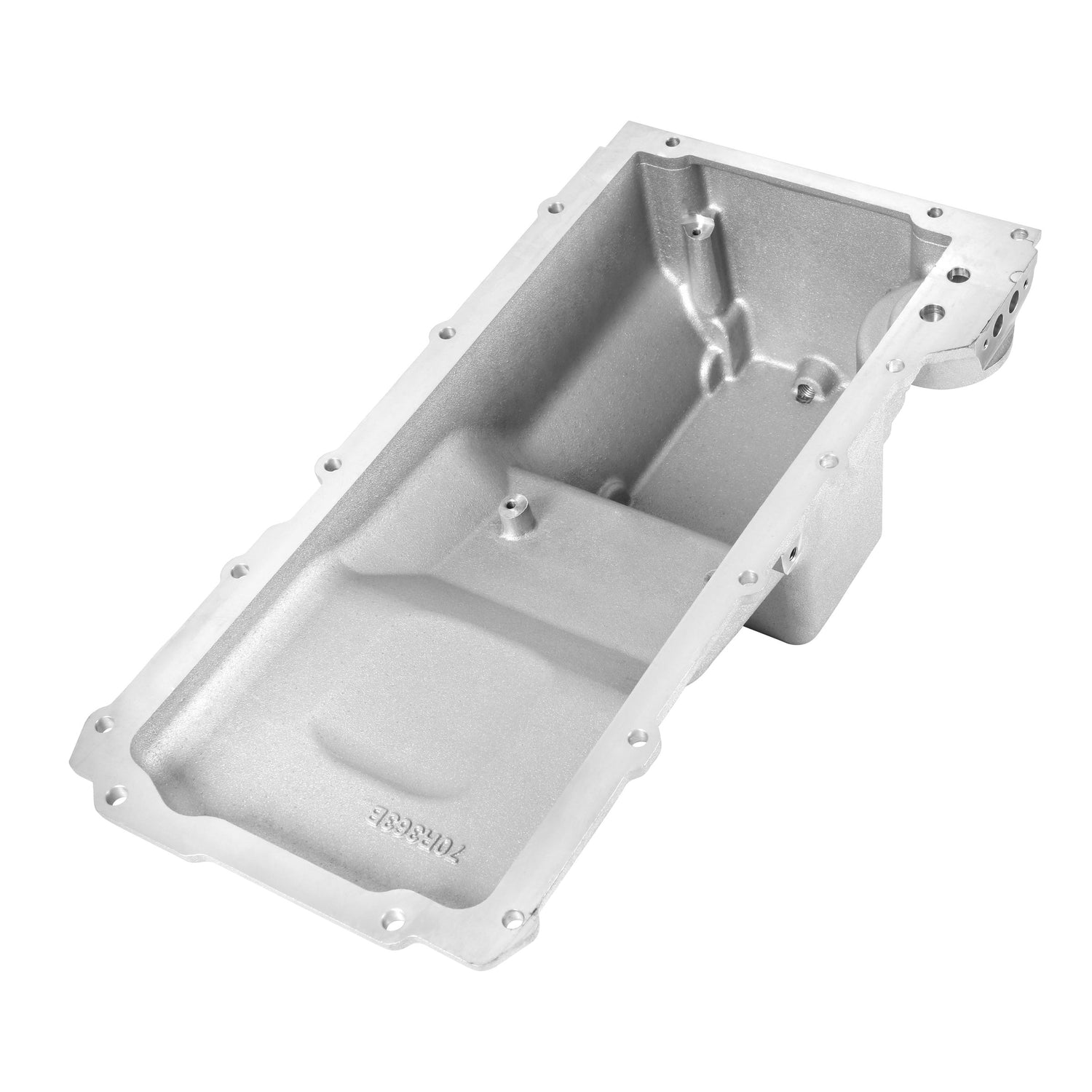

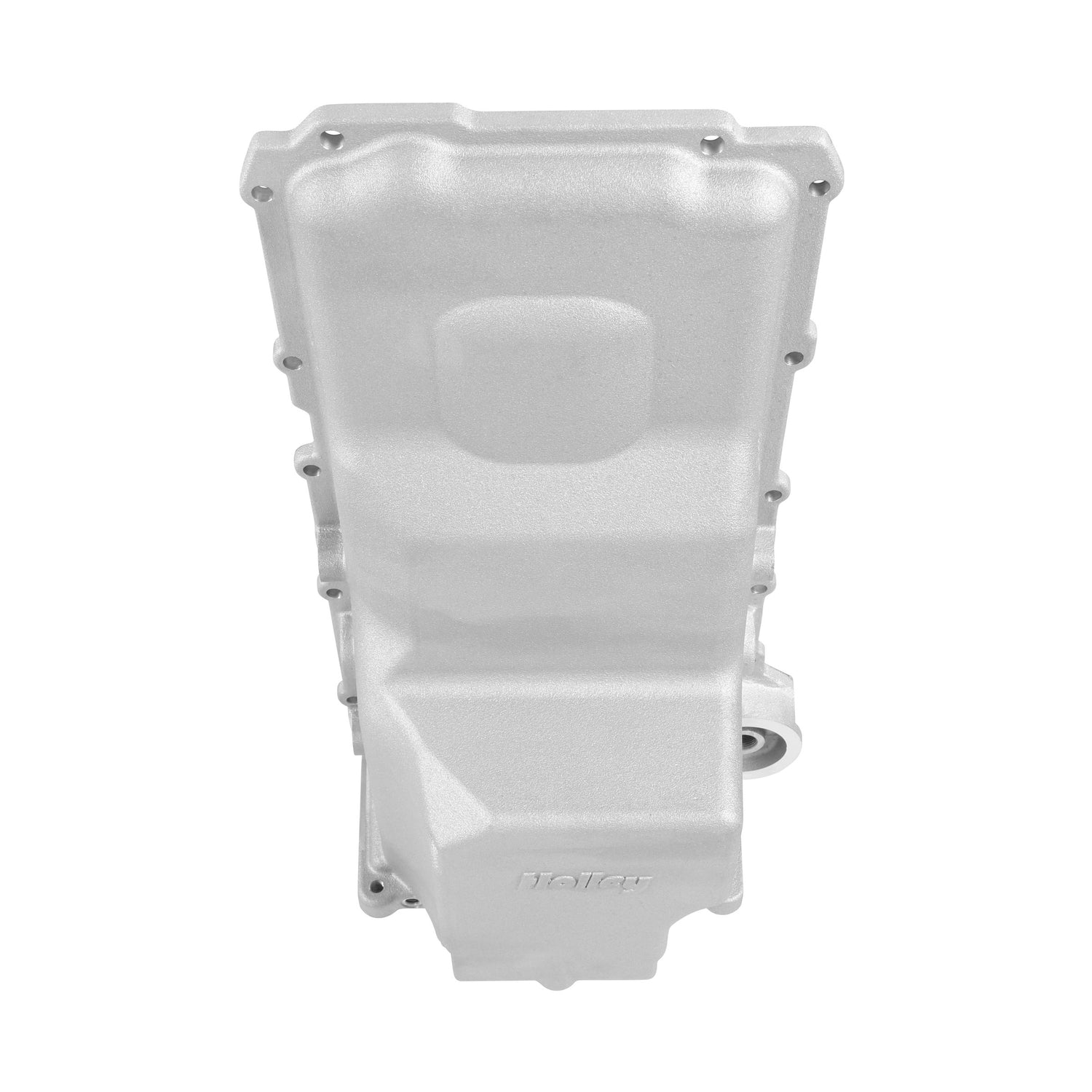

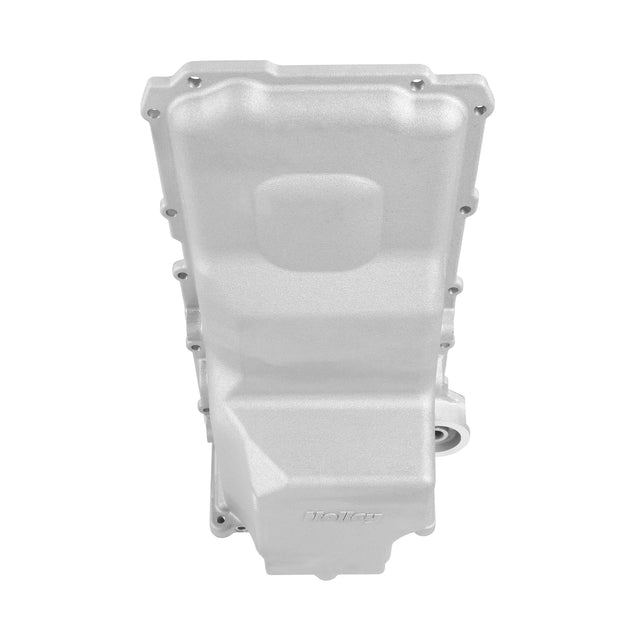

Engine Oil Pan - GM LS Swap - Rear Sump - 5.6 qt - Baffle / Pickup Included - Aluminum - Natural - GM LS-Series - Kit

Fits 1973-1987 GM K10 LS Swapped Trucks and Other 4WD LS Swap Projects

*See Installation Notes below for important information regarding necessary modifications to windage tray, capacity, etc. (see instructions for full details).

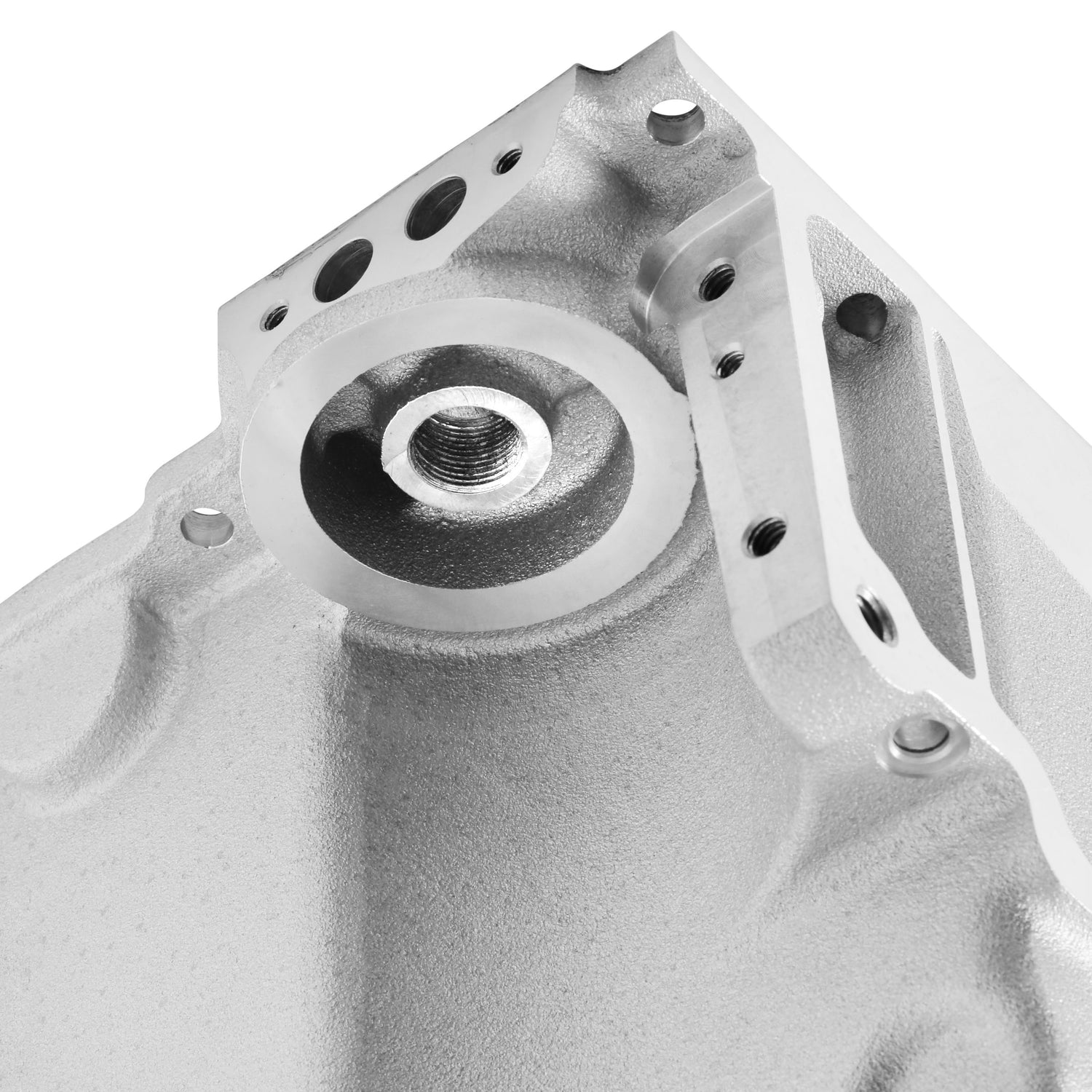

  • Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE flange gasket and sealing, proper structural rigidity, and OE bell-housing attachments
  • Traditional high-quality cast aluminum appearance with clean exterior styling

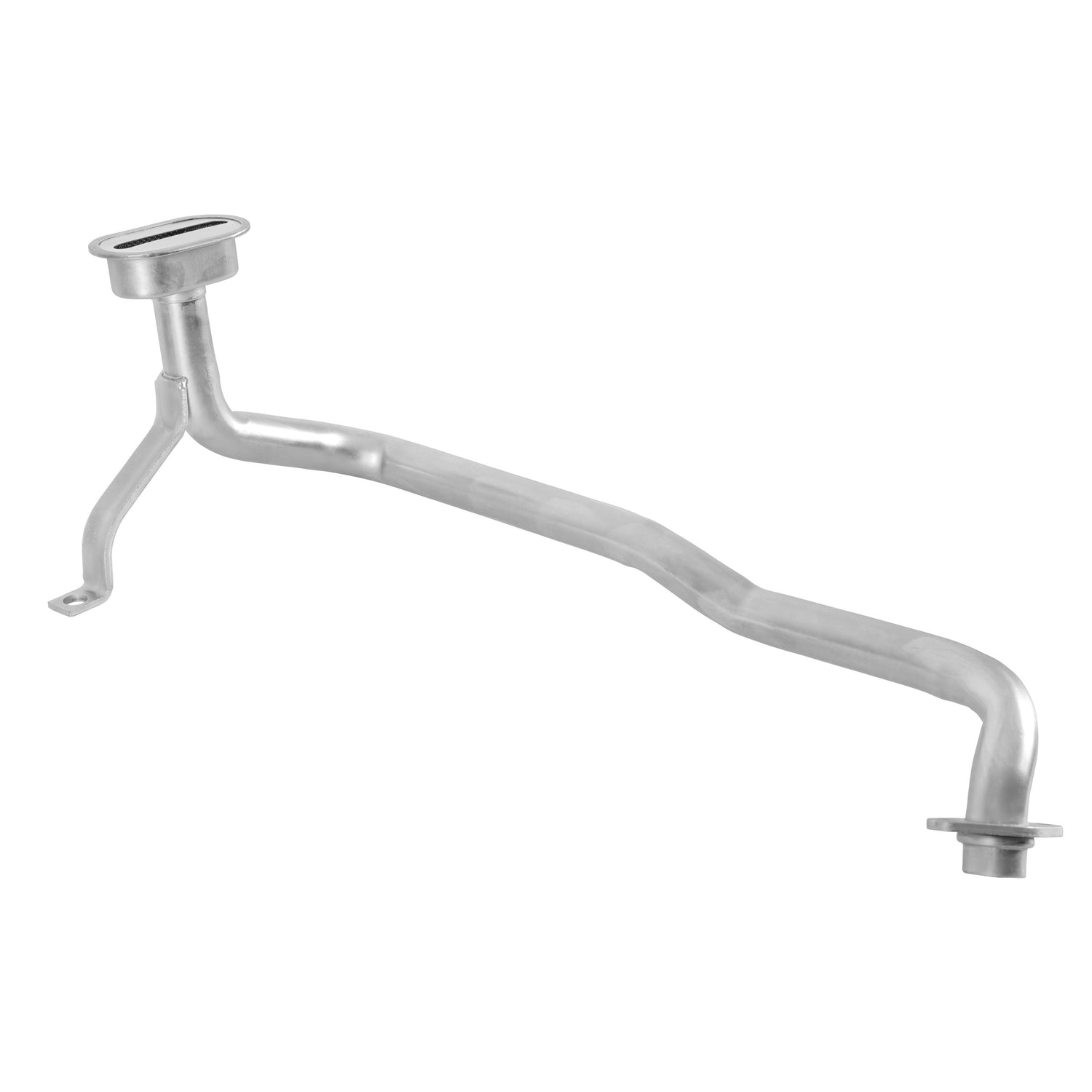

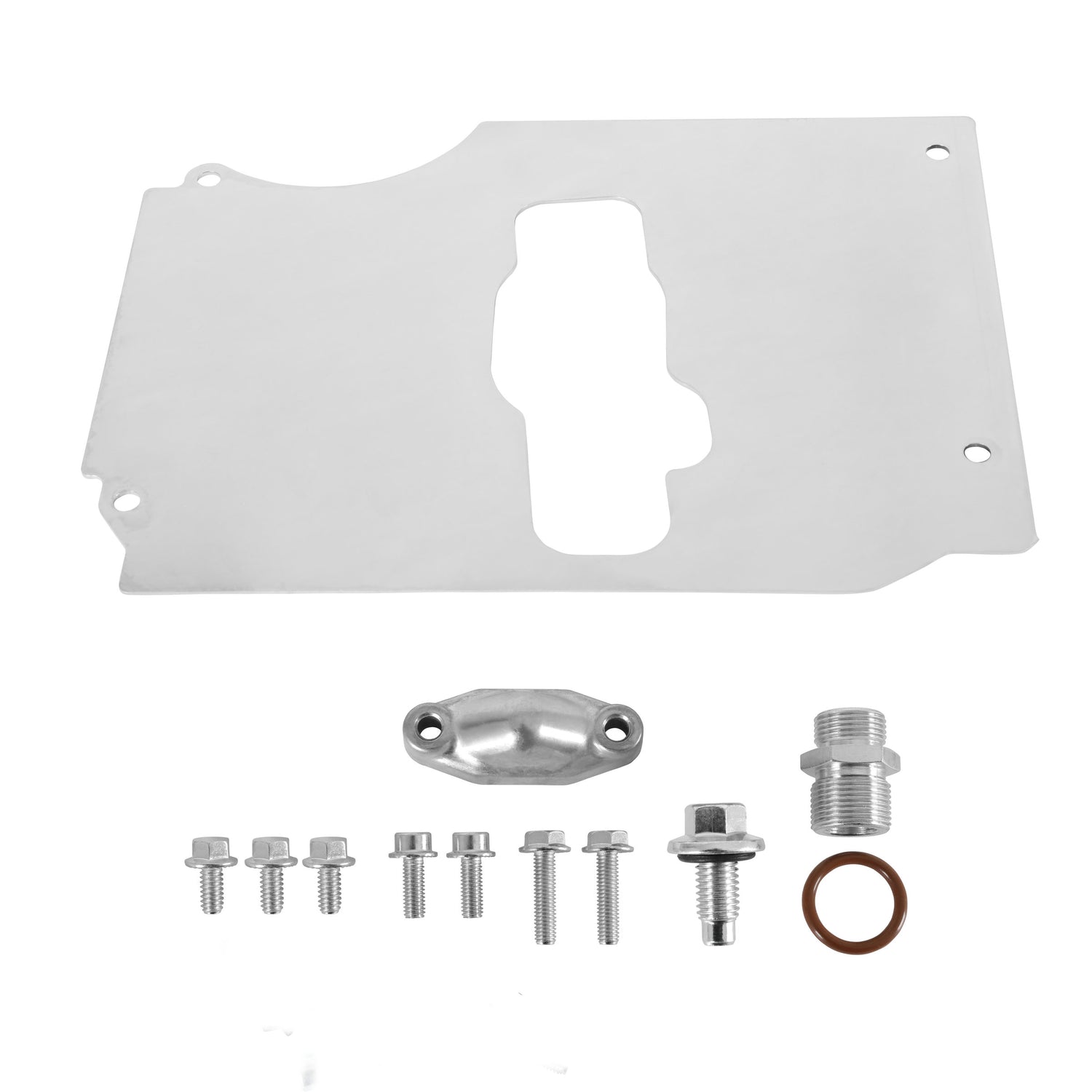

  • Complete kit including sump baffle, pick-up tube, pick-up o-ring, oil filter stud, & oil passage cover
  • Fits GM K10 and other LS Swapped 4-wheel drive applications
  • Maximum crankshaft stroke - 4.00-inches
  • Compatible with hinged-door baffle #302-33 and rock shield #302-35 which can be added at any time
Application: GM LS Engines
Baffled: No
Brand: Holley
Capacity: 5.6
Category: Engine
Choose Your Part: Oil Pan Kit
Color: Silver
Crank Shaft Wiper Included: No
Dipstick Port: No
Drain Plug Included: Yes
Emission Code: 5
Engine: GM Gen III/IV (LS)
Finish: Natural Cast
Grade Type: Performance
Material: Cast Aluminum
Maximum Stroke: 4.00"
Oil Pan Capacity: 5.6 Quarts
Oil Pan Type: Off-Road / 4WD
Oil System Capacity (w/ filter): 6.1 Quarts
part type: Engine Oil Pan
Pickup Included: Yes
Product Type: Oil Pan Kit
Sub Category: Cylinder Block Components
Sump Location: Rear
Sump Type: Wet
Turbo Oil Drainback: No
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
Windage Tray Included: No
