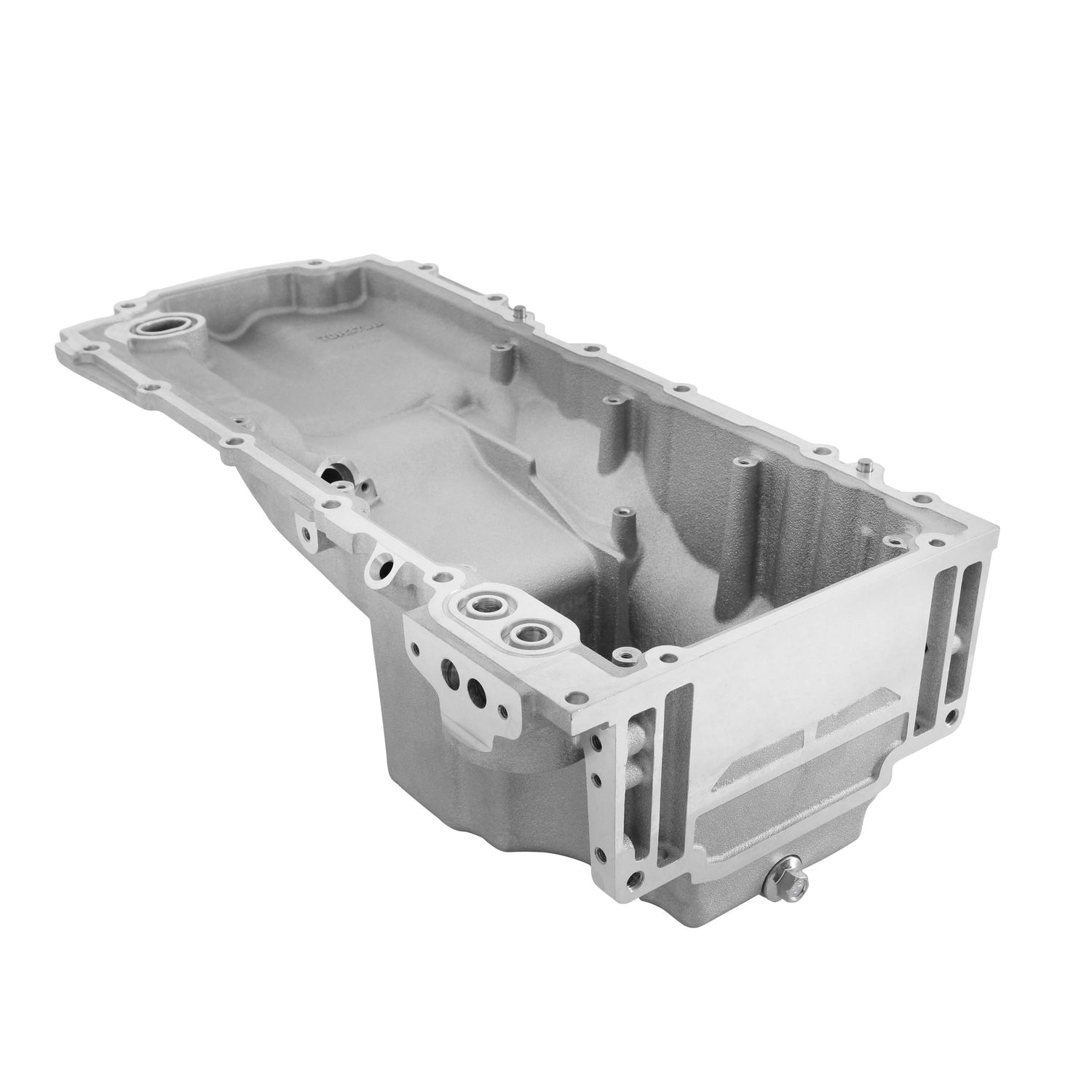

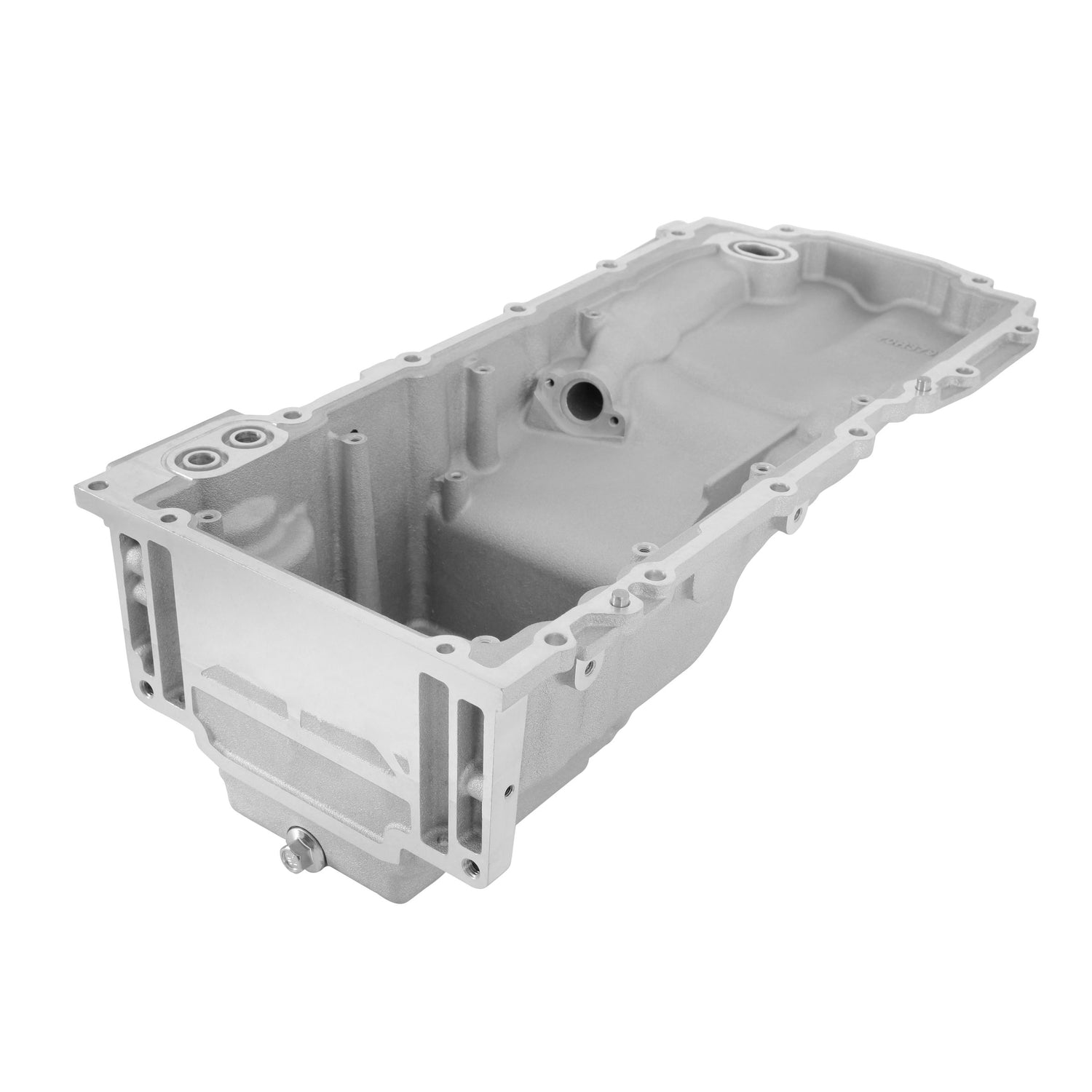

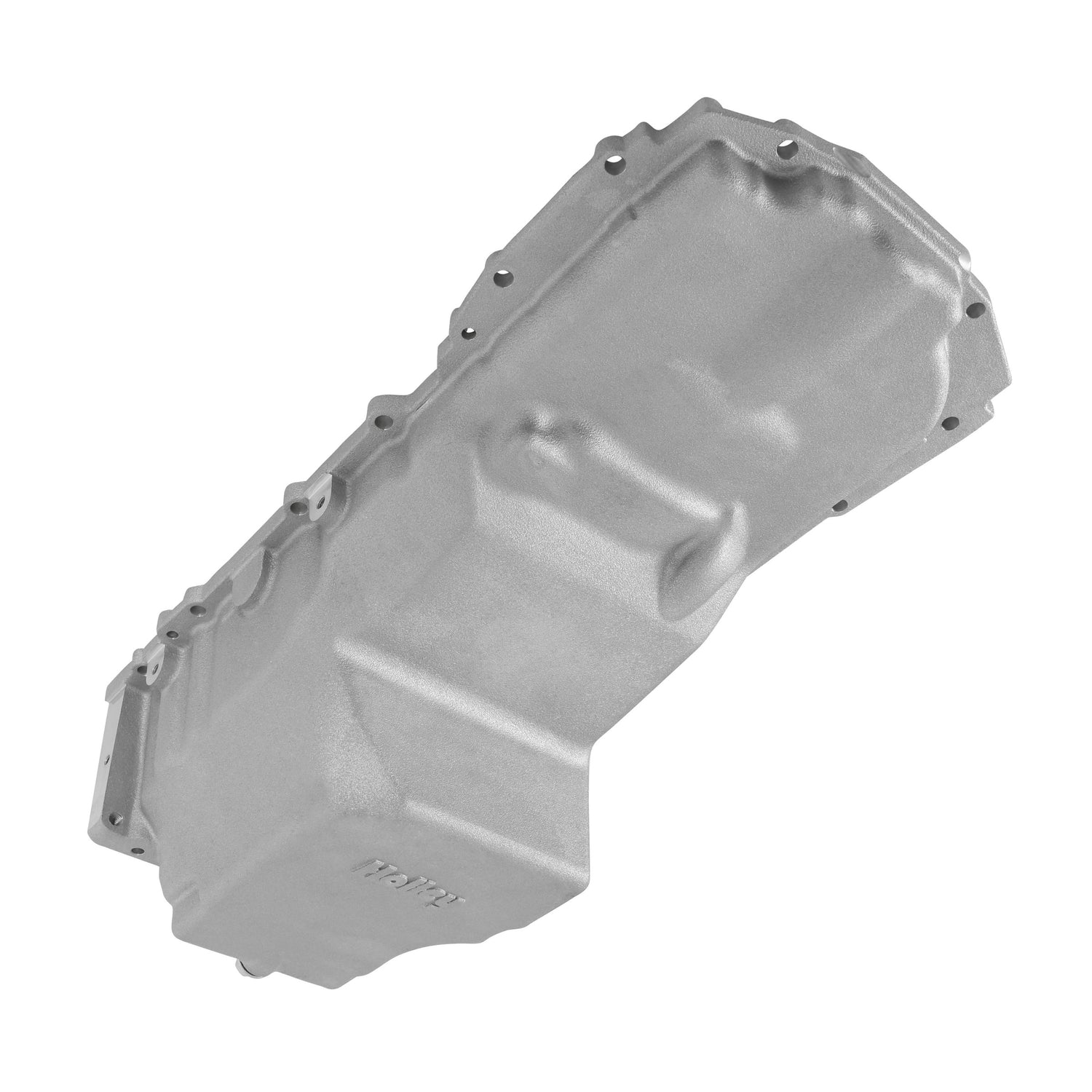

Holley 302-24 - GM LT Swap Oil Pan - 4WD / Truck / Off-Road

Holley | SKU: HOL-302-24

$536⁹⁹ $618⁹⁵

★ Holley is one of our favorite brands! ★

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

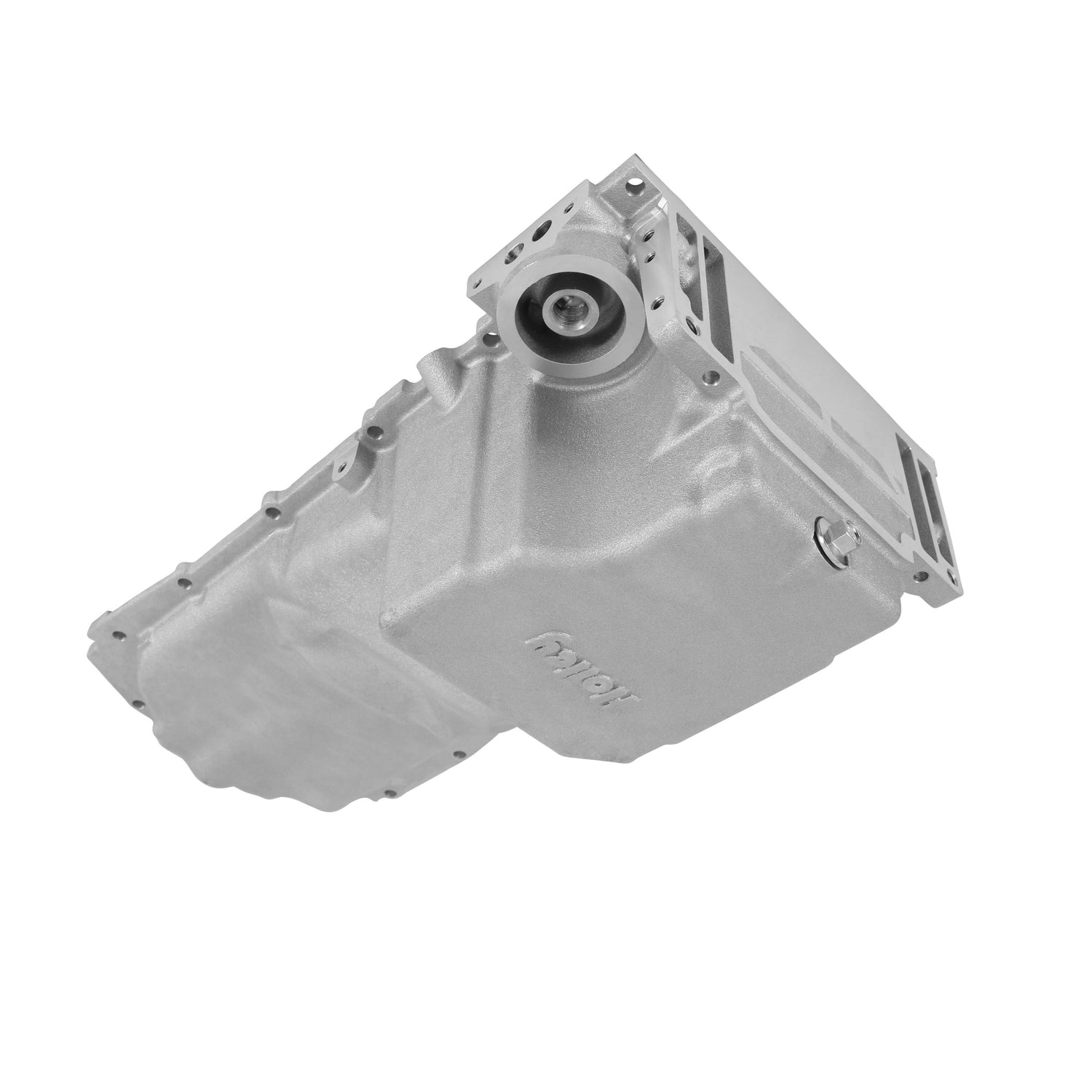

Holley 302-24 - GM LT Swap Oil Pan - 4WD / Truck / Off-Road

Holley GM LT Swap Oil Pan - 4WD / Truck / Off-Road

Fits 1973-1987 GM K10 LT Swapped Trucks and Other 4WD LT Swap Projects

*See Installation Notes below for important information regarding necessary modifications to windage tray, capacity, etc. (see instructions for full details).

Fits GM K10 and other LT Swapped 4-wheel drive applications

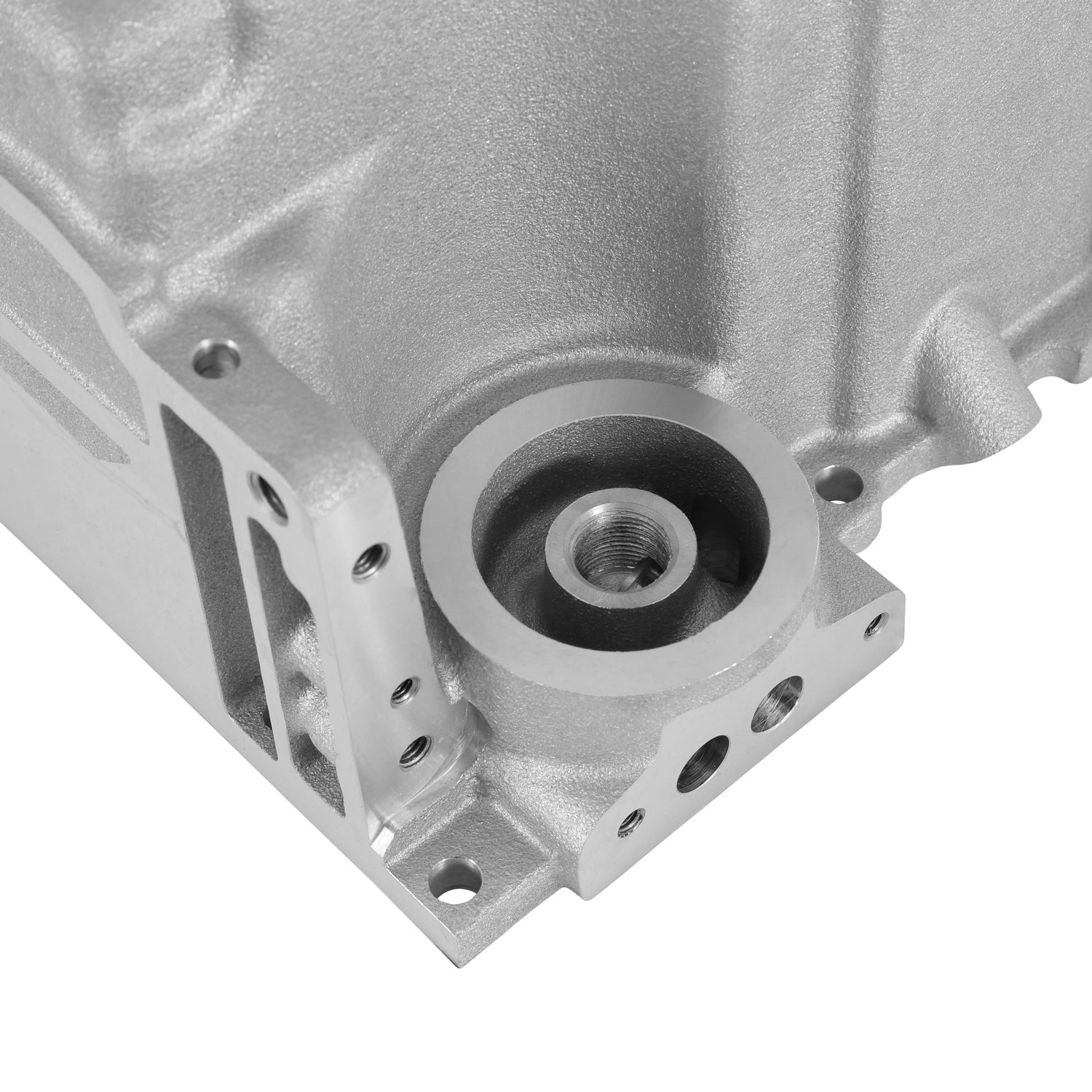

Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE flange gasket and sealing, proper structural rigidity, and OE bell-housing attachments
Compatible with hinged-door baffle #302-34 and rock shield #302-35 which can be added at any time
Traditional high-quality cast aluminum appearance with clean exterior styling

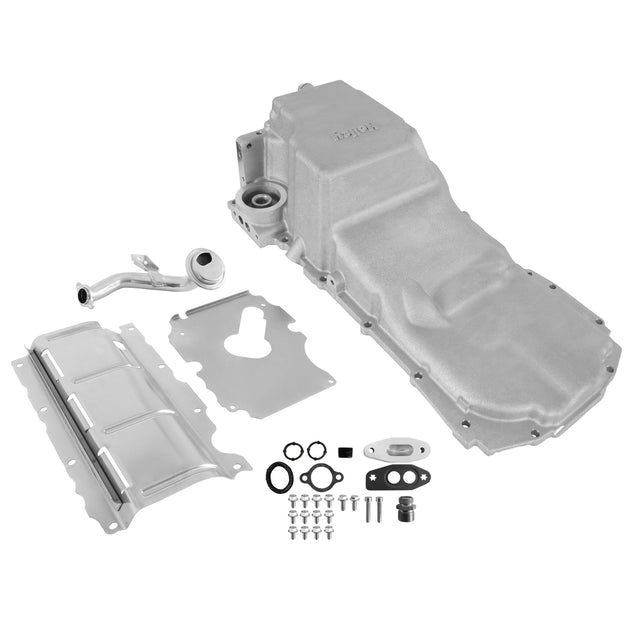

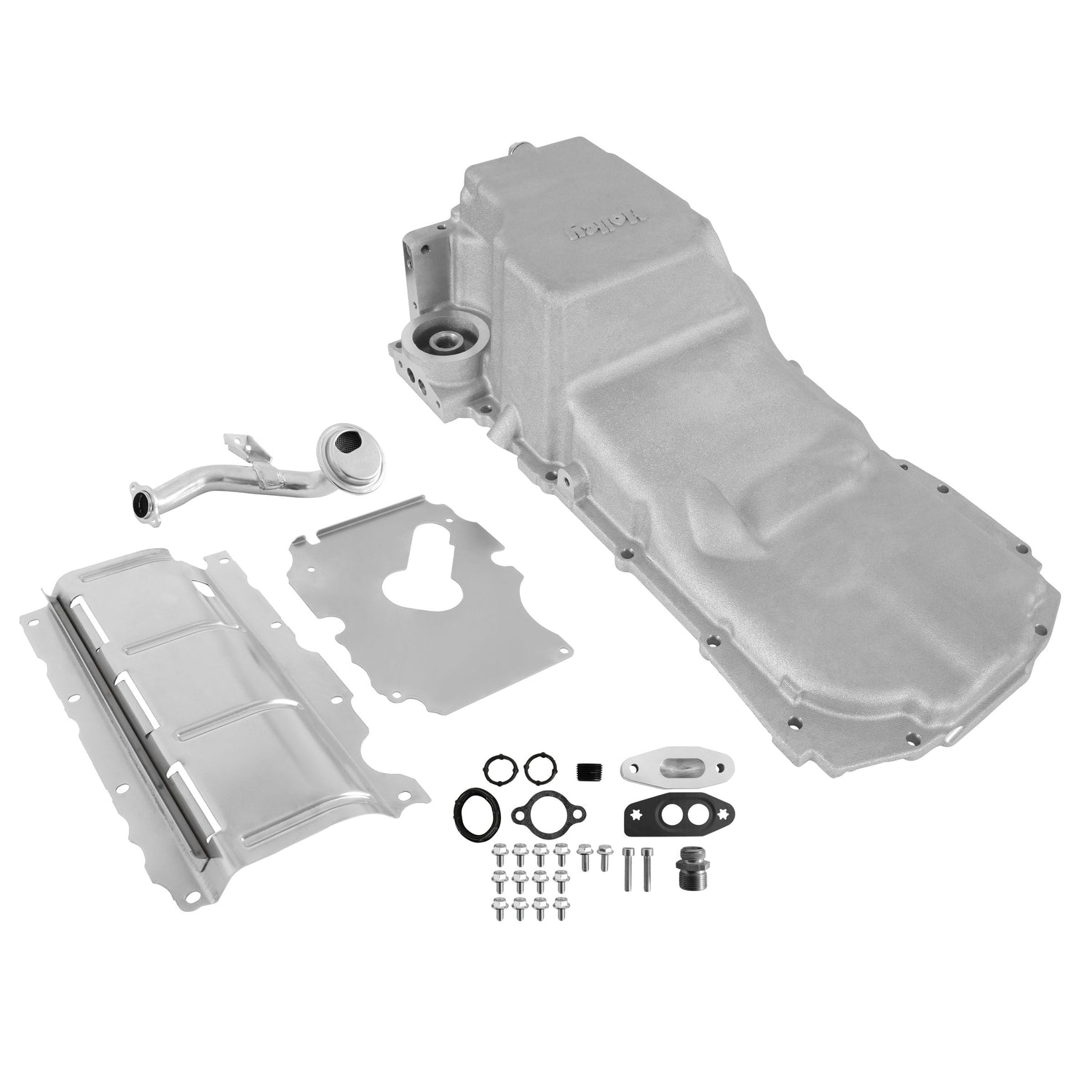

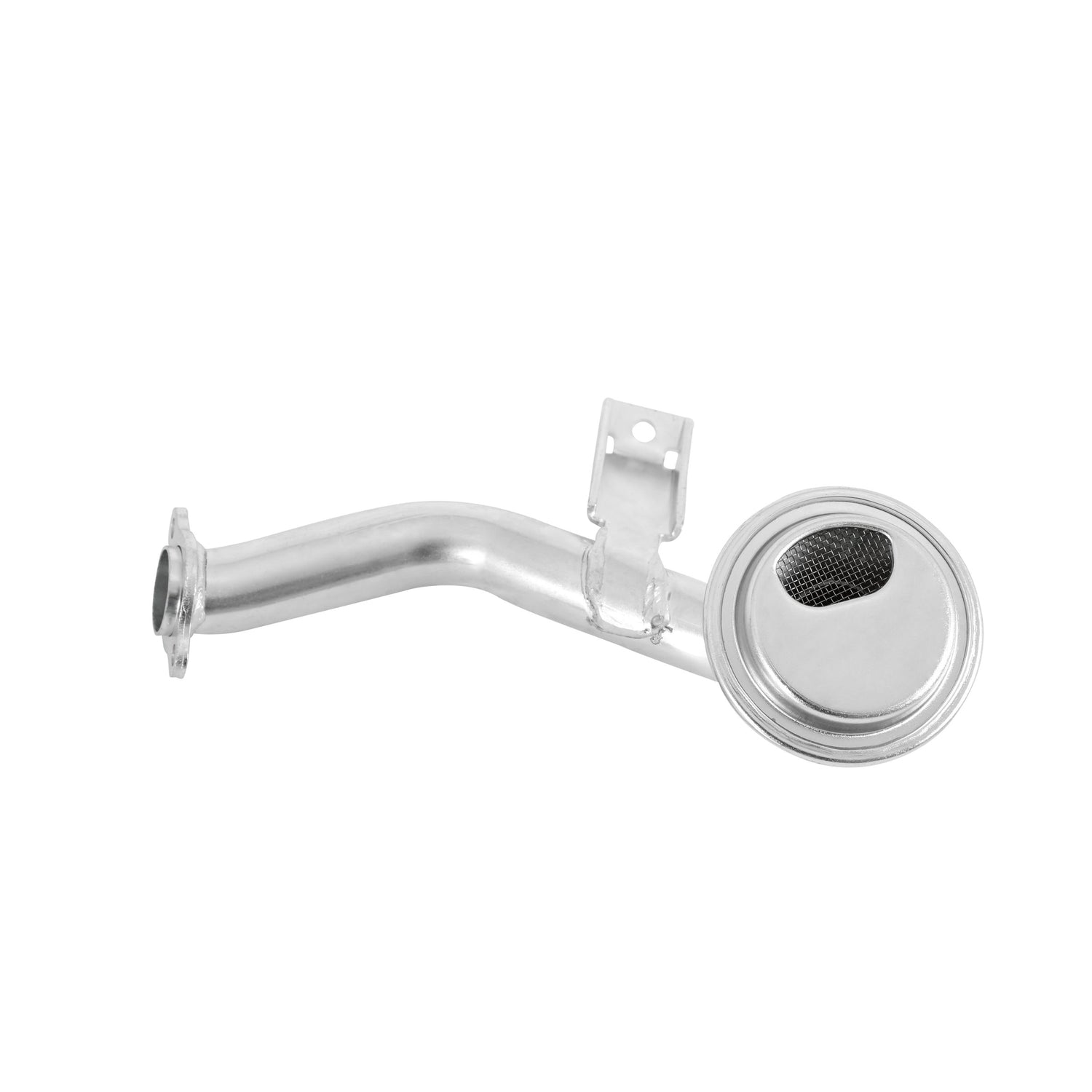

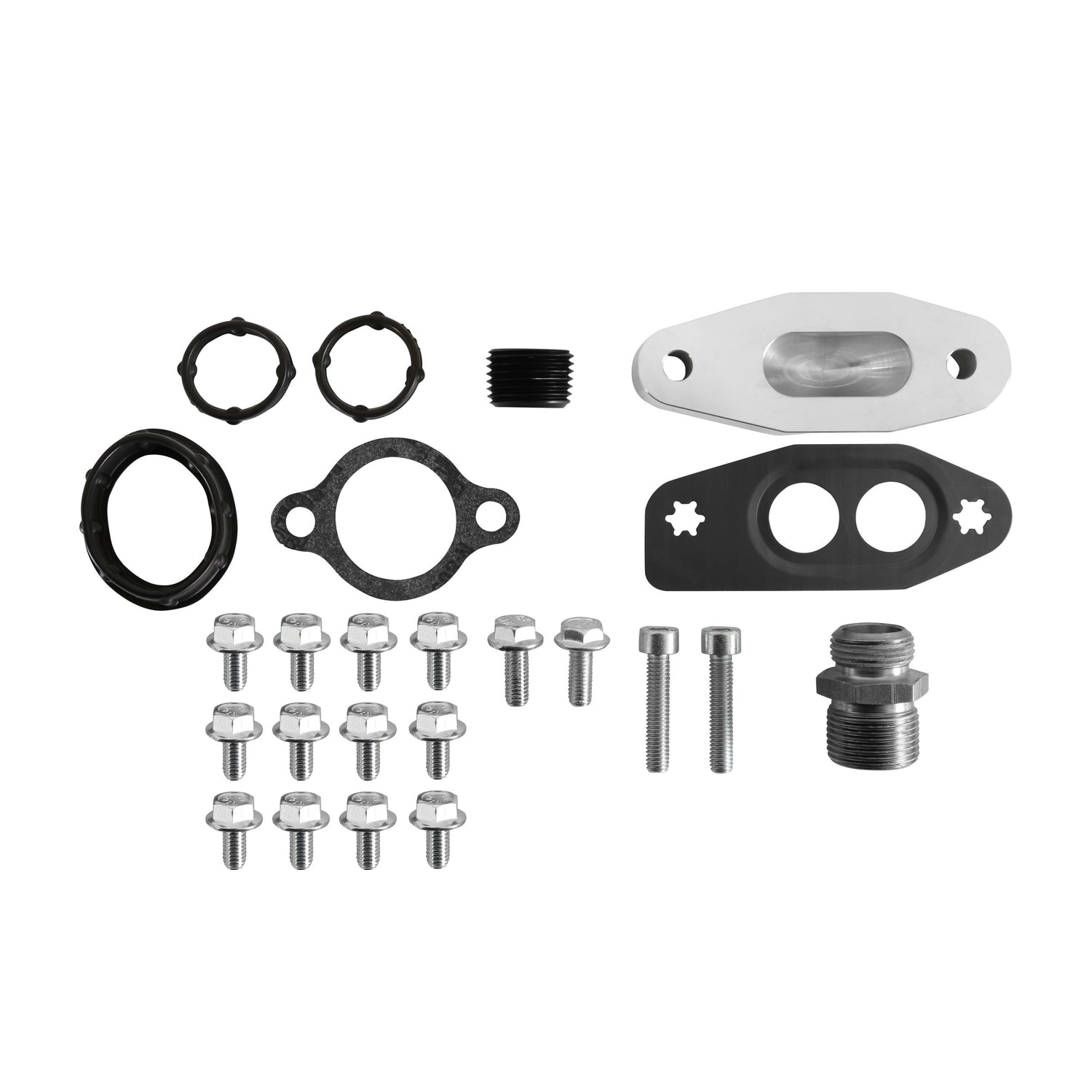

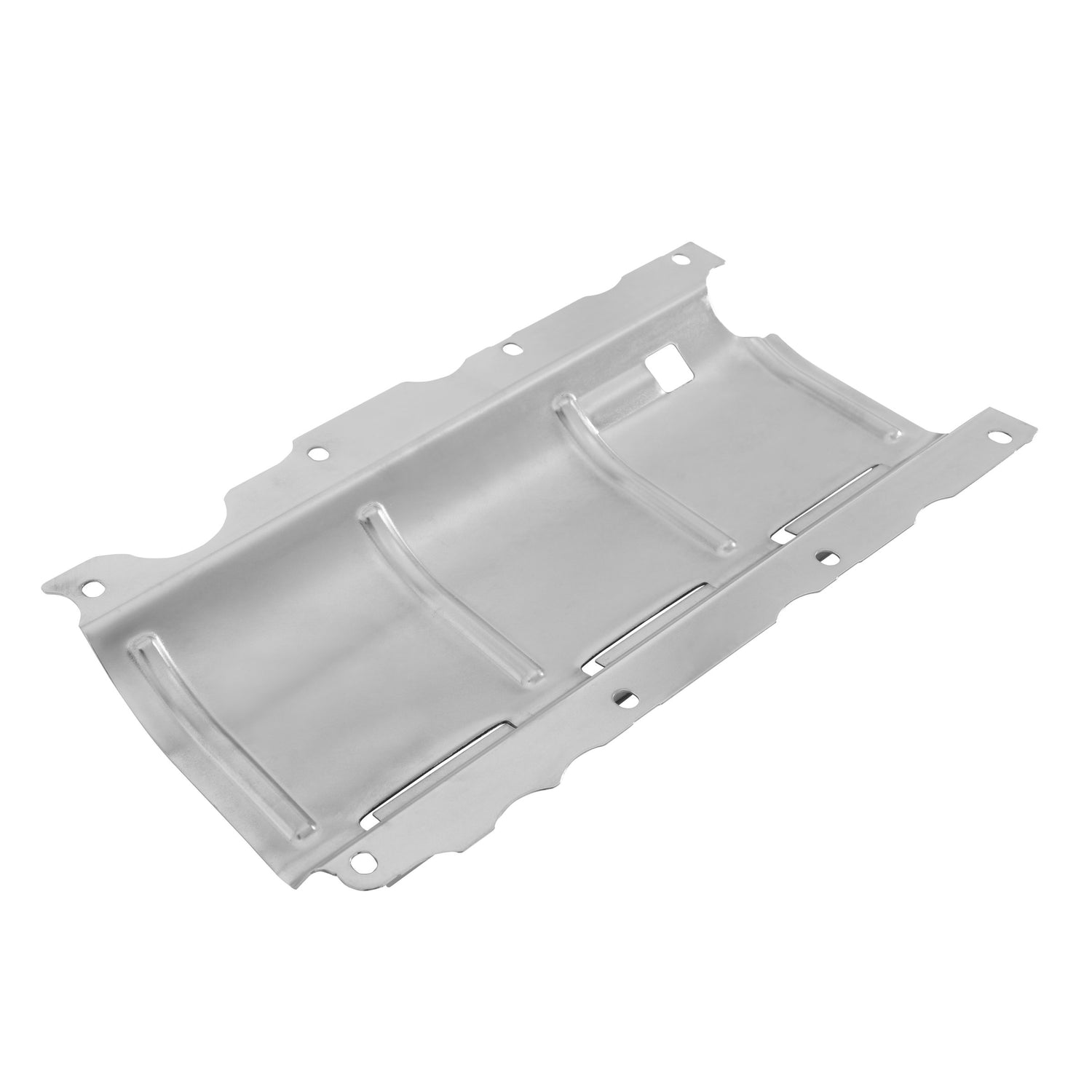

Complete kit including sump baffle, pick-up tube, pick-up o-ring, oil filter stud, & oil passage cover
Maximum crankshaft stroke - 4.00-inches

Application: GM Gen V LT

Baffled: No

Brand: Holley

Capacity: 5.6

Category: Engine

Choose Your Part: Oil Pan Kit

Color: Silver

Crank Shaft Wiper Included: No

Dipstick Port: No

Drain Plug Included: Yes

Emission Code: 5

Engine: GM Gen V (LT)

Finish: Natural Cast

Grade Type: Performance

Material: Cast Aluminum

Maximum Stroke: 4.00"

Oil Pan Capacity: 5.6 Quarts

Oil Pan Type: Off-Road / 4WD

Oil System Capacity (w/ filter): 6.1 Quarts

part type: Engine Oil Pan

Pickup Included: Yes

Product Type: Oil Pan Kit

Sub Category: Cylinder Block Components

Sump Location: Rear

Sump Type: Wet

Turbo Oil Drainback: No

Warning: California Proposition 65

Warranty: Manufacturer's Limited 90 Day Warranty

Windage Tray Included: No
