Holley 300-131BK - LS Single Plane Mid-Rise Intake
Holley | SKU:
HOL-300-131BK
Sale price
$56399
Regular price
$65895
Unit price
/
Unavailable
$94.96 off
★ Holley is one of our favorite brands! ★
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

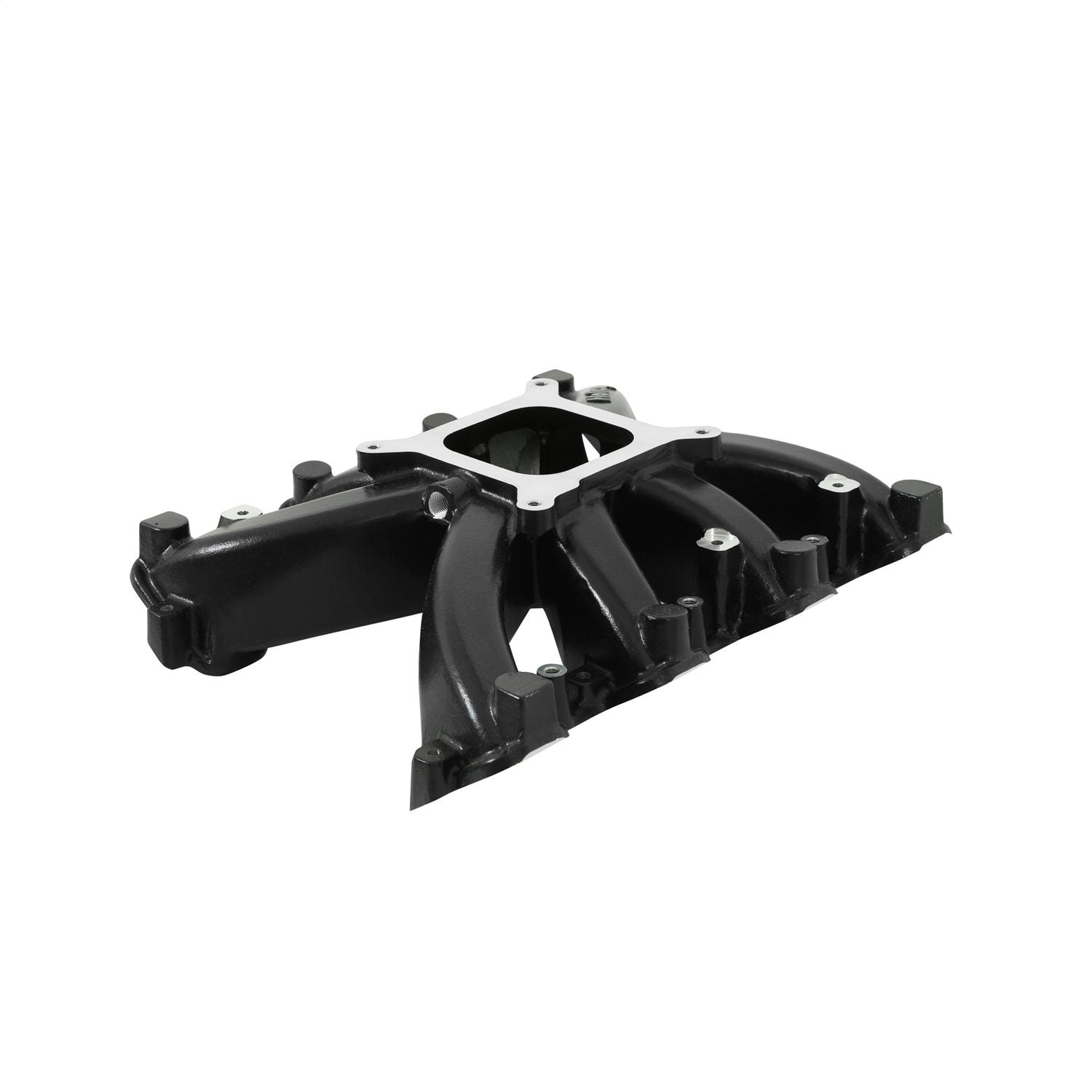

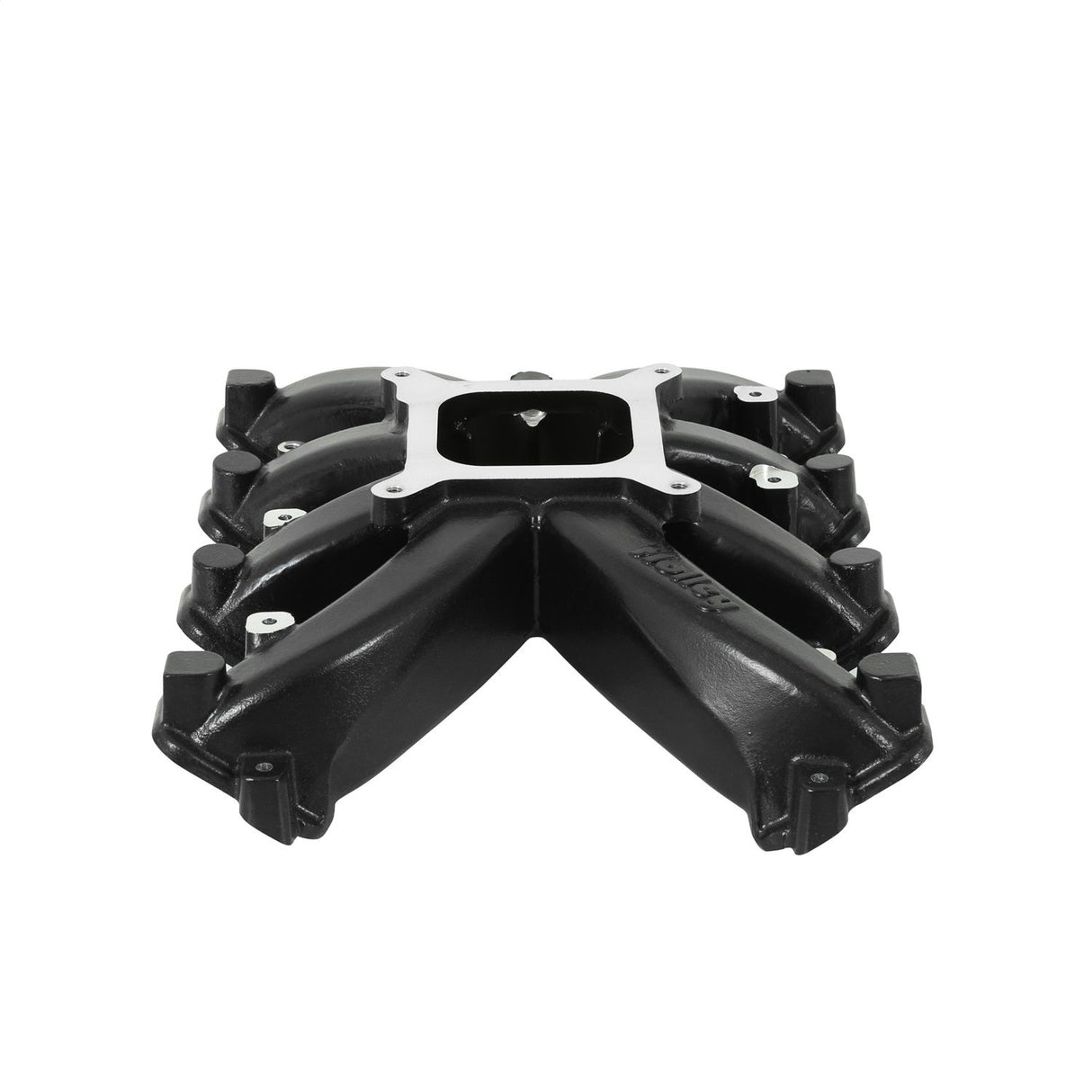

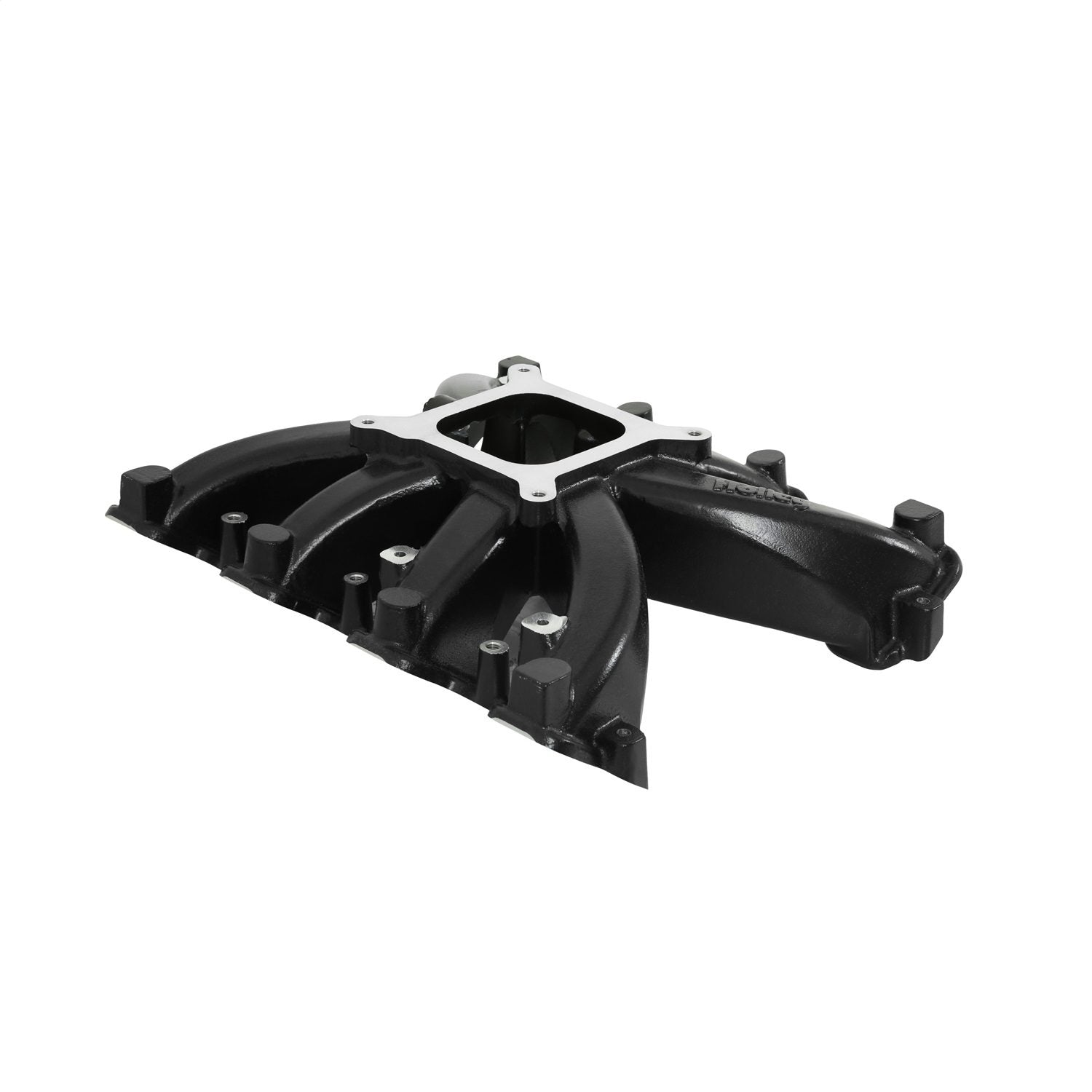

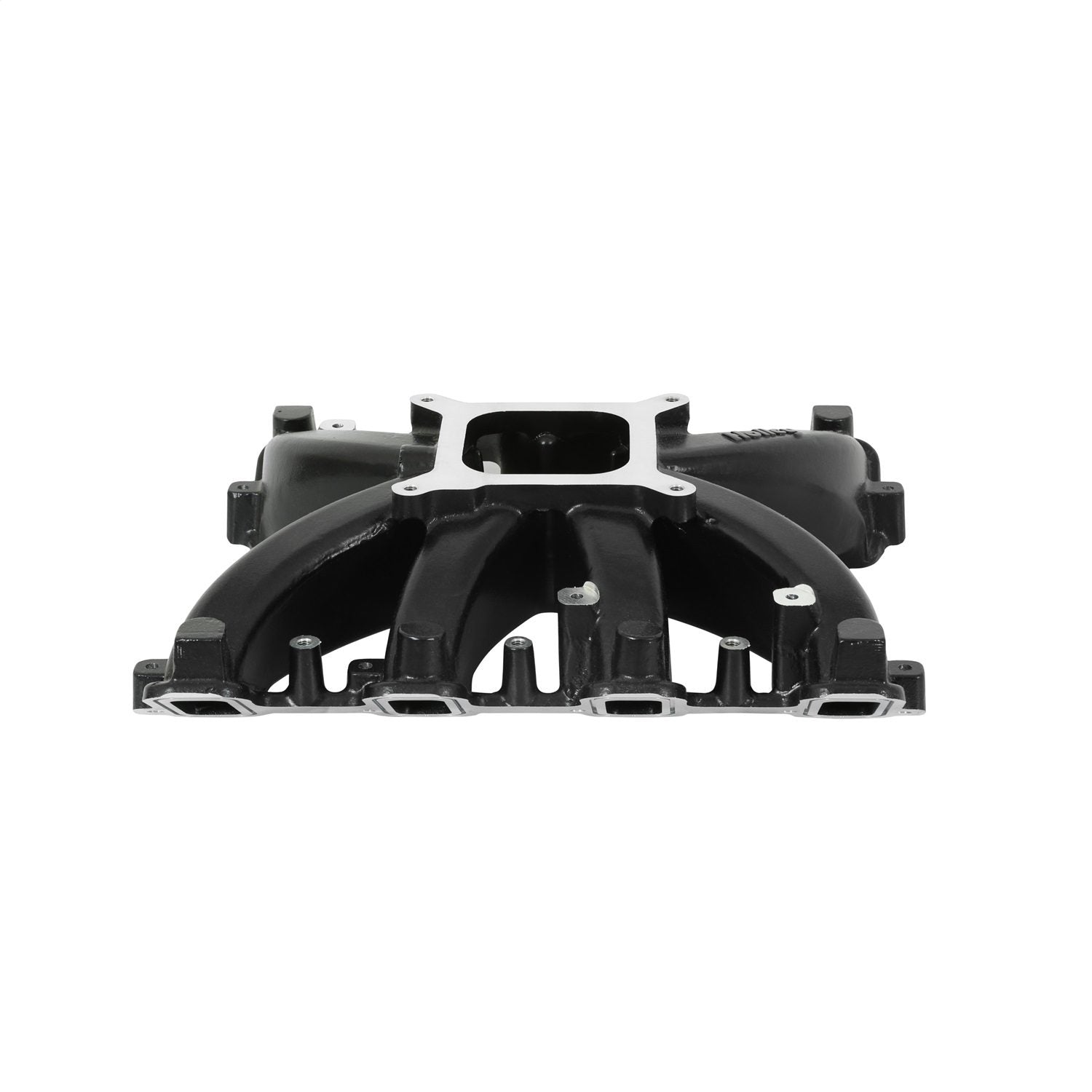

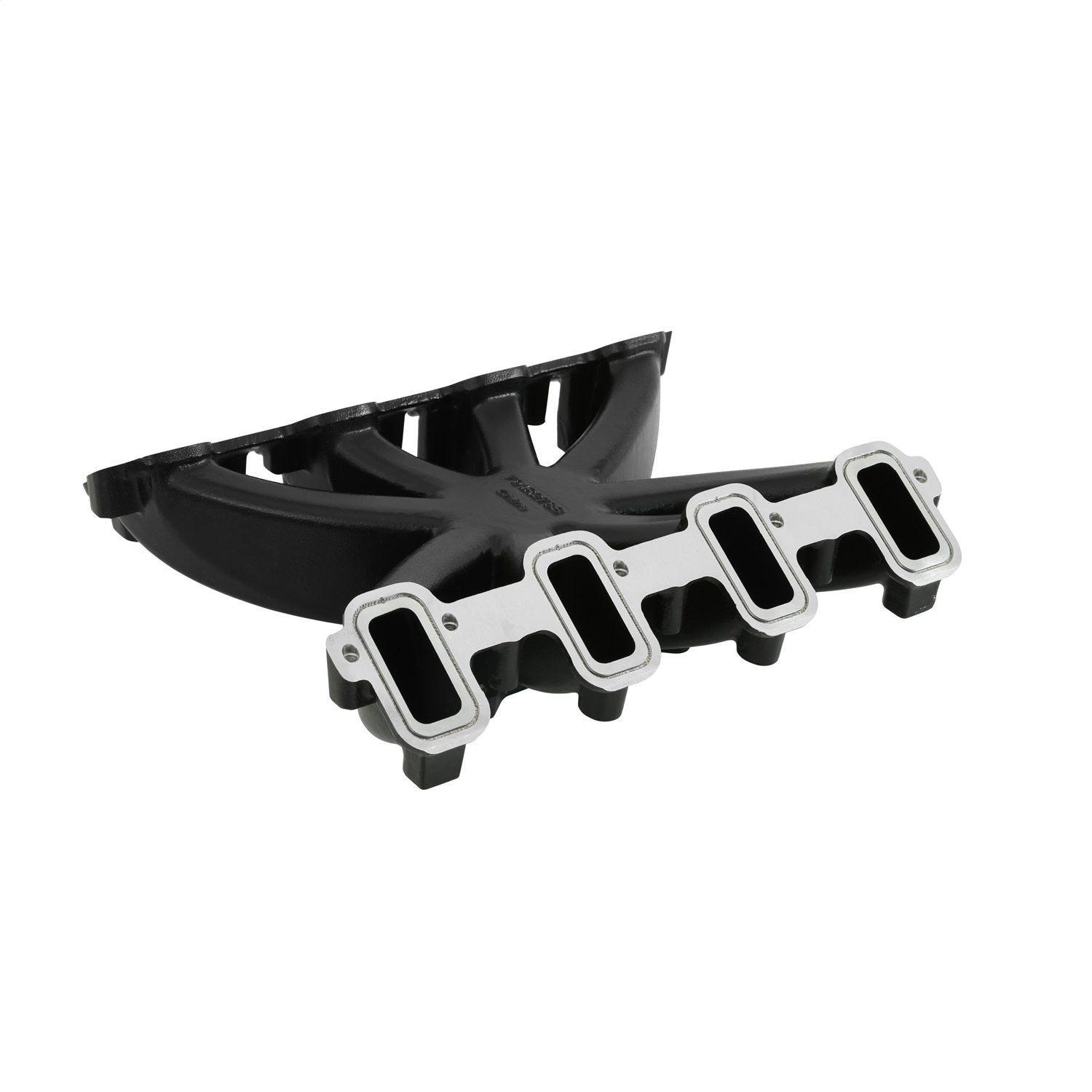

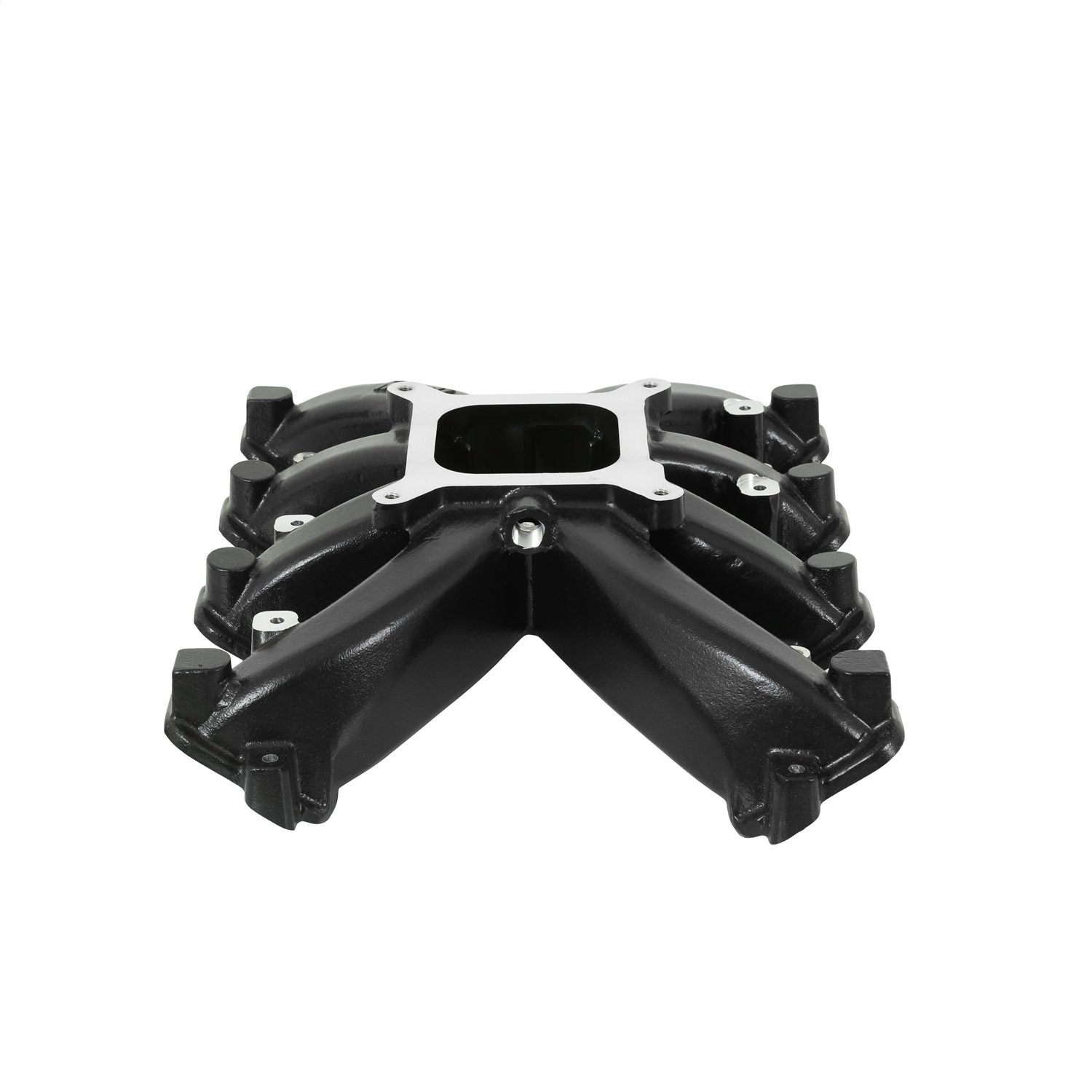

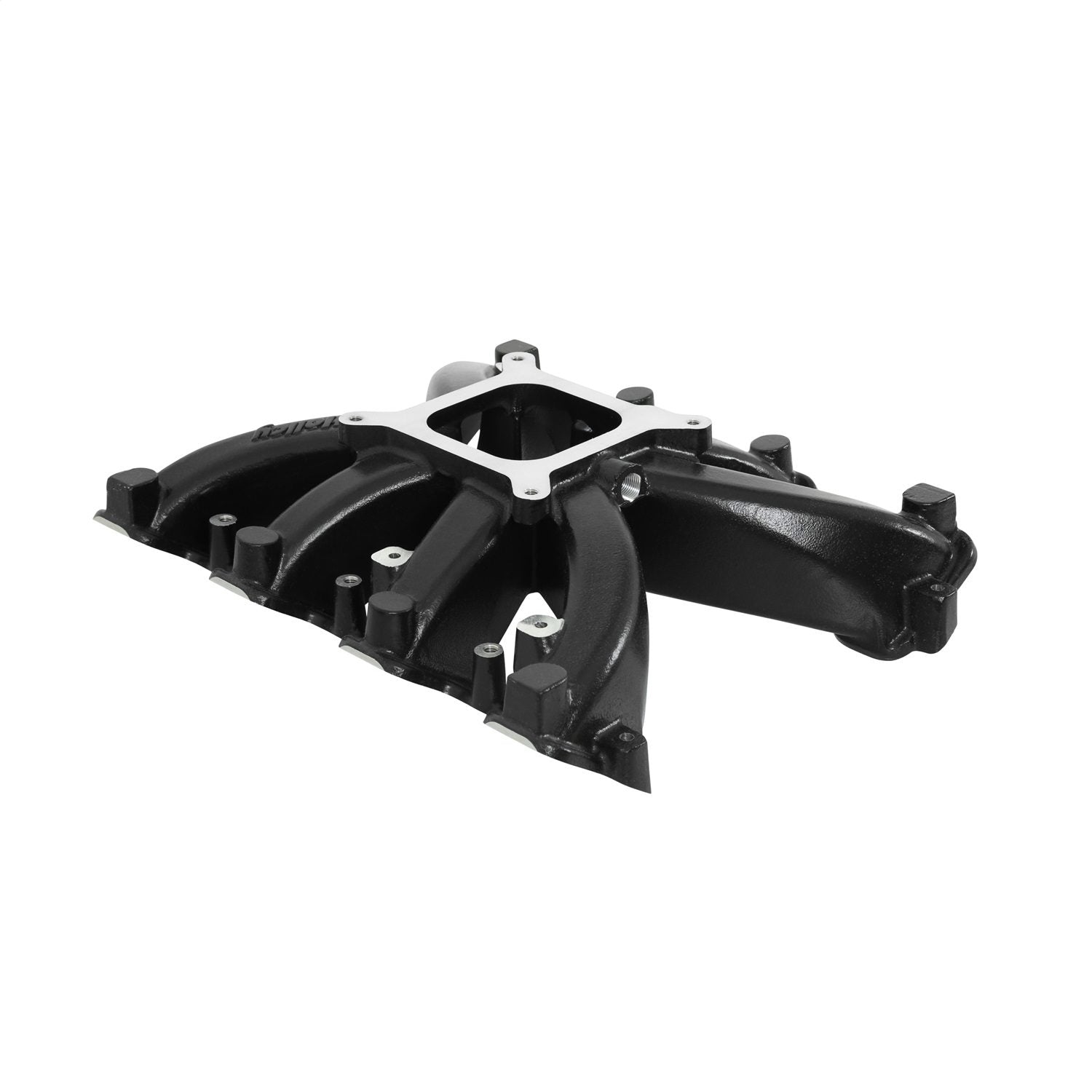

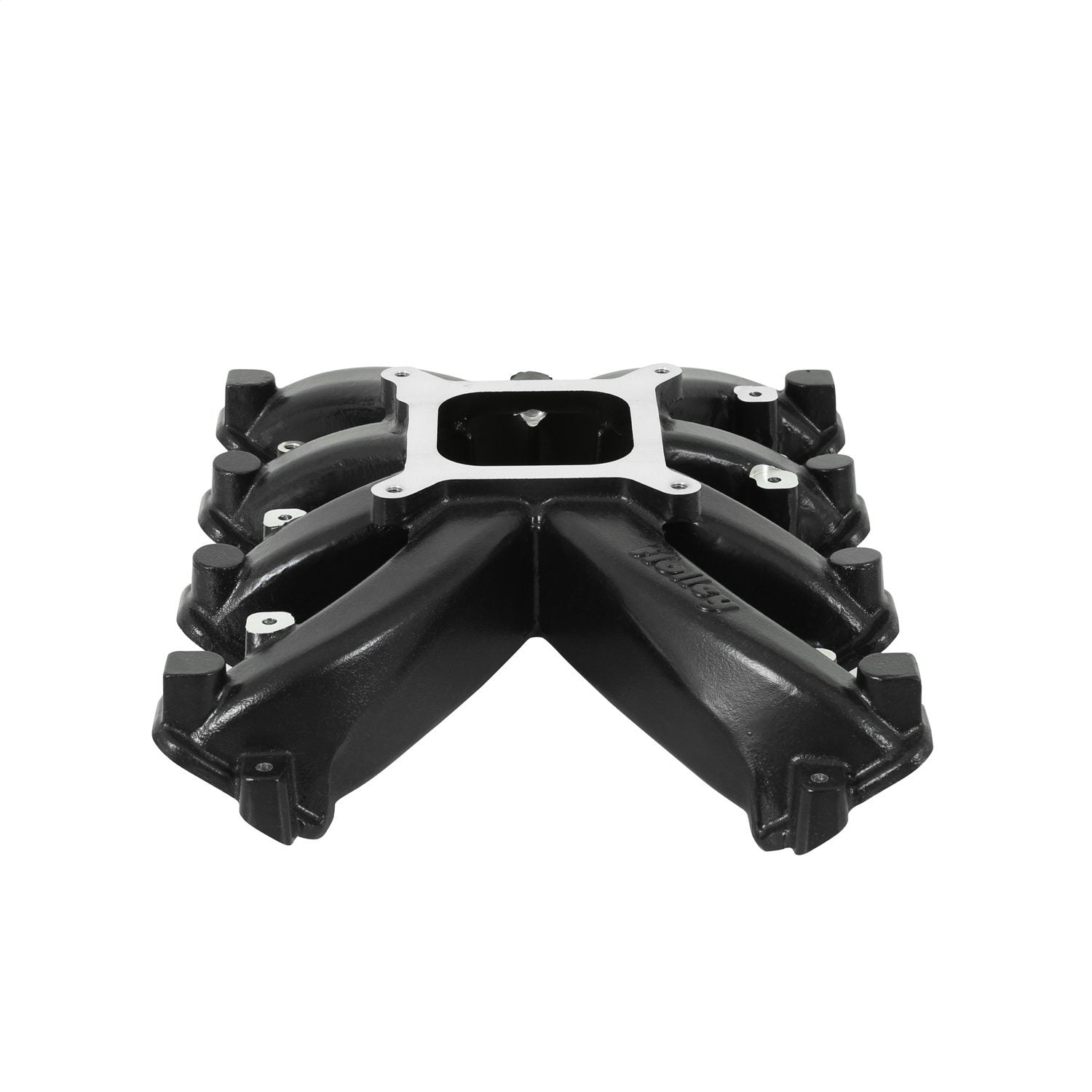

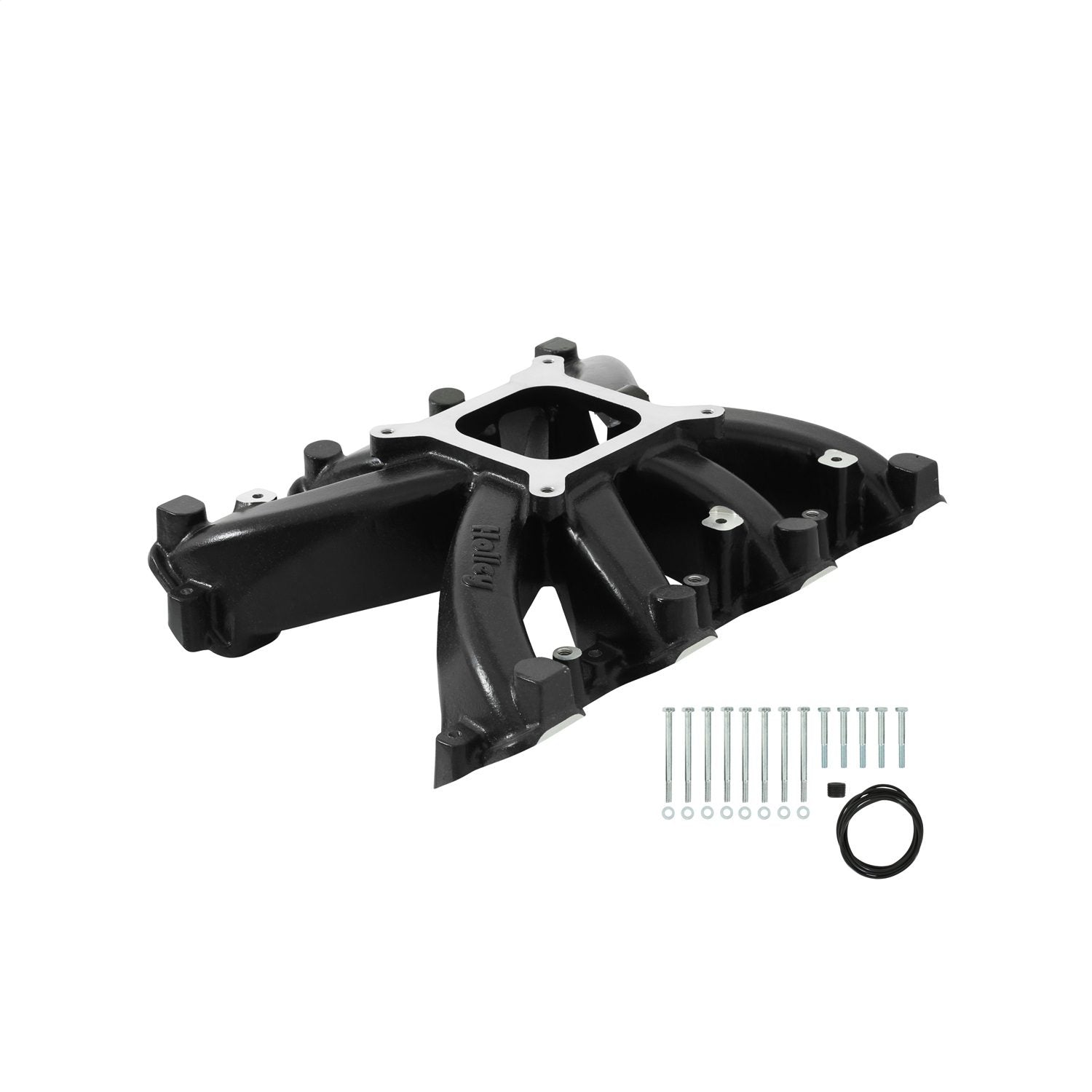

Holley 300-131BK - LS Single Plane Mid-Rise Intake
Holley Single Plane Carbureted Intake - GM LS3/L92 - Black
LS Single Plane Mid-Rise Intake; Upper; Carbureted; Single Plane; w/Rectangular Port Cylinder Heads; Front/Rear Height 5.417 in.; RPM Power Band 2500-7000; Black Ceramic Finish;
Carbureted single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS3/L92 style rectangular port cylinder heads
- Weight - 11.5 lbs.
- Minimum carb flange height - fit in vehicles with minimum hood modifications
- Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange
- 2500-7000 RPM power band
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
- 4150 Square bore flange (accepts up to 1.75" diameter throttle bores)
- Port size - 2.50" height x 1.15" wide
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
- Includes Viton® O-ring intake to cylinder head gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications
Basic Operating RPM Range: 2500-7000
Brand: Holley
Carburetor Flange: Square/4150
Carburetor Quantity: 1
Carburetor Studs Included: No
Category: Engine
CNC Ported: No
Color: Black
Construction: Cast
Cylinder Head Port Shape: Cathedral
Deck Height: 9.24
EGR Port: No
Emission Code: 3
Engine: GM LS3/L92
Flange Style: 4150 Square Bore
Front Maximum Height: 5.417
Fuel Injectors Included: No
Fuel Rail(s) Included: No
Fuel System Type: Carb
Gasket Or Seal Included: No
Grade Type: Performance
Intake Port Gasket(s) Included: No
Manifold Type: Single Plane
Material: Aluminum
Nitrous Bung(s) Included: No
part type: Engine Intake Manifold
Plenum Finish: Black
Product Type: Intake Manifold
Rear Maximum Height: 5.417
Removable Runners: No
Removable Top/Lid: No
Single Or Dual Plane Type: Single Plane
Sub Category: Cylinder Block Components
Throttle Body Bore Diameter: 3.6
Throttle Body Gasket Included: No
Throttle Body Included: No
Vacuum Ports: Yes
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
