Holley 19-202 - Aluminum Fuel Cell 10 Gallon

Holley 19-202 - Aluminum Fuel Cell 10 Gallon

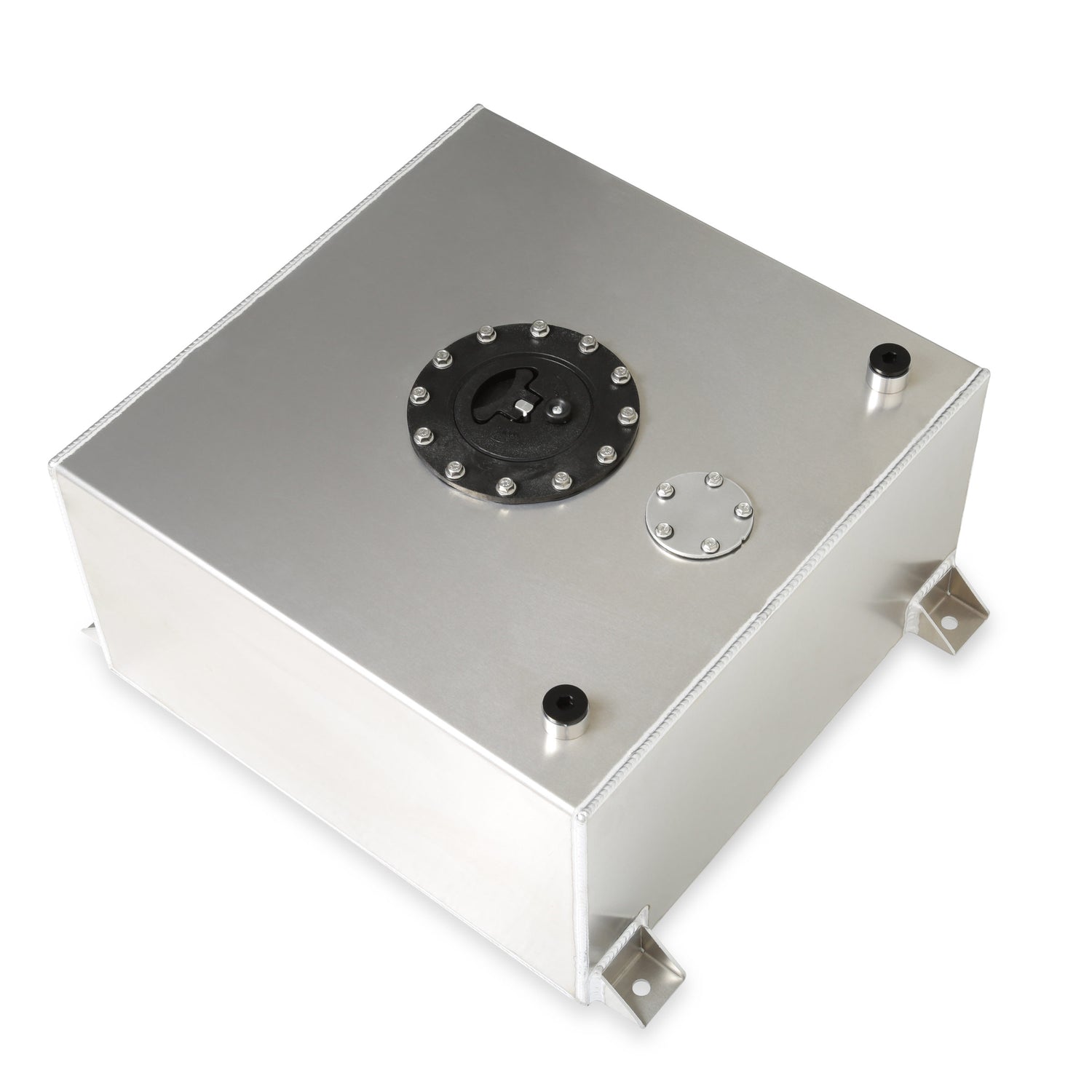

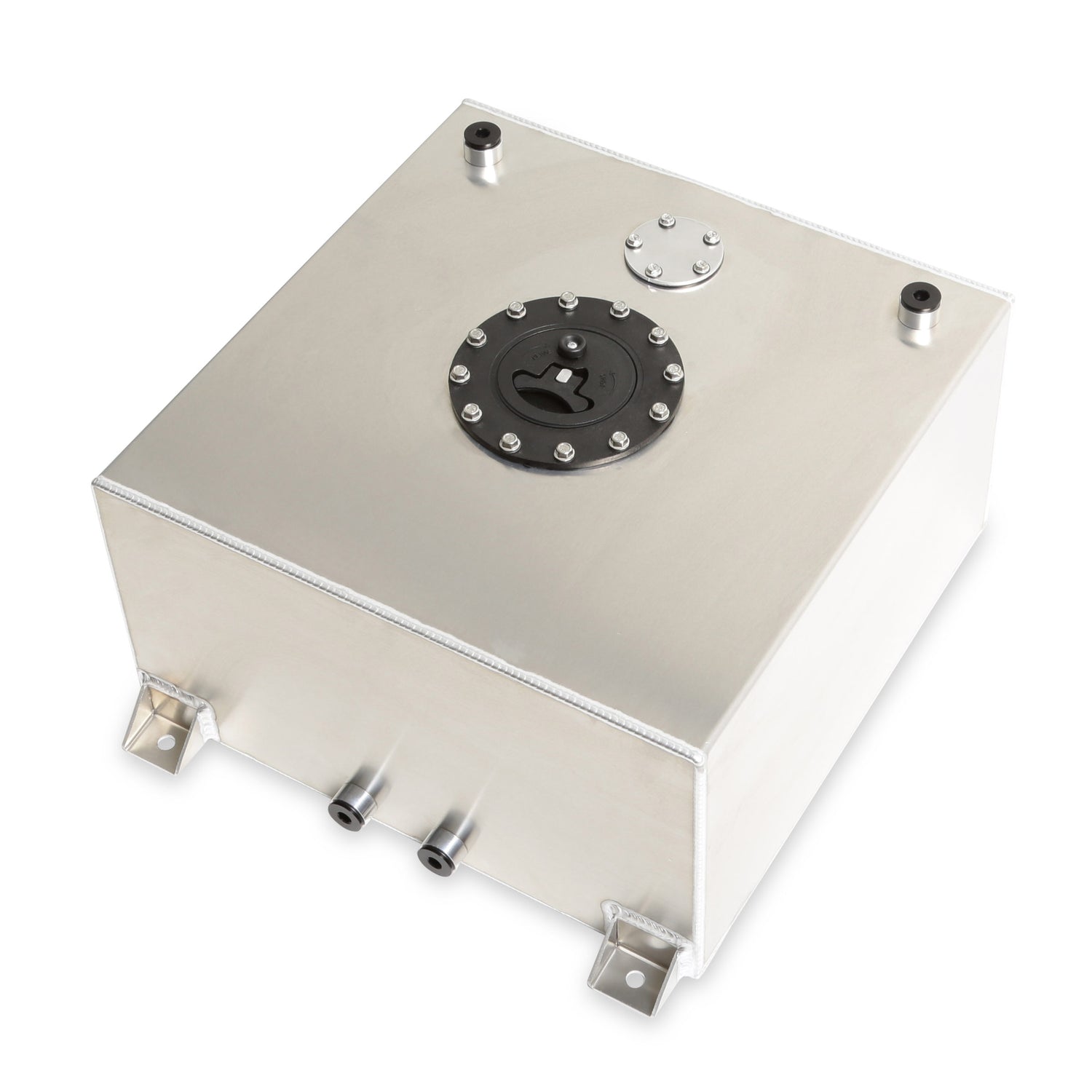

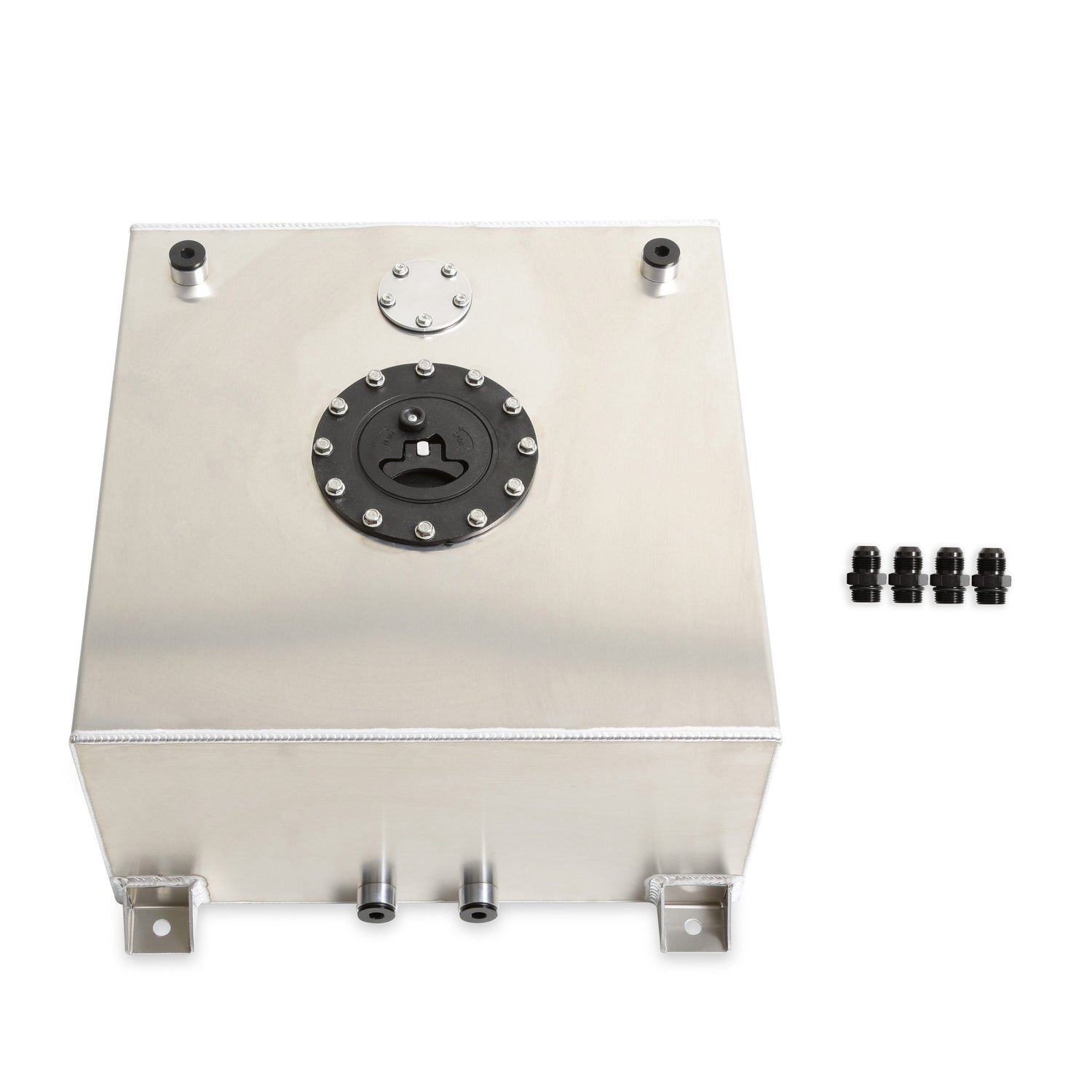

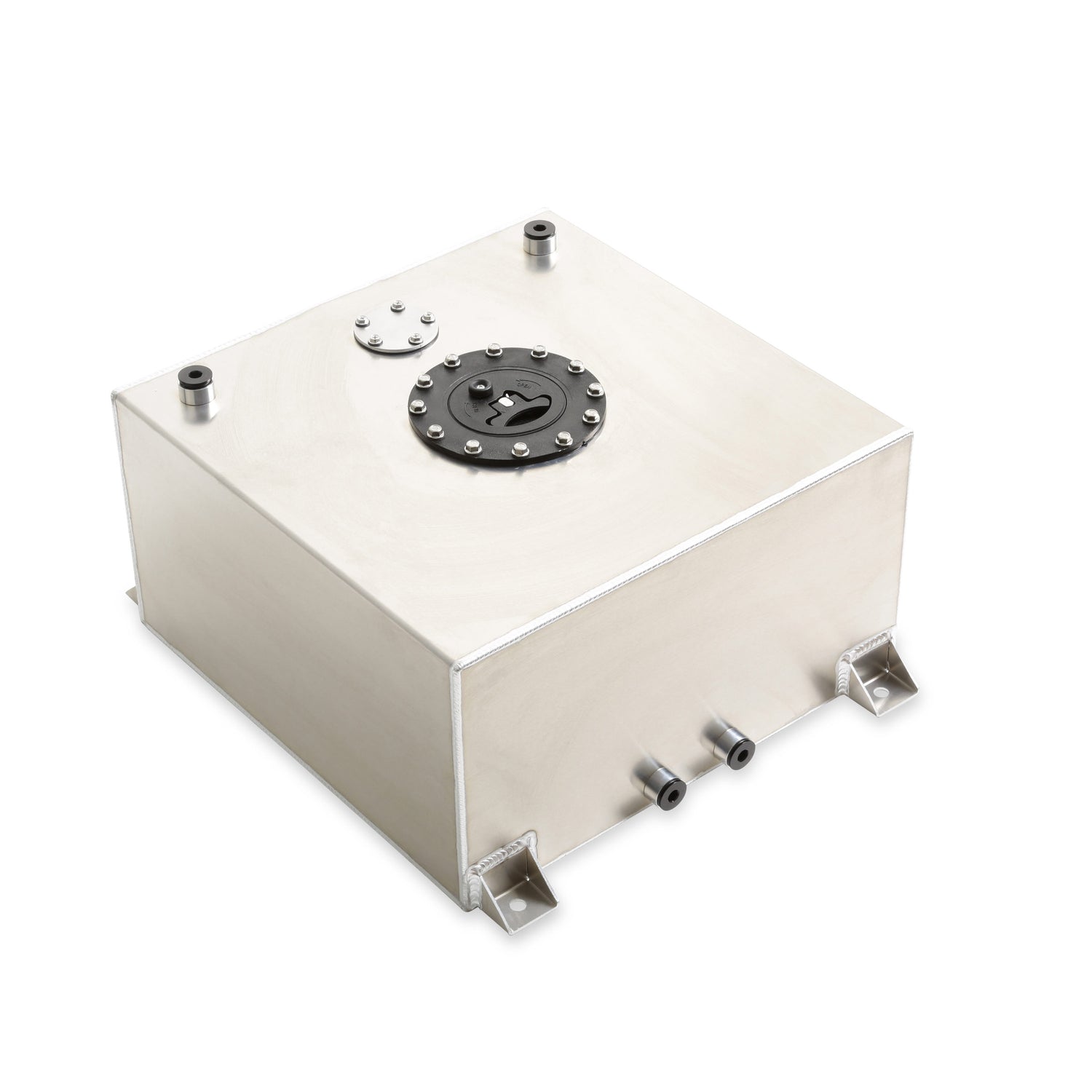

Fuel Cell - 10 gal - 17 in Wide x 17 in Deep x 9 in Tall - Two 10 AN Female O-Ring Outlets - 10 AN Female O-Ring Return / Vent - Foam - Aluminum - Natural - Each

Fuel Cell; Aluminum; 10 Gallon; Flat Bottom; 17 in. X 17 in. X 9 in.;

Holley Aluminum fuel cells come in a several variations for nearly every race application. They are offered in both flat bottom and rear sump variations to prevent fuel starvation under heavy acceleration. These fuel cells feature -10AN ORB fittings on the feed, return and vent ports, for high flow support and easy plumbing. They are made from 2.5mm thick 5052 TIG welded aluminum, with triangulated mounting tabs for added support and long-term reliability. The Holley aluminum fuel cells contain anti-slosh foam that is pre-cut to accept Holley fuel level senders. This foam is not E-85 compliant and should be removed if that fuel type is used. Compatible with the single and dual in-tank fuel pump modules.

• Available In 3/5/10/15/20-Gallon Tank Sizes
• Offered In Both Flat Bottom Or Rear Sump To Help Prevent Fuel Starvation
• -10An Orb Ports For High Flow

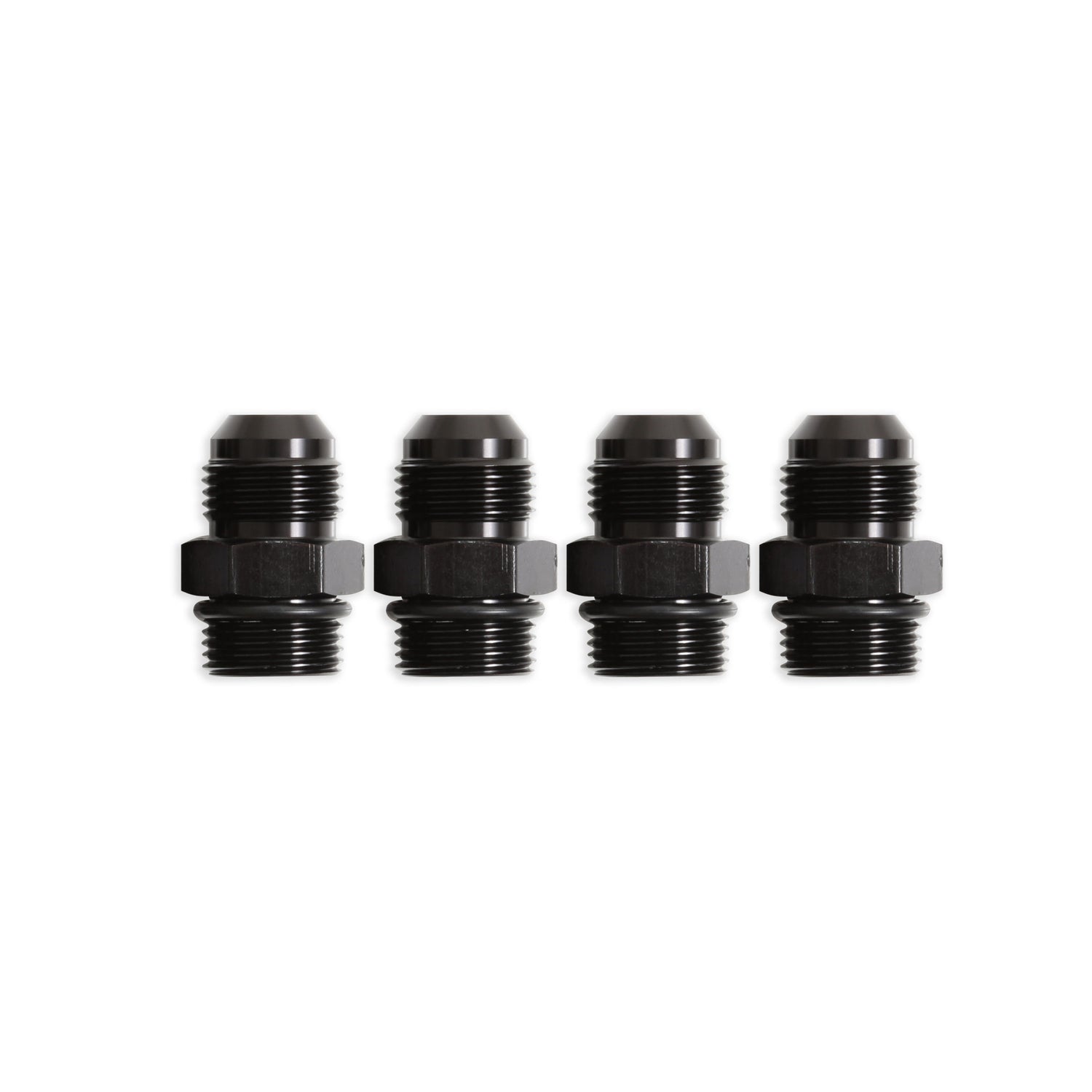

• Readily Adaptable -10An Orb Ports To -6An; -8An And -12An Avoids Cutting And Re-Welding Male Weld Bungs

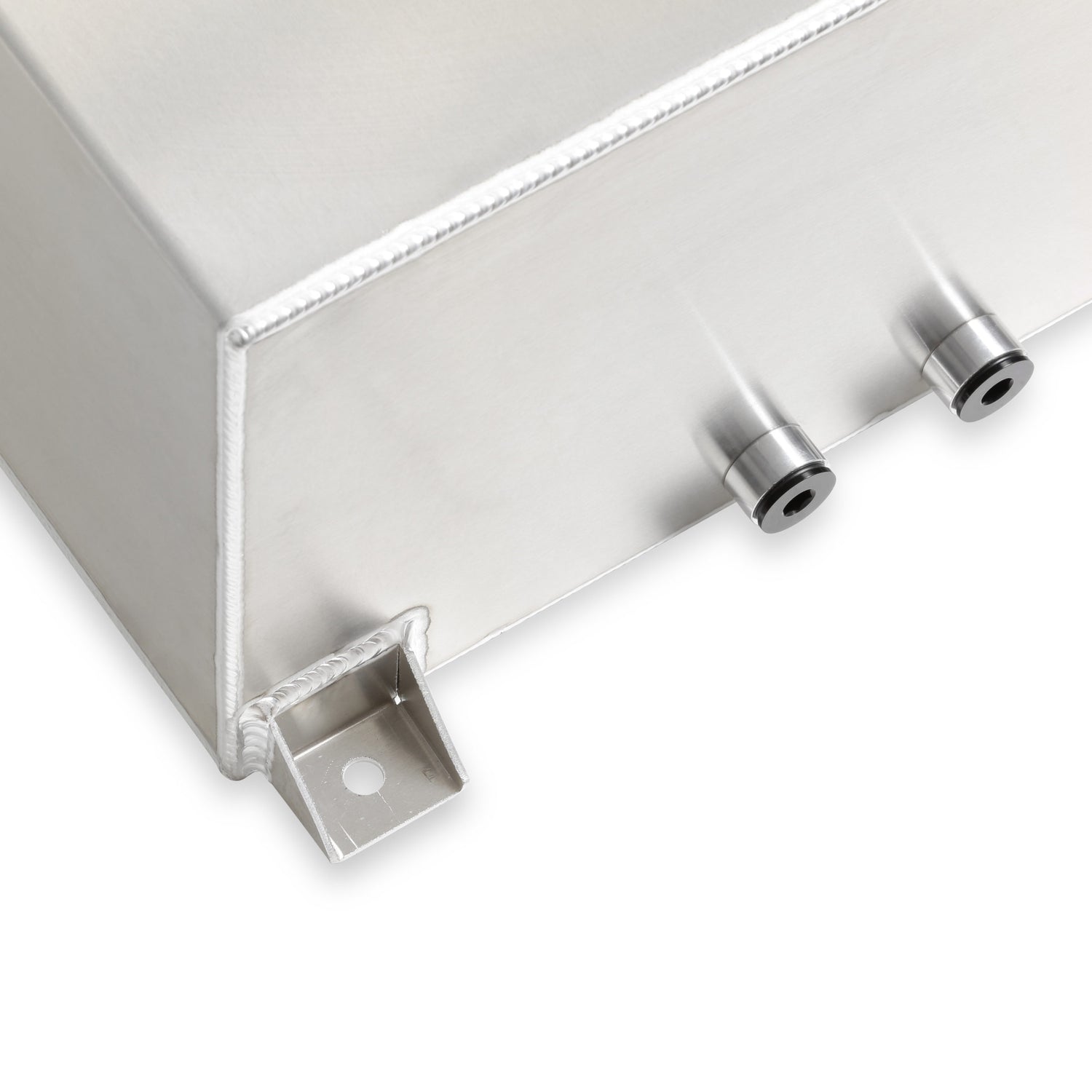

• Orb Ports Are Welded From The Inside For A Clean Look
• Made From 2.5mm Thick 5052 Aluminum
• Fully Tig Welded
