Holley 12-886KIT - Die Cast By-Pass Fuel Pressure Regulator Kit

Holley 12-886KIT - Die Cast By-Pass Fuel Pressure Regulator Kit

Fuel Pressure Regulator - 15 to 60 psi - In-Line - 3/8 in NPT Inlet - 3/8 in NPT Outlet - 3/8 in NPT Return - 1/8 in NPT Port - Bypass - Fittings / Gauge Included - Aluminum - Black Anodized - Gas - Kit

Die Cast By-Pass Fuel Pressure Regulator Kit; 15-60 psi.; Pressure Range; 3/8 in. NPT Inlet/Outlet; Black; Aluminum;

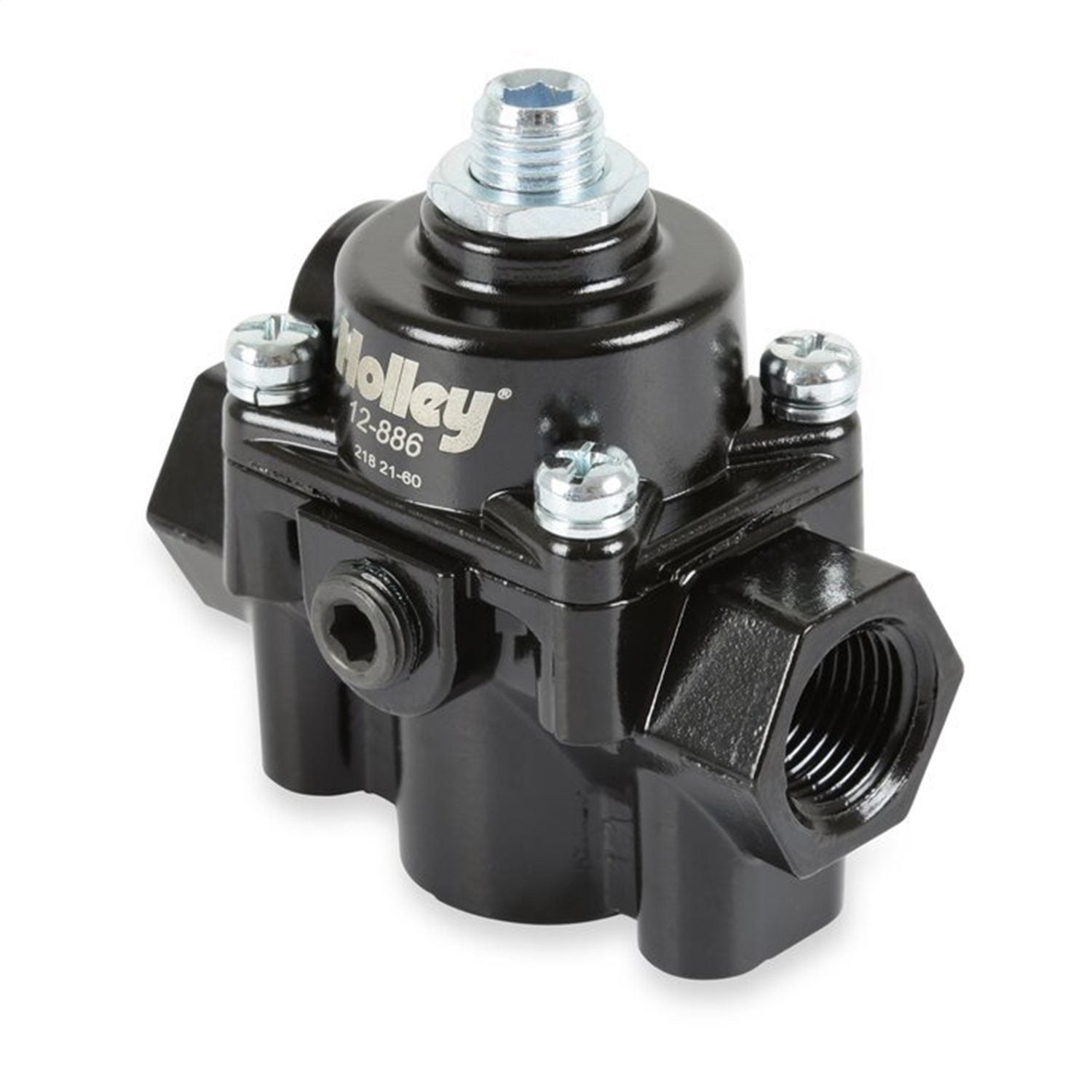

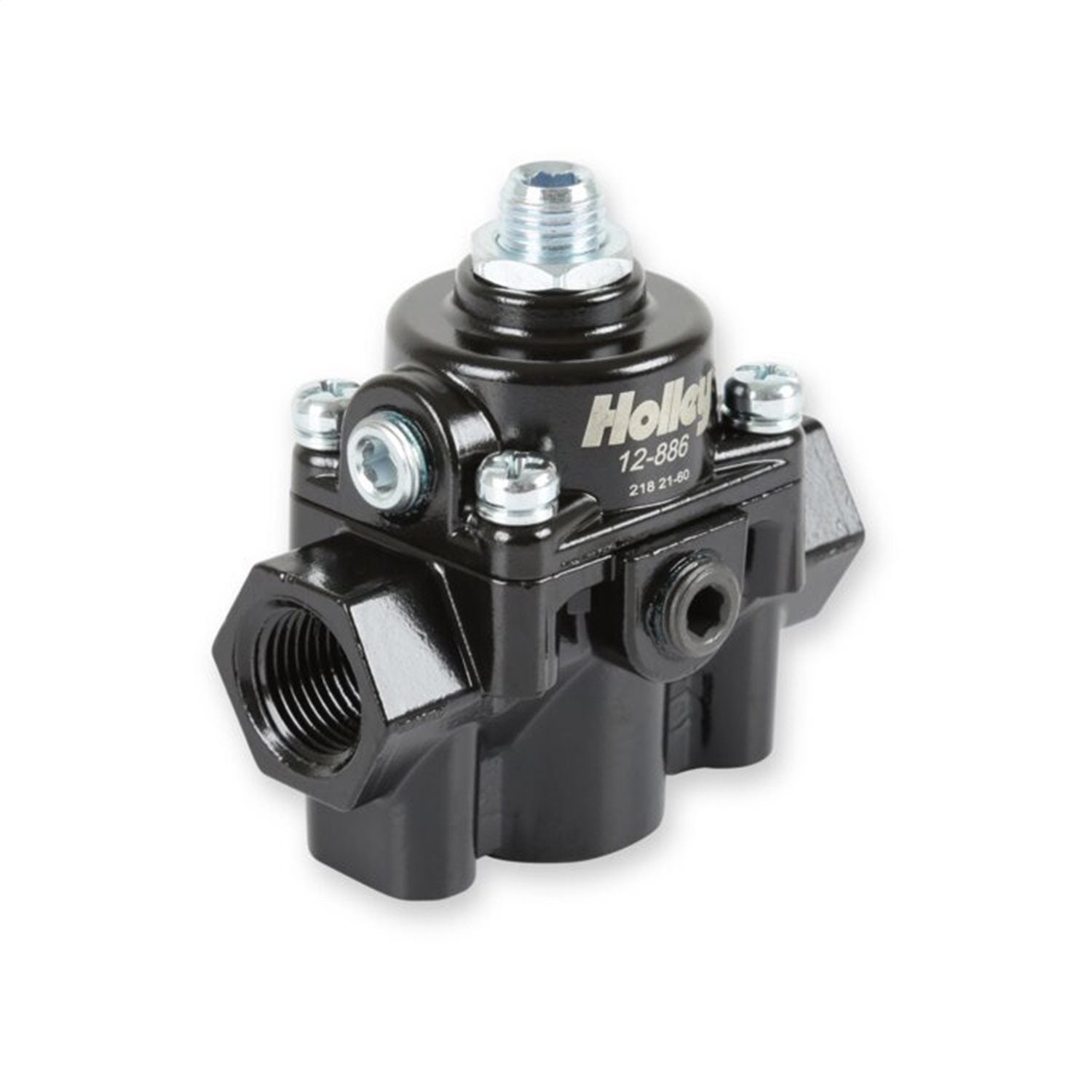

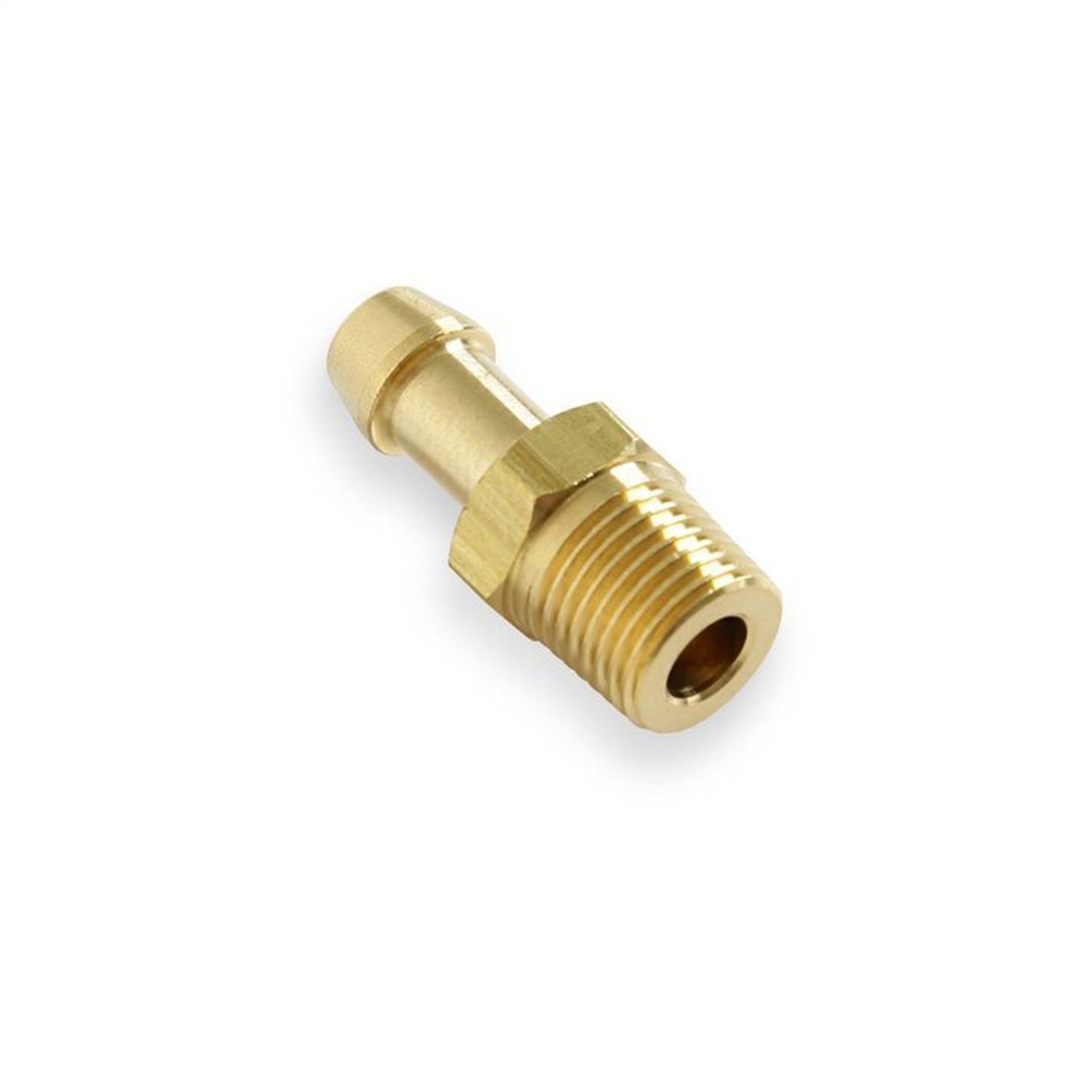

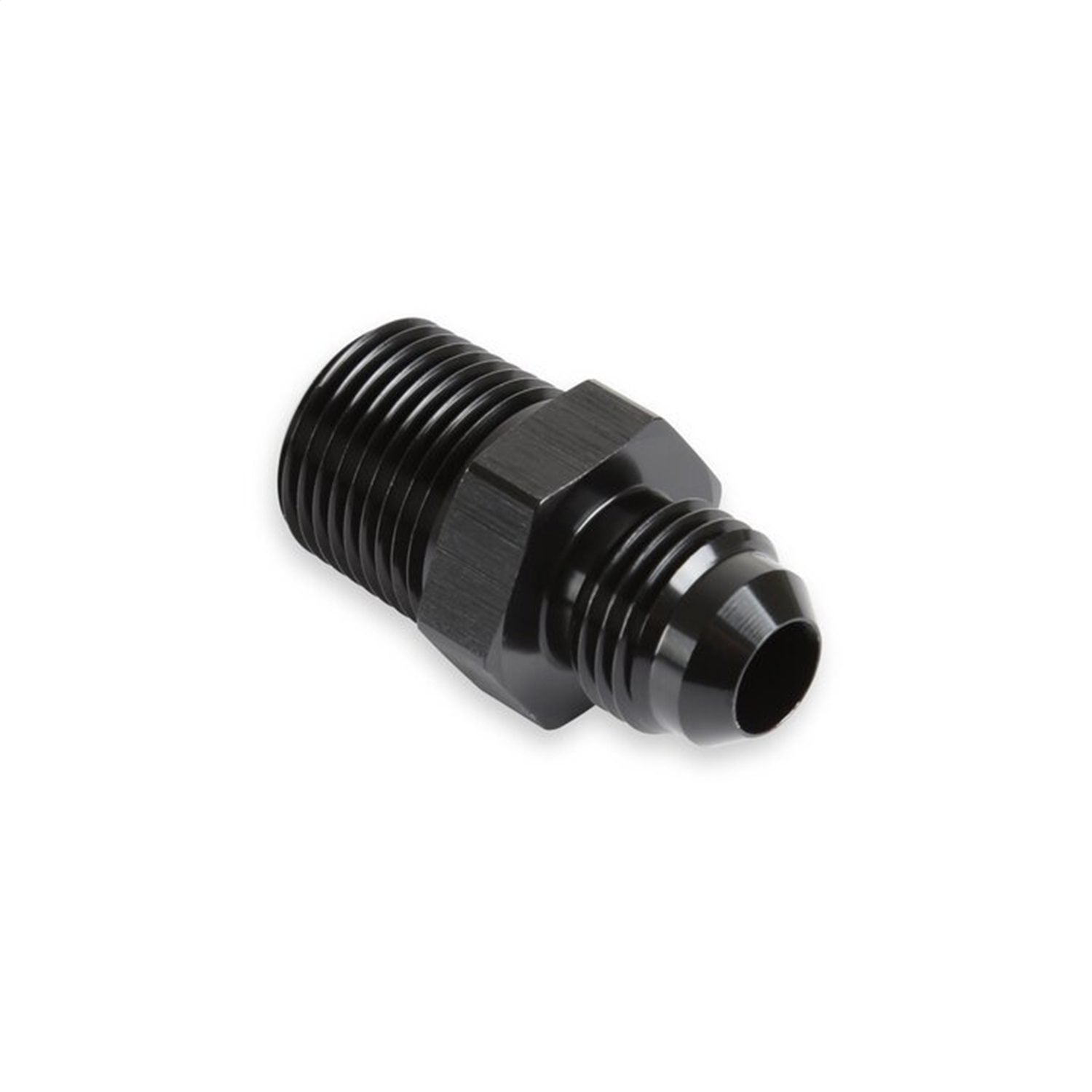

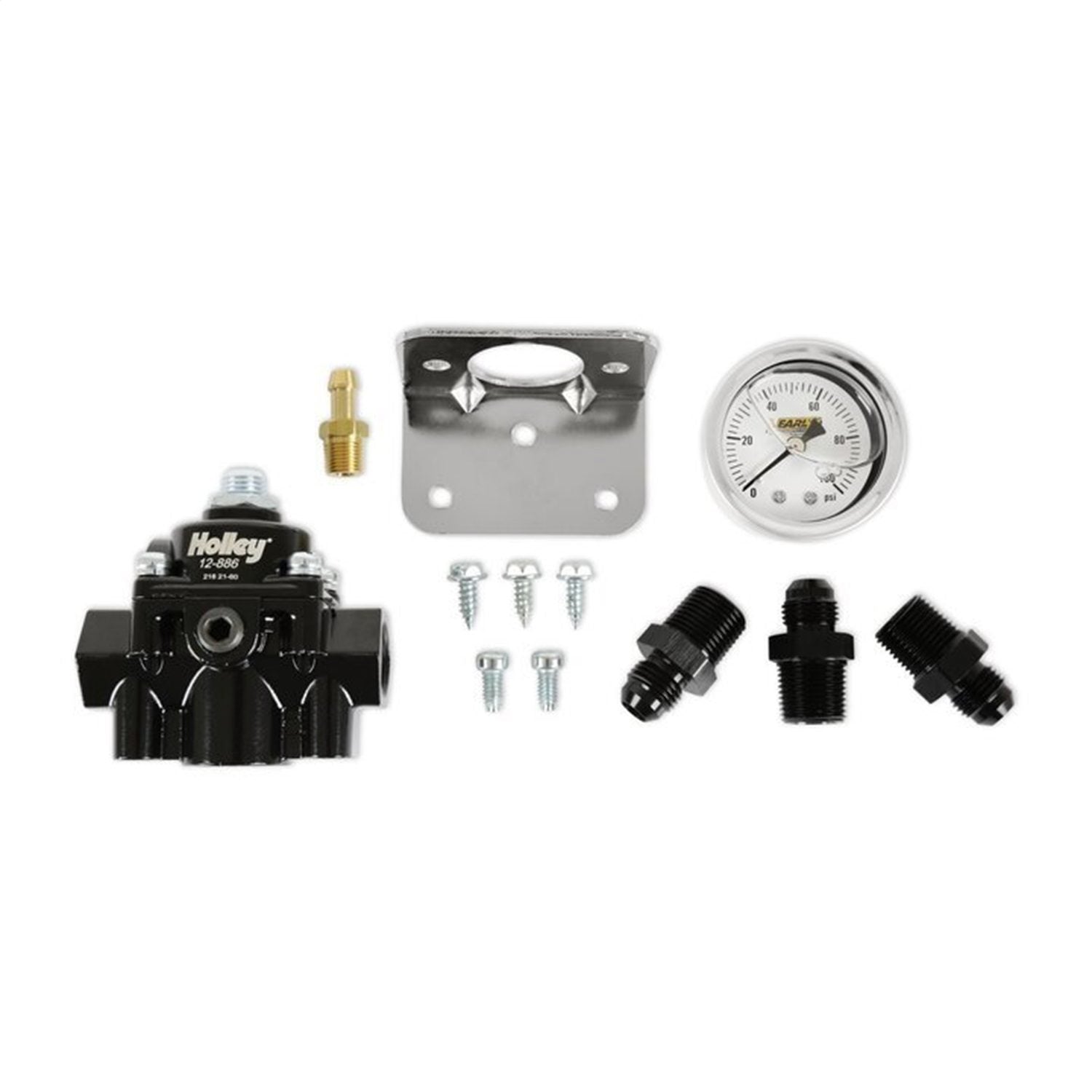

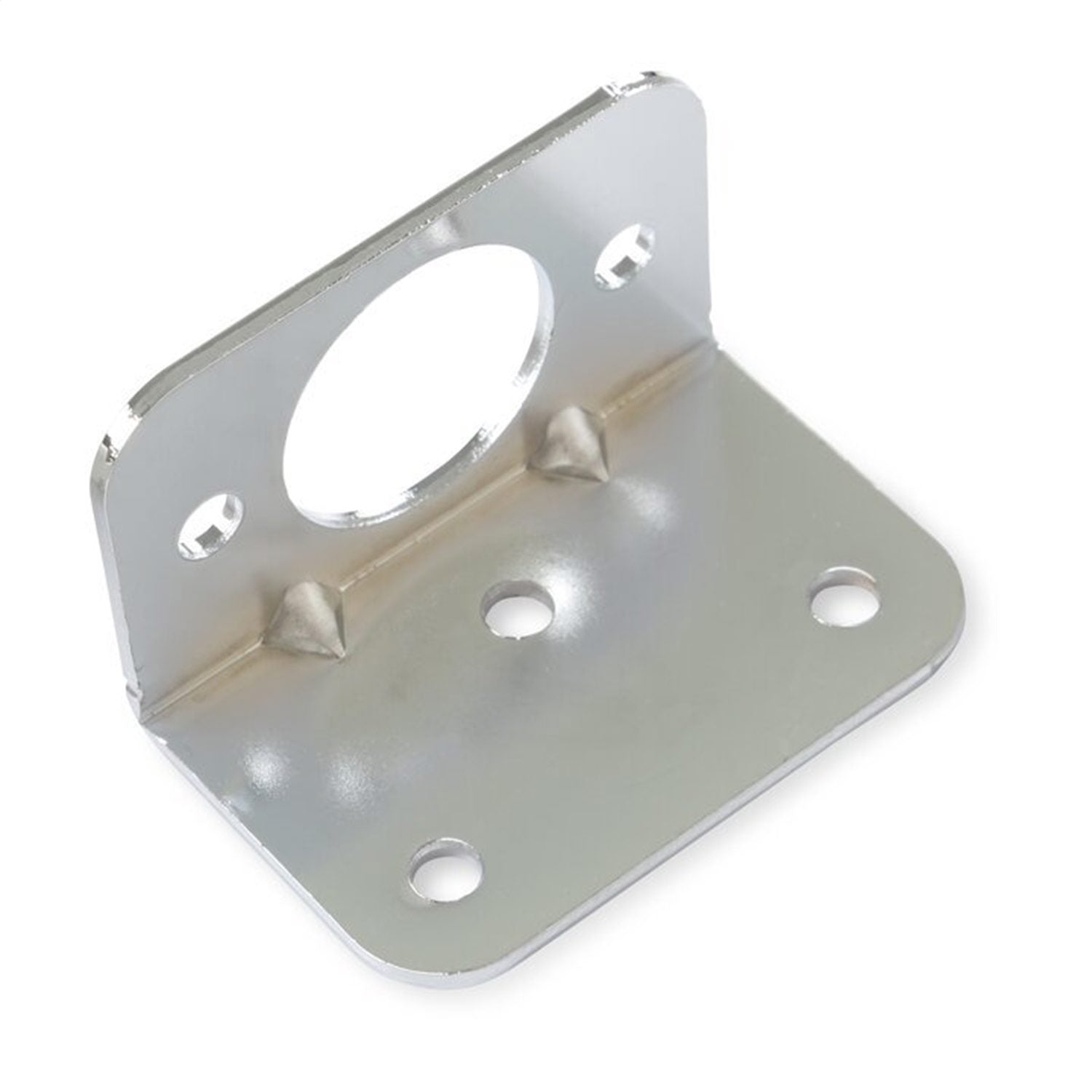

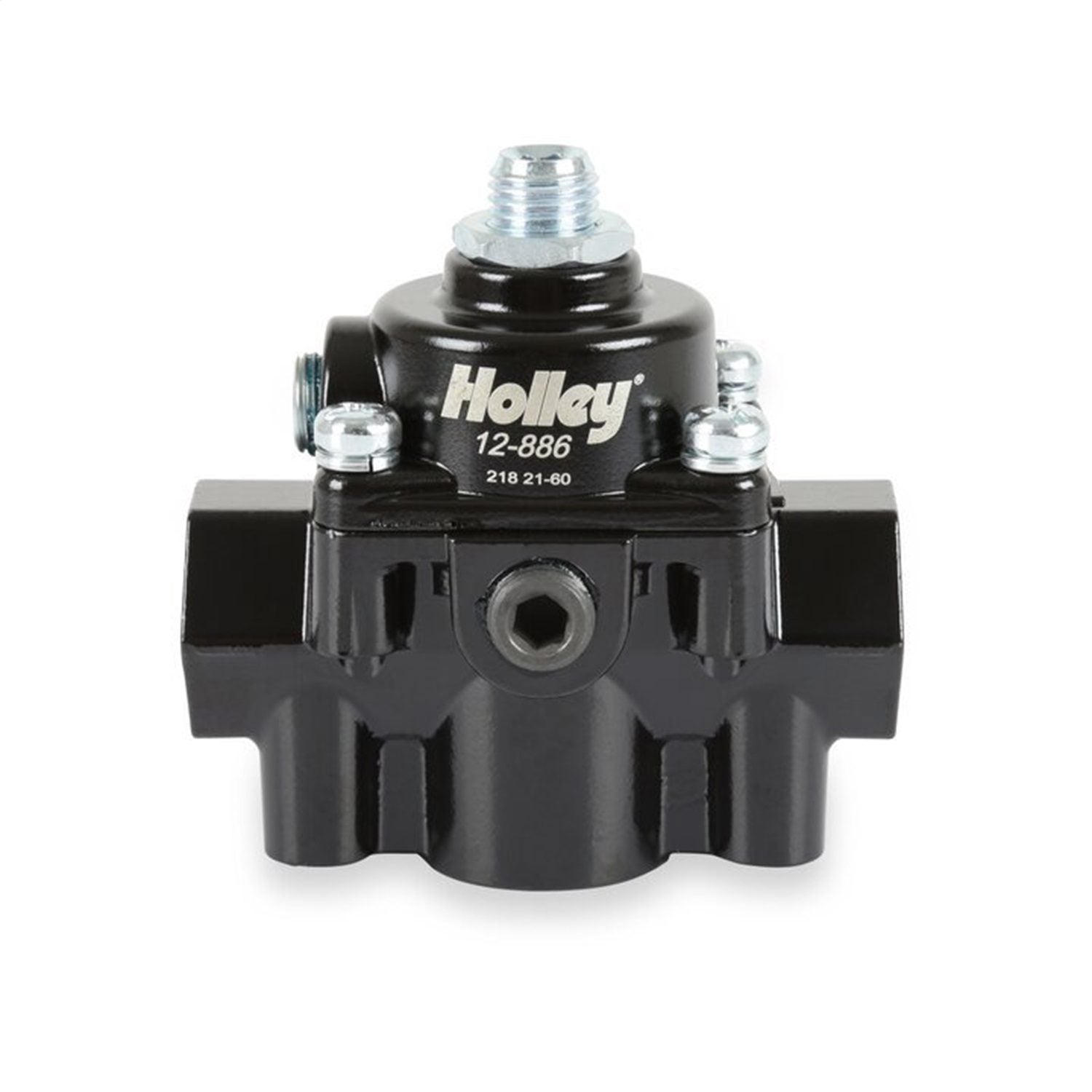

Holley Die Cast EFI Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-886 regulator features a die cast aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 3/8 in. NPT in/out ports, a 3/8 in. NPT return port, a 1/8 in. NPT gauge port, and a 1/8 in. NPT vacuum port for Boost Reference (1:1). In addition, 3 Mr. Gasket 3/8 in. NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.

• Adjustable Psi Pressure Range For Precise Fuel Pressure Adjustments
• Regulator Kits Available In Return Or Returnless Design
• 1/8-Inch NPT Gauge Port
• Mounting Bracket Included
• Constructed From Diecast Or Billet Aluminum
• Fuel Pressure Gauge And Black Adapter Fittings Included
