Holley 12-846 - HP EFI Billet Fuel Pressure Regulator

Holley 12-846 - HP EFI Billet Fuel Pressure Regulator

Fuel Pressure Regulator - HP Billet - 15 to 65 psi - In-Line - 8 AN Female O-Ring Inlet - 8 AN Female O-Ring Outlet - 6 AN Female O-Ring Return - 1/8 in NPT Port - Bypass - Aluminum - Black / Clear Anodized - Diesel / E85 / Gas - Each

HP EFI Billet Fuel Pressure Regulator; 15-65 psi; 8AN O-Ring Inlet/Outlet; 6 AN O-Ring Return; EFI Bypass Style; Gasoline/Diesel/E85; Black Anodized;

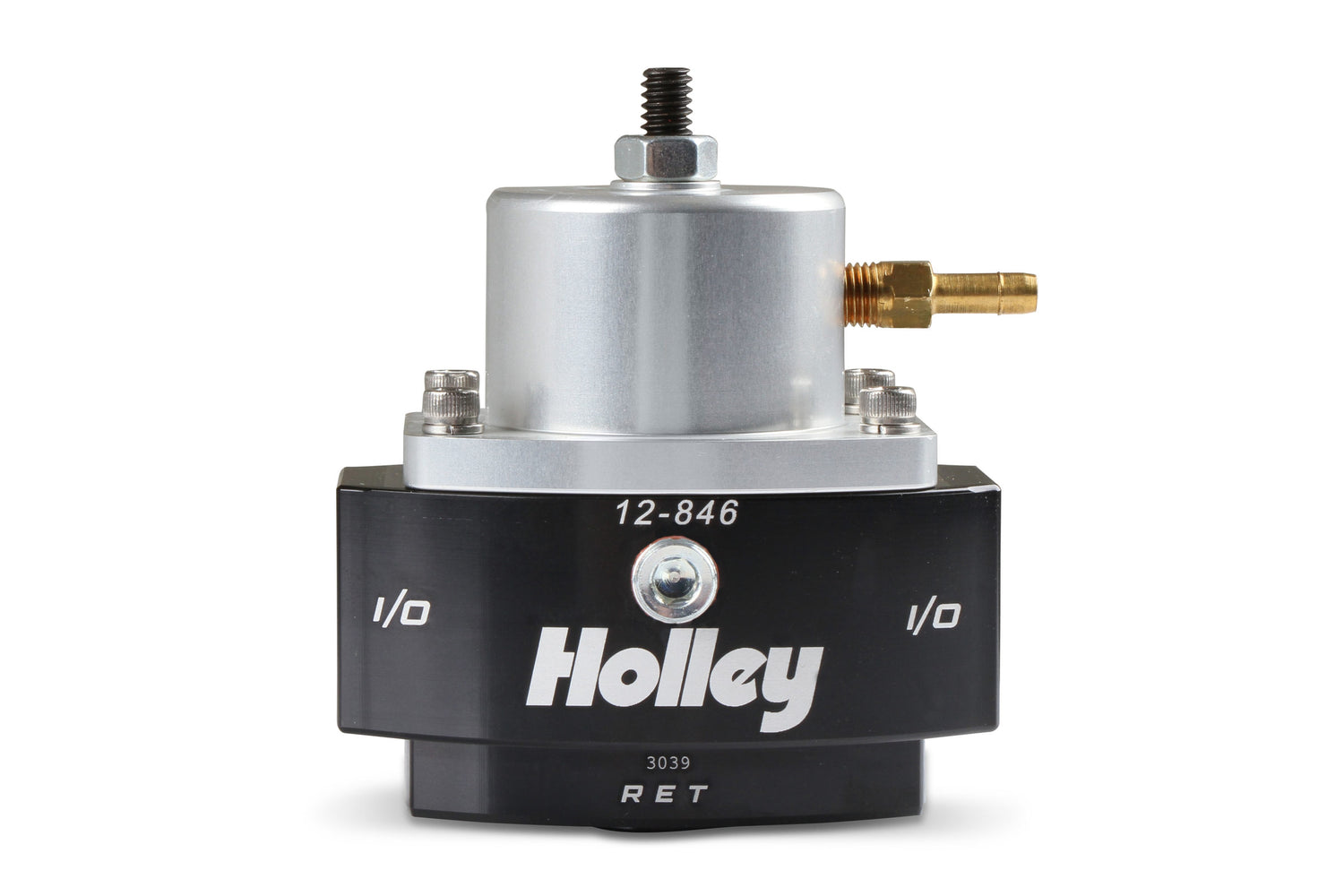

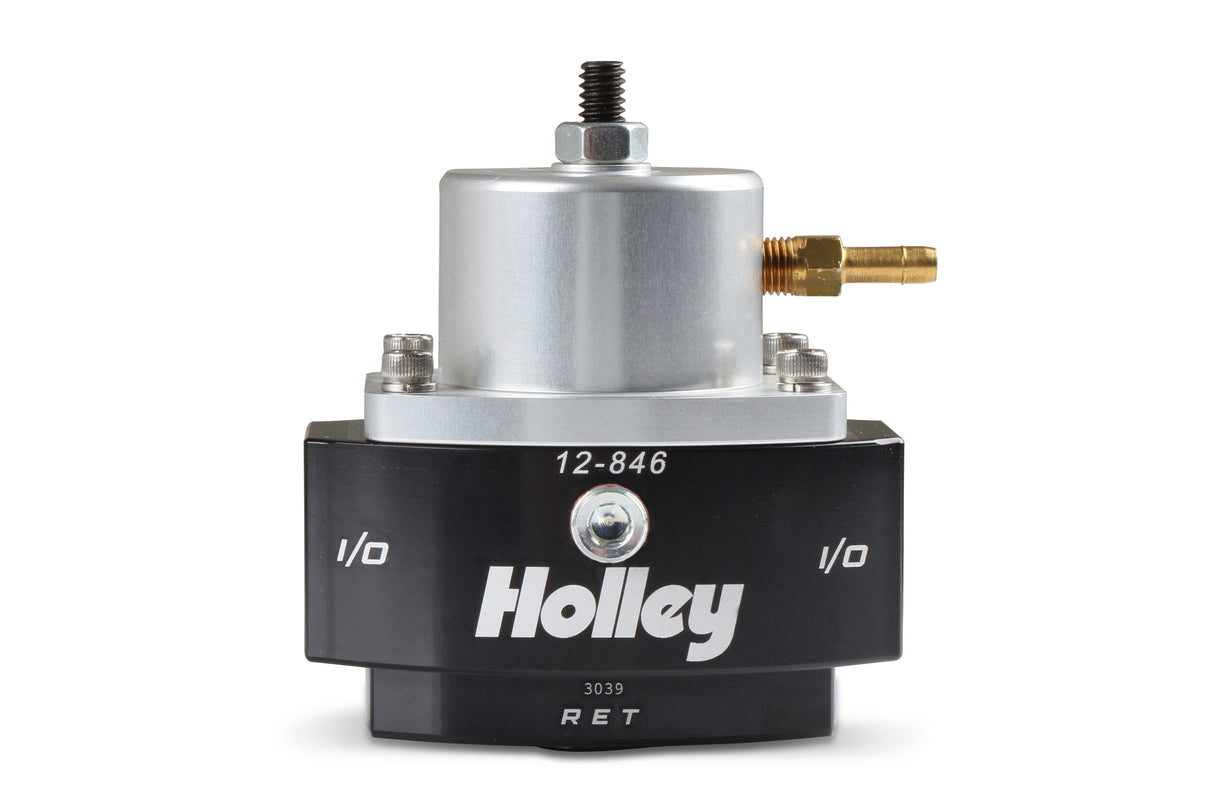

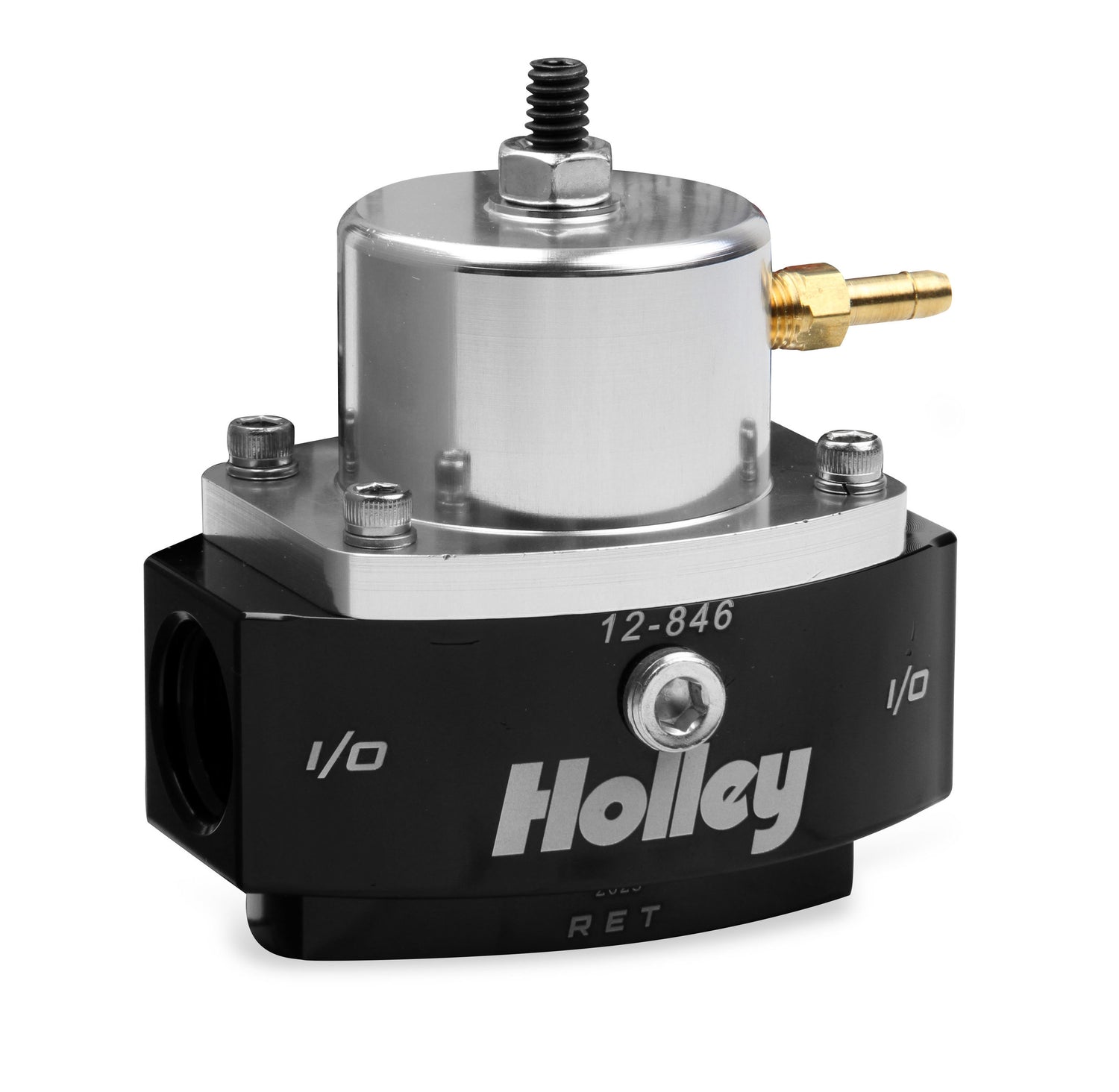

Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-846 fuel pressure regulator features(1) -8 AN O-ring inlet, (1) -8 AN O-ring outlet, (1) -6 AN O-ring return.

• Adjustable from 15-65 psi for precise fuel pressure adjustments
• Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
• Used in systems with a return line back to tank

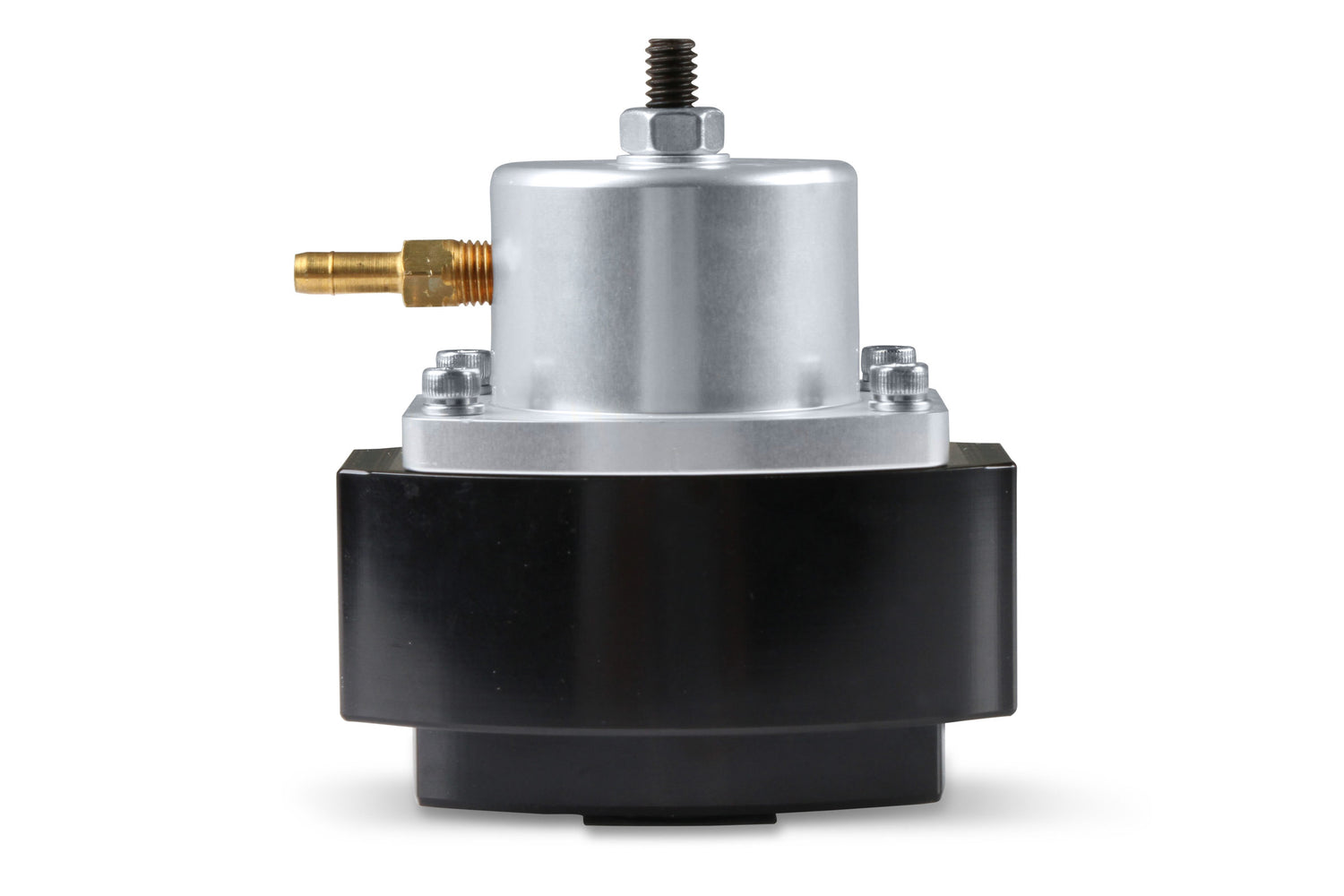

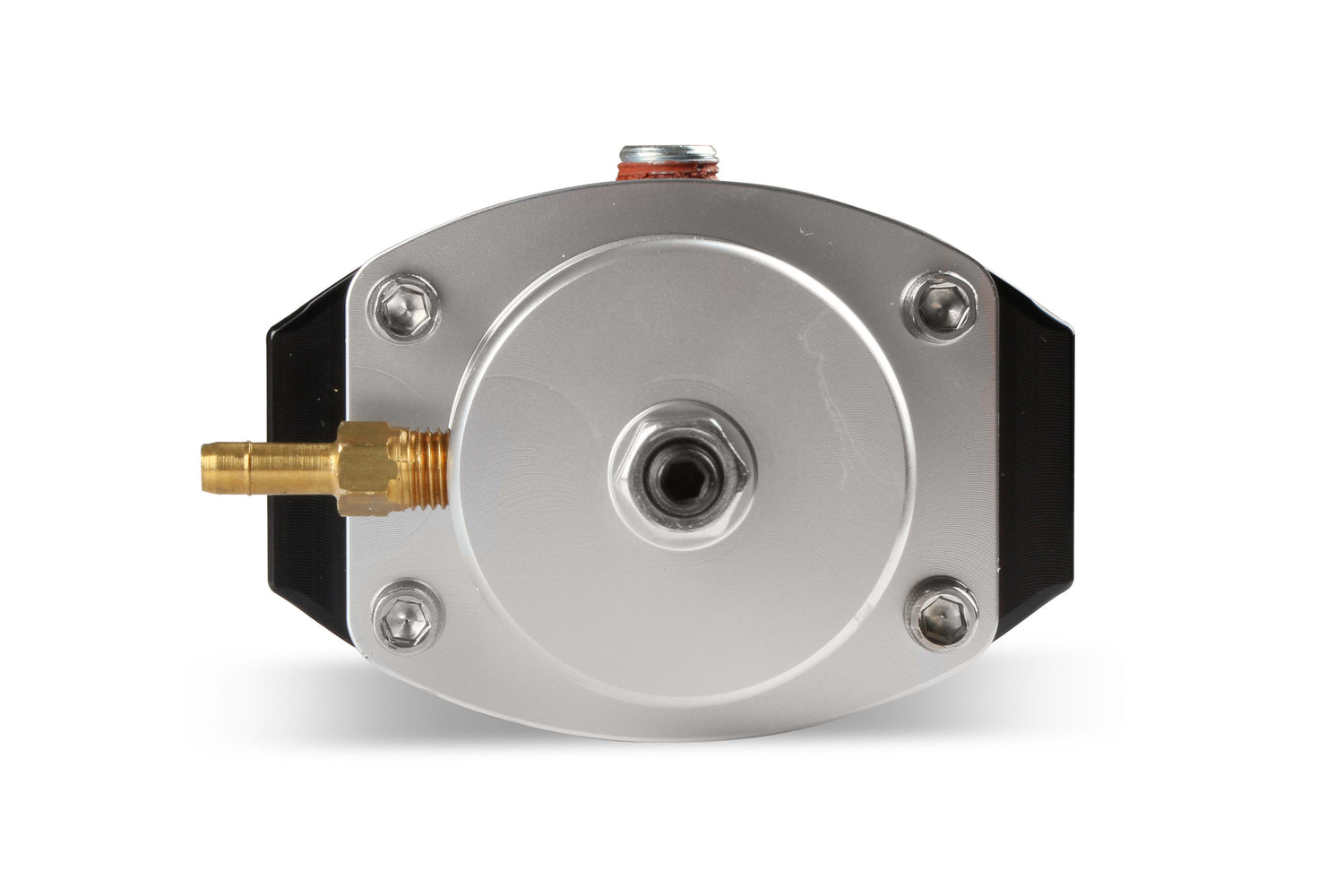

• Includes fitting for manifold reference
• Use with electric pumps only

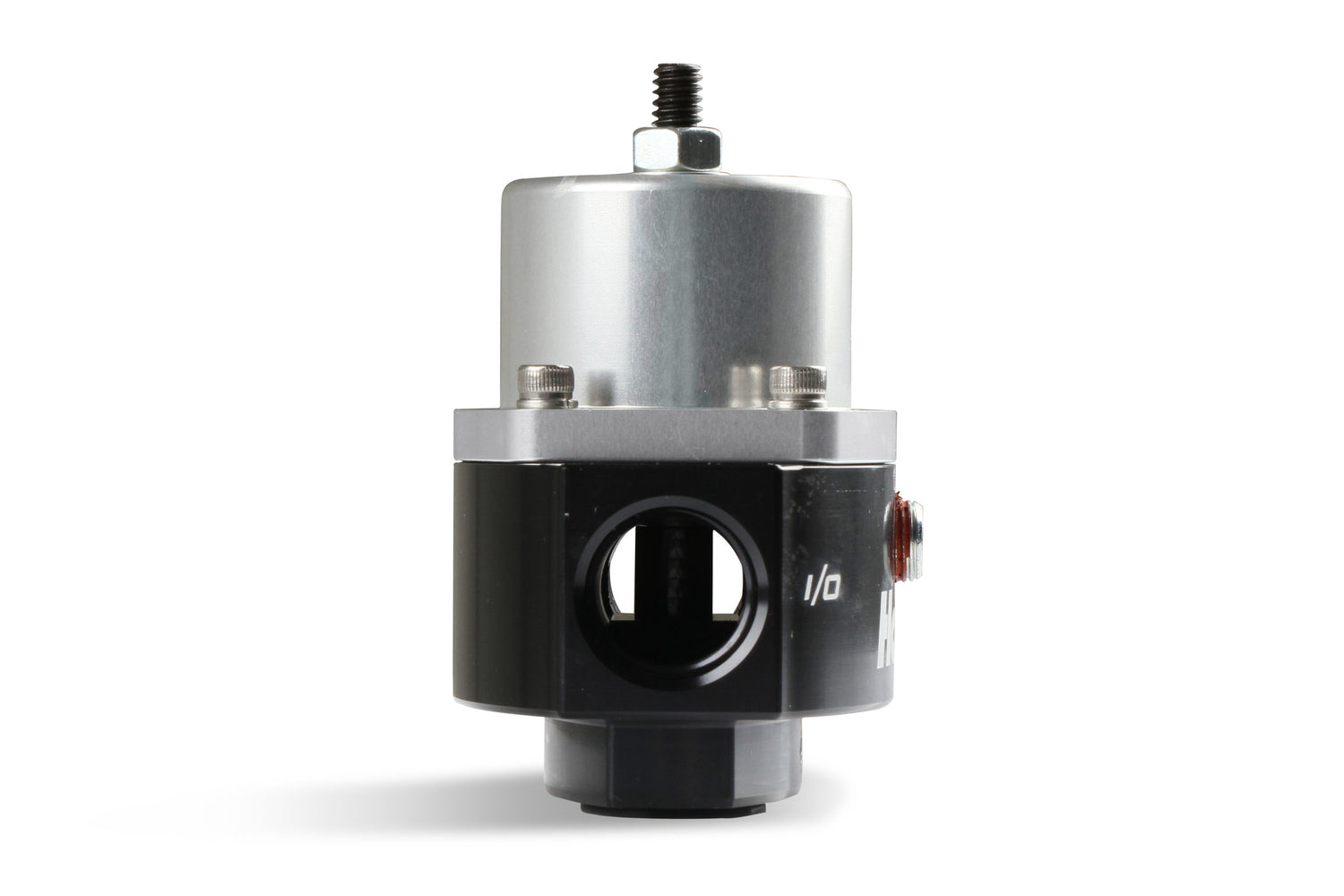

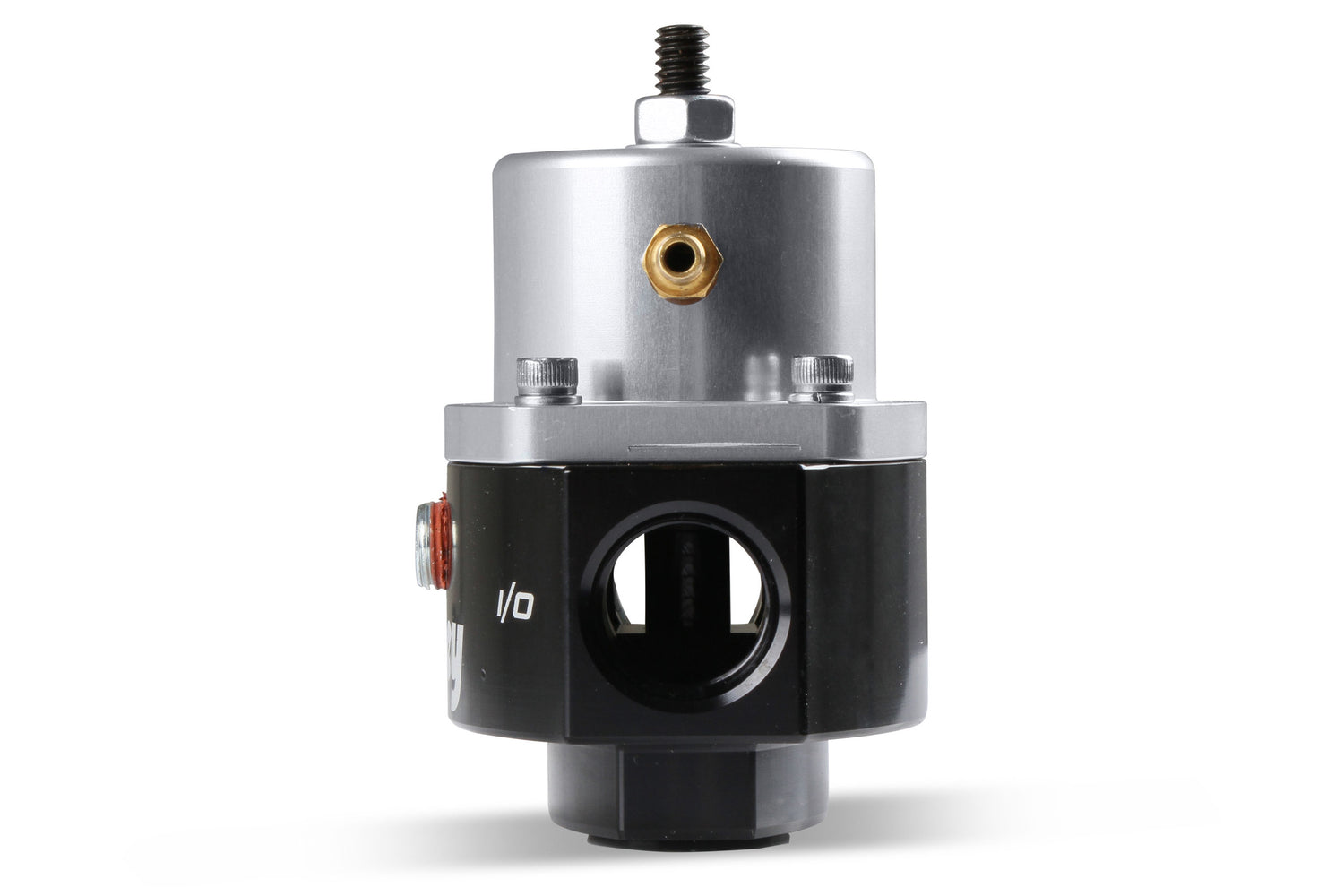

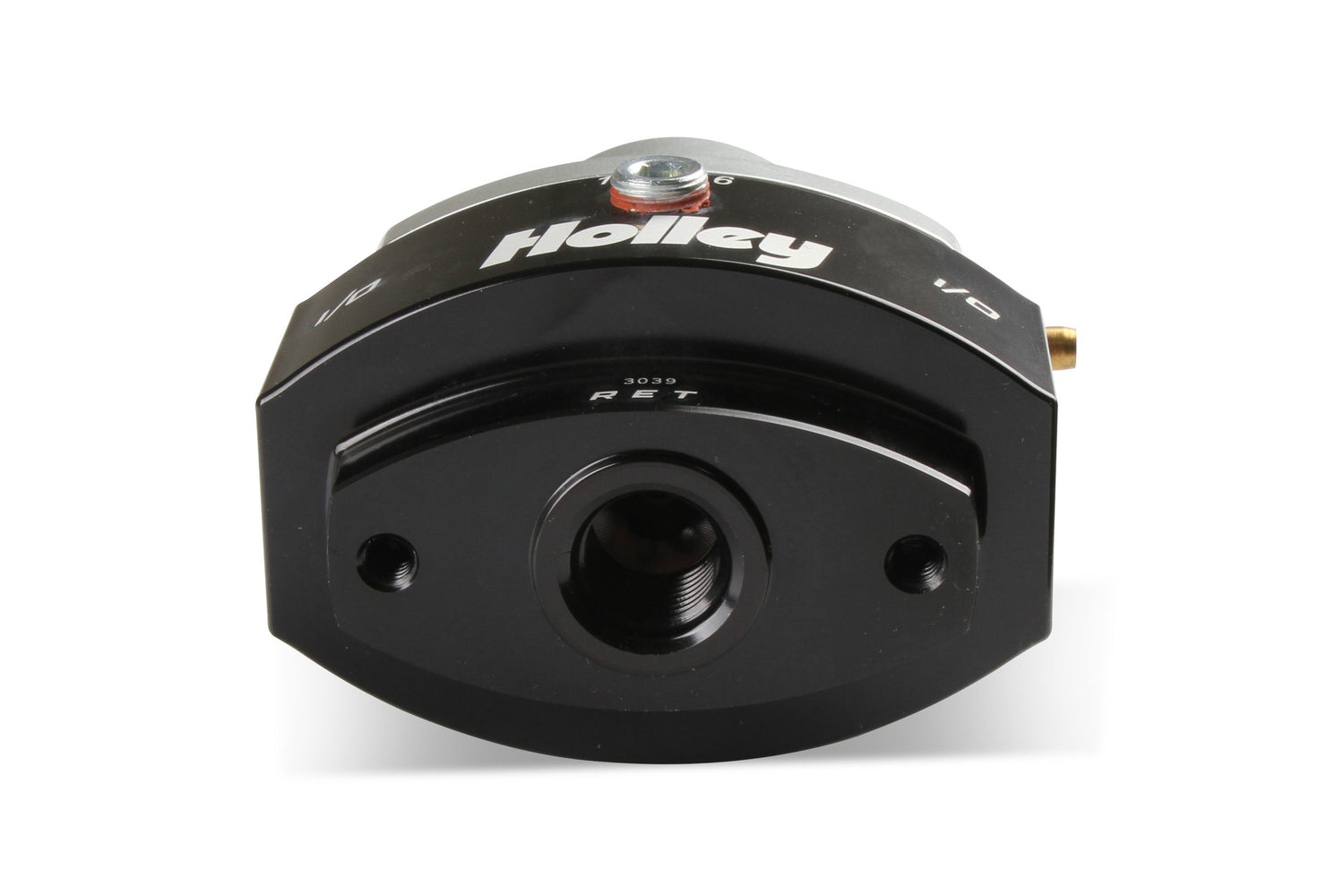

• (1) -8 an o-ring inlet, (1) -8 an o-ring outlet, (1) -6 an o-ring return
• 1/8" NPT gauge port
• Designed for use with the Holley® HP™ in-line fuel pumps or other high pressure electric pumps where return line is needed

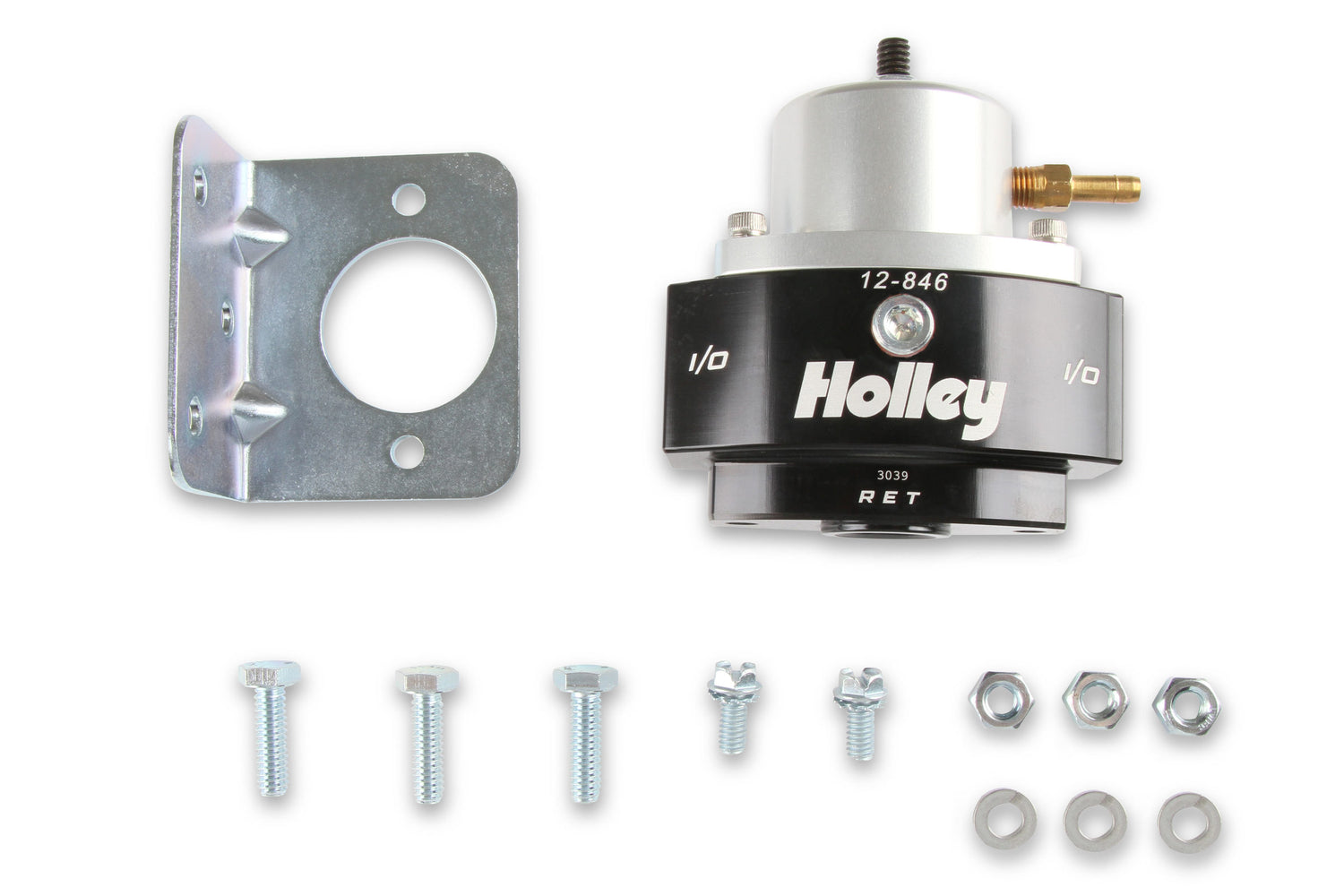

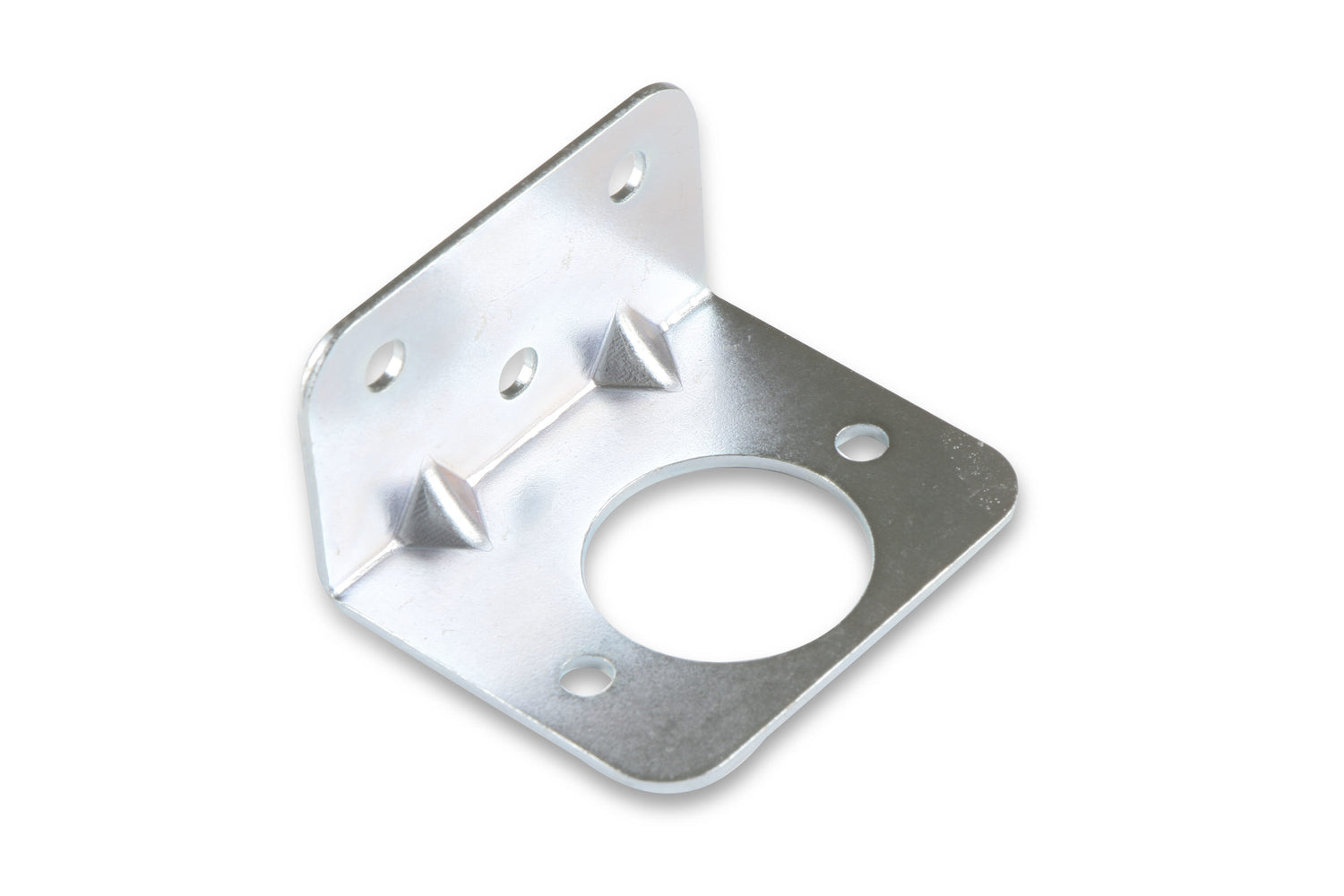

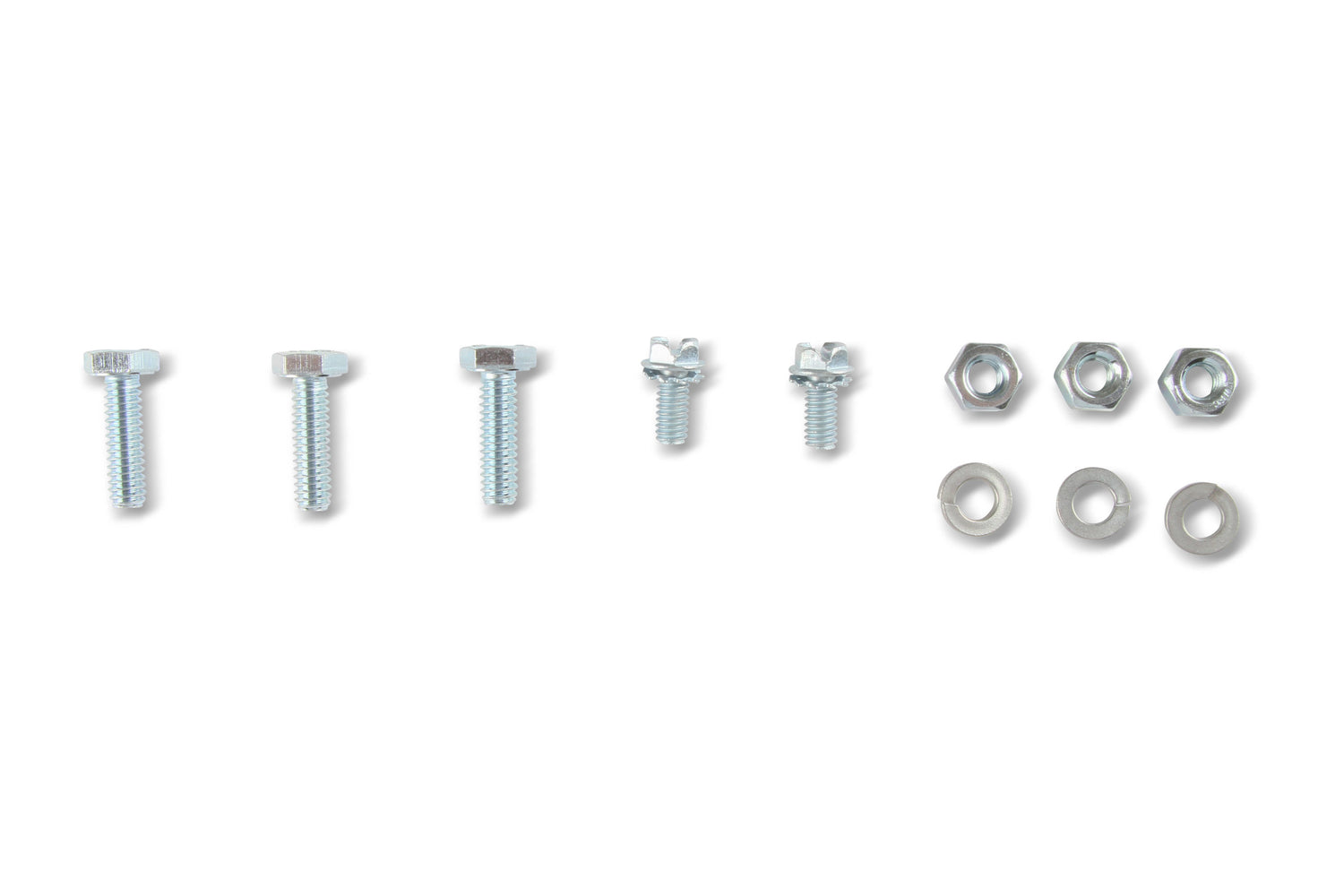

• Mounting bracket included
