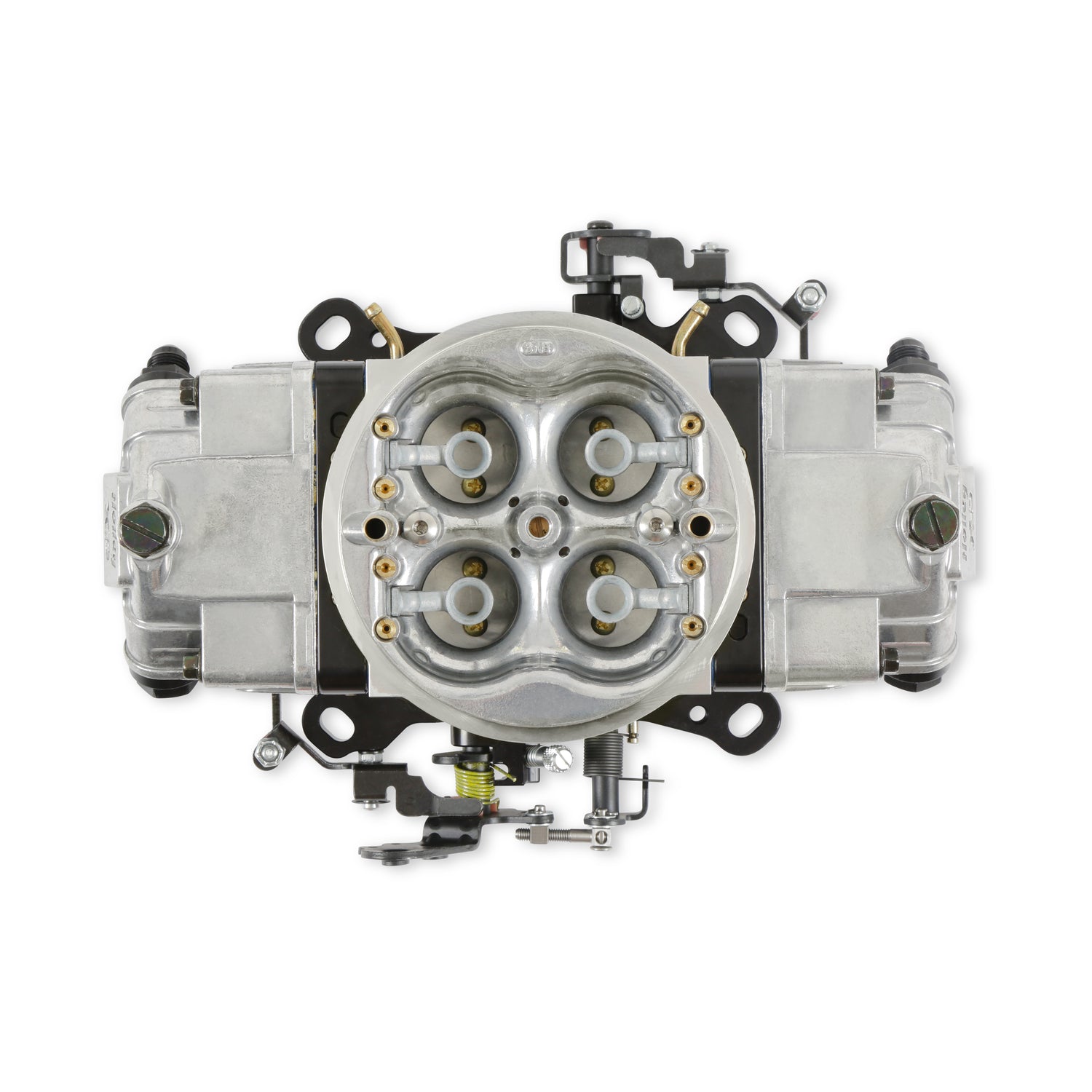

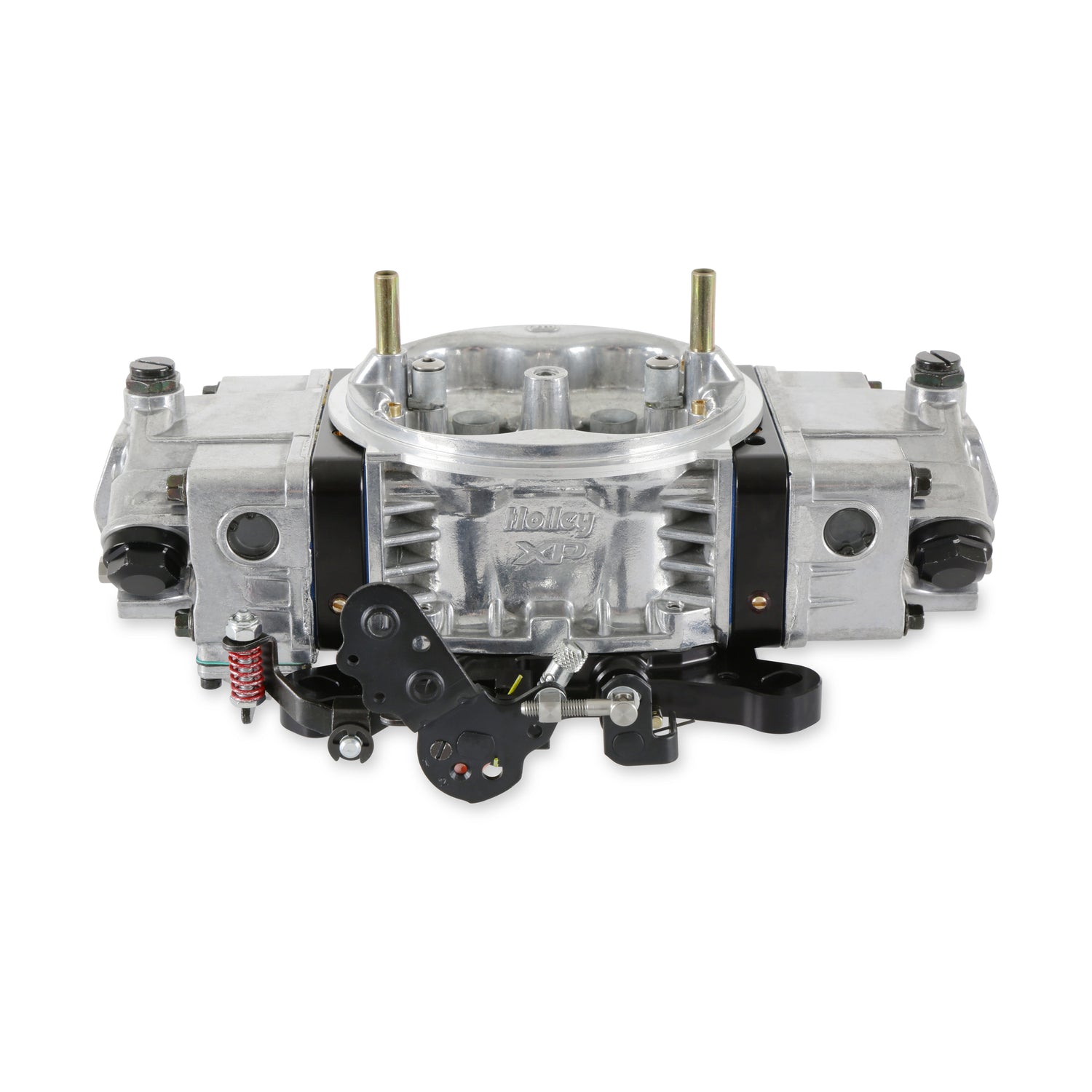

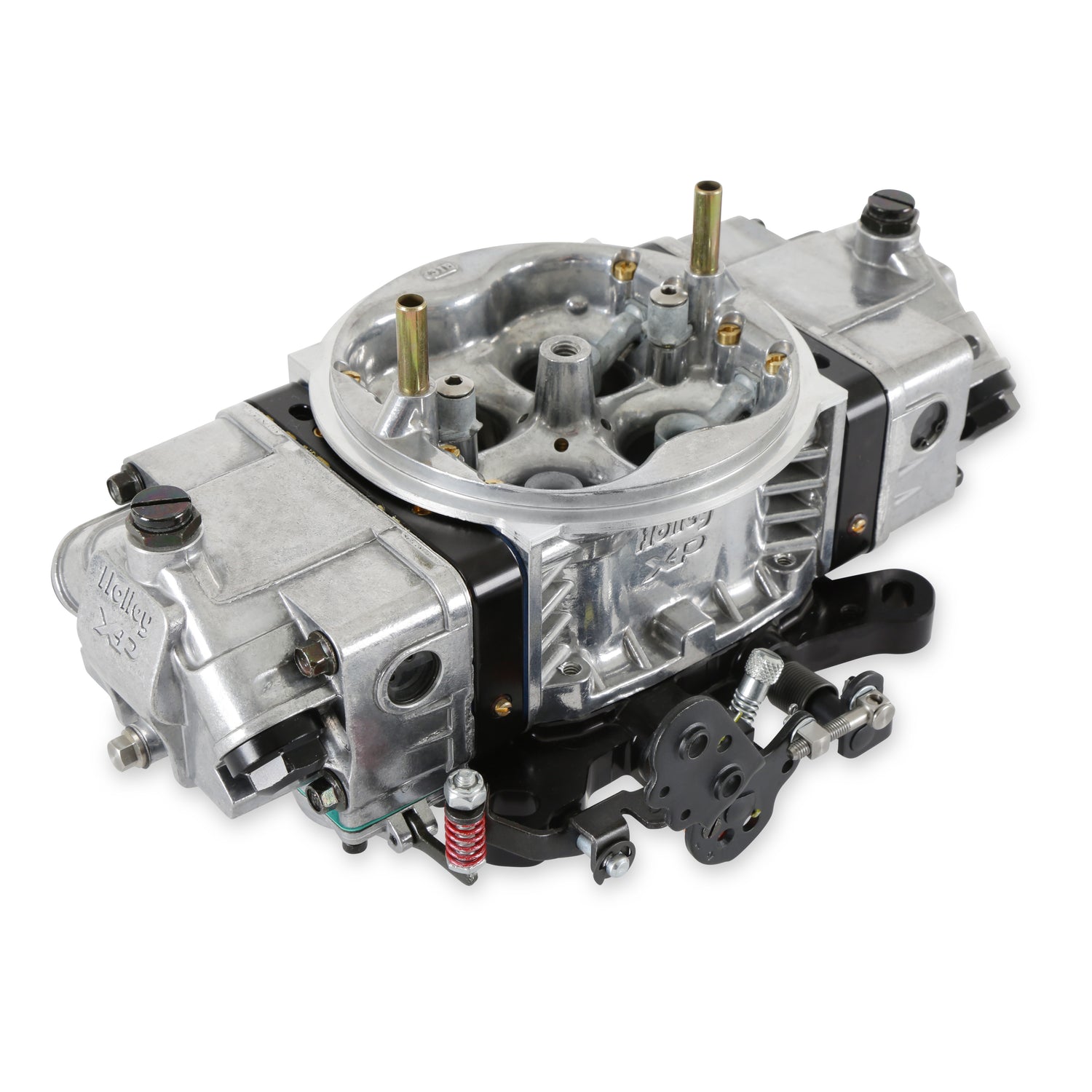

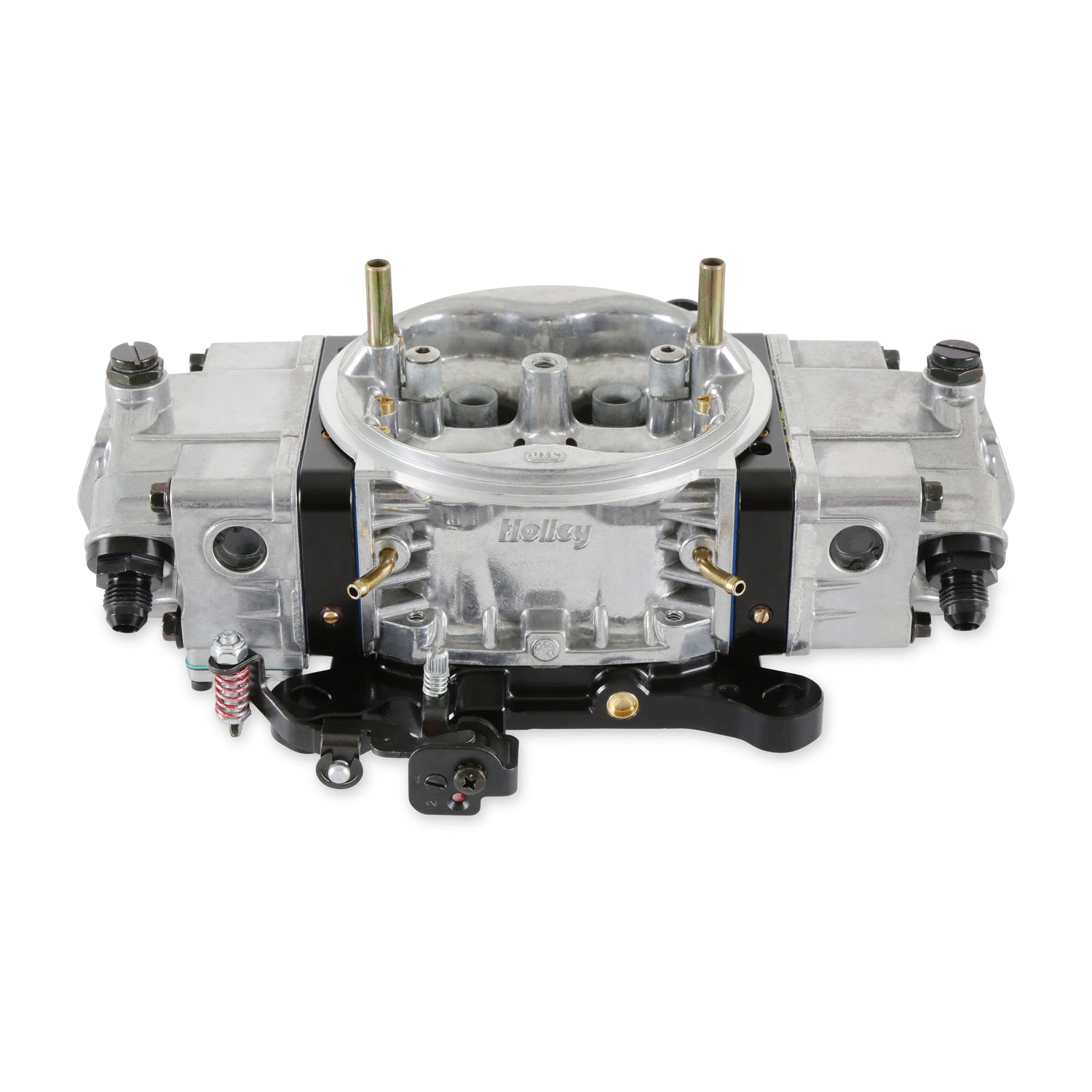

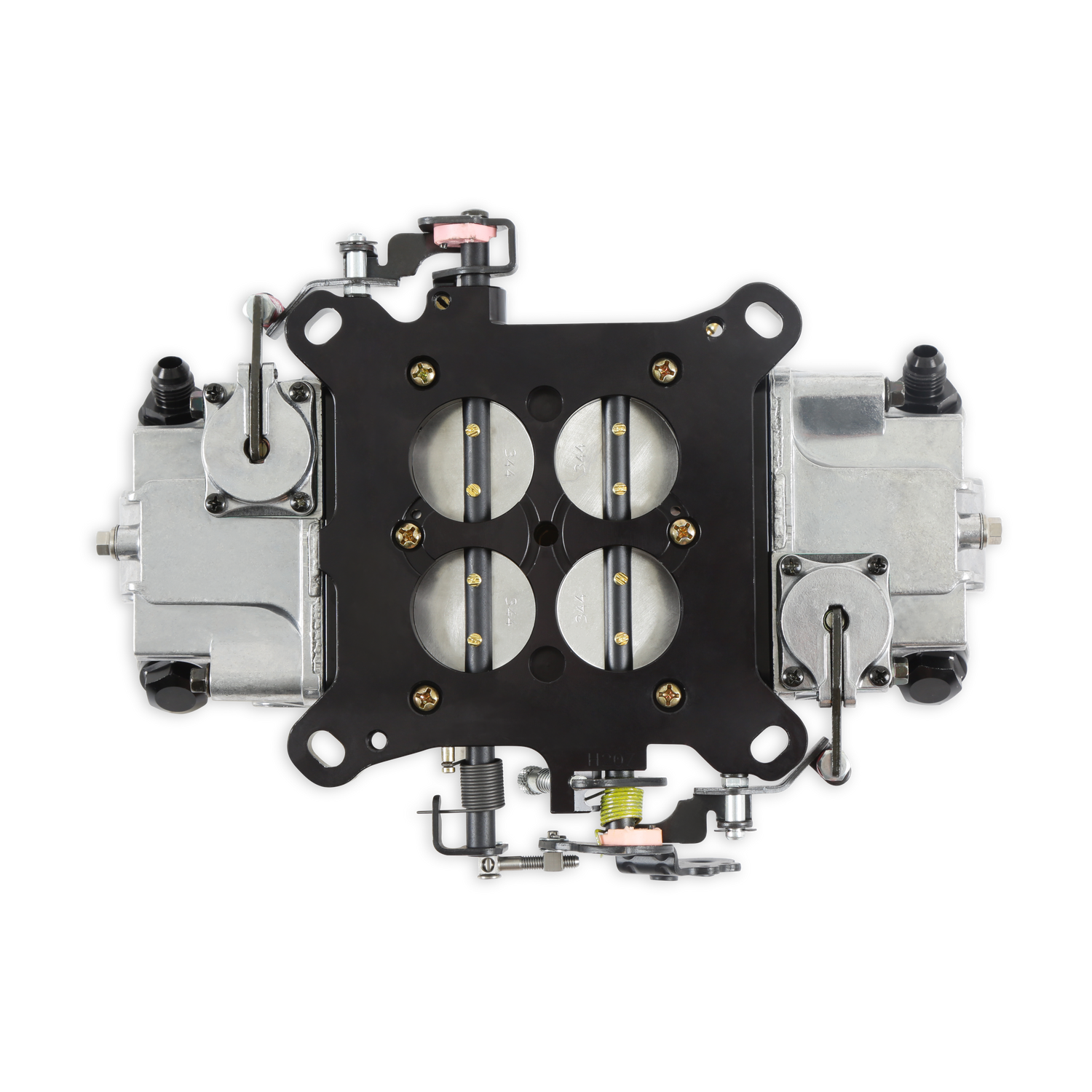

Holley 0-80577SA - Supercharger XP Carburetor - Draw-Thru

Holley 0-80577SA - Supercharger XP Carburetor - Draw-Thru

Carburetor - Supercharger XP - 4-Barrel - 950 CFM - Square Bore - No Choke - Mechanical Secondary - Dual Inlet - Aluminum - Black Anodized / Tumble Polished - Each

Supercharger XP Carburetor; 4 bbl; 950 cfm; Draw Thru Design; Mechanical Secondary; 1.750 in. Throttle Bore; Aluminum;

By popular demand, Holley is expanding the draw-thru supercharger carburetor line to now include the XP series. Like the existing HP line, these are available in 600, 750, and 950 CFM flow rates and standard polished with black accents. The feature-laden XP includes a contoured venturi inlet for balanced air flow, screw in air bleeds for precision tuning capabilities, high flow billet metering blocks, billet base plate, and Dominator style fuel bowls which allow plumbing from either side. Supercharger XP carburetors also have a unique capability that allows their power valves to reference the intake manifold vacuum below the supercharger. This allows the power valve to operate as it should, based off intake manifold vacuum. A power valve provides further enrichment to the main metering system under load (low vacuum) conditions. Holley XP carburetors are the standard for square bore race carburetors. Race-Ready out of the box!

• Tumble polished shiny finish for good looks
• Big block Chevrolet 2x4, 871 & 1071 blower calibration
• Contoured venturri inlet offers balanced airflow for increased horsepower
• Screw in air bleeds for precision tuning capabilities
• Dual 30cc accelerator pumps for additional fuel under initial acceleration
• Dual feed fuel inlets for constant high volume fuel delivery
• 4 corner idle allows you to precisely control your idle system
• Mechanical Secondaries for perfect off the line launches
• Boost referenced power valve for proper enrichment under acceleration
• Throttle lever cut off for clearance on a sideways application
• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
