Holley 0-80555S - Aluminum Spread-Bore Carburetor

Holley  |  SKU: HOL-0-80555S
Sale price $85599 Regular price $89995
$43.96 off

★ Holley is one of our favorite brands! ★

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

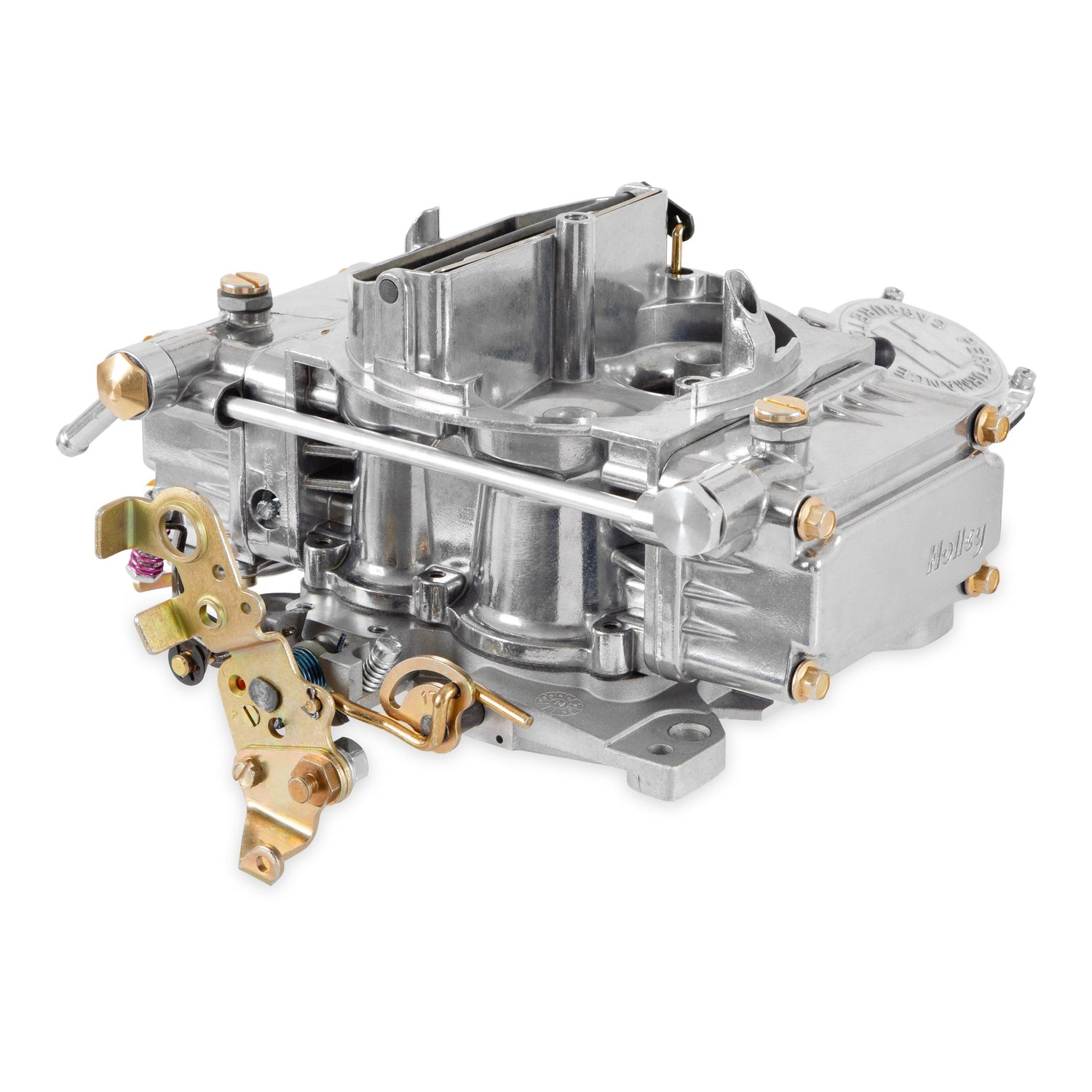

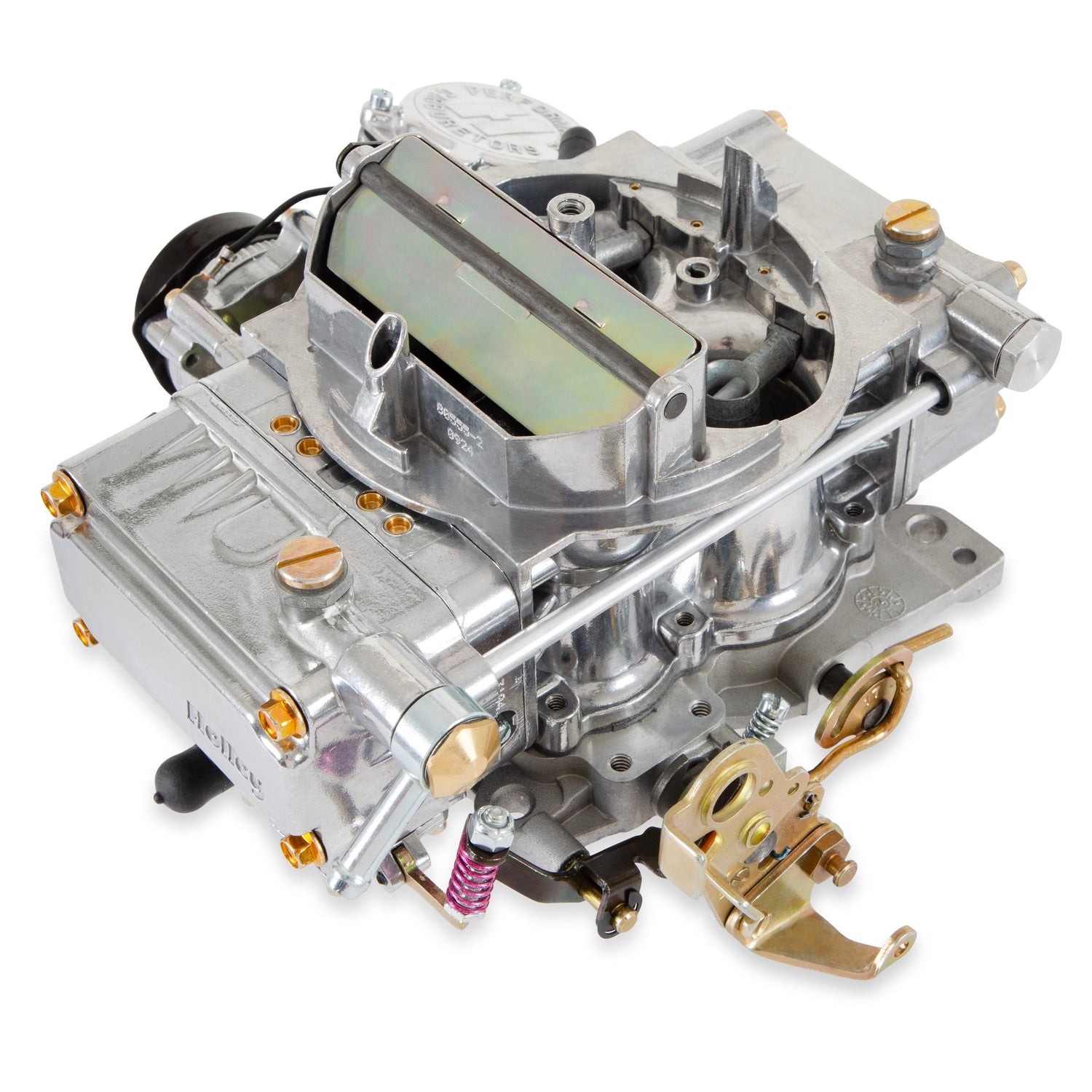

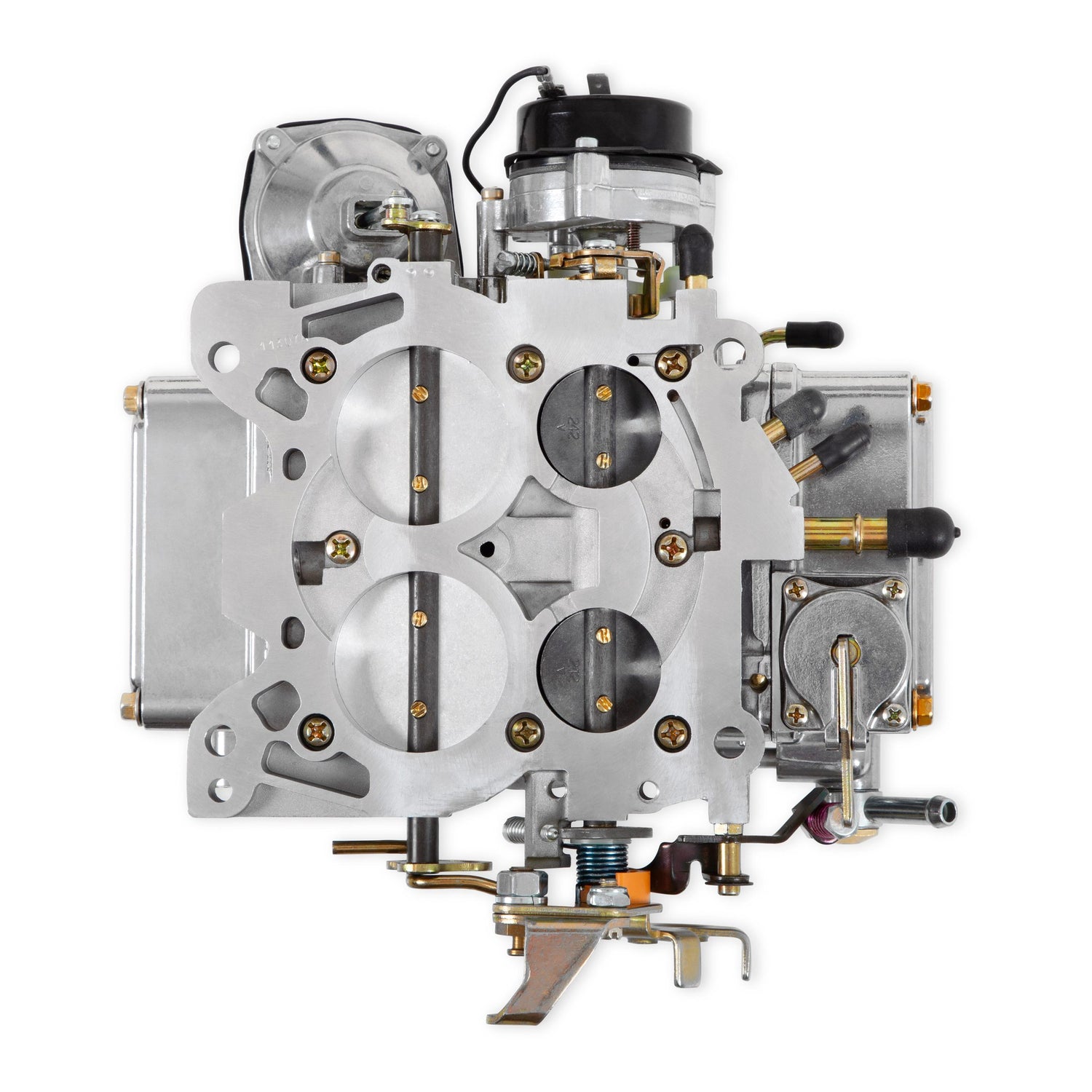

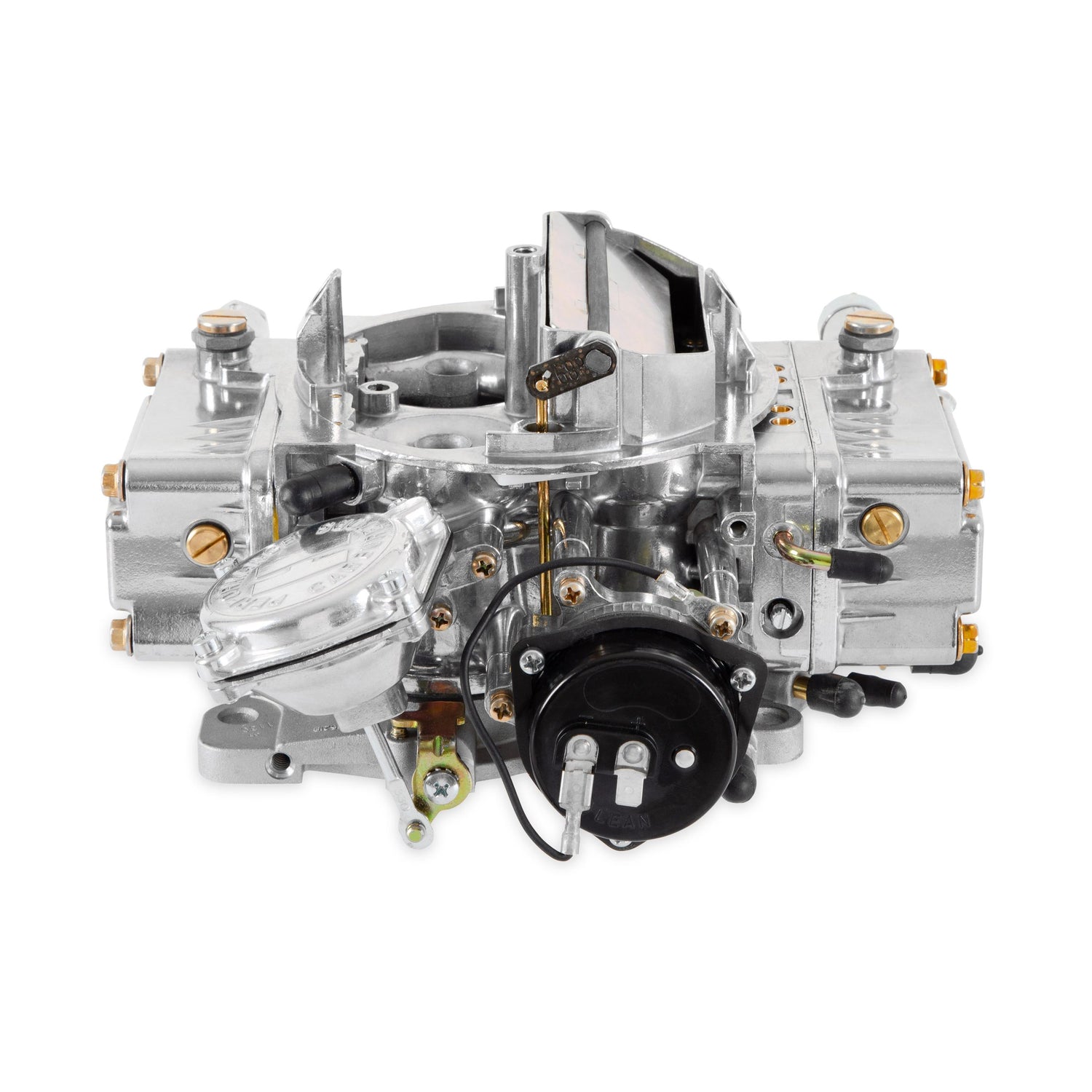

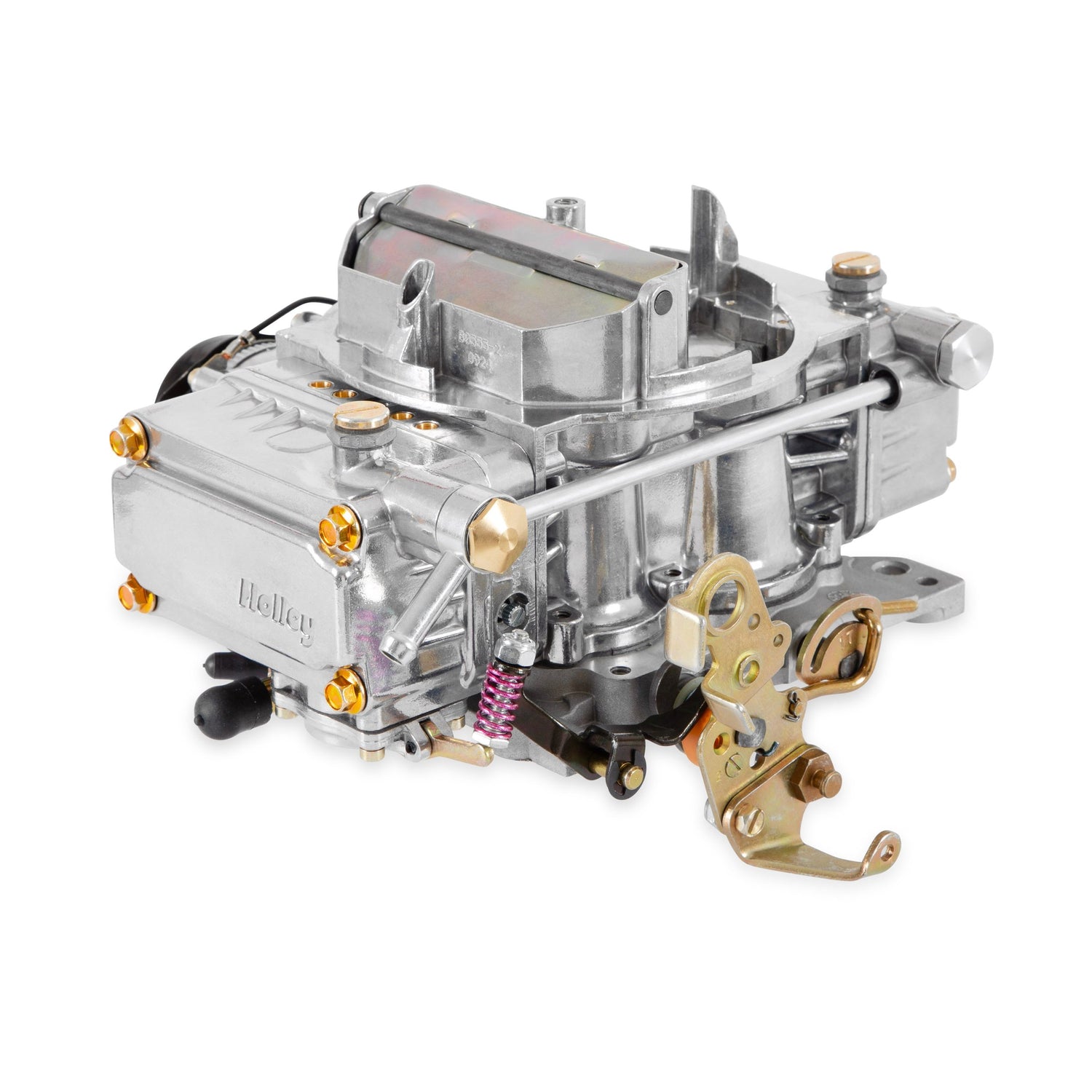

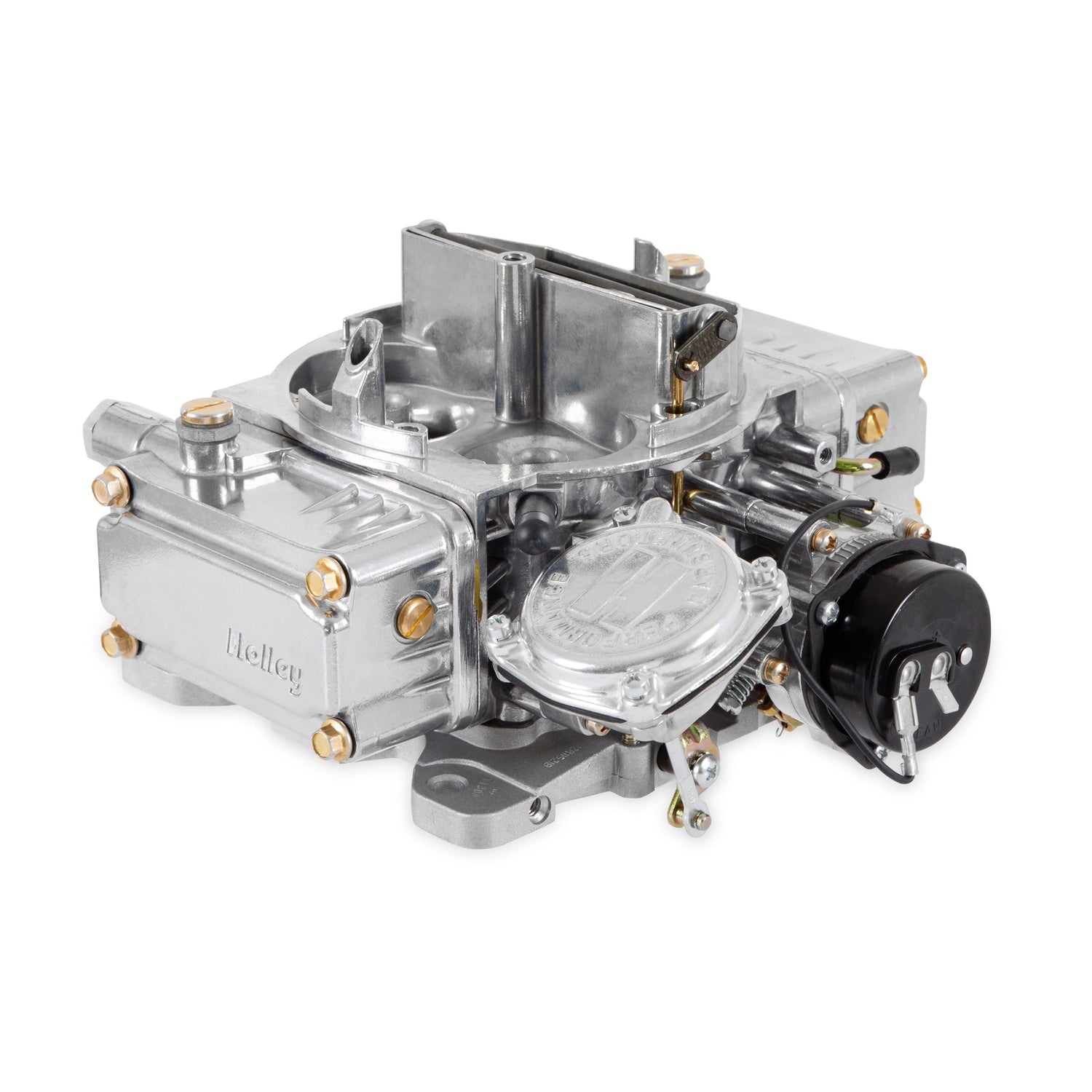

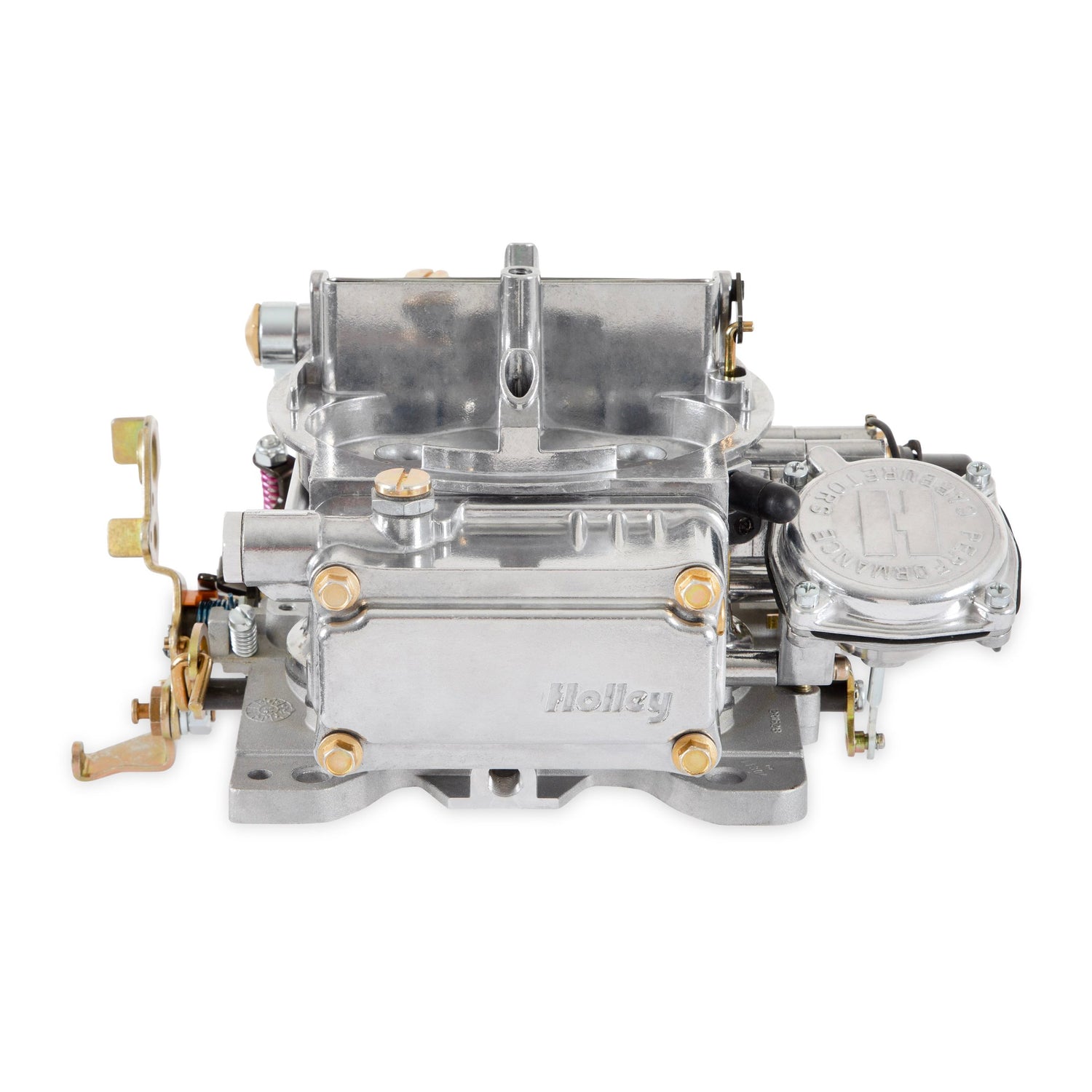

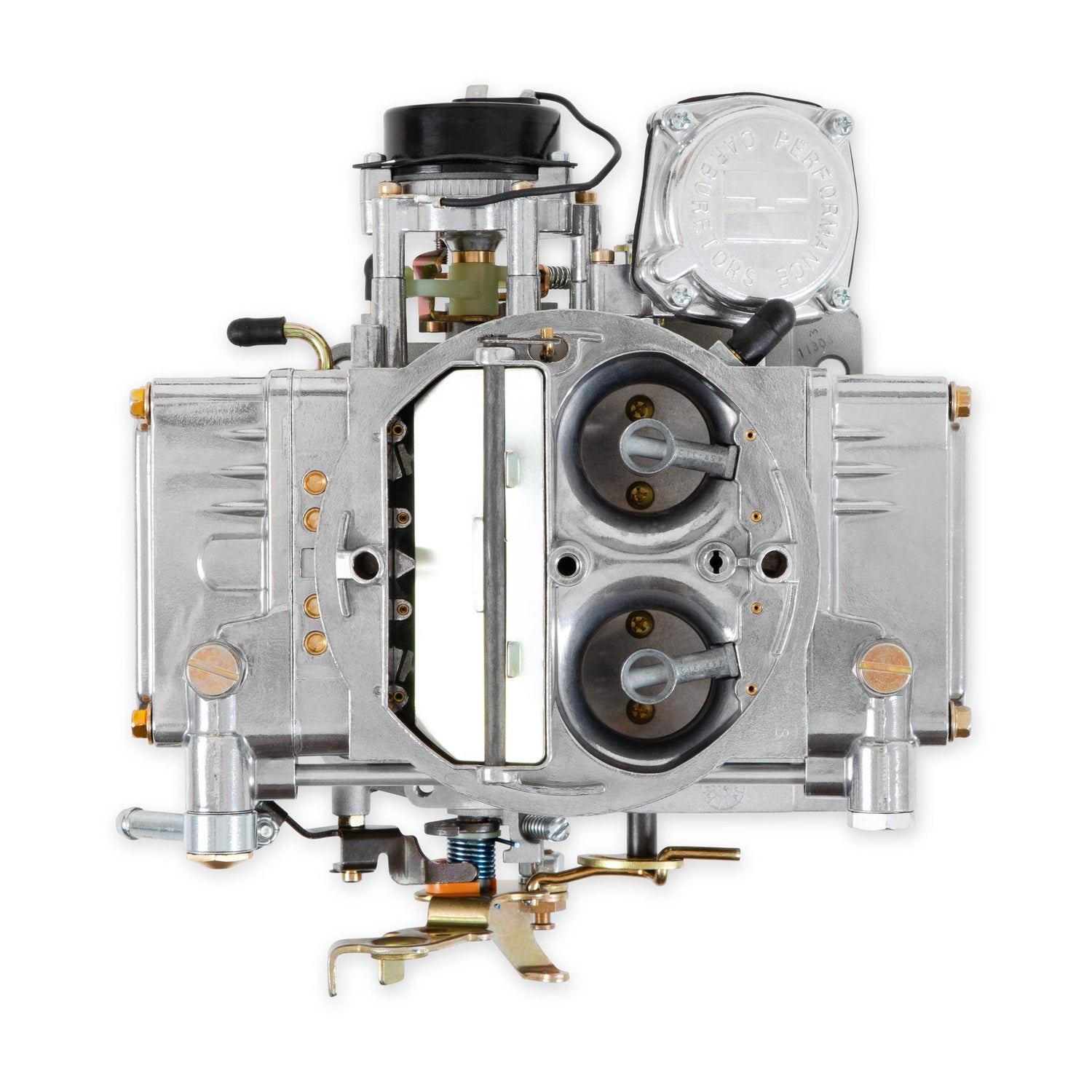

Holley 0-80555S - Aluminum Spread-Bore Carburetor

Carburetor - Model 4175 - 4-Barrel - 650 CFM - Spread Bore - Electric choke - Vacuum Secondary - Single Inlet - Aluminum - Polished - Each

650 CFM - 4175 - Vacuum Secondaries - Polished Aluminum - Gasoline , Replaces 0-80555C

Do you like the tunability of Holley's modular carbs, but need to simply replace a Q-jet? The spread bore bolt pattern of the 0-80555S lets you do just that. It has vacuum secondaries and electric choke, so it is useable on a wide variety of vehicles. Don't trust your performance to just anyone, Holley is the only modular carburetor company that has been in business for over 100 years and has powered every NASCAR champion since the 60's. ***The 0-80555S is a Model 4175 designed to fit GM spread bore passenger car and light truck applications. It is not compatible with Ford or Chrysler Spread bore applications. The 0-80555S is not recommended for any RV applications. The 0-80555S is not designed to pass any emission laws. The 0-80555S is to be used only for Uncontrolled (Non-Emmisions Controlled) Vehicles or competition/off road vehicles. A carburetor spacer could be required to clear certain components on stock applications such as the Mr. Gasket 3406.

  • Polished finish for corrosion resistance and classic Holley looks
  • Performance replacement for Q-Jet carbs (spread bore bolt pattern)
  • Universal calibration for easy bolt-on performance
  • Factory preset electric choke for easy startups
  • Vacuum secondaries for use on wide variety of vehicles. Compensate for all vehicle weights, gearing & transmissions to allow smooth opening of secondaries.
  • Single feed fuel inlet for easy installation
  • 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Adjustable Air Bleeds: No
Adjustable Emulsion Bleeds: No
Adjustable Idle Feed Restrictors: No
Air Cleaner Flange Diameter: 5-1/8"
Air Cleaner Stud Size: 1/4-20 UNC
Barrel Quantity: 4
Barrels: 4
Barrels Quantity: 4
Billet Color: None
Body Color: Polished
Body Finish: Polished
Body Material: Aluminum
Booster: Straight
Booster Design: Straight
Brand: Holley
Carburetor Material: Zinc
Carburetor Use: Street
Category: Air and Fuel Delivery
CFM: 650
CFM Rating: 650
Choke: Electric
Choke Type: Electric
Circuit Count: 2
Color: Polished Aluminum
Condition: New
Cubic Feet Per Minute Rating: 650
Emission Code: 2
Finish: Polished

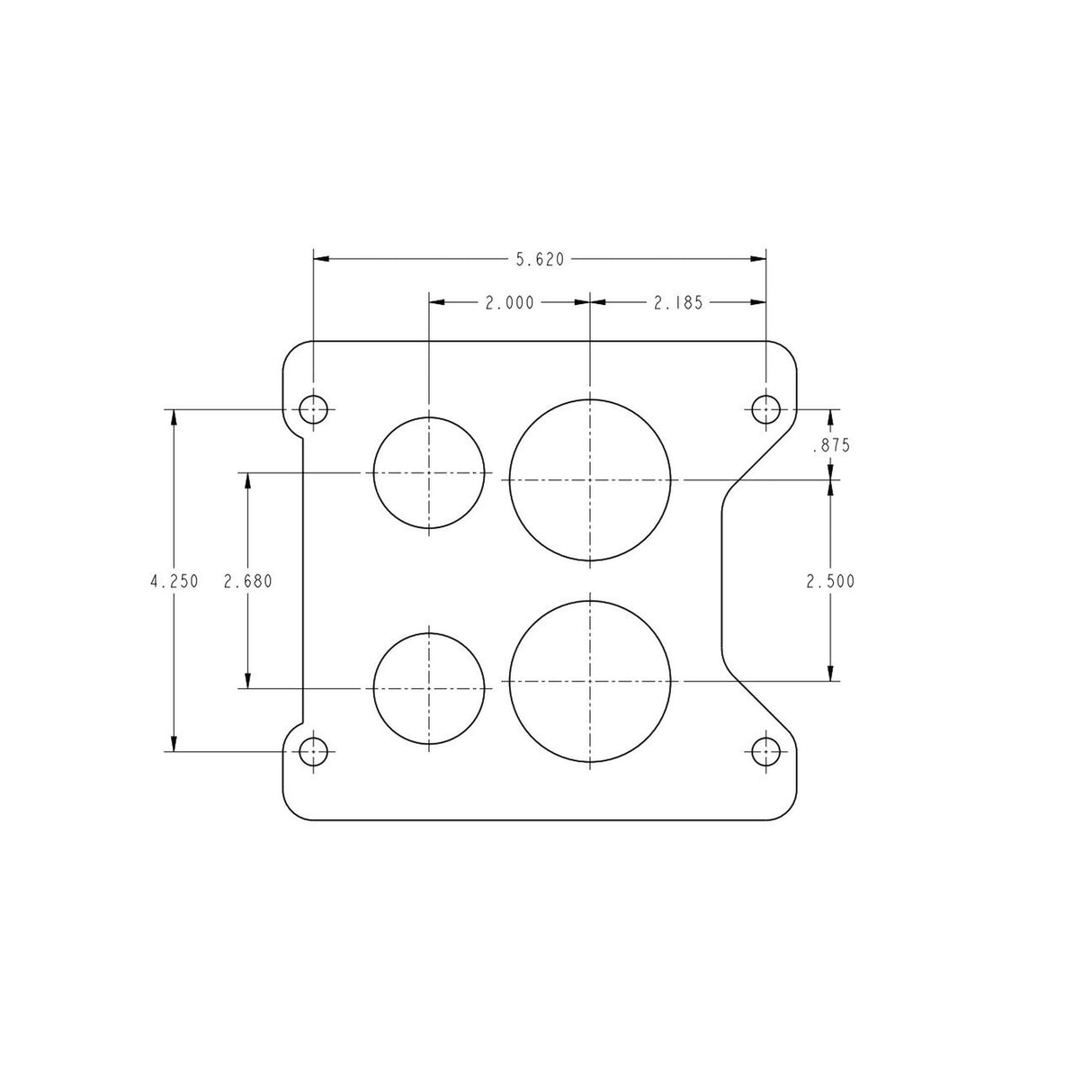

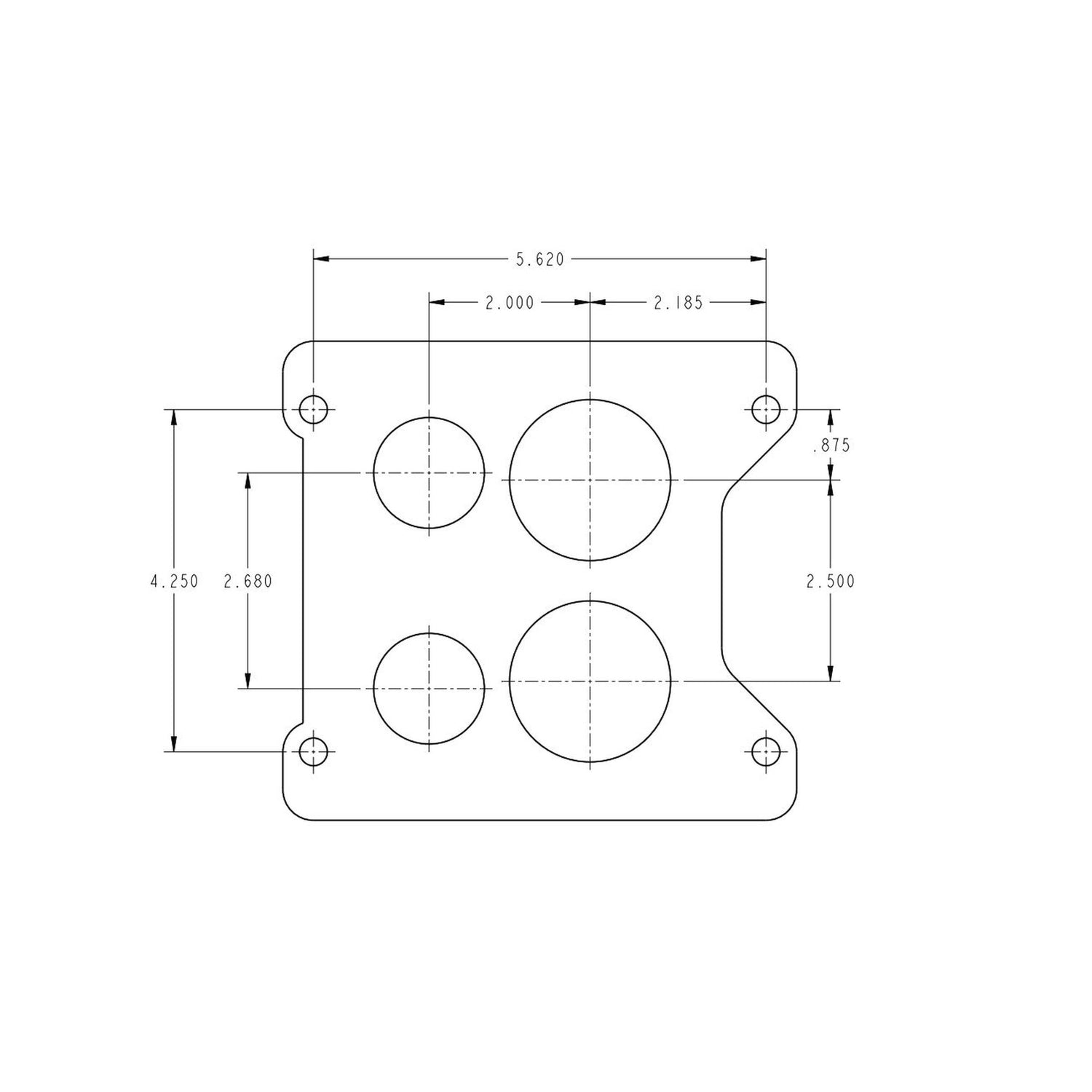

Flange Shape: Spread
Flange Type: Spread Bore
Float Level: Externally Adjustable
Fuel: Gasoline
Fuel Inlet: Single
Fuel Inlet Count: Single
Fuel Inlet Type: 5/16" Hose Barb
Fuel Type: Gasoline
Gasket Or Seal Included: Yes
Grade Type: Street
Linkage Attached: Yes
Marine Approved: No
Marine Use: No
Material: Aluminum
Meter Block Material: Cast Aluminum
Metering Block Color: Shiny
Model: 4175
Mounting Hardware Included: No
Mounting Hole Quantity: 4
part type: Carburetor
Primary Float Type: Side Hung Nitrophyl
Primary Inner Air Bleed Sizes Included: 63
Primary Jet Size: 62
Primary Outer Air Bleed Sizes Included: 97
Primary Power Valve: 6.5
Primary Power Valve (Hg): 6.5
Primary Pump Nozzle Size: 40
Primary Throttle Bore Diameter: 1.375
Primary Venturii Diameter: 1.2
Product Type: Carburetor
Secondaries: Vacuum
Secondary Barrel Type: Vacuum
Secondary Float Type: Side Hung Nitrophyl
Secondary Inner Air Bleed Sizes Included: 63
Secondary Jet Extensions: No
Secondary Jet Size: 81
Secondary Outer Air Bleed Sizes Included: 85
Secondary Power Valve: None
Secondary Throttle Bore Diameter: 2
Secondary Type: Vacuum
Series: Classic
Spacer Included: No
Street Legal: Yes
Supercharged Application: No

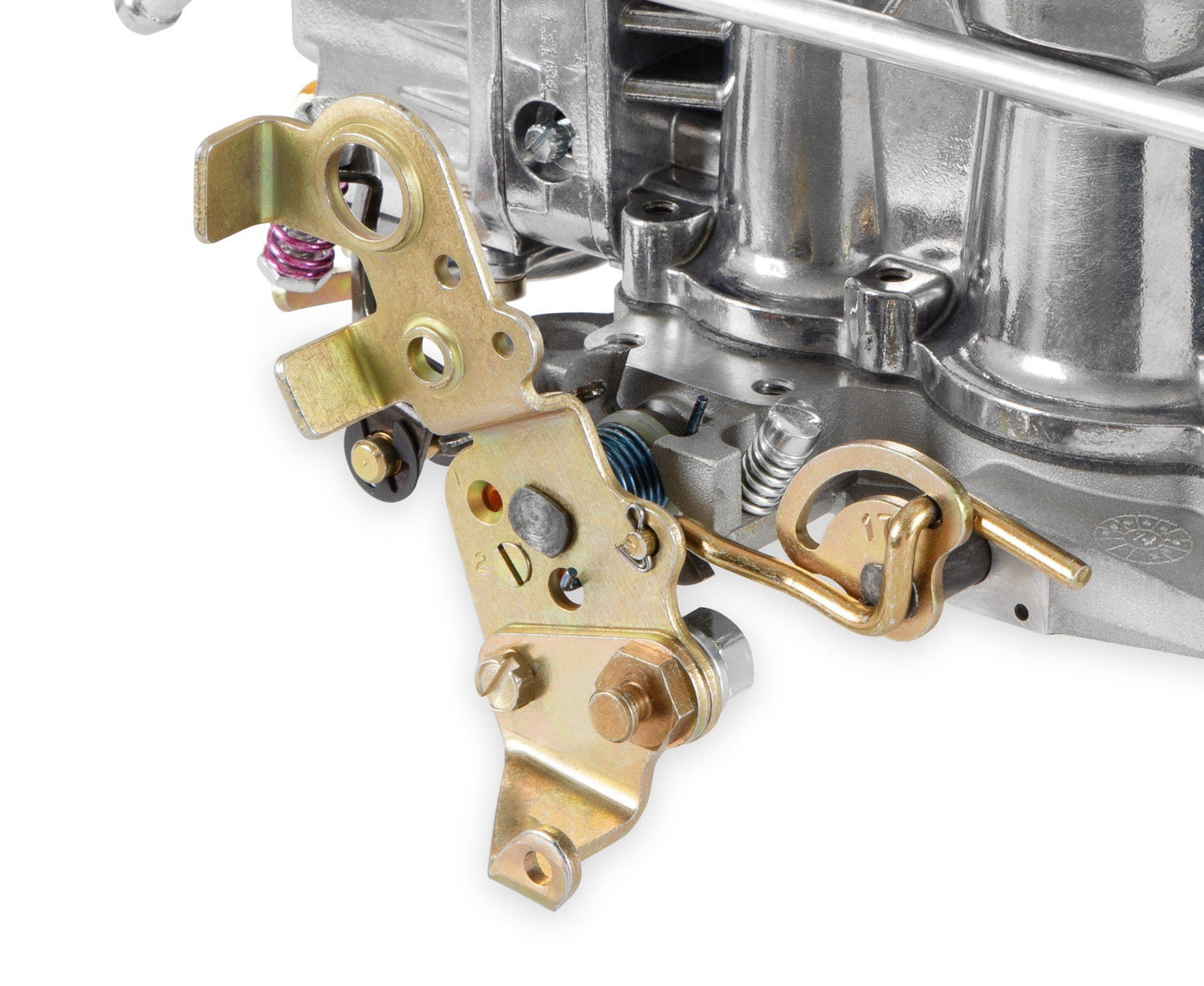

Throttle Kickdown Provision(S): Compatible with GM A/T kickdown linkage
Vacuum Ports: 1 timed (spark) port, 2 full, and 1 PCV port
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
