Hella 996661011 - Work Lamp Wa 0Gr Md1224 Dt Ov100 1Ga

Hella  |  SKU: HLA-996661011
Sale price $23099 Regular price $25409

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

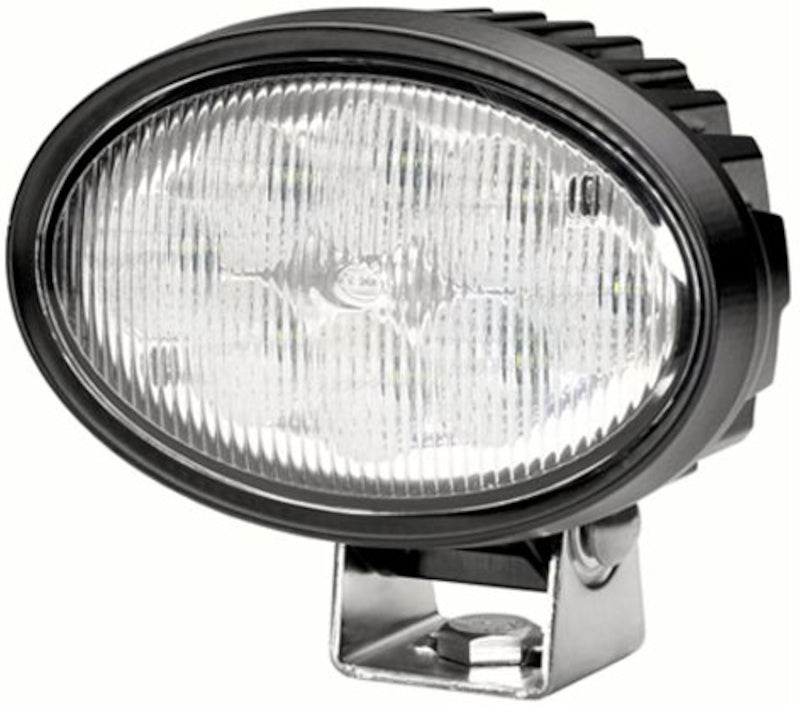

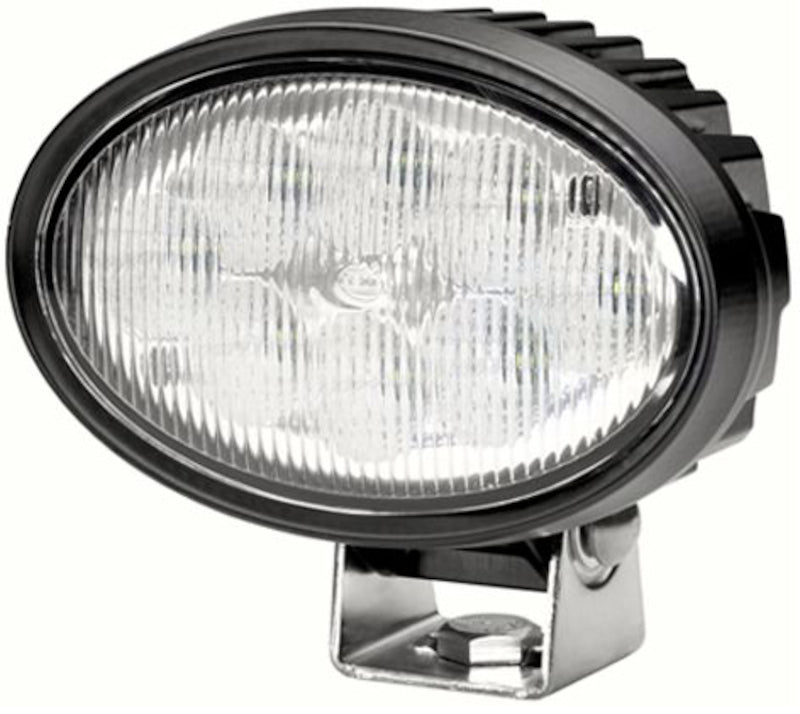

Hella 996661011 - Work Lamp Wa 0Gr Md1224 Dt Ov100 1Ga

WORK LAMP WA 0GR MD12-24 DT OV100 1GA

Work Light

The Oval 100 LED worklight complements the modular series with the halogen and xenon variants with efficient LED technology. The spotlight can be operated with both 12 and 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with a fluctuating operating voltage of 9 to 33 volts. Thanks to its powerful light output, the Oval 100 LED can replace standard halogen worklights (e.g. H3 / 55 watts) - with a power consumption of only 25 watts. This makes the worklight ideal for use on vehicles with battery operation, and when the alternator is already heavily loaded. The light output is a powerful 1,700 lumens. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The Oval 100 LED can be mounted either upright (0deg) or suspended (180deg). With 6,500 Kelvin, the light of the LED worklight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and thus prevent rapid eye fatigue. The worklight's black housing is made of aluminium and has cooling fins to dissipate the heat from the 8 high-performance LEDs. In addition, a sensor protects the worklight from overheating. Only in this way can the long life of the LEDs (up to 130 times the life of a halogen bulb) be fully exploited.

  • HELLA Lighting Series: Comprehensive line of affordable lighting for a multitude of vehicle applications.
  • Bright & Powerful: Delivers strong, focused light to illuminate work areas in low-light or nighttime conditions.
  • Durable Design: Constructed with tough materials to resist impacts, dust, and harsh weather for long-lasting performance.
  • Energy-Efficient: Provides consistent lighting with minimal power consumption, ensuring prolonged use.
  • Wide Application: Perfect for construction, outdoor work, or emergency situations where reliable lighting is essential.
Luminous Efficacy [lm/W]: 72
Lens Material: Nylon
Height [in]: 5.08
Width [in]: 6.02
Luminous Flux [lm]: 1900
Diffusing Lens Material: Plastic
Plug Type: DEUTSCH Plug
Width [mm]: 153
Connector: DT Connector
LED Quantity: 8
ECE Regulation: R10
Housing Type: Aluminium Housing
Depth [mm]: 74

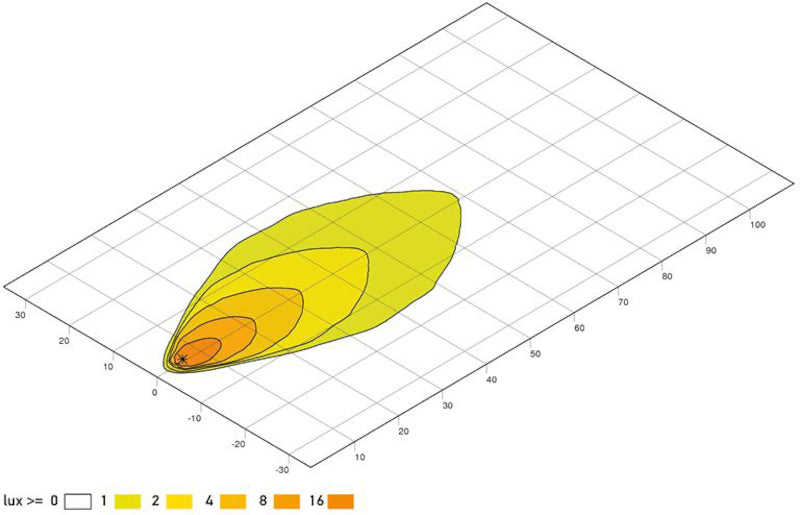

Light Distribution: Long-Range Illumination
Fastening Type: Swivelling Mounting Bracket
Lamp Type: LED
Assy/Disassy by Qualified Personnel Required!: .
Mounting: Pedestal
Energy Consumption: 25W @ 13.5VDC
IP Rating: IP6K9K
Depth [in]: 2.91
Test Mark: ECE-R10
Wattage [W]: 25
Light Design: LED
Mounting Type: Mounting
Voltage [VDC]: 24
Bracket: SS Bracket
Housing material: Aluminum
Registration Type: ADR/GGVS Approved
Height [mm]: 129
Housing Color: Black
Diffusing Lens Type: Clear Diffusing Lens
Color Temperature [K]: 6500
Power Source: Electric
Rechargeable: No
Weather Resistant: Yes
Light Emitting Diode Count: 8
Charger Included: No
Bulb Technology: LED
