CSP SAVINGS!

CSP2026

Hella 996174251 - Headlamp ES FAPO BL LI 0GR MG12 DT 1EE

Hella  |  SKU: HLA-996174251
Sale price $19244 Regular price $21168

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Hella 996174251 - Headlamp ES FAPO BL LI 0GR MG12 DT 1EE

HELLA Headlight 996174251

Headlight Assembly

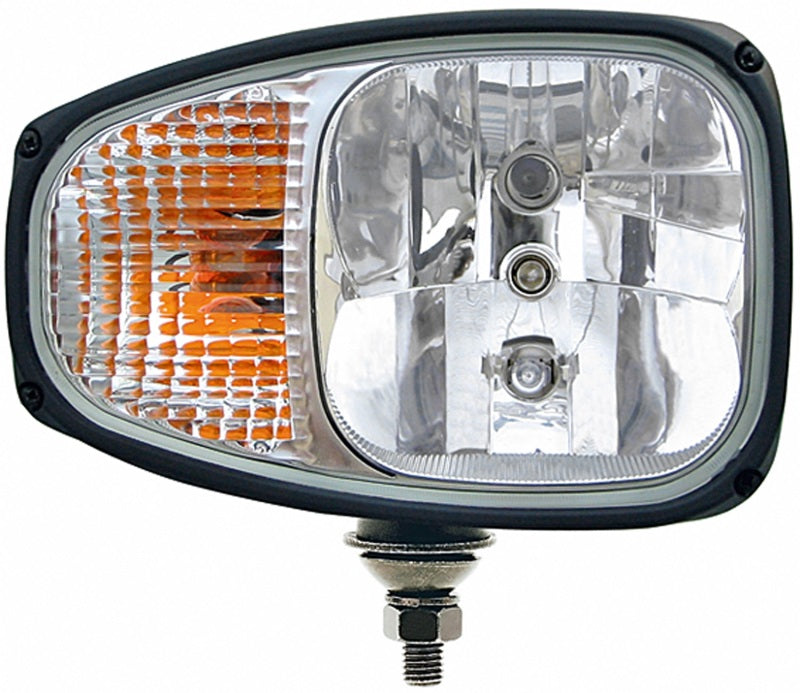

The halogen combi headlamp C220 from HELLA is a optic free headlamp. It provides all the following lighting functions - H7 low beam, H3 high beam, position light and direction indicator light. The design of this halogen combination headlamp also makes it ideal for mounting on vertical surfaces and it ensures optimal illumination of the work area. The lens of this headlamp is made of hardened glass while the lamp housing is made of glass-fibre reinforced plastic, which is acid and corrosion resistant. The headlamp is available in 12 V and 24 V.

  • Provides superior illumination for enhanced driving safety with optimized light distribution technology.
  • Ensures reliable performance in all weather conditions with durable materials designed for varied climates.
  • Enhances visibility in urban and rural settings with precision-engineered beam patterns for optimal light focus.
  • Offers universal compatibility, ensuring seamless integration with most modern vehicles for easy installation.
  • Facilitates hassle-free setup with user-friendly design, enabling straightforward installation and maintenance.
Supplementary Article/Supplementary Info 2: without Bulbs
Fastening Type: Screw-On
Optics: Lens & Reflector
Lamp Type: H7/H3

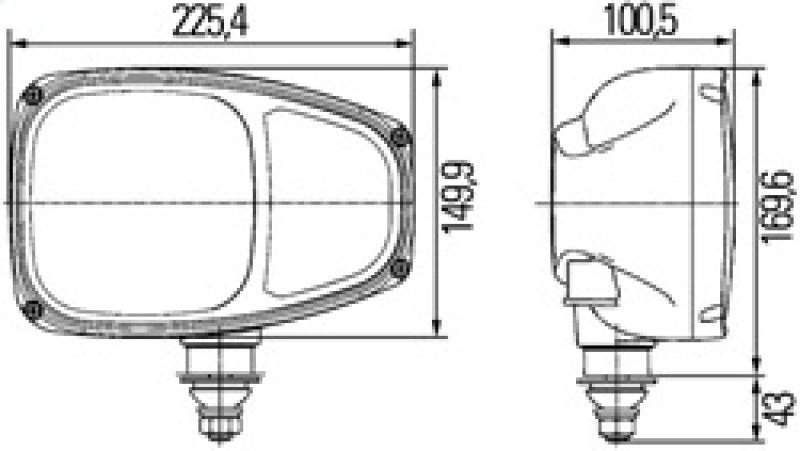

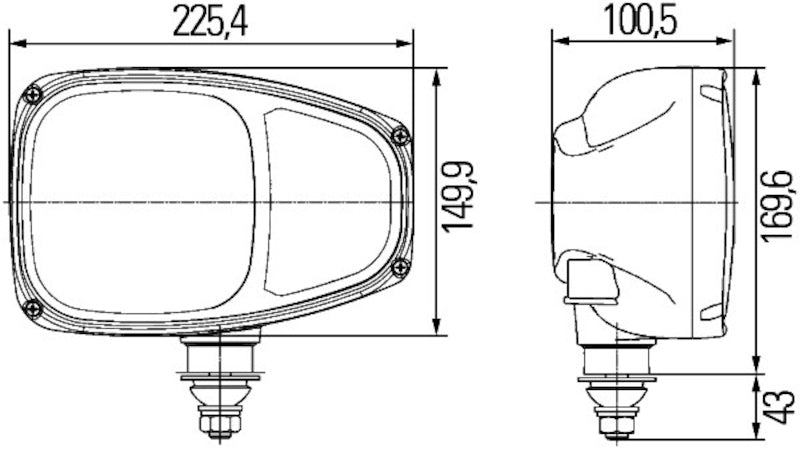

Height [mm]: 150
Number of light functions: 4
Height [in]: 5.91
Assy/Disassy by Qualified Personnel Required!: .
Depth [mm]: 101
Registration Type: SAE Approved
Test Mark: SAE
Width [mm]: 225
Voltage [VDC]: 24
ECE Regulation: R112

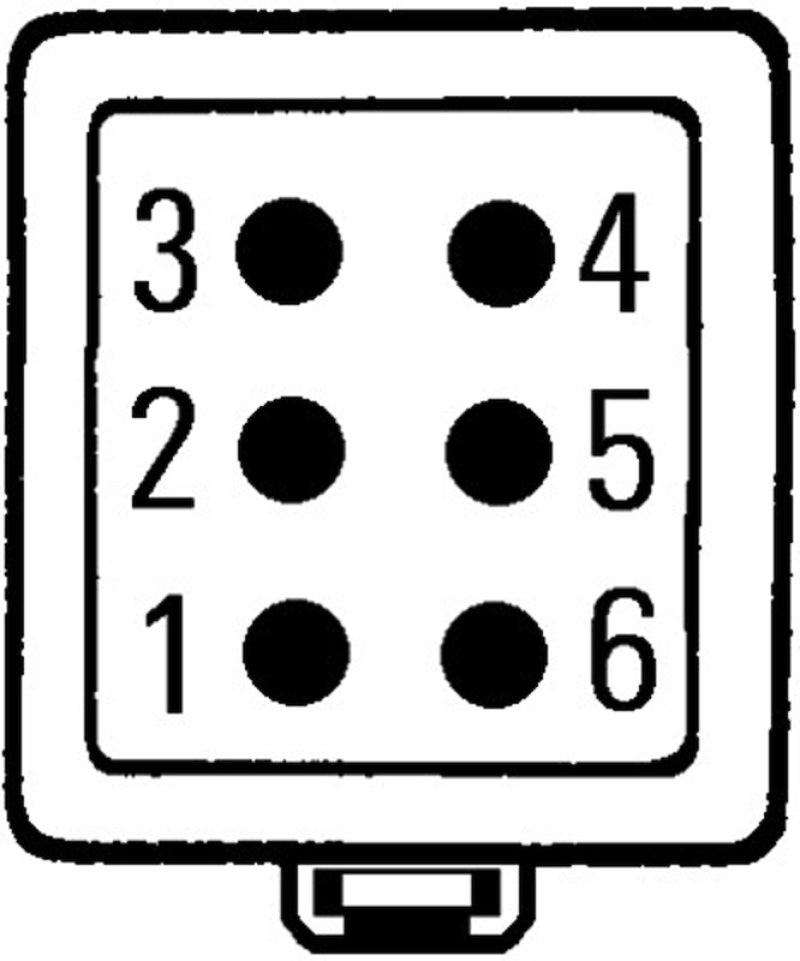

Connection: DT Connector 6 Pin
Mounting: Pedestal
Single Lamp Includes: (1) Lamp, Universal Mounting Hardware, Step-by-Step Mounting Instructions
Width [in]: 8.86
Plug Type: DEUTSCH Plug
Depth [in]: 3.98
Light Function: with Indicator
Fitting Position: Left
Mounting Type: Bolted
IP Rating: IP6K9K
Housing material: PC (Polycarbonate)
Street Legal: Yes
Bulb Material Color: Amber
Bulb Material Color: White
Lens Color: Clear
Mounting Hardware Included: No
Grade Type: Standard Replacement
Headlight Type: Bulb
Bulb Technology: Halogen
