Hella 360003002 - LBX Series Lightbar 28in LED MV COMBO DT

Hella  |  SKU: HLA-360003002
Sale price $33999 Regular price $37399

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

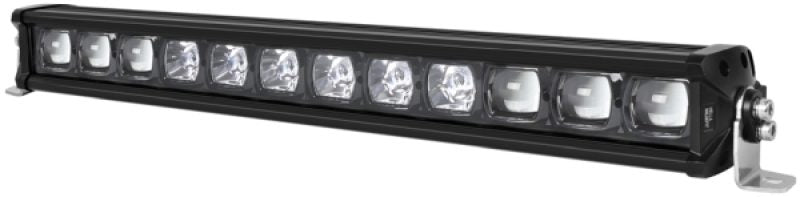

Hella 360003002 - LBX Series Lightbar 28in LED MV COMBO DT

HELLA Light Bar 360003002

Light Bar

The new light bar series includes four worklights in an elongated design in different lengths and light intensities. Cooling fins on the back of the aluminium housing ensure the necessary heat dissipation of the high-power LEDs. The innovative lens technology of the LBX Lightbars creates homogeneous illumination for both near-field and far-field illumination. The light intensity starts with the LBX 220 LED at 1,000 lumens and extends to the powerful LBX 720 LED with an effective light output of 5,500 lumens. For optimal illumination, a low mounting height of between 0.50 and 1.50 metres is recommended. This distributes the light over a large area and evenly into the workspace, significantly improving working conditions at night. The longer LBX 540 and LBX 720 versions offer the combination of wide-beam lenses for the near-field area and narrow-beam lenses in the centre for long-range illumination. The perfect combination for large-area illumination in front of the vehicle.

  • Blaze through the darkest nights with HELLA’s ultra-bright LED light bar—engineered to deliver intense, crystal-clear illumination for unbeatable nighttime visibility and safety!
  • Built tough for all weather, HELLA’s light bar resists rain, mud, and snow so you can tackle any adventure without worrying about durability or performance.
  • Skip the hassle and install HELLA’s light bar in minutes with simple plug-and-play—no tools or mechanics needed, so you’re road-ready faster than ever.
  • Save your battery and power smarter with HELLA’s energy-efficient LEDs that shine brighter while keeping your ride’s power consumption ultra-low.
  • Turn heads and light up the road with HELLA’s sleek, low-profile design that combines aggressive style with maximum output—upgrade your vehicle’s look and function today!
Rechargeable: No
Weather Resistant: Yes
LED Quantity: 12
Color Temperature [K]: 6500
Fastening Type: Suspended
Bulb Technology: LED
IP Rating: IP6K7
Width [mm]: 704
Mounting Type: Mounting
Electromagnetic Compatibility (EMC): ECE R10
Light Design: LED
Test Mark: ECE-R10
Plug Type: DEUTSCH Plug
Assy/Disassy by Qualified Personnel Required!: .
ECE Regulation: R10
Housing Type: Aluminium Housing
Diffusing Lens Material: Glass
Height [in]: 3.39
Power Source: Electric
Light Emitting Diode Count: 12
Charger Included: No
Cable Length [mm]: 2000
Diffusing Lens Type: Patterned Diffusing Lens
Housing material: Aluminum
Light Distribution: Long-Range Illumination
Wattage [W]: 88
Housing Color: Black
Luminous Flux [lm]: 5500
Plug: DEUTSCH
Depth [mm]: 80
Height [mm]: 86
Lamp Type: LED
Voltage [VDC]: 12
Depth [in]: 3.15
Cable Length [in]: 78.74
Width [in]: 27.72
Voltage: 12.00
Voltage: 24.00
DOT Approved: No
Lens Color: Clear
Lens Material: Glass
Mounting Hardware Included: Yes
Wiring Harness Included: No
Switch Included: No
Housing Color: Black
Bulb Technology: LED
Wattage: 88.00
