Hella 091394001 - Battery Ground Strap 300Mm 80Amp

Hella  |  SKU: HLA-091394001
$5999 $6599

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

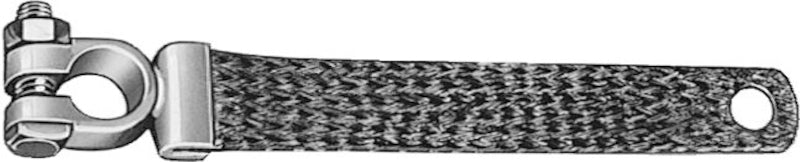

Hella 091394001 - Battery Ground Strap 300Mm 80Amp

HELLA Battery Ground Strap 091394001

The highly flexible electrical conductors have already been used for decades for a Range of electrical vehicle applications. As the name suggests, this involves applications such as the dissipation/gRounding of EMC interference or static charges. The earth strap must be able to withstand high currents, such as those that can occur between the starter motor and the battery. If the electrical system is disturbed, a defective or non-existent earth strap can often be the cause.

  • Designs optimally matched to the respective area of application
Assy/Disassy by Qualified Personnel Required!: .
Battery Terminal Clamp Type: for Negative Terminal
Cross Section (mm Squared): 21
Cross Section (in Squared): 0.03
Length (mm): 300
Length (in): 11.81
Battery Terminal Diameter (mm): 15.9
Bore diameter (mm): 15.5
Current Strength (A): 80
Bore Distance (mm): 320
Bore Distance (in): 12.60
Color: Copper
Fitting Position: Starter Battery
Material: Copper
Quantity: 10
Width (in): 0.83
Width (mm): 21
Voltage (V): 24
