Hella 066146001 - Strobe Light

Hella  |  SKU: HLA-066146001
Regular price $000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

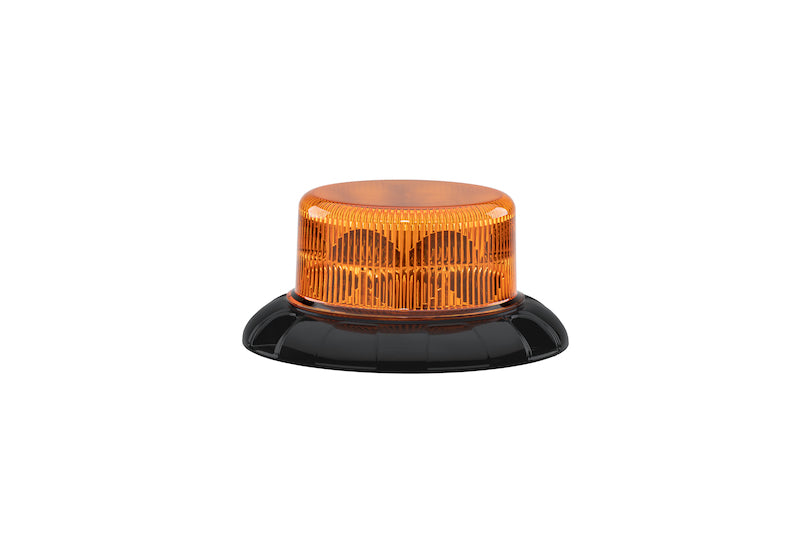

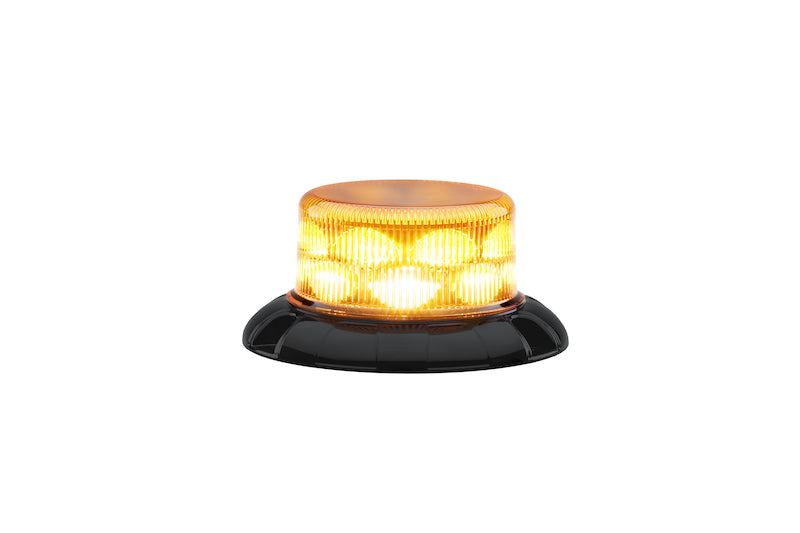

Hella 066146001 - Strobe Light

HELLA Strobe Light 066146001

The powerful LED warning lights generate an intensive 360-degree warning signal and are suitable for various applications. Both sizes of the light bar offer different design and mounting options and combine a flashing and a rotating signal in one product. The strobe lights are available with a clear or yellow cover lens option, the built-in LEDs providing the warning signal are yellow for both design variants. In addition, there is also a special SAE version with a two-color warning signal. Half of this is equipped with yellow LEDs and half with white LEDs. Depending on the mounting variant, the flat light bars can be fixed with screws, a bracket or by magnets. They are suitable for both 12V and 24V systems.

  • High-Visibility Lighting: Emits bright, flashing light to alert others in emergency or high-visibility situations.
  • Durable & Weatherproof: Designed to withstand harsh weather conditions and vibrations for reliable performance.
  • Wide Coverage: Offers a powerful, attention-grabbing strobe effect visible from long distances.
  • Versatile Mounting Options: Can be easily mounted on vehicles, equipment, or other locations for various uses.
  • Long-Lasting Performance: Engineered for longevity, ensuring reliable operation during critical situations.
EMC/CISPR Standard: Class 5
Height [mm]: 68
Lens Color: Yellow
Temperature range to [°F]: 140
Temperature range from [°F]: -40
Height [in]: 2.68
Mounting Type: Bolted
Voltage [VDC]: 24
Light Color: Yellow
LED Quantity: 16
Operating temperature from [°F]: -40
Light Function: with Flashing Warning Signal
Operating temperature to [C°]: 60
Operating Temperature from: -40 °C
Rated Power [W]: 19
Diffusing Lens Material: PC (Polycarbonate)
IP Rating: IP6K9
Outer diameter 1 [mm]: 146
Operating temperature from [°C]: -40
Plug Type: Blade Terminal
Cable Length [in]: 5.91
Electromagnetic Compatibility (EMC): ECE R10/R65
Bulb Technology: LED
Outer Diameter 1 [in]: 5.75
Wattage [W]: 19
SAE Regulation: J845 Class 1
Housing material: ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate)
Transportation Certification: ADR/GGVS
Temperature range to [°C]: 60
Fulfills Test Standard: RCM
Weight [oz]: 9.03
Light Design: LED
Weight [g]: 256
Test Mark: RCM
Housing Color: Black
Manufacturer Restriction: 2XD 066 146-001
Quantity: 1
Assy/Disassy by Qualified Personnel Required!: .
Cable Length [mm]: 150
Plug: Blade Terminal
Flash rate per minute: 126
Operating Temperature to: +60 °C
Lamp Type: LED
ECE Regulation: R65
Certification: Regulatory Compliance Mark (RCM)
Temperature range from [°C]: -40
Registration Type: ADR/GGVS Approved
Street Legal: Yes
Light Quantity: 1
Light Colors: Yellow
Bulb Technology: LED
