Hella 016560101 - Rallye 4000 LED Driving Lamp Flood Beam 12/24V

Hella  |  SKU: HLA-016560101
Sale price $32527 Regular price $35780

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

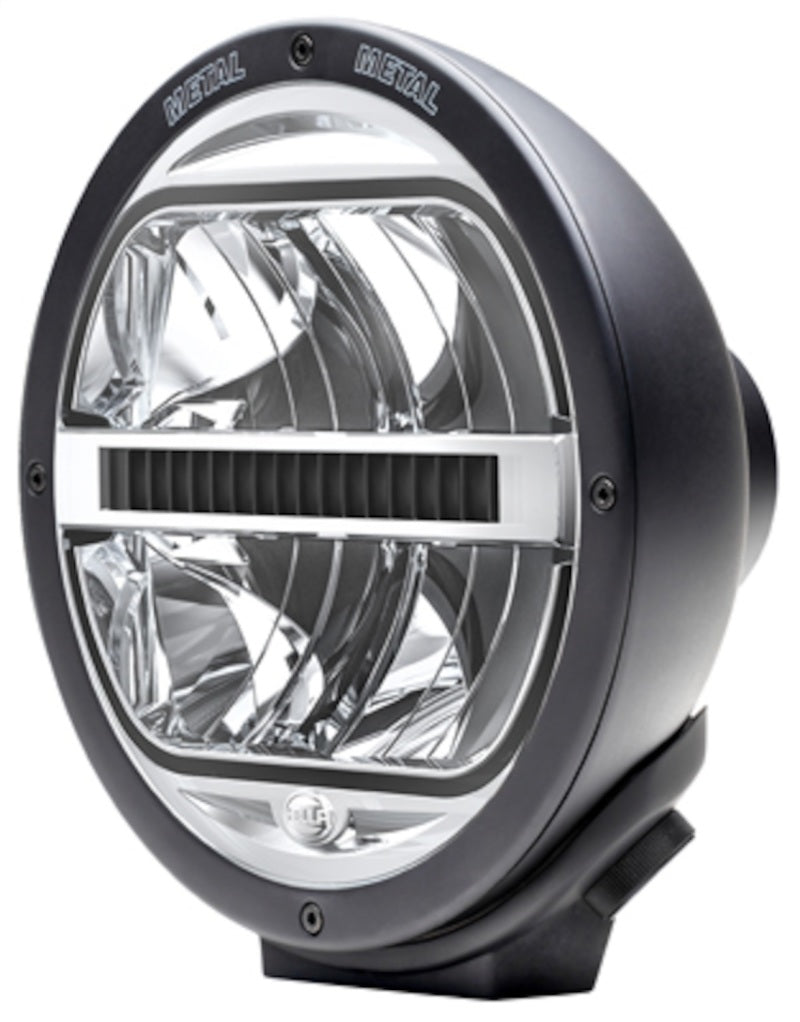

Hella 016560101 - Rallye 4000 LED Driving Lamp Flood Beam 12/24V

HELLA Auxiliary Light 016560101

Auxiliary Light

Auxiliary headlights from HELLA are not only technical highlights, but also outstanding design elements that give every off-road vehicle an individual look. Reason enough to provide the headlights with special protection when they are switched off in order to preserve their function and appearance in the long term. With the precisely fitting protective caps with HELLA logo, you kill two birds with one stone: when switched off, they protect the headlights from dirt and thus serve safety, because the light output can be better brought onto the track later.

  • LED Auxiliary Driving Lamp Rallye 4000 LED with distinctive LED position light in hexagonal contour design.
  • Durable Construction: Built with rugged materials to withstand harsh weather and rough terrains.
  • Long-Lasting Performance: Engineered to endure prolonged use without compromising on brightness.
  • Versatile Application: Perfect for off-roading, towing, and any other demanding lighting needs.
  • Easy Mounting: Designed for simple installation on a variety of vehicles, including trucks and off-road vehicles.
Mounting Type: Mounting

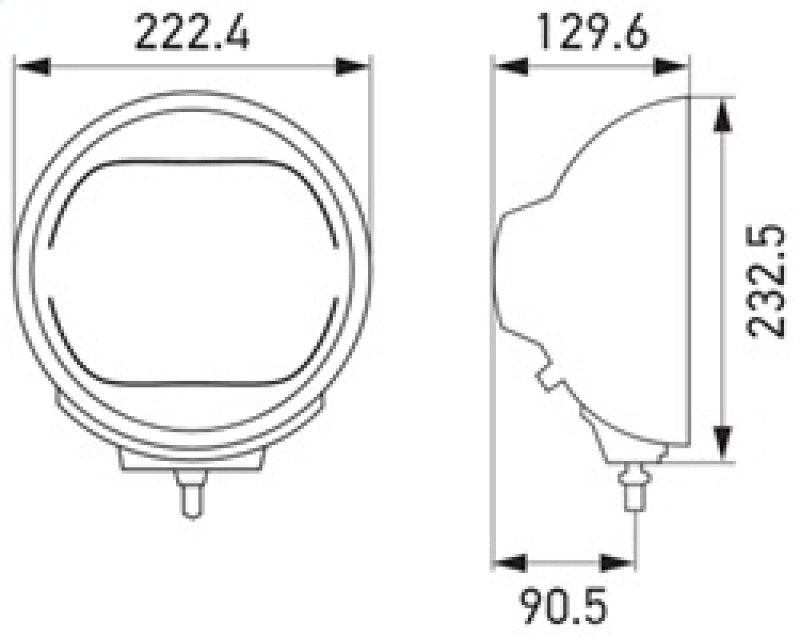

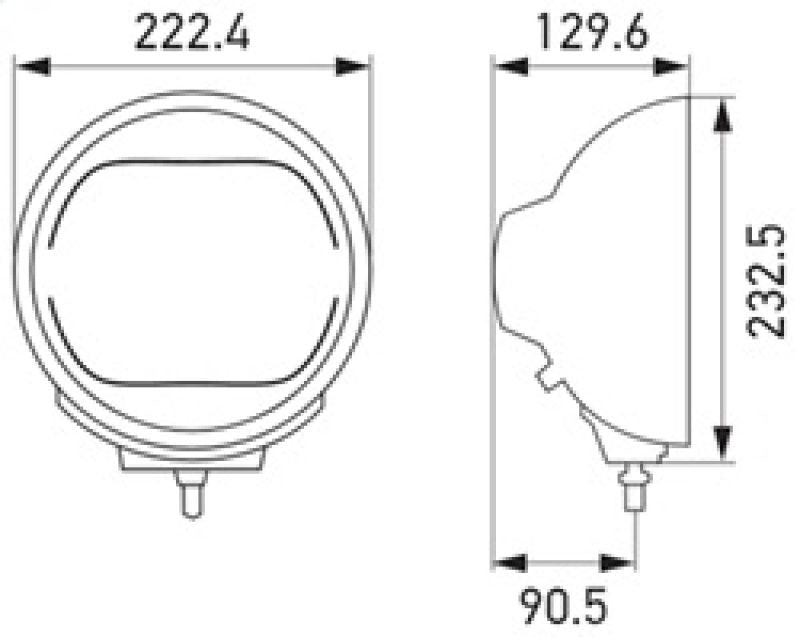

Overall Height [mm]: 232
Lamp Type: LED
Width [in]: 8.74
Lens Material: PC
Single Lamp Includes: (1) Lamp, Universal Mounting Hardware, Step-by-Step Mounting Instructions
Luminous Flux [lm]: 1800
Width [mm]: 222
Light Design: LED
Cable Length [in]: 15.75
Fitting Depth [mm]: 90
Fastening Type: Swivelling Mounting Bracket
ECE Regulation: R10
Light Temperature: 6500 K
Technology: LED Free-Form
Supplementary Article/Supplementary Info 2: without Cap
Mounting: Upright
Assy/Disassy by Qualified Personnel Required!: .
Housing Type: Metal Housing
Cable Length [mm]: 400
Depth [in]: 5.16
Shape: Round
Voltage [VDC]: 24
Height [in]: 8.74
Overall Height [in]: 9.13
Mounting Bracket: Die-Cast Aluminum
Light Function: with High Beam (LED)
LED Quantity: 3
Fitting Position: Right
Height [mm]: 222
Supplementary Article/Supplementary Info: with LED
Lens Color: Crystal Clear
Voltage: 12.00
Voltage: 24.00
Grade Type: Standard Replacement
Light Beam Pattern: Driving
Wattage: 30.00
Fitting Depth [in]: 3.54
Connection: Wire Leads (800 mm - 31.5“)
IP Rating: IPX9K/IP6K7
Diffusing Lens Type: Clear Diffusing Lens
Number of light functions: 1
Certification: ECE R112 (High Beam)
Test Mark: ECE-R10
Housing Color: Black
Depth [mm]: 131
Frame Color: Black
