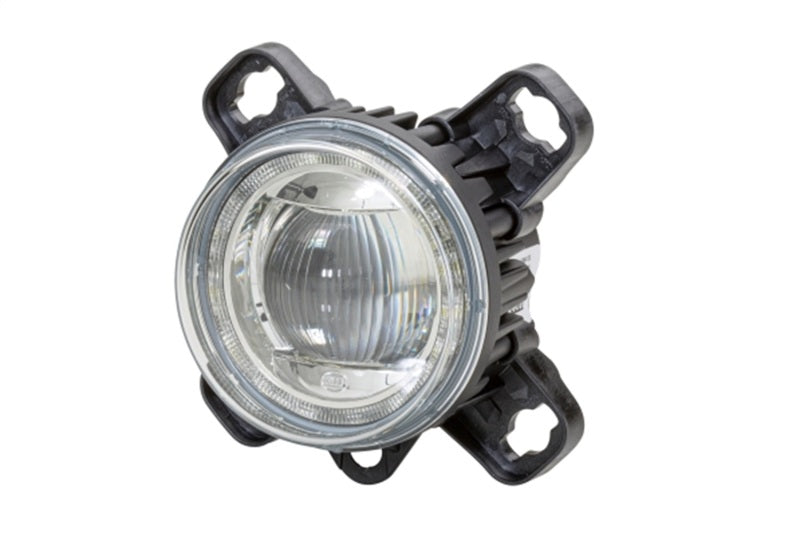

Hella 011988131 - 90mm LED High Beam Module w/ Daytime Running Light/Position Light/Performance Mount

Hella  |  SKU: HLA-011988131
Sale price $35699 Regular price $39269

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Hella 011988131 - 90mm LED High Beam Module w/ Daytime Running Light/Position Light/Performance Mount

HEADLAMP DE-ZF DRL PO MD12/24 1F0

Headlight

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

  • Durable Construction: Built with rugged materials to withstand harsh weather and rough terrains.
  • Easy Mounting: Designed for simple installation on a variety of vehicles, including trucks and off-road vehicles.
  • High-Intensity Illumination: Delivers powerful, focused light for enhanced visibility in low-light conditions.
  • Long-Lasting Performance: Engineered to endure prolonged use without compromising on brightness.
  • Versatile Application: Perfect for off-roading, towing, and any other demanding lighting needs.
Fitting Depth: 55 mm
Fulfills SAE Norm: SSB 674
Housing Color: Black
Supplementary Article/Info 2: without Carrier Frame
Housing material: Metal
Bulb Technology: LED
Lens Color: Crystal Clear
Light Design: LED
Light Function: 3
Lighting Compliance: SAE
Shape: Round
Wattage: 20.0
Mounting Type: Screw Connection
Height (in): 3.58
Overall Height (in): 4.96
Lamp Type: LED
Width (in): 4.96
Depth (in): 3.58
Voltage (V): 24
Fitting Depth (in): 2.17
Fitting Position: Left
Light Functions: 3
Registration Type: SAE Approved
Fulfils ECE norm: R10
Fitting Depth (mm): 55
Number of light functions: 3
Test Mark: E1 0069
Housing Type: Metal Housing
Assy/Disassy by Qualified Personnel Required!: .
Width (mm): 126
Voltage: 12.00
Voltage: 24.00
Supplementary Article/Supplementary Info: with LED
Height (mm): 91
Overall Height (mm): 126
Depth (mm): 91
Diffusing Lens Type: Clear Diffusing Lens
Electromagnetic Compatability (EMC): ECE R149/R112/R87/R10/R7/R148
Fastening Type: Three-Point Mounting
