Hella 011988121 - 90mm L4060 LED High Beam / Driving Lamp Module

Hella  |  MPN: 011988121  |  SKU: HLA-011988121
$33899 $44259

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

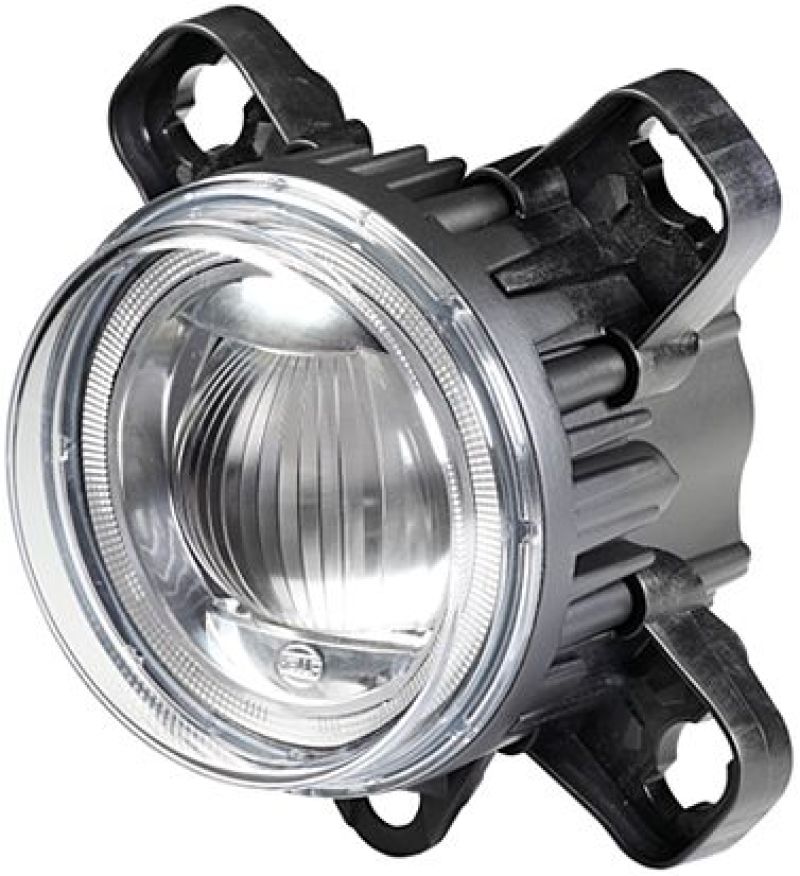

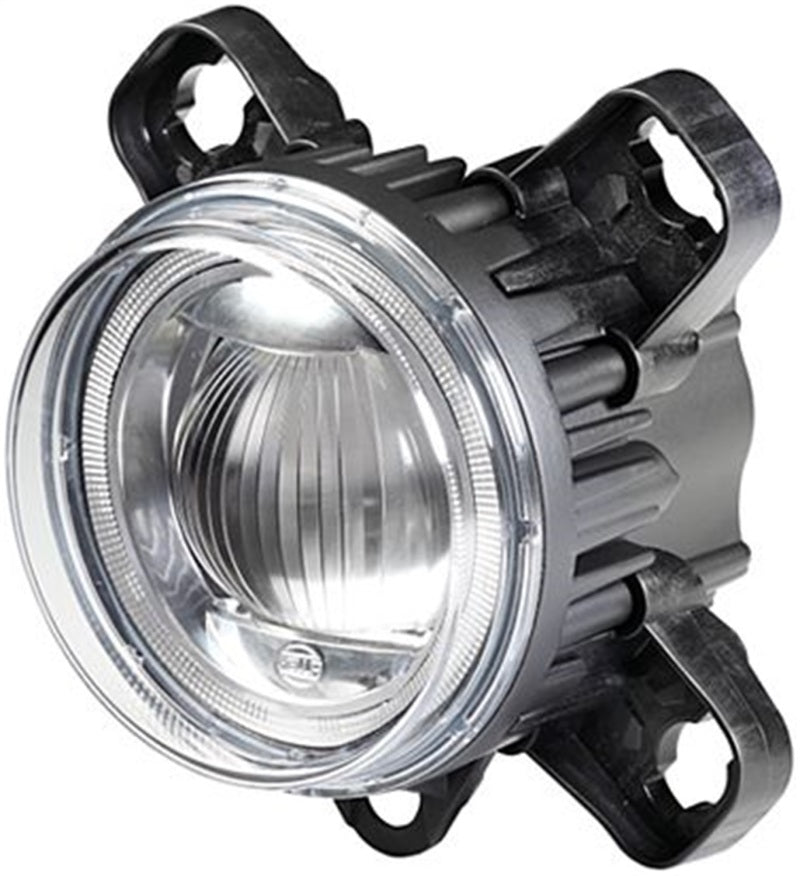

Hella 011988121 - 90mm L4060 LED High Beam / Driving Lamp Module

HEADLAMP DE-ZF MD12/24 1F0

Headlight

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

  • Head Lamp 90mm LED
Mounting Type: Screw Connection
Fastening Type: Three-Point Mounting
Light Design: DE
Height [in]: 3.58
Overall Height [in]: 4.96
Lamp Type: LED
Width [in]: 4.96
Voltage [V]: 12
Depth [in]: 3.58
Fitting Depth [in]: 2.17
Fitting Position: Right
fulfils SAE norm: SSB 674
Registration Type: SAE approved
Height [mm]: 91
Overall Height [mm]: 126
Fulfils ECE norm: R149
Width [mm]: 126
Depth [mm]: 91
Fitting Depth [mm]: 55
Light Function: with High Beam (LED)
Housing Color: black
Lens Color: Crystal clear
Number of light functions: 1
Test Mark: ECE-R149
Reference number: 12.5
Shape: Round
Housing Type: Metal Housing
Diffusing Lens Type: Clear Diffusing Lens
Supplementary Article/Info 2: without Carrying Frame
Supplementary Article/Supplementary Info: with LED
Assy./disassy. by qualified personnel required!: .
Wattage: 20.0
