Hella 011988001 - 90mm LED L4060 Fog Light Module

Hella  |  SKU: HLA-011988001
Sale price $32099 Regular price $35309

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

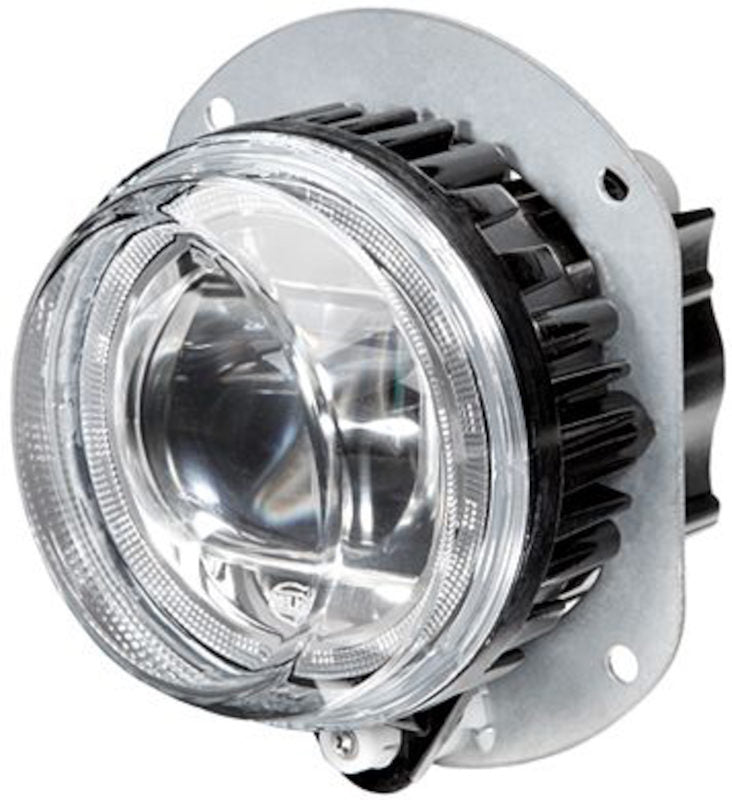

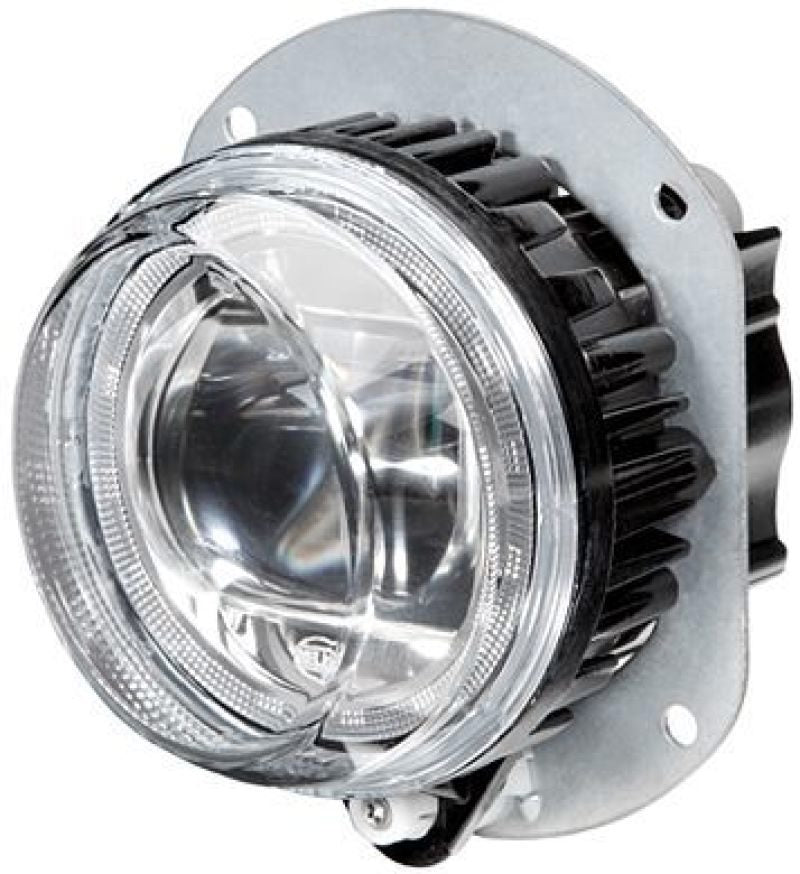

Hella 011988001 - 90mm LED L4060 Fog Light Module

HEADLAMP DE-ZN MD12/24

Fog Light

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

  • Enhanced Visibility: Provides bright, focused light to improve visibility in fog, rain, and low-visibility conditions.
  • Durable & Weatherproof: Built to withstand harsh weather elements, ensuring reliable performance in all conditions.
  • Wide & Even Light Spread: Designed to distribute light evenly, reducing glare and improving road safety.
  • Stylish Design: Sleek, modern look that enhances the appearance of your vehicle while offering functional lighting.
  • Easy Installation: Simple to install on a variety of vehicles for added convenience.
Fog Light Lens Color: Clear
Lever Type: Yes
Mounting: Flush

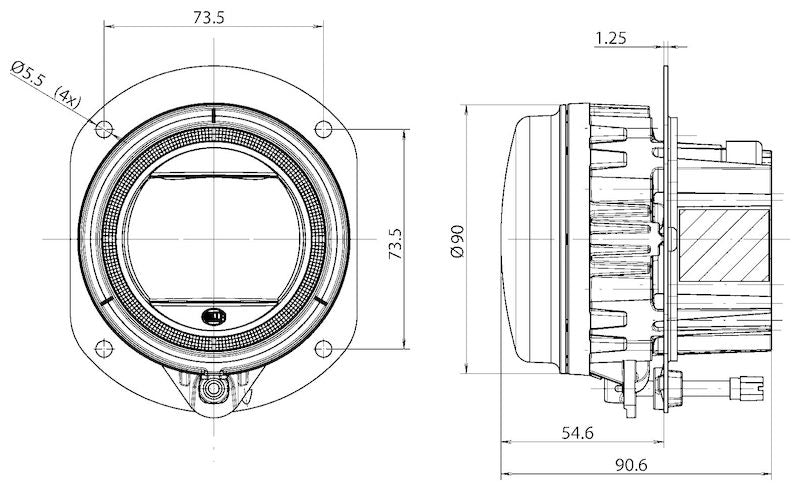

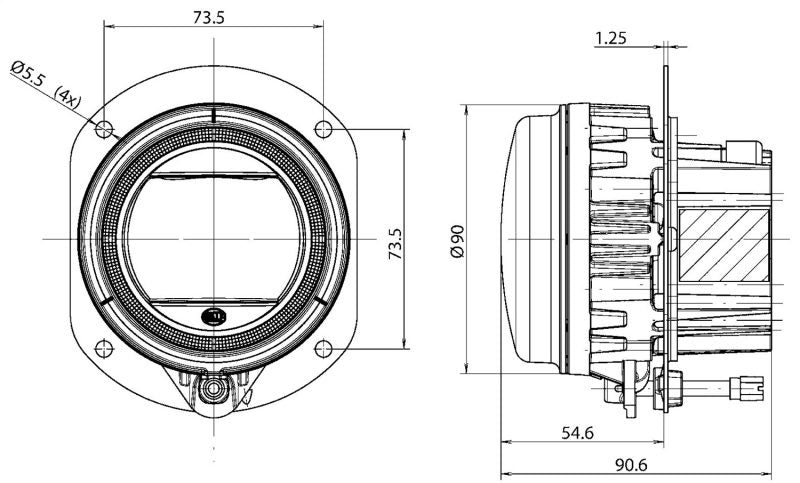

Fitting Depth [in]: 3.58
Fitting Depth [mm]: 91
Overall Height [mm]: 118
Voltage [VDC]: 12
Width [mm]: 96
Lamp Type: LED
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Single Lamp Includes: (1) Light, Universal Mounting Hardware, Step-by-Step Mounting Instruction
Depth [in]: 2.17
Plug Type ID: FEP
Illuminated Area [mm]: 60
Depth [mm]: 55
Illuminated Area [in]: 2.36
Width [in]: 3.78
Diffusing Lens Type: Clear Diffusing Lens
Light Design: LED
ECE Regulation: R19
Test Mark: ECE-R19
Lens Color: Crystal Clear
Housing Color: Black
Fitting Position: Both Sides
Overall Height [in]: 4.65
Number of light functions: 1
Assy/Disassy by Qualified Personnel Required!: .
Diameter [mm]: 90
Connection: Integrated 4-Pin FEP Plug (Conversion Pigtail to DT Connector available)
Registration Type: SAE Approved
Light Function: with Front Fog Light
Shape: Round
Diameter [in]: 3.54
Mounting Type: Fitting
Technology: LED
Voltage: 12.00
Voltage: 24.00
DOT Approved: Yes
Street Legal: Yes
Bulbs Included: Yes
Lens Color: Clear
Base Color: Black
Bulb Type: LED
Mounting Hardware Included: Yes
Grade Type: OEM
Wiring Harness Included: No
Housing Color: Black
Bulb Technology: LED
Wattage: 20.00
