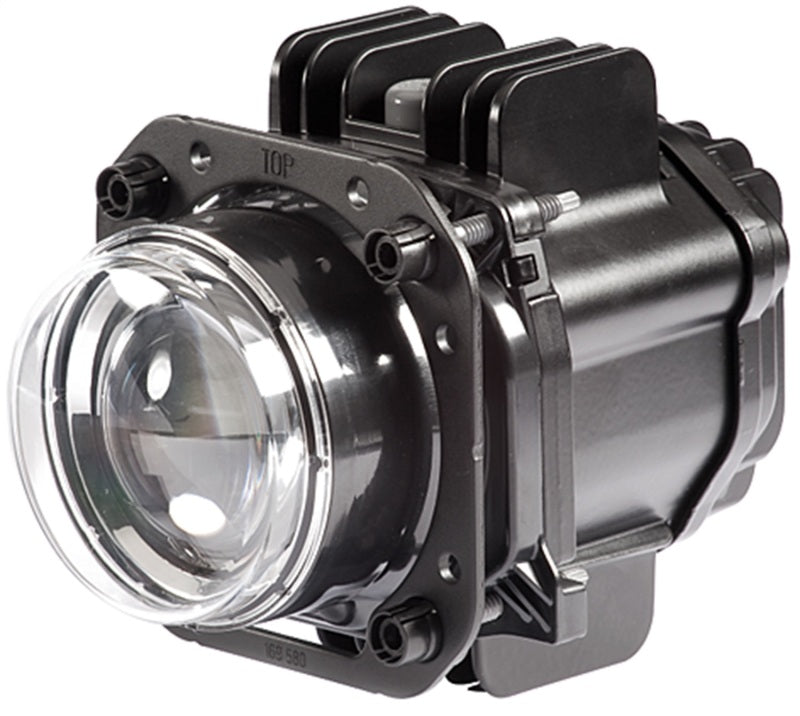

Hella 010820021 - 90mm BI-LED DE High-Low 12/24V Beam Light Module

Hella  |  SKU: HLA-010820021
Sale price $85999 Regular price $94599

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Hella 010820021 - 90mm BI-LED DE High-Low 12/24V Beam Light Module

HLMP 90MM BI-LED DE HI/LO 12/24V ECE

Headlight Assembly

HELLA 90mm modular headlights stand for the highest quality, reliability and cost efficiency. Whether bus, tractor, truck, motorhome or motorbike: The robust HELLA 90mm front headlights are used in many vehicle types. Thanks to their modular design, they offer maximum flexibility, which allows a wide range of applications as well as an individual front design. Within the 90mm modular headlamp range, a choice can be made between halogen and LED technology depending on requirements, which also facilitates the switch from halogen to LED. All modules score with a robust design and can therefore also be used in demanding working environments. The difference between the individual series of the 90mm range lies in the details. The L4060 LED modules, for example, shine with outstanding light output and additional lighting functions. The light colour of the LED modules, which is similar to daylight, significantly improves visibility and the ability to concentrate when driving at night, thus increasing safety. The L4565 Bi-LED modules as well as the BI-Halogen modules combine low beam and high beam in a single headlamp module and are therefore ideally suited for construction situations with limited space. The R80 modules have an innovative reflector design that ensures particularly homogeneous lighting.

  • Provides superior illumination for enhanced driving safety with optimized light distribution technology.
  • Ensures reliable performance in all weather conditions with durable materials designed for varied climates.
  • Enhances visibility in urban and rural settings with precision-engineered beam patterns for optimal light focus.
  • Offers universal compatibility, ensuring seamless integration with most modern vehicles for easy installation.
  • Facilitates hassle-free setup with user-friendly design, enabling straightforward installation and maintenance.
Outer diameter [mm]: 110
Width [in]: 5.63
Lamp Type: LED
Assy/Disassy by Qualified Personnel Required!: .
Height [in]: 5.63
Housing Color: Black
Supplementary Article/Supplementary Info 2: Electromagnetic Compatibility (EMC)
Voltage [VDC]: 12
Depth [mm]: 182
Number of light functions: 2
Illuminated Area [in]: 3.54
Shape: Round
Outer Diameter [in]: 4.33
Width [mm]: 143
Height [mm]: 143
Lens Color: Transparent
Fitting Position: Left
Light Function: with Low Beam (LED)
Mounting Type: Fitting
Test Mark: ECE
Illuminated Area [mm]: 90
Depth [in]: 7.17
Light Design: LED
Registration Type: ECE Approved
Bulb Technology: LED - Electromagnetic Compatibility (EMC)
Street Legal: Yes
Bulb Material Color: White
Lens Color: Clear
Bulb Type: LED
Mounting Hardware Included: No
Grade Type: Standard Replacement
Headlight Type: Assembly
Housing Color: Black
Bulb Technology: LED
