Hella 008191051 - 90MM Halogen High Beam Headlamp Module

Hella  |  SKU: HLA-008191051
Sale price $12499 Regular price $13749

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

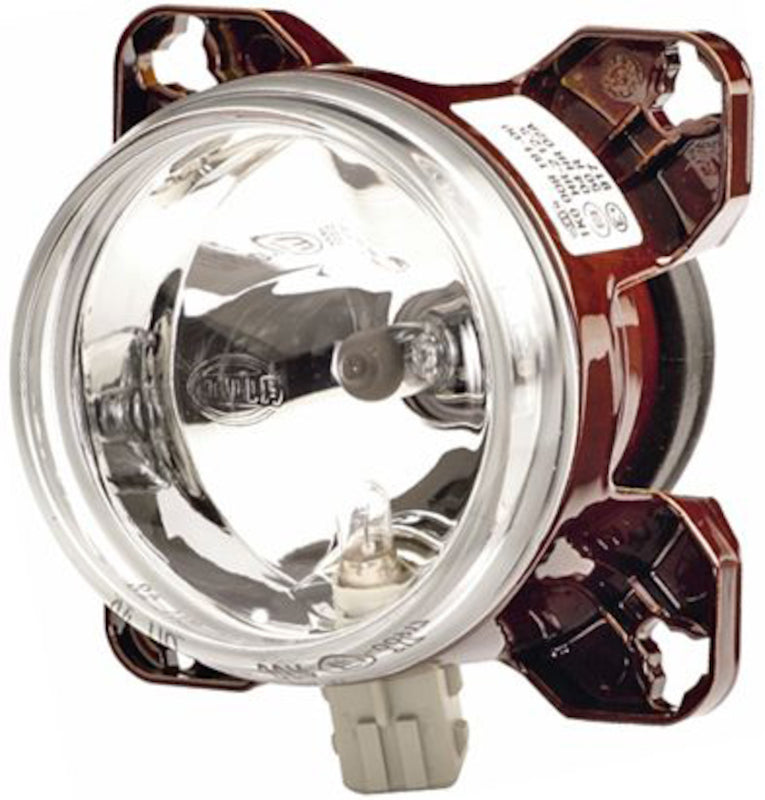

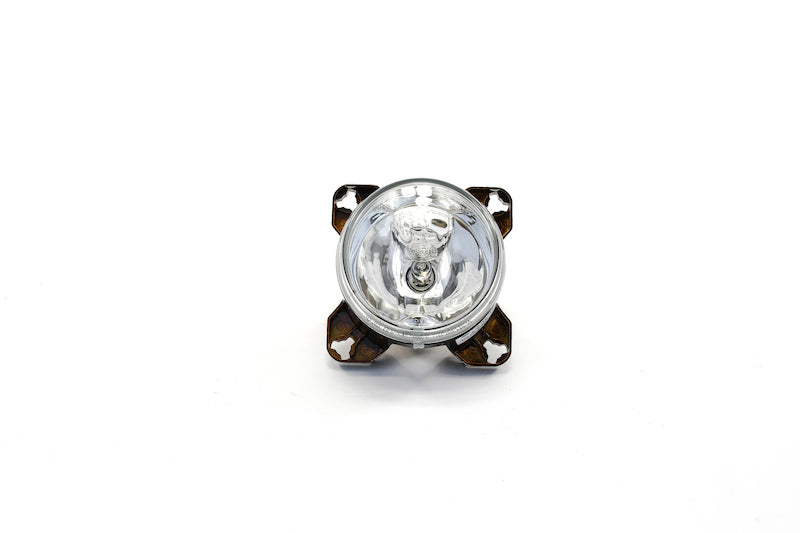

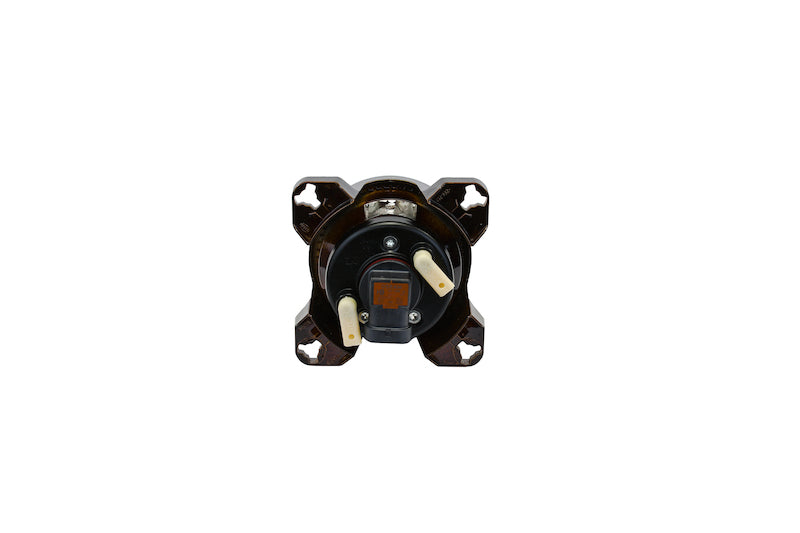

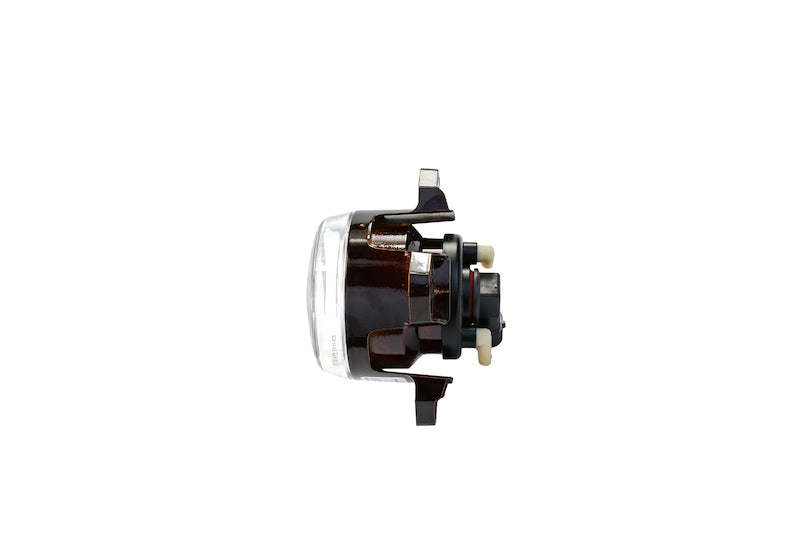

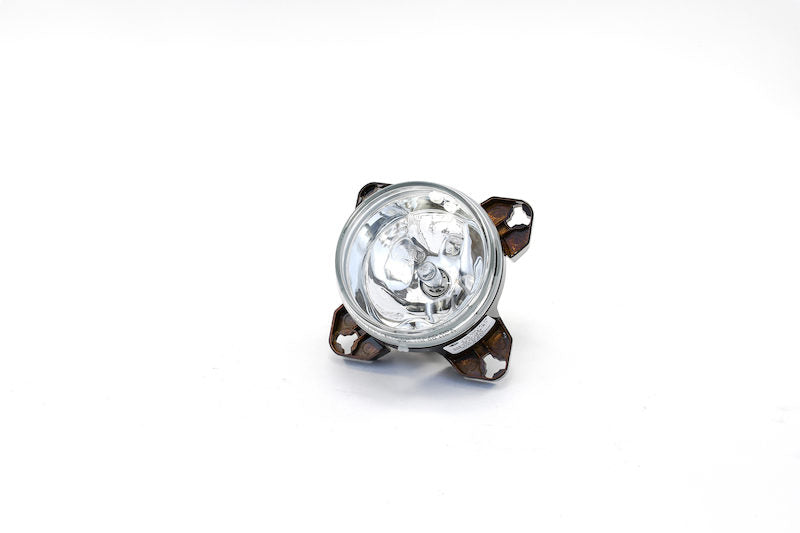

Hella 008191051 - 90MM Halogen High Beam Headlamp Module

HLMP 90MM CLASSIC HI H9 12V 65W SAE

Headlight Assembly

HELLA front lighting. Look ahead - with front lighting solutions from HELLA. Nothing works without powerful headlights - neither on the road nor in the field. They are the vehicle's eyes, so to speak, and thus an essential safety feature when driving and working at night. HELLA's 90 mm front lighting modules are particularly tailored to the needs of trucks and agricultural vehicles and are used in almost all vehicles and situations due to their functional diversity. The modules are small, but powerful - and offer a high degree of flexibility thanks to the modular concept, which allows numerous possible applications, especially in the truck and agricultural sectors. Thanks to the future-proof HELLA upgrade concept, even the classic halogen modules can later be converted to the efficient, bright LED technology that already characterises the majority of the modules.

  • Provides superior illumination for enhanced driving safety with optimized light distribution technology.
  • Ensures reliable performance in all weather conditions with durable materials designed for varied climates.
  • Enhances visibility in urban and rural settings with precision-engineered beam patterns for optimal light focus.
  • Offers universal compatibility, ensuring seamless integration with most modern vehicles for easy installation.
  • Facilitates hassle-free setup with user-friendly design, enabling straightforward installation and maintenance.
Registration Type: SAE Approved
Mounting Type: Screw Connection
IP Rating: IP5KX
Fastening Type: Four-Point Attachment
Fitting Position: Left
Assy/Disassy by Qualified Personnel Required!: .
Supplementary Article/Supplementary Info: with Bulb
Light Function: with High Beam
Light Design: FF
Illuminated Area [in]: 3.54
Supplementary Article/Supplementary Info 2: with Bulbs
Electromagnetic Compatibility (EMC): ECE R8/R7
Quantity: 1
Test Mark: CCC/SAE
ECE Regulation: R8
Number of light functions: 1
Diffusing Lens Type: Clear Diffusing Lens
Lamp Type: H9
Voltage [VDC]: 12
Shape: Round
Illuminated Area [mm]: 90
Bulb Type: H9 - with Bulb - with Bulbs
Street Legal: Yes
Bulb Material Color: White
Bulbs Included: Yes
Lens Color: Clear
Bulb Type: H9
Mounting Hardware Included: No
Grade Type: Standard Replacement
Headlight Type: Bulb
Housing Color: Black
Bulb Technology: Halogen
Wattage: 65.00
