Hella 006462001 - Socket 7 Pole ECode

Hella  |  SKU: HLA-006462001
$3199 $3519

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

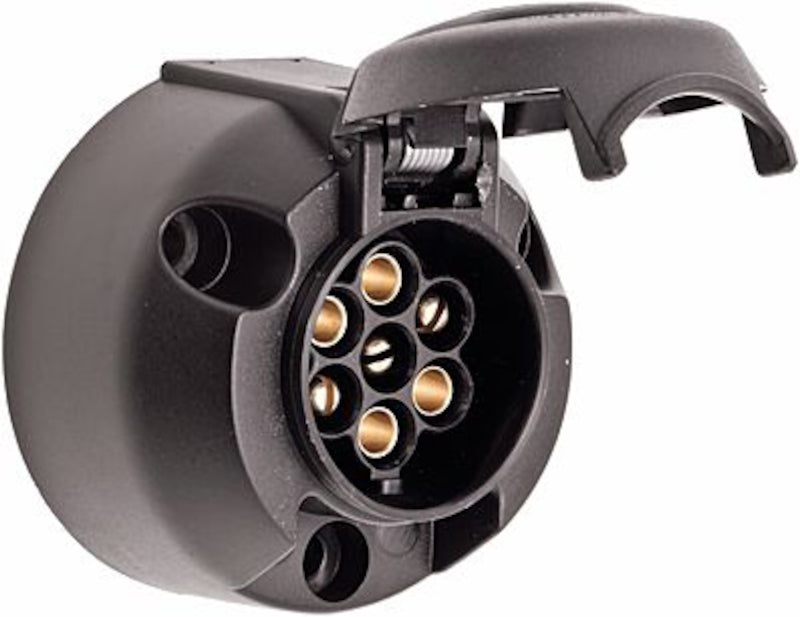

Hella 006462001 - Socket 7 Pole ECode

7-Pole Socket E-Code

The 7-pin plug-in system 12 V according to ISO 1724 / ISO 3732 is the most widely used system for electrical connections between towing vehicle and trailer with 12 V on-board network. The system is primarily used for applications with average requirements. It consists of a standard connector, type N, according to ISO 1724 and an additional connector, type S, according to ISO 3732. The additional system differs from the standard system by its white housing, contact inserts and interchangeable contact arrangement.

  • OE quality
Voltage (V): 24
Capacity at 12V: 16A
Voltage from (V): 6
Voltage to (V): 24
DIN/ISO: 1724 N-Typ
DIN/ISO Standard: 1724 N-Typ
Number of pins: 7
Color: Black
Plug Type: Blade Terminal
Cross Section (mm Squared) from: 1.5
Cross Section (mm Squared) to: 2.5
Current Strength from (A): 16
Current strength to (A): 25
Bore (mm): 5.5
Bore diameter (mm): 5.5
Number of bores: 3
Depth (in): 2.28
Depth (mm): 58
Socket Width (mm): 6.3
Supplementary Article/Info 2: Removable Inset
Assy/Disassy by Qualified Personnel Required!: .
Quantity: 25
