Hella 005993122 - Fuse Box 8 PIN BLADE TERMINAL

Hella  |  SKU: HLA-005993122
Sale price $4099 Regular price $4509

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

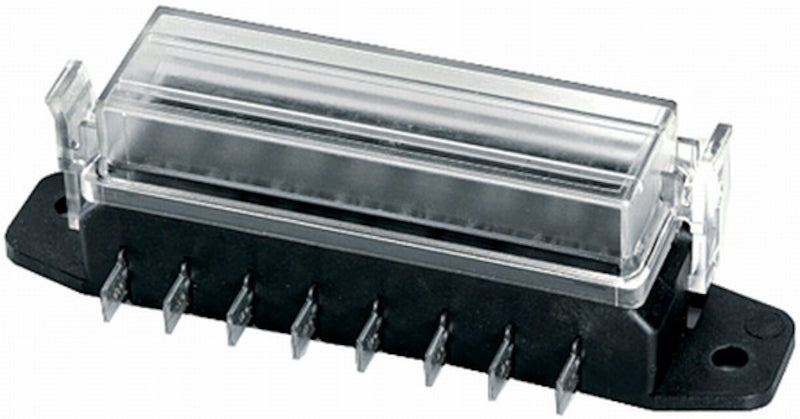

Hella 005993122 - Fuse Box 8 PIN BLADE TERMINAL

HELLA Fuse Box 005993122

If a single fuse holder is not sufficient to integrate an additional device into the electrical system, or if several functions are to be added at once, the use of a fuse box is an option. The bundling of the backup functions at a central point creates both an overview and ease of maintenance. As with the fuse holders, there are numerous variants for each fuse type, differing in shape, colour, size, contacting and protection class. The fuse box sets are modular in design, which means that the fuse box can be individually assembled to suit the application.

  • Central Protection: Organizes and safeguards critical circuits from overloads, keeping your vehicle’s electronics safe and sound.
  • Easy Access: Labeled and logically arranged layout makes replacing fuses or troubleshooting electrical issues a breeze.
  • Heavy-Duty Housing: Impact- and heat-resistant shell provides robust protection even under harsh driving conditions.
  • Expandable Design: Offers room for additional circuits or upgrades, giving you flexibility for customizations and tech add-ons.
  • OEM Grade Fit: Designed for exact compatibility with vehicle systems, ensuring a seamless fit and hassle-free installation.
Temperature range from [°F]: -22
Quantity: 10
Fuse Type: for ATO Fuse
Current Strength to [A]: 135
Voltage to [VDC]: 32
Assy/Disassy by Qualified Personnel Required!: .
Number of connectors: 16
Housing Color: Black
IP Rating: IP23
Housing material: PA 66 GF 30
Height [mm]: 36.5
Plug Type: Blade Terminal
Gender: Female
Terminal Gender: Female
Length [in]: 4.72
Temperature range from [°C]: -30
Temperature range to [°F]: 212
Bolt Distance [mm]: 105
Depth [mm]: 45.2
Plug Type ID: 16 x Side (6.3 x 0.8)
Contact Surface: Tin-Plated
Length [mm]: 120
Bolt Distance [in]: 4.13
Color: Black
Temperature range to [°C]: 100
Socket Width [mm]: 6.3
Shape: Rectangular
Number of pins: 8
Terminal Type: Blade
Terminal Quantity: 16
