Hella 005993102 - Fuse Box

Hella  |  SKU: HLA-005993102
Regular price $000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

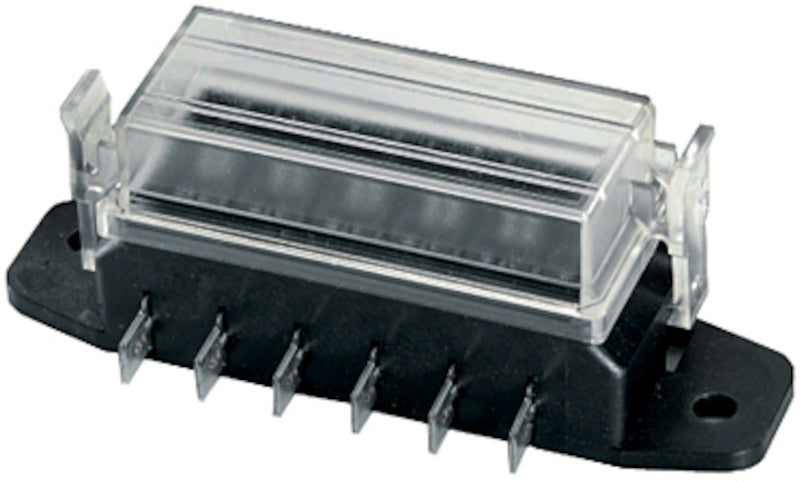

Hella 005993102 - Fuse Box

HELLA Fuse Box 005993102

If a single fuse holder is not sufficient to integrate an additional device into the electrical system, or if several Functions are to be added at once, the use of a fuse box is an option. The bundling of the backup Functions at a central Point creates both an overview and ease of maintenance. As with the fuse holders, there are numerous variants for each fuse Type, differing in shape, Color, size, contacting and protection class. The fuse box sets are modular in design, which means that the fuse box can be individually assembled to suit the application.

  • Central Protection: Organizes and safeguards critical circuits from overloads, keeping your vehicle’s electronics safe and sound.
  • Easy Access: Labeled and logically arranged layout makes replacing fuses or troubleshooting electrical issues a breeze.
  • Heavy-Duty Housing: Impact- and heat-resistant shell provides robust protection even under harsh driving conditions.
  • Expandable Design: Offers room for additional circuits or upgrades, giving you flexibility for customizations and tech add-ons.
  • OEM Grade Fit: Designed for exact compatibility with vehicle systems, ensuring a seamless fit and hassle-free installation.
Length [mm]: 100
Fuse Type: for ATO Fuse
Contact Surface: Tin-Plated
Voltage to [VDC]: 32
Socket Width [mm]: 6.3
Number of pins: 6
Bolt Distance [mm]: 85
Current Strength [A]: 80
Number of connectors: 12
Temperature range to [°F]: 185
Length [in]: 3.94
Assy/Disassy by Qualified Personnel Required!: .
Temperature range to [°C]: 85
Quantity: 10
Depth [mm]: 45.2
Housing Color: Black
Color: Black
Plug Type ID: 12 x Side (6.3 x 0.8)
Gender: Female
Terminal Gender: Female
Height [mm]: 36.5
Bolt Distance [in]: 3.35
Temperature range from [°F]: -22
IP Rating: IP23
Plug Type: Blade Terminal
Temperature range from [°C]: -30
Housing material: PA 66 GF 30
Shape: Rectangular
Terminal Type: Blade
Terminal Quantity: 12
