Hella 005993092 - Fuse Box

Hella  |  SKU: HLA-005993092
Regular price $000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

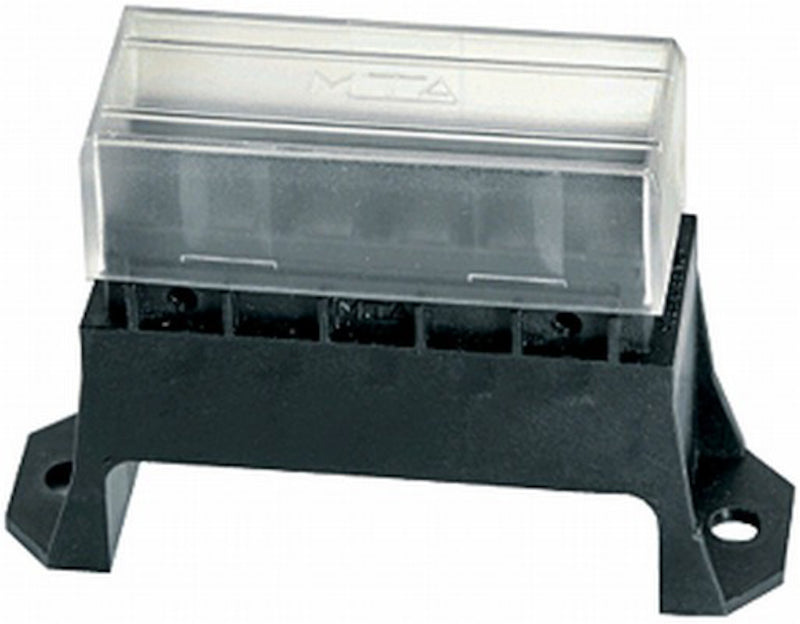

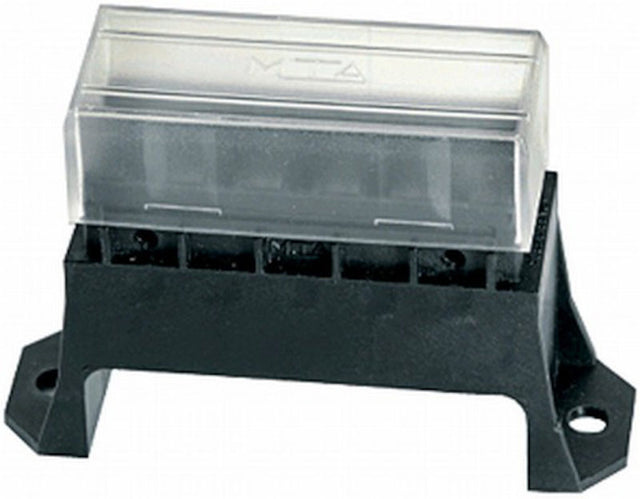

Hella 005993092 - Fuse Box

HELLA Fuse Box 005993092

If a single fuse holder is not sufficient to integrate an additional device into the electrical system, or if several Functions are to be added at once, the use of a fuse box is an option. The bundling of the backup Functions at a central Point creates both an overview and ease of maintenance. As with the fuse holders, there are numerous variants for each fuse Type, differing in shape, Color, size, contacting and protection class. The fuse box sets are modular in design, which means that the fuse box can be individually assembled to suit the application.

  • Central Protection: Organizes and safeguards critical circuits from overloads, keeping your vehicle’s electronics safe and sound.
  • Easy Access: Labeled and logically arranged layout makes replacing fuses or troubleshooting electrical issues a breeze.
  • Heavy-Duty Housing: Impact- and heat-resistant shell provides robust protection even under harsh driving conditions.
  • Expandable Design: Offers room for additional circuits or upgrades, giving you flexibility for customizations and tech add-ons.
  • OEM Grade Fit: Designed for exact compatibility with vehicle systems, ensuring a seamless fit and hassle-free installation.
Voltage to [VDC]: 32
Depth [mm]: 26
Number of connectors: 12
Depth [in]: 1.02
Bolt Distance [mm]: 73.2
Plug Type ID: 12 x Axial (6.3 x 0.8)
Temperature range from [°C]: -30
Quantity: 10
Temperature range to [°C]: 85
IP Rating: IP22
Assy/Disassy by Qualified Personnel Required!: .
Mounting Type: Flat Plug-in Connector
Housing Color: Black
Contact Surface: Tin-Plated
Color: Black
Height [mm]: 57.5
Number of pins: 6
Temperature range from [°F]: -22
Housing material: PA 66 GF 30
Fuse Type: for ATO Fuse
Current Strength [A]: 100
Temperature range to [°F]: 185
Socket Width [mm]: 6.3
Length [mm]: 85.2
Plug Type: Blade Terminal
Gender: Female
Shape: Rectangular
Terminal Gender: Female
Terminal Type: Blade
Terminal Quantity: 8
