Hella 005700431 - Headlamp Zfh Yellow 0/180Gr Swmk Mg 1Fd

Hella  |  SKU: HLA-005700431
Sale price $7399 Regular price $8139

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

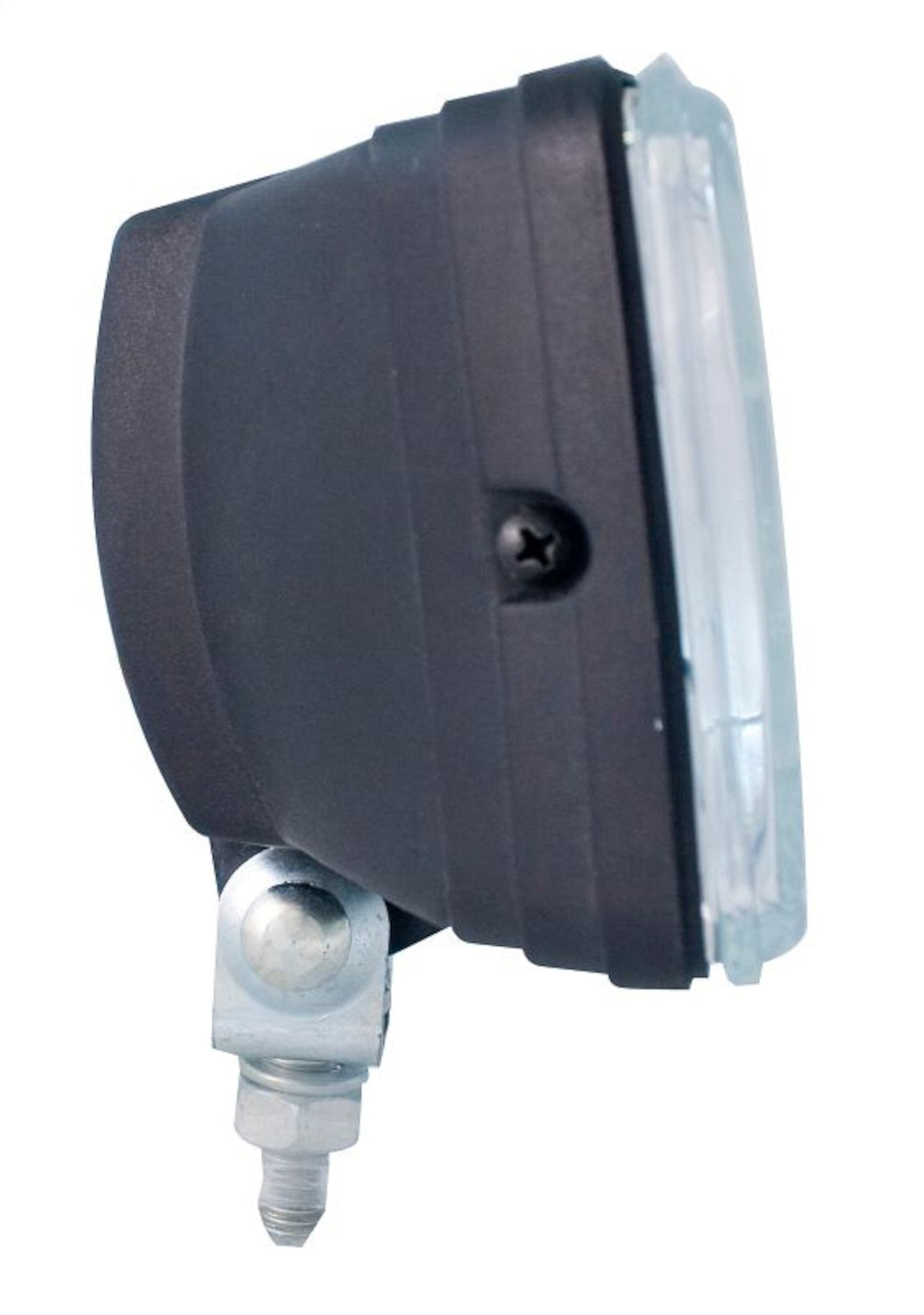

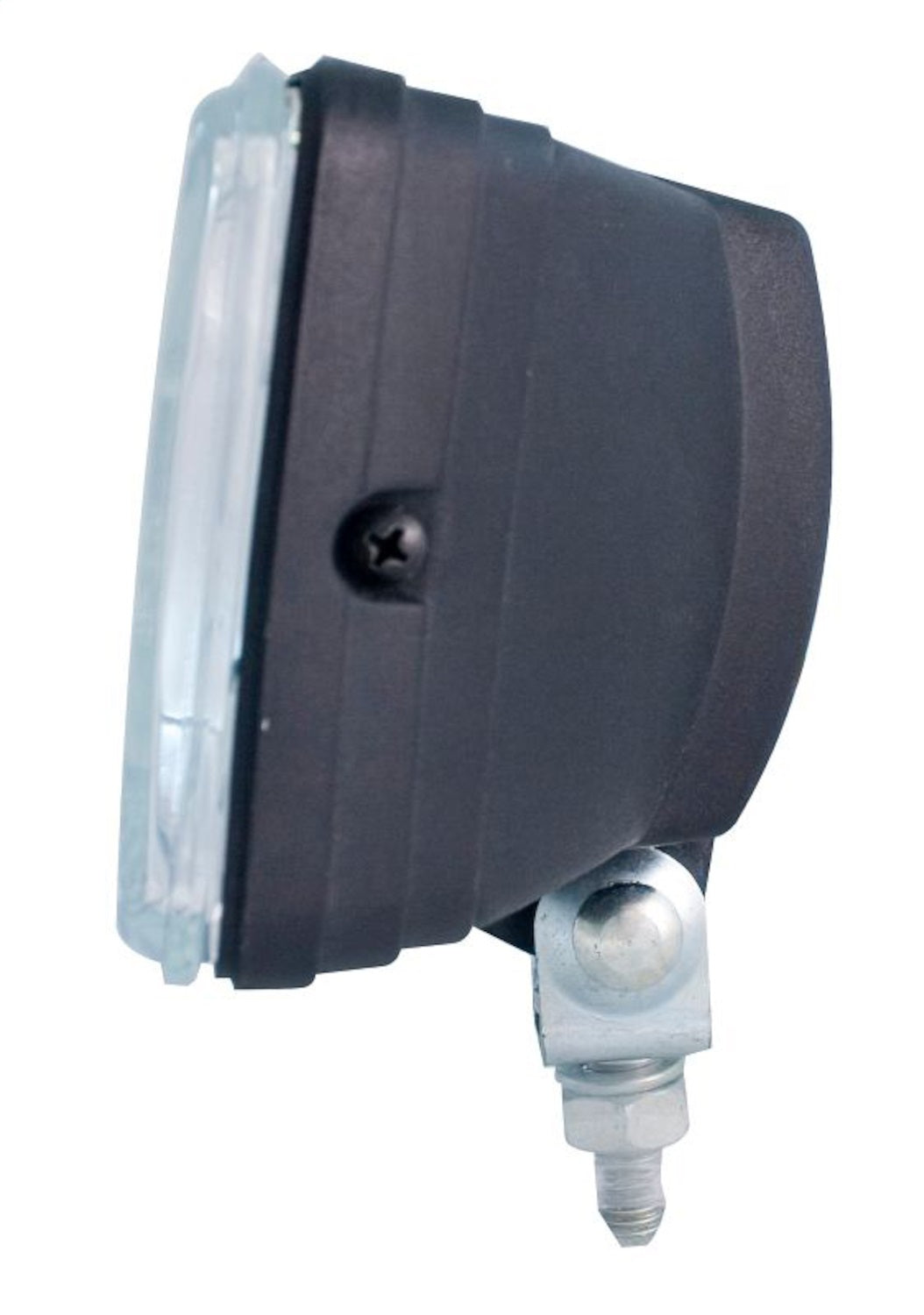

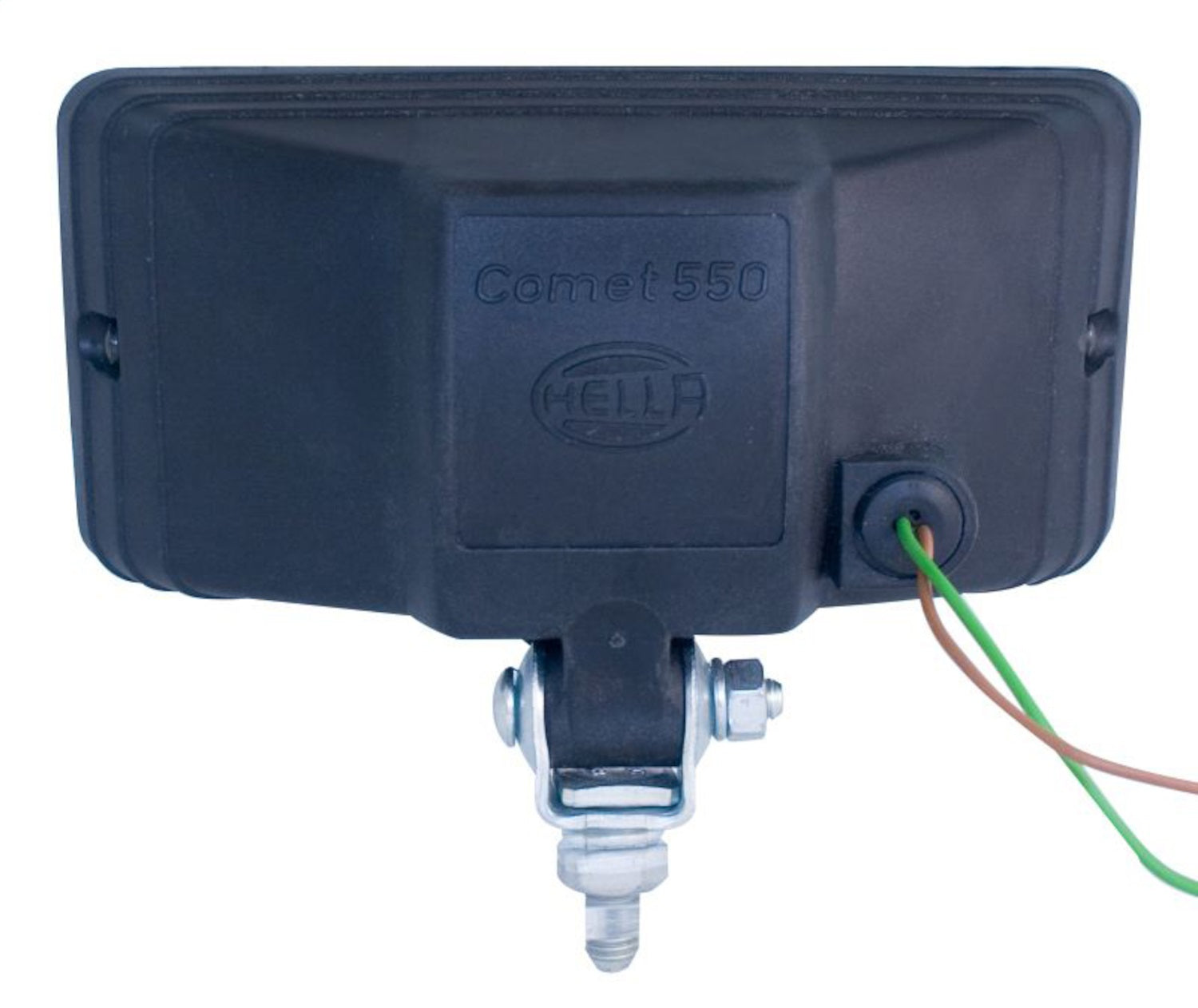

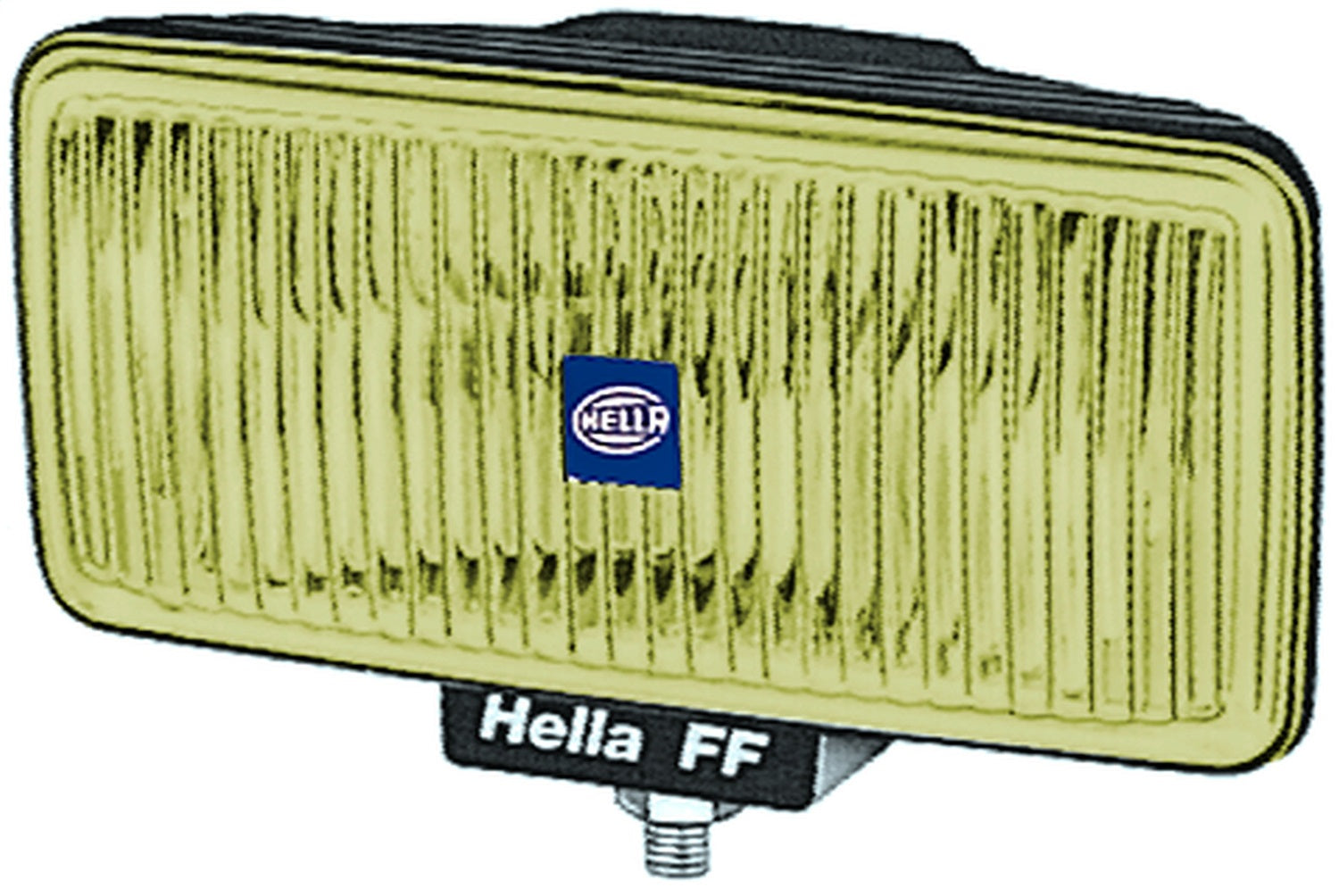

Hella 005700431 - Headlamp Zfh Yellow 0/180Gr Swmk Mg 1Fd

HELLA Driving Light 005700431

Driving Light

The HELLA auxiliary high beam headlamps offer that something extra: more light, so you can stay on top of the road in every driving situation. In turn, this increases the safety of every road user. HELLA's indisputable quality and use of state-of-the-art technology are a given. Tried-and-tested standard solutions or innovative LED technology: whatever it may be, the HELLA headlamp series is specially tailored to the demands of trucks and continuously developed to offer the optimum solution for every situation. Light you can rely on!

  • Extended Visibility: HELLA’s driving light cuts through darkness and distance, giving you a wider, longer view of the road ahead for safer night driving.
  • Rugged Design: Built tough to handle off-road conditions, HELLA’s driving light resists shock, dust, and moisture—perfect for any terrain.
  • Powerful Beam: Delivers intense, focused light to enhance long-range visibility—ideal for rural roads, highways, and adventure driving.
  • Easy Mounting: Designed for quick installation with universal brackets, making it simple to upgrade your lighting setup.
  • Trusted Quality: Backed by HELLA’s decades of automotive expertise, this driving light combines performance, durability, and reliability in one sleek package.
Assy/Disassy by Qualified Personnel Required!: .
Depth [mm]: 83
Housing Color: Black
Lamp Type: H3
Number of light functions: 1
Height [mm]: 96
Light Design: Halogen
Mounting Type: Bolted
Width [in]: 7.68
Bulb Type: H3
Mounting Bracket: Zinc-Coated Steel
Supplementary Article/Supplementary Info: with Bulb
Shape: Rectangular
Light Function: with High Beam
Overall Height [mm]: 119
Diffusing Lens Type: Patterned Diffusing Lens
Voltage [VDC]: 12
Single Lamp Includes: (1) Lamp, (1) Halogen Bulb, (1) Stone Shield, Universal Mounting Hardware, Step-by-Step Mounting Instructions
Mounting: Upright / Pendant
Test Mark: ECE/SAE
Width [mm]: 195
Fitting Depth [mm]: 18
Optics: Reflector / Lens
Fastening Type: Swivelling Mounting Bracket
Lens Color: Yellow
Supplementary Article/Supplementary Info 2: with Top
Kit Includes: (2) Lamps, (2) Halogen Bulbs, (2) Stone Shields, (1) Wiring Harness, (1) Switch, (1) Relay, Universal Mounting Hardware, Step-by-Step Mounting Instructions
Wattage [W]: 55
Fitting Position: Left
ECE Regulation: R8
Overall Height [in]: 4.69
Connection: Wire Leads
Height [in]: 3.78
Depth [in]: 3.27
Fitting Depth [in]: 0.71
Housing Type: Synthetic Material Housing
Voltage: 12.00
Street Legal: No
Bulb Material Color: Clear
Bulb Type: H3
Lens Material: Glass
Mounting Hardware Included: Yes
Housing Material: ABS
Bulb Technology: Halogen
Light Beam Pattern: Fog
Wattage: 55.00
