Hella 003399071 - Horn STone 24V 500Hz Htone Blk (B133)

Hella  |  SKU: HLA-003399071
Sale price $7499 Regular price $8249

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Hella 003399071 - Horn STone 24V 500Hz Htone Blk (B133)

SUPER TONE HORN 24V 500HZ SW 3AF

The HELLA B133 Series Single Tone of Super tone Horns, offers an exceptional blend of high-performance and striking style for automotive enthusiasts who demand both functionality and aesthetics. Operating at robust frequencies of 500 Hz, these horns produce a penetrating and harmonious sound that ensures your presence is noticed on the road. Designed with a bold black matte finish, these horns not only sound impressive but also add a touch of style to any vehicle. - Ideal for drivers seeking to enhance their vehicle's safety features while making a strong visual statement, the HELLA B133 Super tone Horns are easy to install and compatible with a wide range of models, making them a top choice for upgrading your car's auditory and visual appeal. Riveted assembly instead of screws to increase reliability.

  • Enhances road safety by emitting a 335 Hz tone, providing clear and audible alerts in all conditions.
  • Delivers maximum awareness with a volume output ranging from 108 dB(A) to 118 dB(A), ensuring audibility.
  • Ensures long-term reliability with robust construction engineered to withstand vibration and harsh conditions.
  • Facilitates fast identification and installation with concise short codes, streamlining maintenance and replacement.
  • Designed for universal compatibility, this part fits most modern vehicles, simplifying the installation process.
Measurements [cm]: 8.5 x 12.5
Supplementary Article/Supplementary Info 2: with Condenser
IP Rating: IPX9K
Test Mark: ECE-R28
Housing Color: Black
Operating Mode: Electric
Mounting Type: Flat Plug-in Connector
Depth [mm]: 85
Quantity: 1
Sound Level [dB(A)]: 118
Diameter [in]: 4.84
Vehicle configuration line / variant: for Special-Purpose Vehicles
Overall Height [in]: 5.31
Homologation: ECE-R28

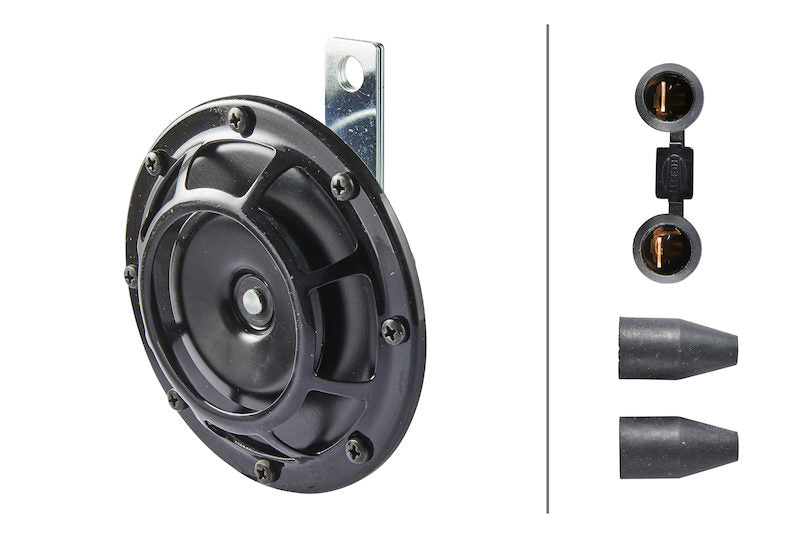

Set includes: (1) High-Tone Disc Horn, Mounting Brackets, Step-by-Step Mounting Instructions
Overall Height [mm]: 135
Frequency Range [Hz]: 500
Voltage [VDC]: 24
Temperature range from [°F]: -40
Diameter [cm]: 12.3
Diameter [mm]: 123
Assy/Disassy by Qualified Personnel Required!: .
Color: Black
Temperature range to [°F]: 167
Power consumption [A]: 3.5
Temperature range to [°C]: 75
Temperature range from [°C]: -40
Signal: Loud Tone
Registration Type: ECE Approved
Width [in]: 4.92
Bracket: M8 Mounting Screw
Width [mm]: 125
Depth [in]: 3.35
Special Purpose Vehicle: for Special-Purpose Vehicles
Frequency range to [Hz]: 500
Wattage [W]: 84
Interference suppressed: .
ECE Regulation: R28
Grade Type: Standard Replacement
Voltage: 24.00
Color: Black
Decibel Rating: 110.00
Terminal Type: Blade
Mounting Hardware Included: Yes
Connector Quantity: 1
Mount Type: Bracket Mounting
Terminal Quantity: 2
Mounting Bracket Included: Yes
