Hella 002843071 - Battery Cut-Off Switch

Hella  |  SKU: HLA-002843071
$7044 $7748

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

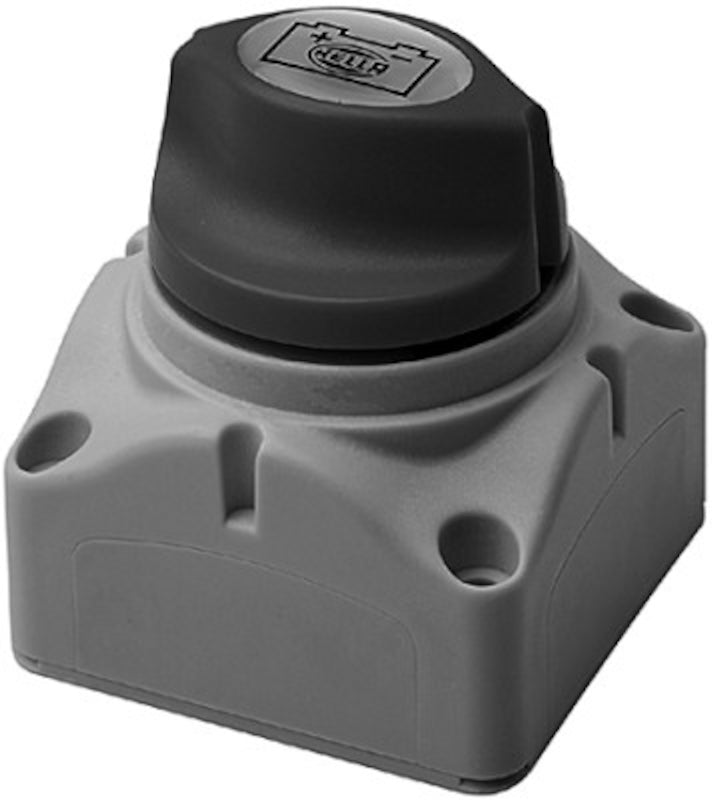

Hella 002843071 - Battery Cut-Off Switch

HELLA Battery Cut-Off Switch 002843071

At HELLA we offer you a wide Range of different switches for every Function. HELLA's battery disConnectors provide effective safety against theft and fire hazards in the event of accidents in the agricultural and construction machinery industry, for example. Simply pressing the key forcibly closes the vehicle's circuit between the battery, starter and other consumers. Opening (separation) is effected by a return spring. An indispensable safety factor.

  • The red switch button can only be removed in a 45 position against the clockwise direction
Number of connectors: 2
Capacity at 12V: max 1000 A/10 sek.
Control Type: Turn Knob Control
Bolt (in): 0.39
Bolt Head Diameter (in): 0.39
Bolt Head Diameter (mm): 10
Bolt (mm): 10
DIN/ISO: 40050-IP56
DIN/ISO Standard: 40050-IP56
Thread Pitch (mm): 1.5
Combi Switch Function: Normally Open Contact
Current Strength (A): 225
Supplementary Article/Supplementary Info: with Nuts
Assy/Disassy by Qualified Personnel Required!: .
Mounting Type: Bolted
